Product Description
Specification
|
Dimension
|
3100*1850*1650
|
|
Platform size
|
1500*3000
|
|
Work area
|
1300*2500*200
|
|
Travelling speed
|
20m/min(MAX)
|
|
Working speed
|
12m/min(MAX)
|
|
Working voltage
|
AC220V(Optional 380V)
|
|
Spindle power
|
Water cooled 3.2KW-24000RPM
|
|
Device architecture
|
One molding process,space saving cabinet (380V for the normal external cabinet)high structural stability ,high precision and small
deformation |
|
Driving system
|
XYZ: 86 high torque stepper drive motor and drive
|
|

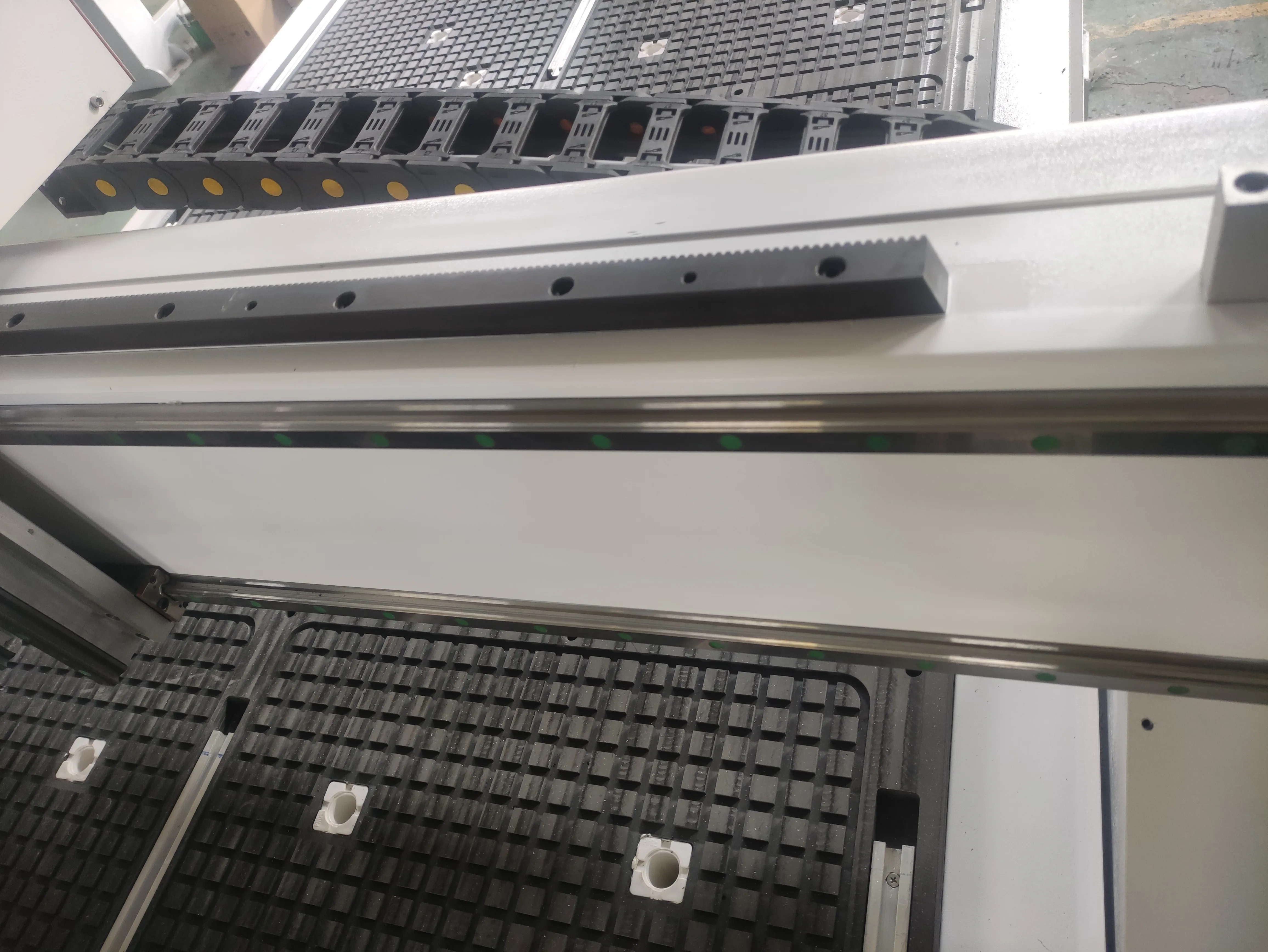

Rack and pinion
|
The new 1.2m alloy hardened helical gear rack + alloy hardened helical gear rack
|
|
Guide Rails
|
Taiwan Original 20 guide rails +Taiwan TBI 2510 ball screw
|
|
Operating system
|
Weihong
|
|
Platform structure
|
Aluminum profile + fixture
|
|
Electrical accessories
|
Omron, Chint
|
|
Inverter
|
Best
|
|
Power cable
|
Shanghai customized high-soft high-speed shielding cable,
anti-interference and anti-breakage |
|
Lubrication system
|
Oil pump centralized lubrication control
|
|
Security system
|
Overtravel protection, electrical protection etc.
|
|
Dust collector
|
2.2KW vacuum cleaner,Vacuum pipe,Vacuum hood
|
|
Fastenings
|
The transmission parts are fixed with high strength 12.9 class screws,
and the sheet metal is fixed with 304 stainless steel screws |
|
Accuracy
|
Each axis is fixed rigidly, and the locating pin is added
to the precision part |
|
Quality Control
|
Incoming material, process, delivery full control,
24 hours machine test |
Show details

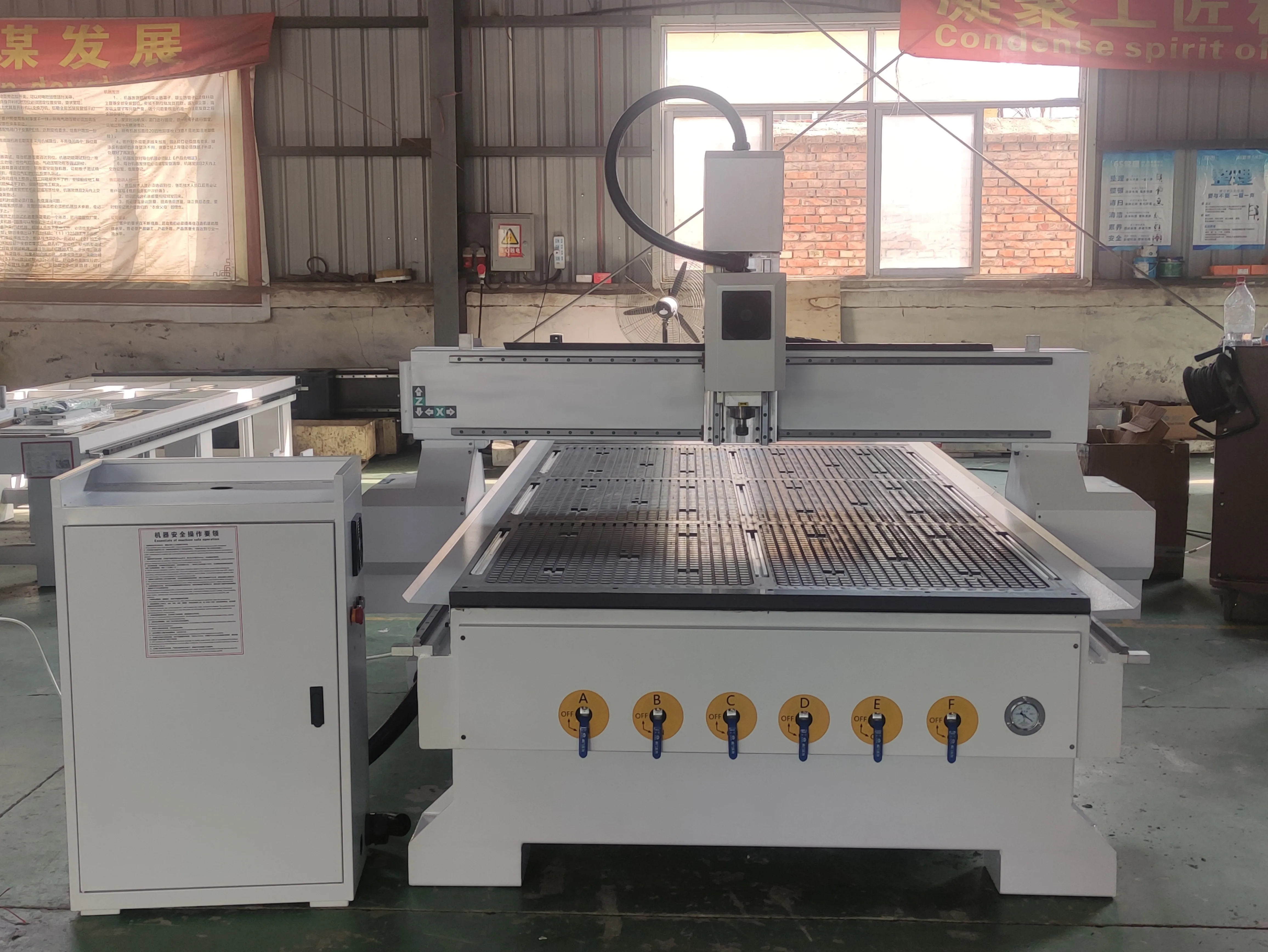

WORKING TABLE

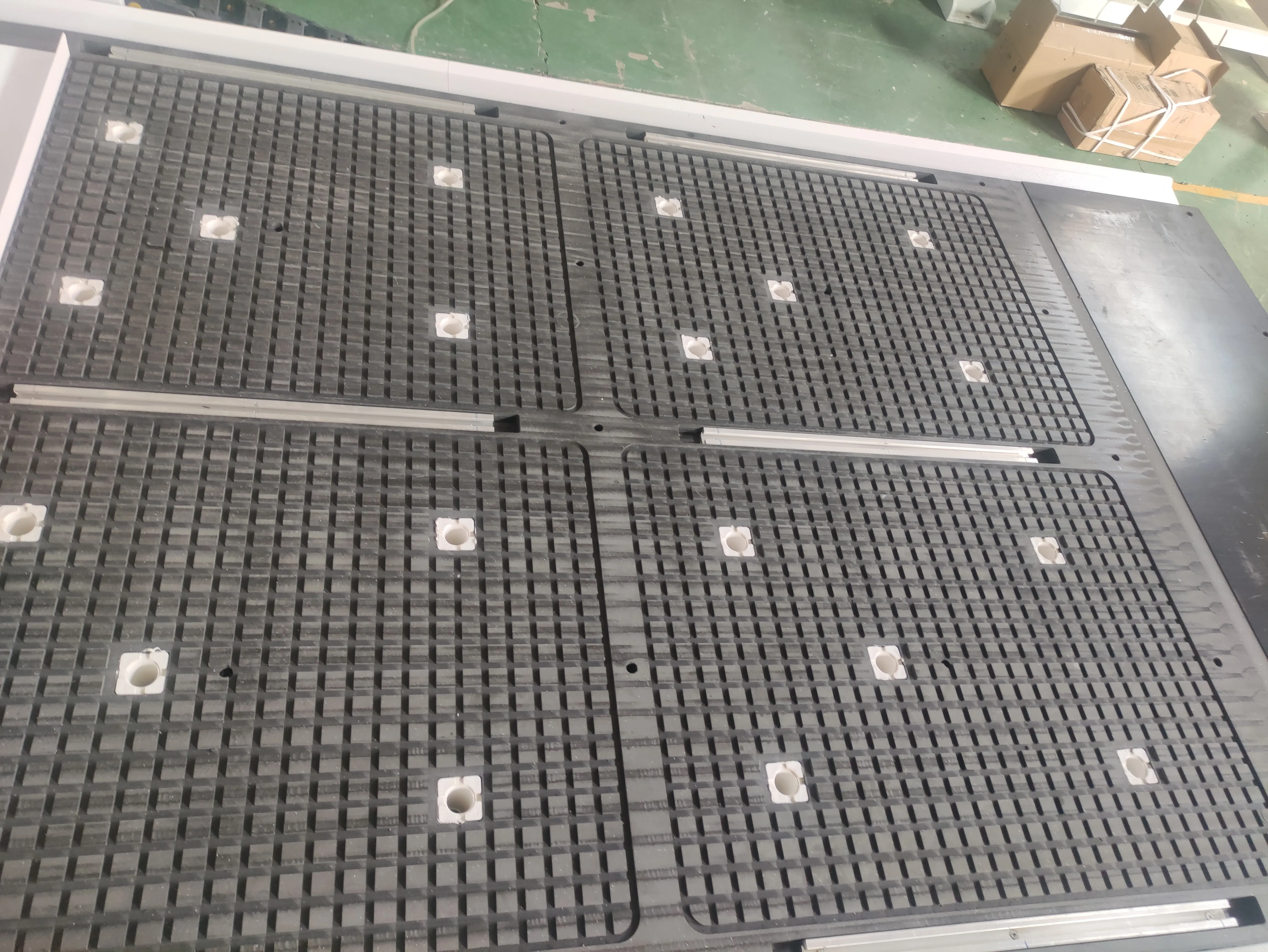

Vacuum+T-slot table
The entire work table is divided into six partitions, which are controlled separately for easy adjustment

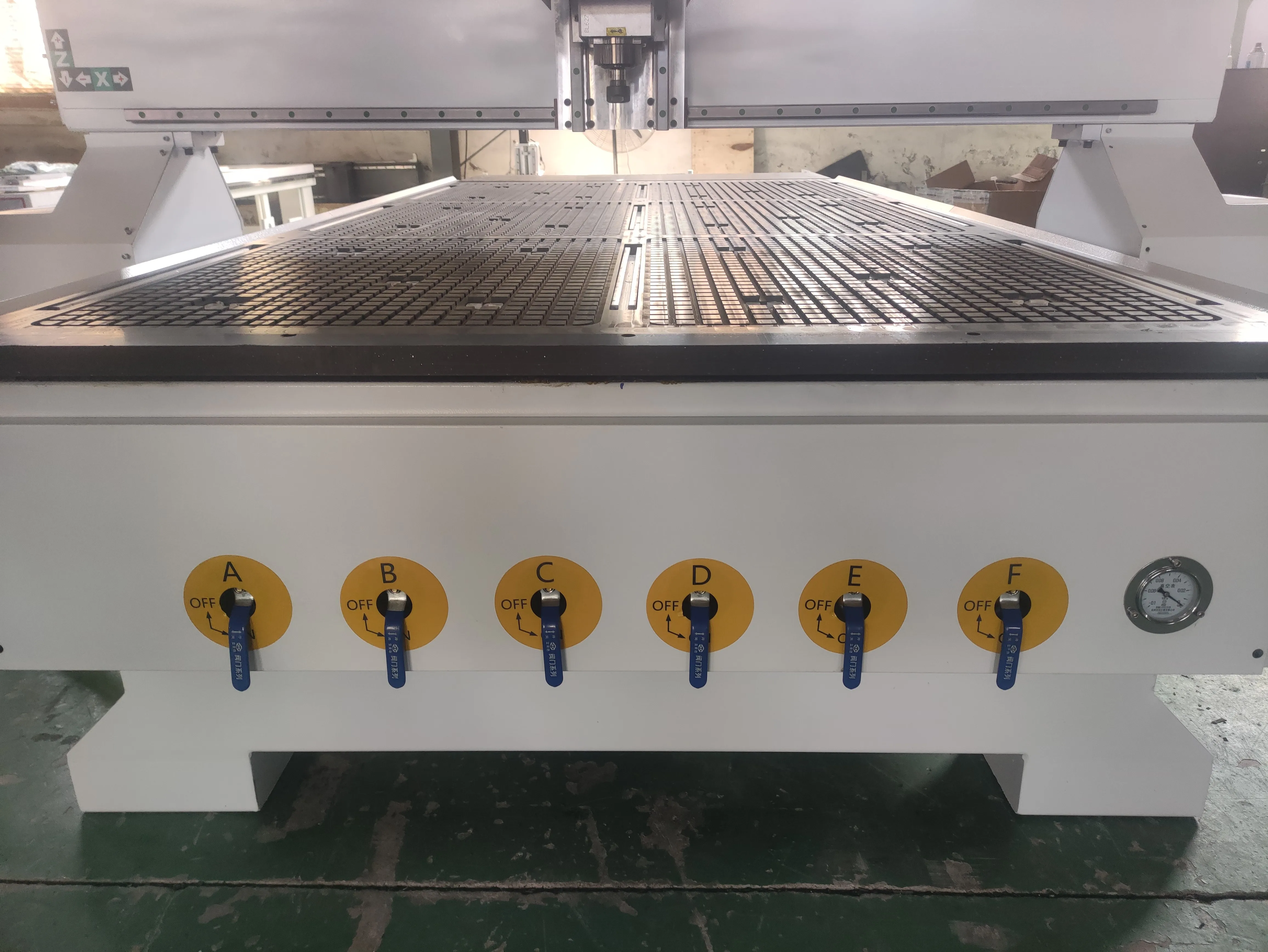

CONTROL VALVE.
6 valves repectively control 6 zones of
the vacuum table
the vacuum table
Pressure can be adjusted separately.

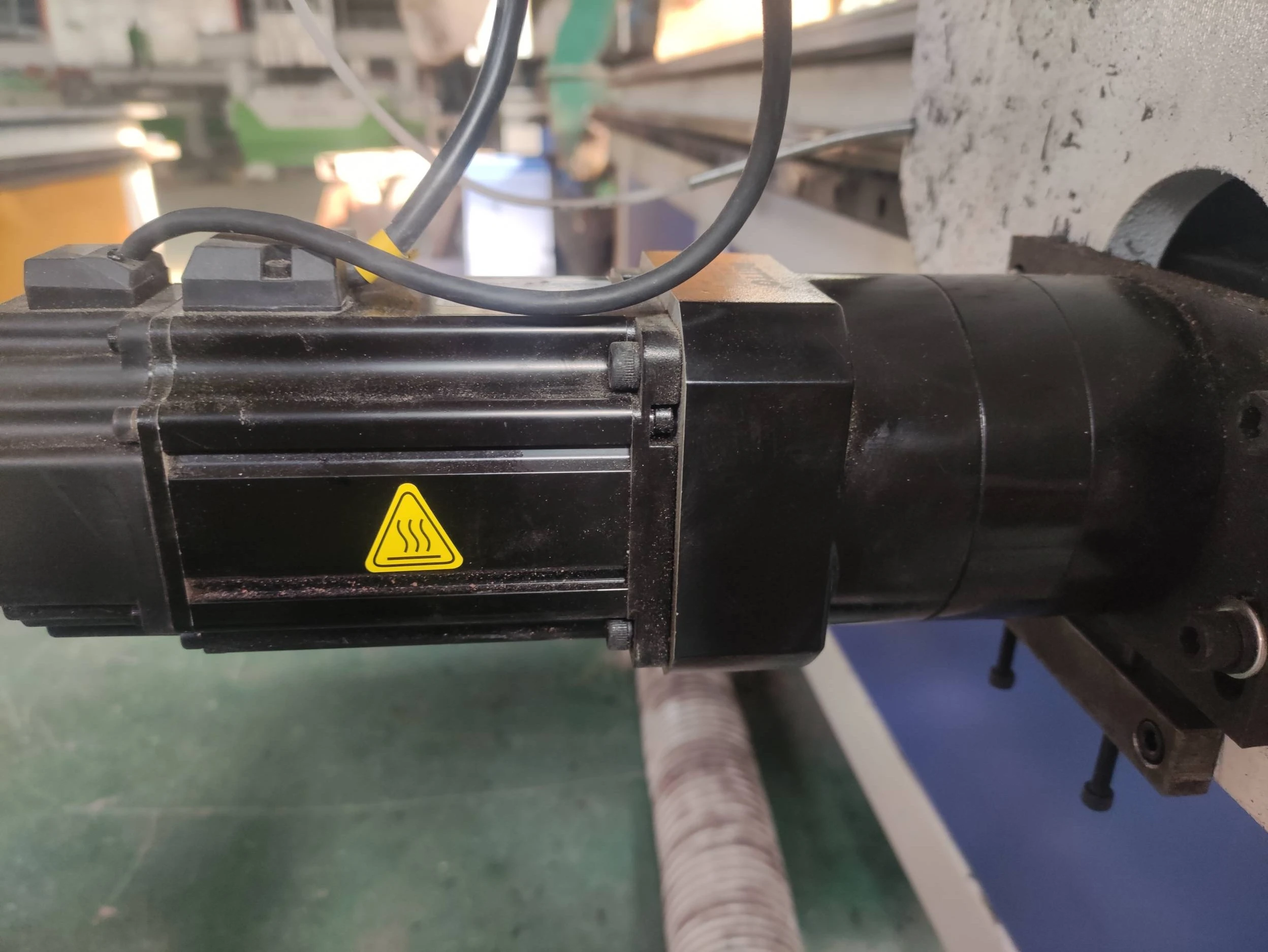

SERVO MOTOR
Servo motor
Can bereplaced with Japanese Yasukawa Servo motor

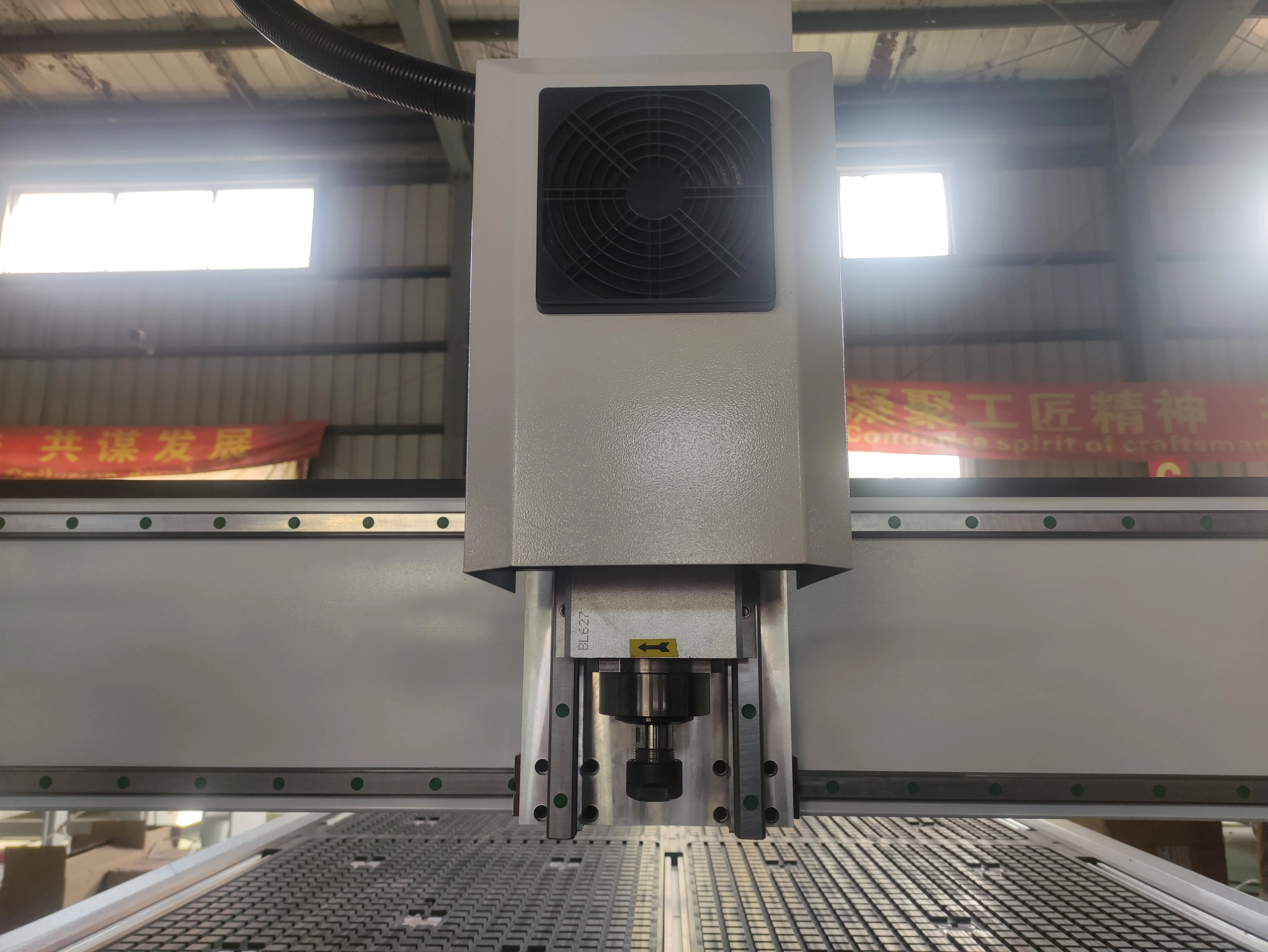

HQD SPINDLE
3.5/4.5/6KW Air Cooling Spindle
Can bereplaced with Italian HSD spindle
Can bereplaced with Italian HSD spindle
Fast Speed and High efficiency

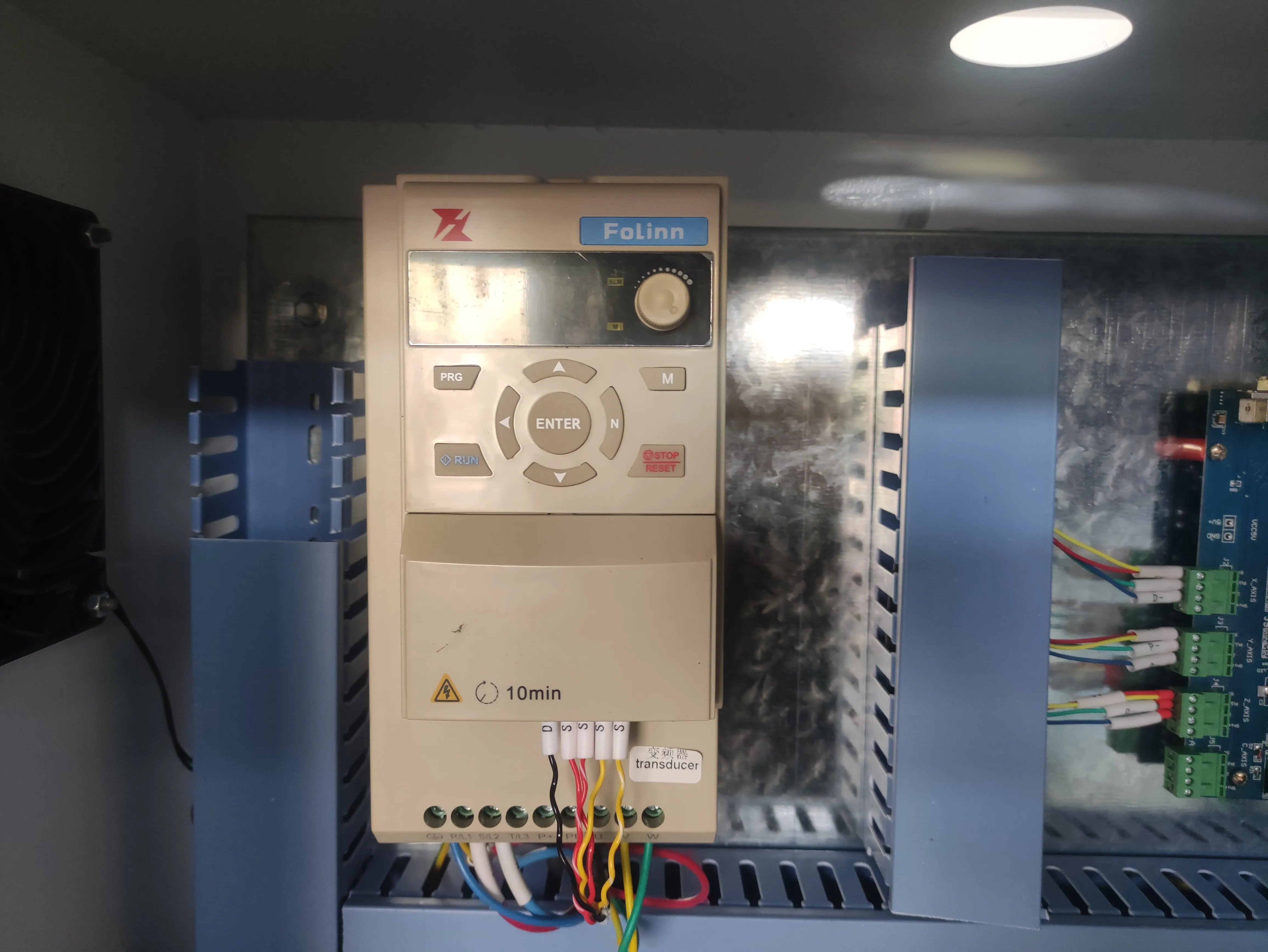

FREQUENCY CONVERTER
HPMOT Frequency Converter
Stable and efficient work
CONTROL SYSTEM
NC/DSP Control System
support multi-languauge

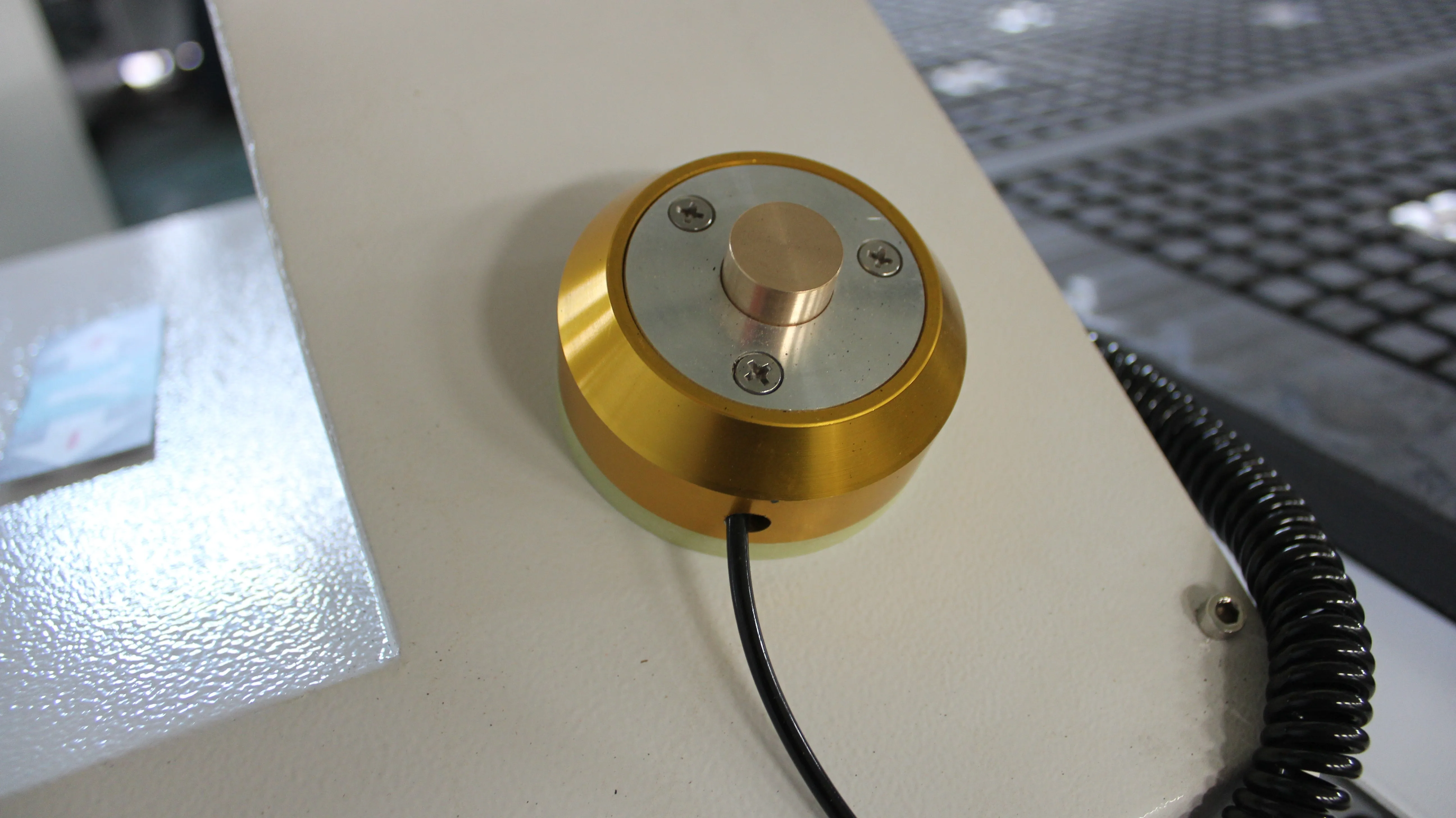

TOOLS SETTERS

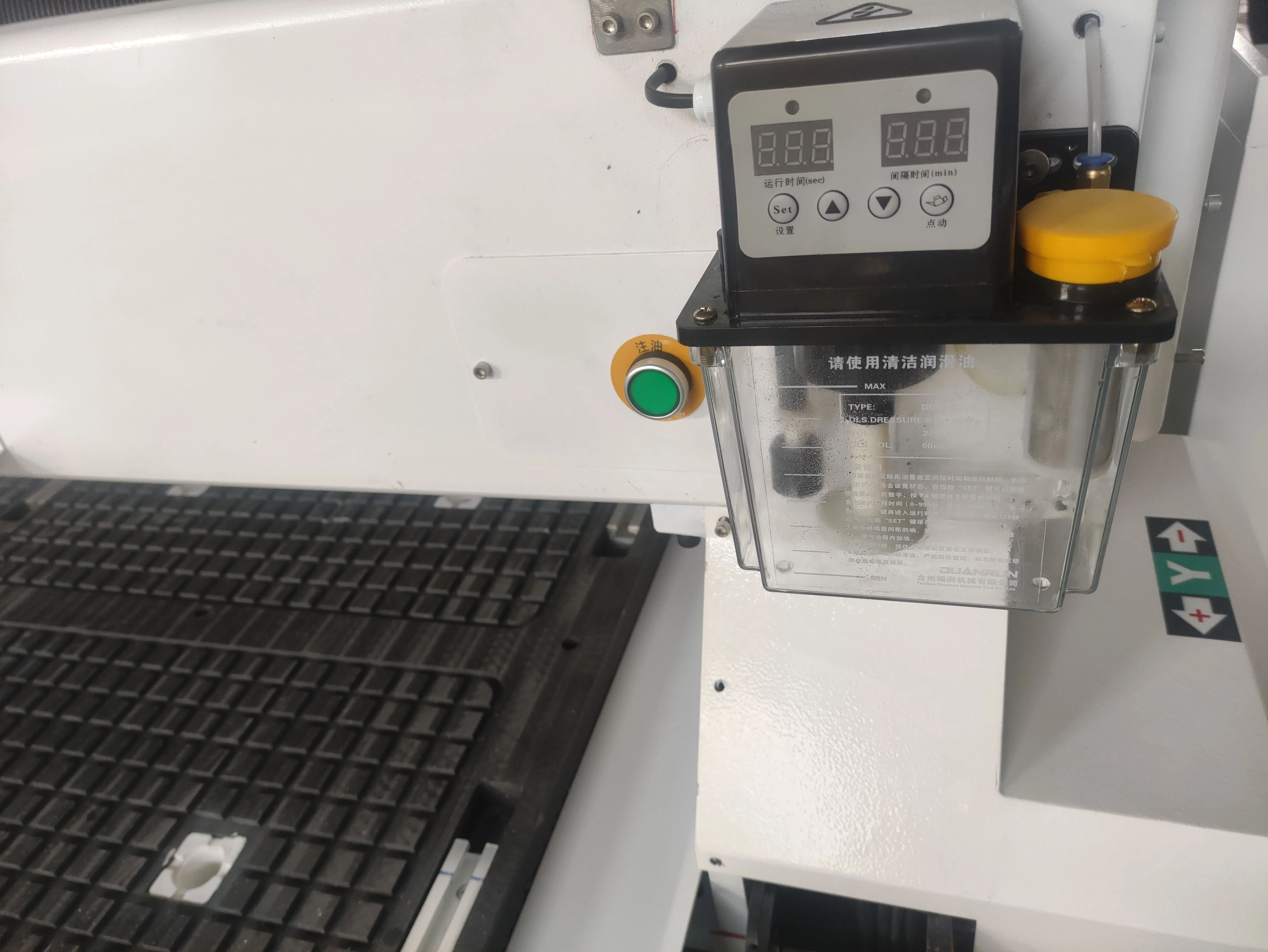

AUTOMATIC OILING
Taiwan Guide
Application
* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
