Viscometer Measuring Price Rubber Vulcanization Index Mooney Viscosity Tester Instruments Meter

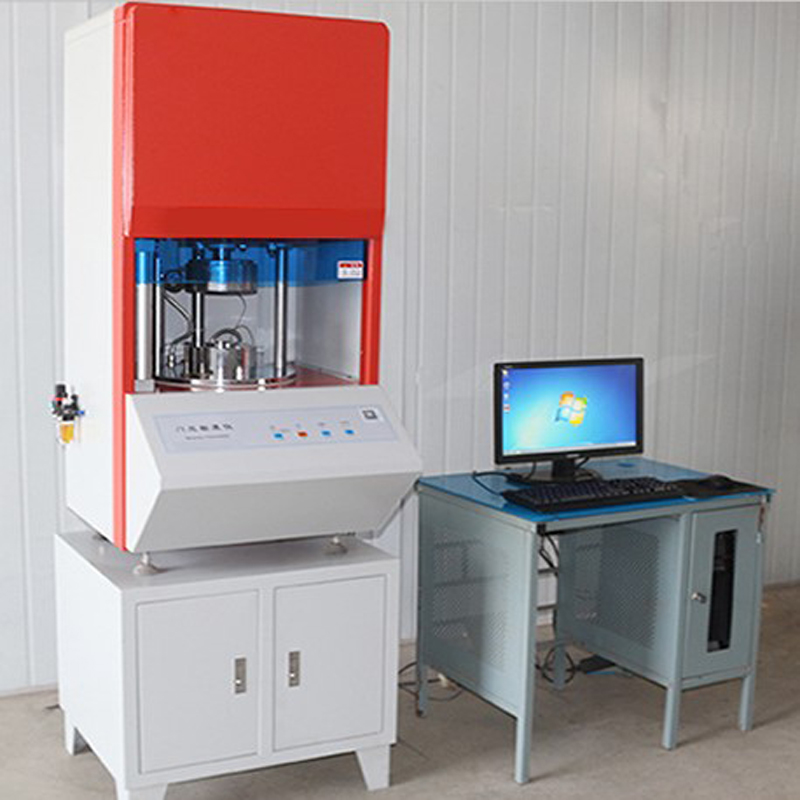

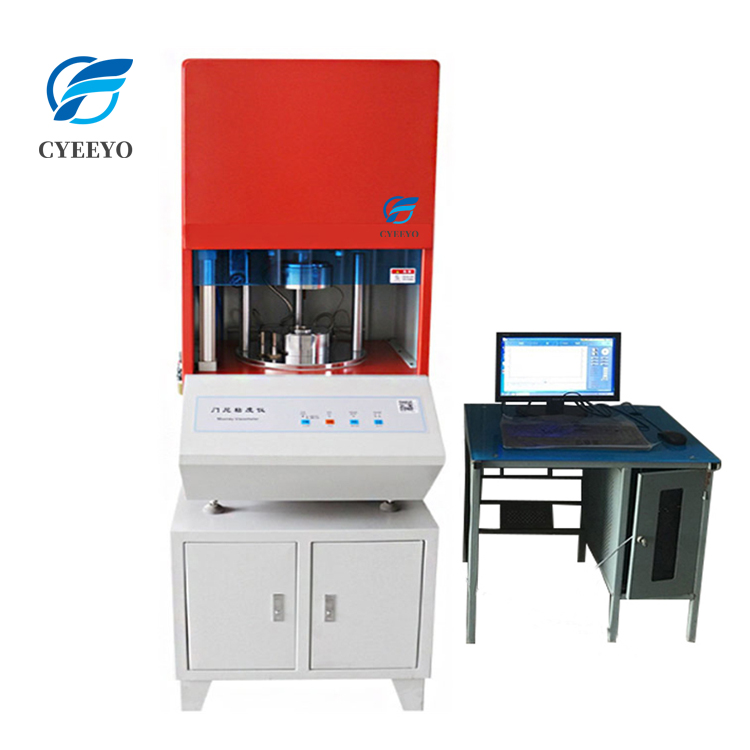

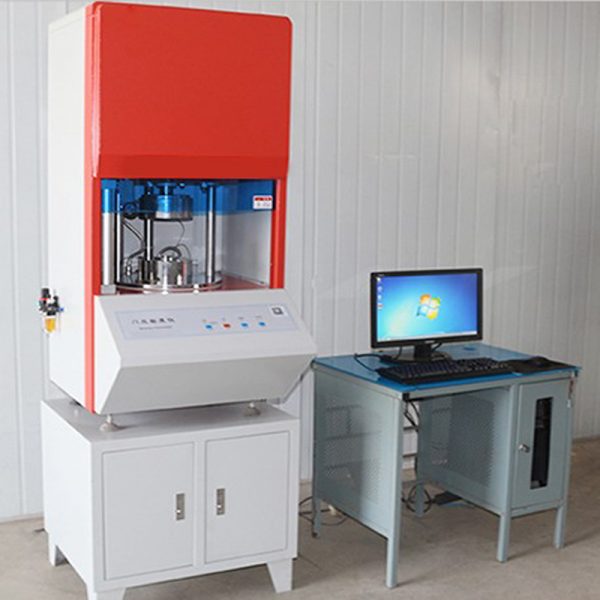

Mooney viscometer in accordance with GB/T1232 ,GB/T 1233 ,ISO289, ISO667 standard etc.By military quality temperature control module, wide temperature range and stability, good reproducibility.it using the Windows 7 operating system platform, graphic images of the software interface, flexible way of data processing, modular VB programming language.Using the imported high-precision sensors, test finished can be exported test data.Fully embody characteristics of highly automated.The glass door rise by pneumatic cylinders, low noise.The operation is simple, flexible, easy to maintain.it can be used for scientific research departments, colleges, and industrial and mining enterprises of all kinds of material mechanical properties analysis and production quality inspection.
Standard
ISO289 ISO667 GB/T1232 GB/T1233
Parameter
|
1 )Temperature range: room temperature to 200℃ 2)heating time:≤10min 3) Temperature fluctuation: ≤±0.3℃ 4 )Temperature resolution: 0.1℃ 5) the longest test time: mooney:10min(cab be setted) Scorch:120min 6) mooney value measurang range :0-200 Mooney 7) Mooney value resolution:0.1 8) Measurement accuracy:±0.5 9) rotor speed: 2±0.02 r / min 10)Power :AC220V+10% 50HZ 11)Dimensions: 630mm × 570mm × 1200mm 12)Weight:210kgs |
Software introduction:
1) Software: English
2) Units: kgf-cm, lbf-in, N-m, dN-m,MV
3)Test data: mooney viscosity,scorch
4) test curve: Mooney viscosity curve, Mooney scorch curve,up and down mold temperature curve
5) Can be modified time during test;
6) Test data can be automatically saved
7) More test data and curve can be displayed on a piece of paper, and use the mouse to click on the read arbitrary point on the curve of numerical;
8) comparing the historical data can be added together and can be printed.
if you have any question, pls contact us directly.
