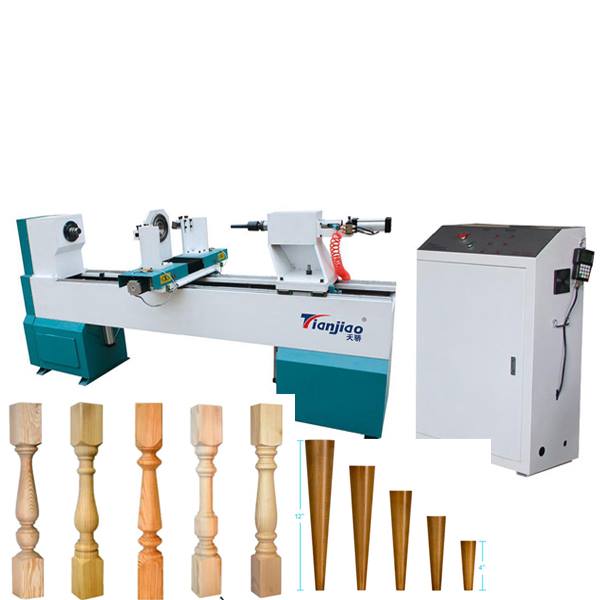

Variable Speed Automatic CNC Wood Turning Copy Lathe
Hot Production
 |
TJ-1516 double axises automatic cnc wood turning lathe machine for sale |
|
|
Wooden Chair Leg Making Machine Customizable CNC Wood Lathe TJ-2030 or TJ-2530 |
Product Description
 |
 |
Our product can be used for making:
Wooden handles;baseball bats;staircases,stairway balusters,stairway newel posts;dining table legs;end table legs;sofa table legs;bar stool legs;chair legs;chair arm posts;chair stretchers;sofa and bun feet;bed rails;lamp posts and so on.
Main Features:
- Whole machine is welded with seamless steel structure,which is high temperature annealing and vibrating stress relief,so the lathe body is stabilized and will not be deformed forever.
- Adopting advanced DSP system with USB connection,operated with the handle,convenient operation.Our lathe can completely work offine and do not take any computer resources.
- Operating system has friendly simple operation interface,english suggestion and simple setting method.
- Our cnc wood lathe adopting domestic famous brand stepper motor,to ensure the precision.
- Transmission System: Hiwin square rail and ball screw to control the linear error effectively .
- Spindle System:Divided into the single axial and biaxial.
- Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.
- One time tool setting to finish the whole work piece.
- If you have any special requirements, we can custom make according to your request.
| Model | TJ1530/TJ2030/TJ2530 |
| Max Turning Length | 100-300mm or option |
| Max Turning Diameter | 300mm/400mm/160mm |
| Number Of Axis | 2 axis 1 blade/1 axis 1 blade/1 axis 22 blade or option |
| Maximum Setting Unit | 0.01cm |
| Spindle Motor Power | 4.0KW |
| Air Pressure | 0.6-0.8Mpa |
| Power Supply | AC380V/50HZ or 220V/50HZ or option |
| Overall Dimensions | 300*110*170cm |
| Weight | 1600kgs |
Optional
- More rotary axis
- Spindle
- Different power requirement
- Upgrade controller
- Servo motor
- Bigger working diameter and length, etc.
- The 4th axis for buddha and flat materials engraving

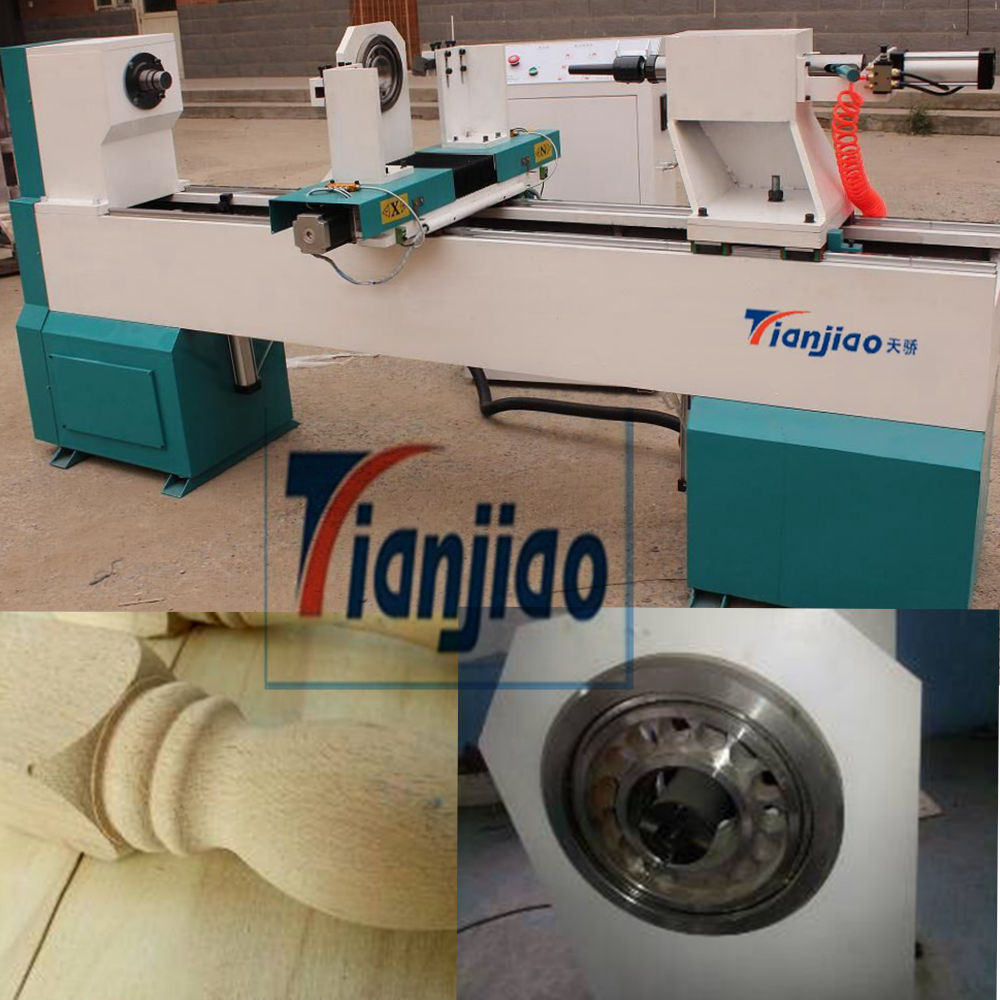

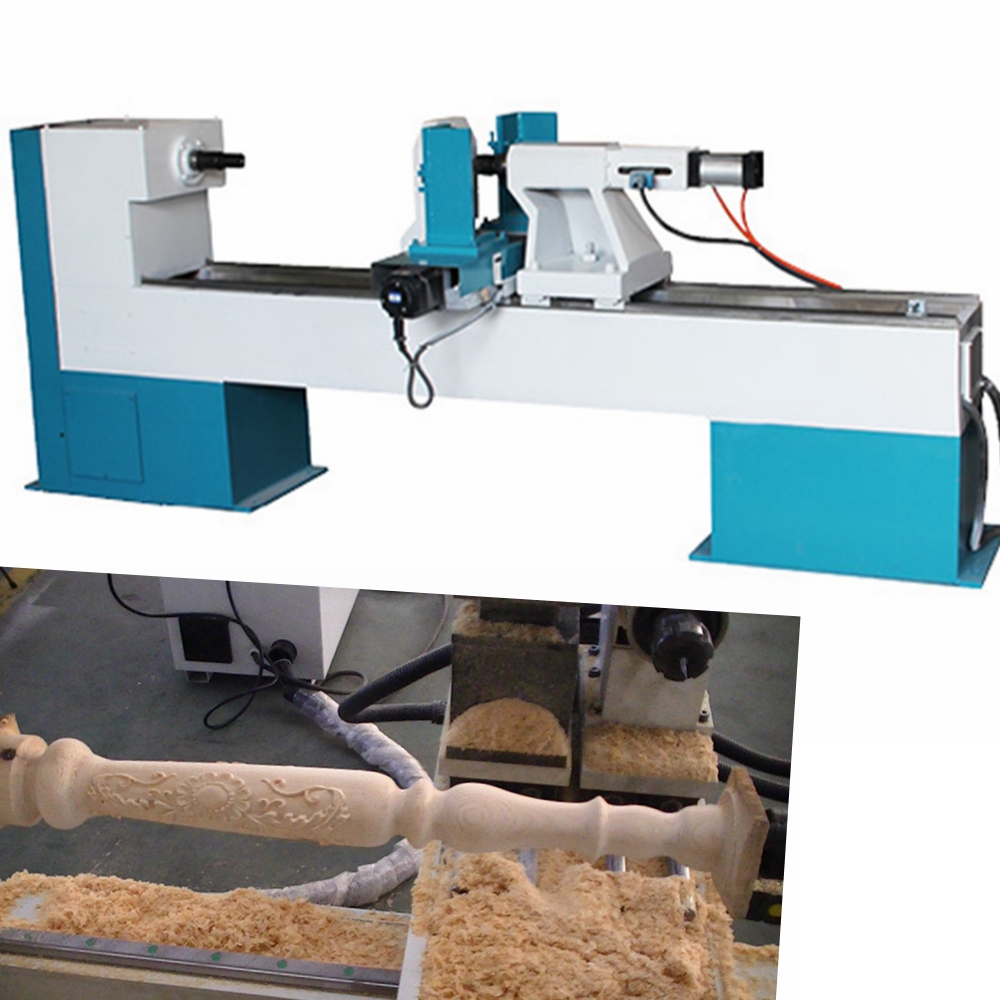

Product Details
Adjustable Gymbal Totaly Closed Drag Chain
Chuck DSP Hand Controller

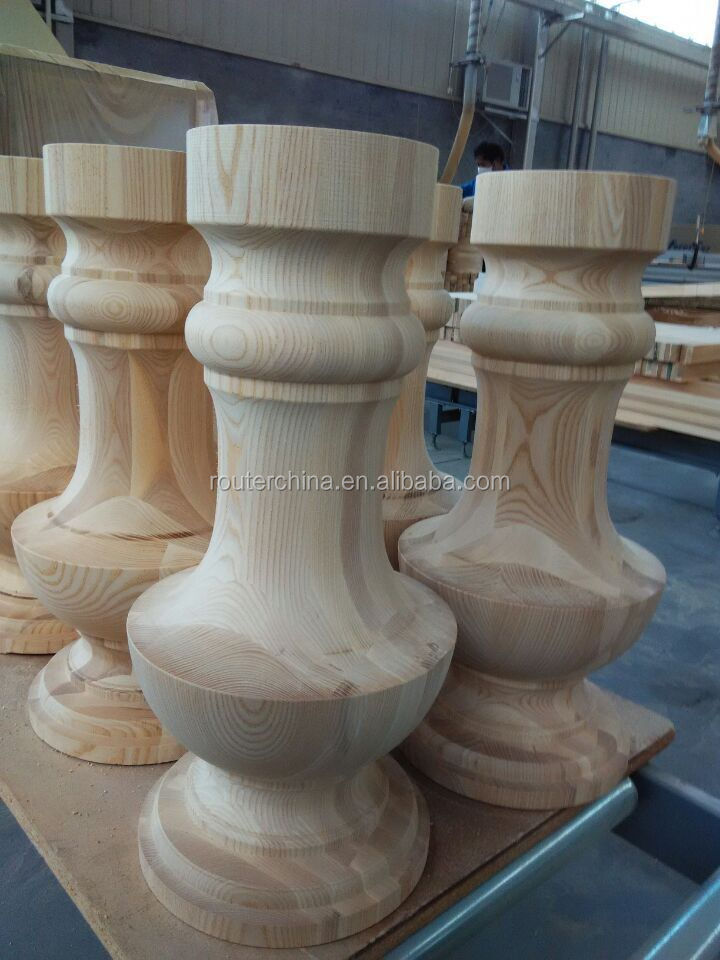

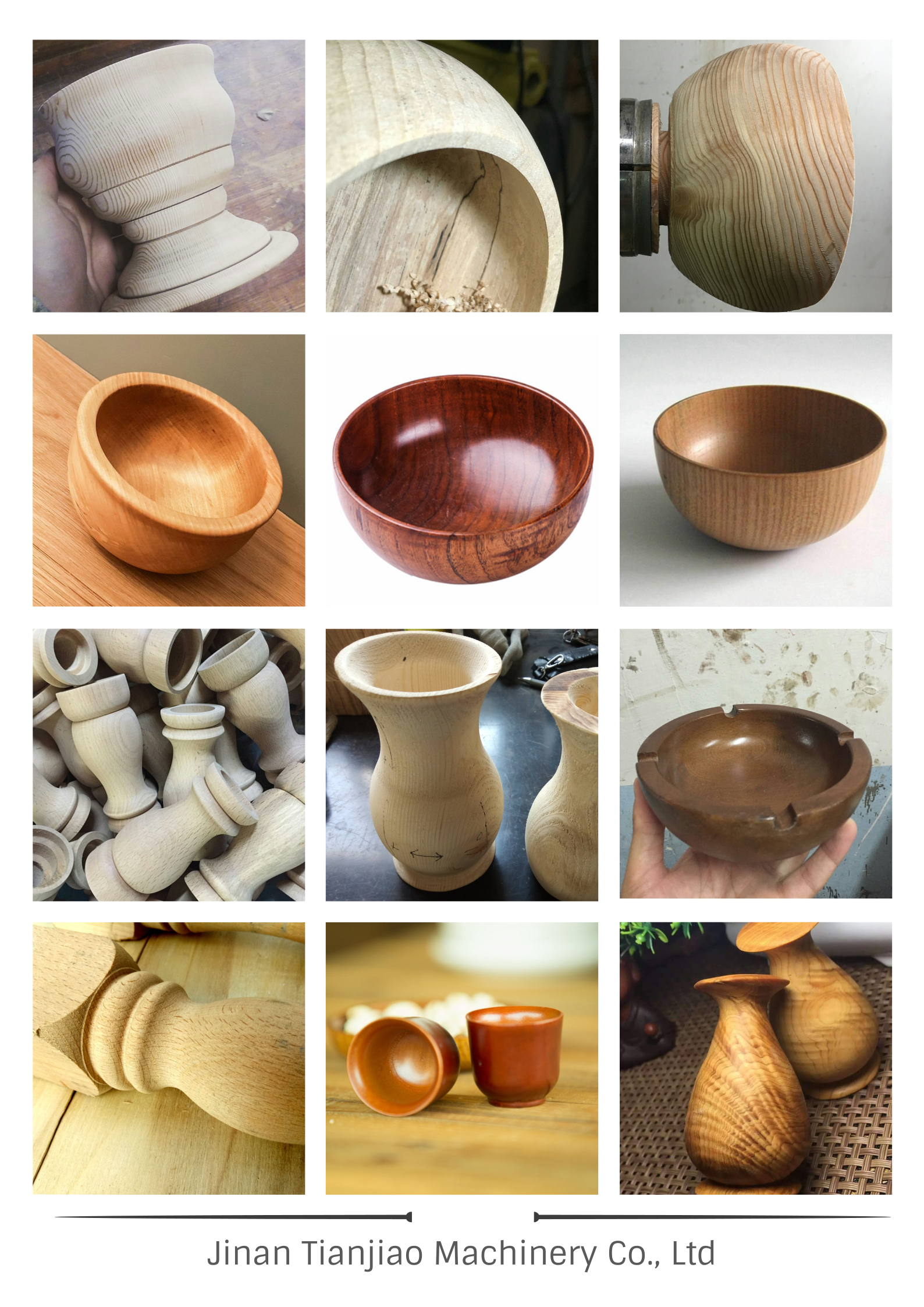

Sample
 |
 |
Packaging & Delivery
Inside Packing
- Use professional Water-proof plastic film to cover the whole lathe
- Water-proof plastic film package with foam protection in each corner.
Outside Packing
- Professional plywood case
- Save space as much as possible for container loading.
Transport
- We support shipping, air, land and express
- You can choose the most suitable way of transport
Our Company
We are one of the first batch of companies to do the lathe in China,have our own patented technology and research team,can provide you with professional and timely technical support.
We are trustworthy.
Why choose Tianjiao product?
1.Tianjiao product is widely used in almost all the materials which you can think of
2.Tianjiao Company is specialized in cnc router and cnc lathe machine manufacturing and selling.
There is no middle man and no agent, so the price is moderate.
3.Tianjiao machine with high precision and high reputation is the most reliable goods you can choose
4.Tianjiao Company has all kinds machines in store, the delivery time is much shorter than other
companies.
5.Tianjiao Company has international tech service office and provides 24 hours online service and
tech support for customers.
Our Service
Pre-sale Service
- Patient introduce and professional suggest buying selection
- Real time report production situation.
- Take pictures and make videoes with your done machine.
- Strict test and debugg machine quality before shipping.
- 24 hours online consultation.
After-sale Service
- 24 hours on line service and phone on
- 2 years gurantee term
- During gurantee term, repair or change damaged parts for free
- Exceed gurantee term, offer at cost price
FAQ
Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can
recommend the most suitable machine according to our experience.
Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can
also help you by “Team viewer”online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the
standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 1 year guarantee, fail parts will be replaced for free if the machine under
“ normal operation”.
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial
invoice, B/L, and other certificates required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be
20 – 30 working days.
Q7: How is the payment?
Normally we accept T/T or L/C, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange
the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
Contact Us
If you are interested in our products, please do not hesitate to contact us.
For offer the exactly quotation timely. Please tell us more questions with RFQ as below:
- Where’s the working area? Such as Country or end-user place.
- What kind of work do you want to do? Such as cutting column or engraving panel.
- What’s the workpiece material you want to process? Such as the wood species and the stock thickness you want to process.
- What’s the sample do you want to engrave or cut? Such as sample name or pictures.
We also welcome you to our factory for visiting,and the visiting lines as below:
Factory exact address:
Licheng District,Fujia Industrial Area, Yuhua 8th Rd.,Jinan City,Shandong Province,China.
- By air to BEIJING International Airport, JINAN or QINGDAO Airport of Shandong,China.
- By high-speed train to Qingdao or JINAN Railway station of Shandong Province,China.
