DISINFECTING EQUIPMENT HQ/SQ SALT CHLORINATOR
HQ/SQ salt chlorinator improve your pool water quality by using harmless table salt, instead of using harsh chemicals, it is
reliable, low maintenance, much more safety to health. Easy and simple programming and fully automatic operation lets you enjoy a
relaxed swimming time.
Salt chlorinators are an alternative means of sanitizing your pool with chlorine by electrolysis process. The electrolysis process
is achieved by passing the salty water through an electrolytic cell, sodium chlorine in the water is converted into chlorine to
achieve pool water disinfection.
Features:
1.Self clean function:by reverse the polarity automatically,which prevents calcium from accumulating and therefore prolong the
cell’s lifetime.
2.Six different chlorine output control:easy adjustment of chlorine level,to meet demand of different time,this will save energy
environment friendly.
3.HQ salt chlorinators are equipped with timer for pump and timer for underwater light.
4.Smart cooling:the cooling intensity can be adjustment according to the temperature inside the control box.
5.Protect from no adequate water causing the generator or cell destroyed.

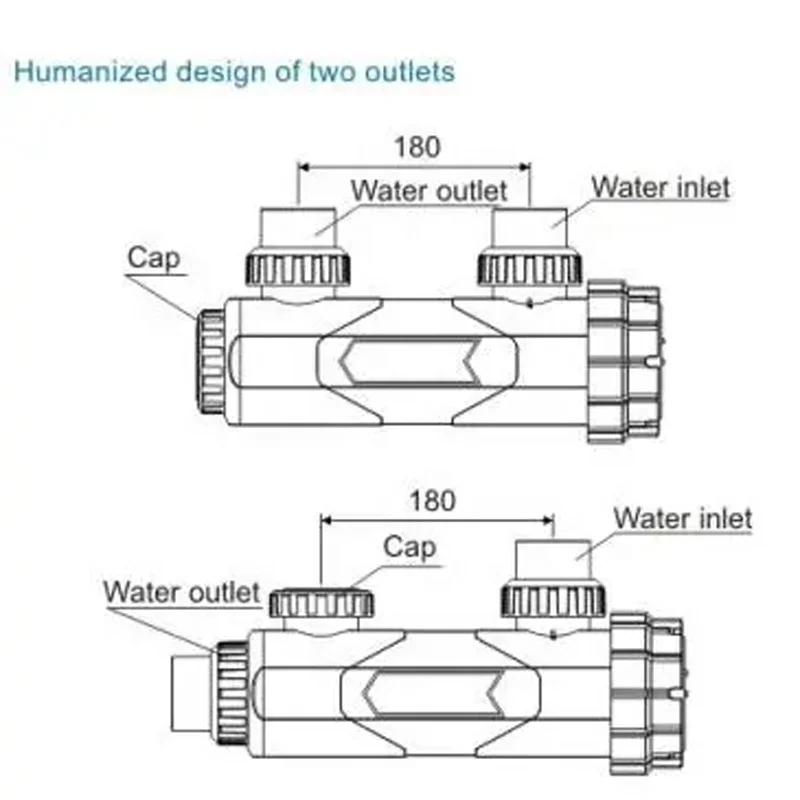

6.Two optional outlets make the installation more convenient.
7.Overheat protection:prolong the control system life span.
8.Datachable titanium panels are easy to install,clean and maintain.
9.Alarm system:automatic protection for your system and pool if over-salting occurs or salt level is too low.
10.Temperature sensor could be changed separately,reduce the maintenance cost.

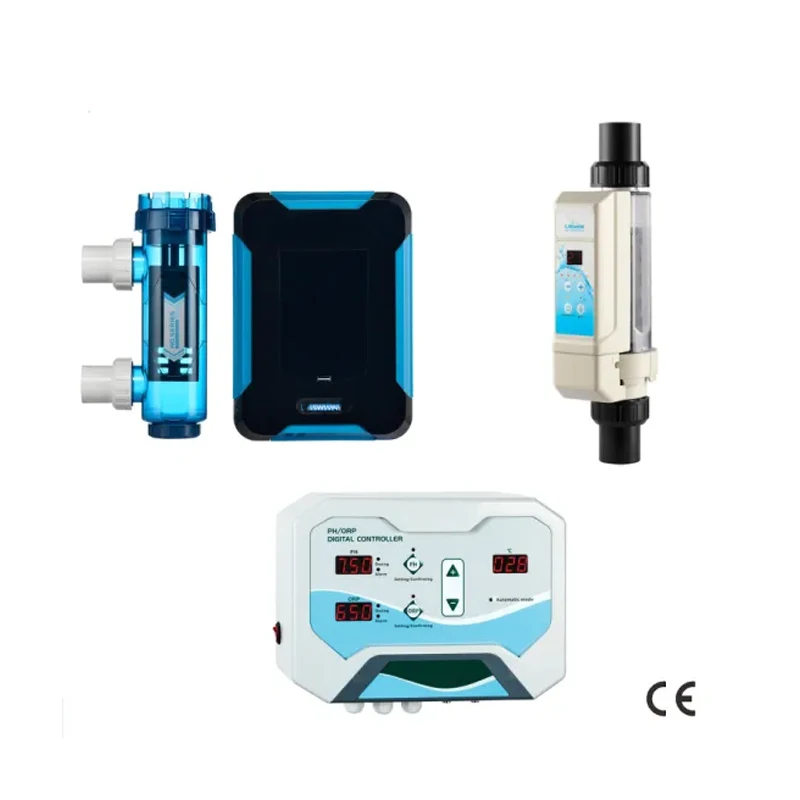

Detailed Photos
Title goes here.
1. Salt chlorine machine, adopts advanced microcomputer technology, simple operation and complete functions.
2. Automatic cleaning function, to meet the salt and chlorine needs of swimming pools and spas.
3. Support water level detection, when the probe detects water, it is allowed to work.
4. Salt level prompt and fault alarm function, power on automatically and memorize the last working status.
5. With water temperature protection (10‑40℃), no water and water shortage protection, prolong service life of salt chlorine
generator.
Specification:
Item Type: Salt Chlorine Machine
Product Use: Swimming pool salt chlorinator, a single unit can meet the needs of salt and chlorine disinfection in swimming pools,
spa pools, swimming tanks ≤60㎡
Applicable Specifications: 12g/h
Input Voltage: 100-240V
Voltage Frequency: 50/60Hz
Product Features: EC series salt chlorine machine adopts advanced microcomputer technology, simple operation, complete functions,
automatic cleaning function, automatic alarm when an obstacle occurs, etc.
Weight: Approx. 3028g / 106.8oz

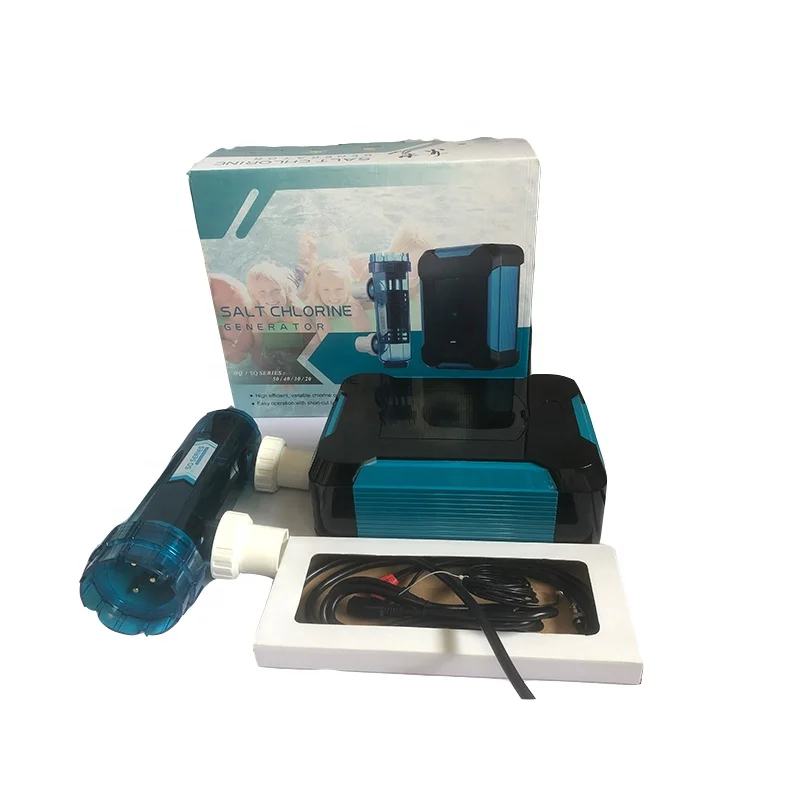

Package List:
1 x Salt Chlorine Machine
1 x Buck Transformer
2 x Black Interface
1 x Manual
|

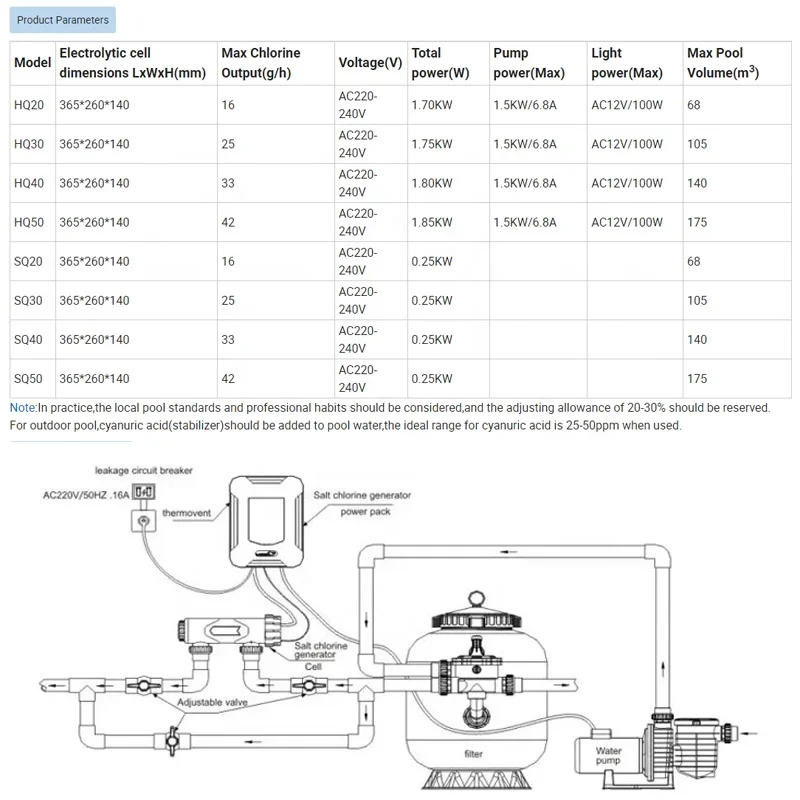

Model
|
Electrolytic cell dimensions LxWxH(mm)
|
Max Chlorine Output(g/h)
|
Voltage(V)
|
Total power(W)
|
Pump power(Max)
|
Light power(Max)
|
Max Pool Volume(m3)
|
|
HQ20
|
365*260*140
|
16
|
AC220-240V
|
1.70KW
|
1.5KW/6.8A
|
AC12V/100W
|
68
|
|
HQ30
|
365*260*140
|
25
|
AC220-240V
|
1.75KW
|
1.5KW/6.8A
|
AC12V/100W
|
105
|
|
HQ40
|
365*260*140
|
33
|
AC220-240V
|
1.80KW
|
1.5KW/6.8A
|
AC12V/100W
|
140
|
|
HQ50
|
365*260*140
|
42
|
AC220-240V
|
1.85KW
|
1.5KW/6.8A
|
AC12V/100W
|
175
|
|
SQ20
|
365*260*140
|
16
|
AC220-240V
|
0.25KW
|
68
|
||
|
SQ30
|
365*260*140
|
25
|
AC220-240V
|
0.25KW
|
105
|
||
|
SQ40
|
365*260*140
|
33
|
AC220-240V
|
0.25KW
|
140
|
||
|
SQ50
|
365*260*140
|
42
|
AC220-240V
|
0.25KW
|
175
|
Answer: Guangdong Province and Zhejiang Province, China
Q: Do you have certification?
Answer: Yes. We have ISO/CE certificate and patent certificate.
Q: What is the delivery time?
Answer: Usually 7-35 days after confirming the advance payment.
Q: Do you have a design team?
Answer: Yes, we have. Provide outline drawings, electrical drawings, etc.
Q: Can you send me product brochures?
Answer: Send you information within 3-5 days.
Q: What is your payment?
Answer: T/T, T/C, Western Union, Paypal.
Q: What is the minimum order quantity for your products?
Answer: The minimum order quantity of our products is 1 pc of one model and one size.
Q: Can I get discounts by purchasing goods?
Answer: As we all know, the price depends on the quantity. We will automatically discount our regular customers.
We focus on R&D, production, and provide various swimming pool equipment and aquarium equipment. Welcome to consult
