Product Description
We focus on water pumps for 25 years

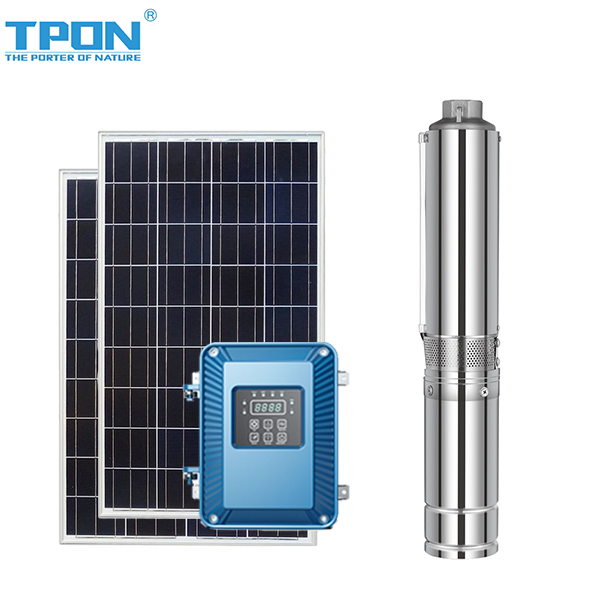

1.1kw (1.5hp) dc submersible solar water pump with controller
①ALL goods produced by ourselves,we provide one-stop services from designing,printing to processing
②Quick response within2-8hours,response rates over 95%
③24 hours phone call is available,feel free to contact with us
Product Paramenters
dc 1.5hp solar dc submersible pumps with panel
TPON-SOLAR PUMP
MODEL:3TPPC3.8-123-110-1100
VOLTAGE:DC110V
POWER:1100W
MAX HEAD:123M
MAX FLOW:3.8M3/H
OUTLET:1.25INCH
POWER:1100W
MAX HEAD:123M
MAX FLOW:3.8M3/H
OUTLET:1.25INCH
What we get for you:
1 x 3inch DC solar pump with one 2m cable
1 x Pump controler with MPPT function
1 x Stainless steel float swith (sensor for tank)
|
Model
|
Power (w)
|
Voltage(V)
|
Max flow (m3/h)
|
Max head (m)
|
Outlet (inch)
|
|
3TPPC3-35-24-300
|
300
|
24
|
3
|
35
|
1.25″
|
|
3TPPC3.5-47-48-400
|
400
|
48
|
3.5
|
47
|
1.25″
|
|
3TPPC3.5-80-48-600
|
600
|
48
|
3.5
|
80
|
1.25″
|
|
3TPPC3.5-80-72-600
|
600
|
72
|
3.5
|
80
|
1.25″
|
|
3TPPC3.5-95-48-750
|
750
|
48
|
3.5
|
95
|
1.25″
|
|
3TPPC3.5-95-72-750
|
750
|
72
|
3.5
|
95
|
1.25″
|
|
3TPPC3.8-123-72-1100
|
1100
|
72
|
3.8
|
123
|
1.25″
|
|
3TPPC3.8-123-110-1100
|
1100
|
110
|
3.8
|
123
|
1.25″
|
|
3TPPC3.8-155-110-1300
|
1300
|
110
|
3.8
|
155
|
1.25″
|
|
3TPPC3.8-180-110-1500
|
1500
|
110
|
3.8
|
180
|
1.25″
|
Why Choose Us
According to the other customers feedback of our return rate is 2% lower than other factory
It has MPPT function, the solar power utilization rate is higher.
Controller Waterproof grade is IP65(double seal effect)
LED displays the power, voltage, current, speed etc working condition.
Water proof and leak-proof: Double seal effect.
Soft start: No impulse current, protect the pump motor.
High voltage/Low voltage/Over-current/High temperature protection
Ambient temperature: -15℃~60℃
Max. input current: 15A
Controller Waterproof grade is IP65(double seal effect)
LED displays the power, voltage, current, speed etc working condition.
Water proof and leak-proof: Double seal effect.
Soft start: No impulse current, protect the pump motor.
High voltage/Low voltage/Over-current/High temperature protection
Ambient temperature: -15℃~60℃
Max. input current: 15A
|
PUMP VOLTAGE
(V)
|
SOLAT PANEL
(W)
|
PEAK VOLTAGE
VMP(V)
|
OPEN CIRCUIT VOLTAGE
VOC(V)
|
|
24V/36V
|
≥1.3PUMP POWER
|
≥18
|
18V-50V
|
|
48V
|
≥1.3PUMP POWER
|
≥30
|
30V-96V
|
|
72v
|
≥1.3PUMP POWER
|
≥50
|
50V-150V
|
|
110v
|
≥1.3PUMP POWER
|
≥60
|
60V-180V
|
Installation Instructions
How to choose pump：
HEAD CALCULATE:
1.Distance of ‘B+C+D/10’ if have a water tank
2.Distance of ‘B’ if without water tank
1.Distance of ‘B+C+D/10’ if have a water tank
2.Distance of ‘B’ if without water tank
Water source: Borehole(diameter__mm )
FLOW CALCULATE:
How much water per hour or per day do you want? Selecting the solar pump model that meets your requirements against the pump model number table
1.1kw (1.5hp) dc submersible solar water pump with controller
Customer feedback
①Application of deep well pump to irrigation
②Village and town water supply
③Clean drinking water
②Village and town water supply
③Clean drinking water
④Garden watering
⑤Enviroment friendly
⑥Pumping and drip irrigation
⑤Enviroment friendly
⑥Pumping and drip irrigation

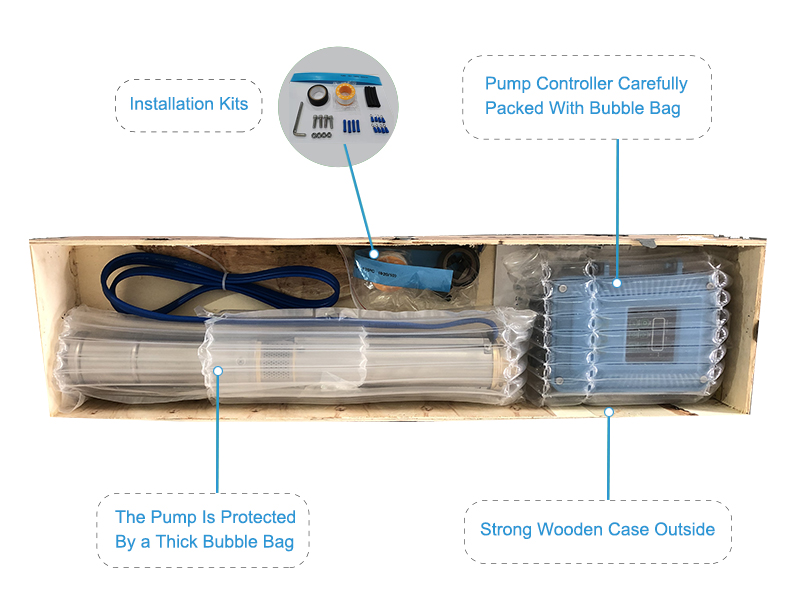

Product packaging
Company Profile
As one of the earliest water pump manufacturers engaged in producing water pump for over 25 years in china we believe one daydifful pump will exist in every corner of the world by means of its reliable quality and gooreputation thank all of you for the long-term supporting and concerning of our growth.Your views are the driving forces of DIFFUL
In our company, there are large quantities of high-quality scientific research and management talents, strong technical
force,advanced assembly equipment, and perfect detection devices. In addition, in order to meet the market demand, the company also provides the service of tailor-made products and develops new products on a regular basis.
force,advanced assembly equipment, and perfect detection devices. In addition, in order to meet the market demand, the company also provides the service of tailor-made products and develops new products on a regular basis.
FAQ
1. Q:What’s your MOQ?
A:Trial sample order is OK.
2. What’s your payment terms?
A: T/T,L/C,D/A,D/P
3. Q: What is the delivery time?
A: 25-30 days after receiving your advanced deposit.
4. Q:Can you we do OEM brand?
A:Yes,welcome your OEM.
5. Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electrcity ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you
A:Trial sample order is OK.
2. What’s your payment terms?
A: T/T,L/C,D/A,D/P
3. Q: What is the delivery time?
A: 25-30 days after receiving your advanced deposit.
4. Q:Can you we do OEM brand?
A:Yes,welcome your OEM.
5. Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electrcity ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you
