Product Categories
Self propelled Scissor Lift
Self-propelled scissor lift has the function of automatic walking machine, integarated design, built-in battery power, meet in different working conditions, no external power supply, no external power traction can lift freely.
Traction mobile scissors lift
Mobile scissor lifting platform adopts high-strength manganese steel structure, four wheels are easy to move, the work surface is wide, and the bearing capacity is high. It can support multiple people to work at the same time. It makes aerial work safer and more efficient.
Aluminum alloy lift
Aluminum alloy lift adopts high-strength high-quality aluminum alloy material, featuring small size, light weight and portability, and is suitable for various places.
Application
Change the traditional way of working
As technology advances and people's minds change, we need tools to complete some inconvenient and unsafe work
Installation, maintenance and cleaning of high-altitude equipment such as construction sites, factories, warehouses, stations, hotels, airports, terminals, gas stations
The aerial work platform allows us to complete work faster, better, more conveniently and safely
Installation, maintenance and cleaning of high-altitude equipment such as construction sites, factories, warehouses, stations, hotels, airports, terminals, gas stations
The aerial work platform allows us to complete work faster, better, more conveniently and safely

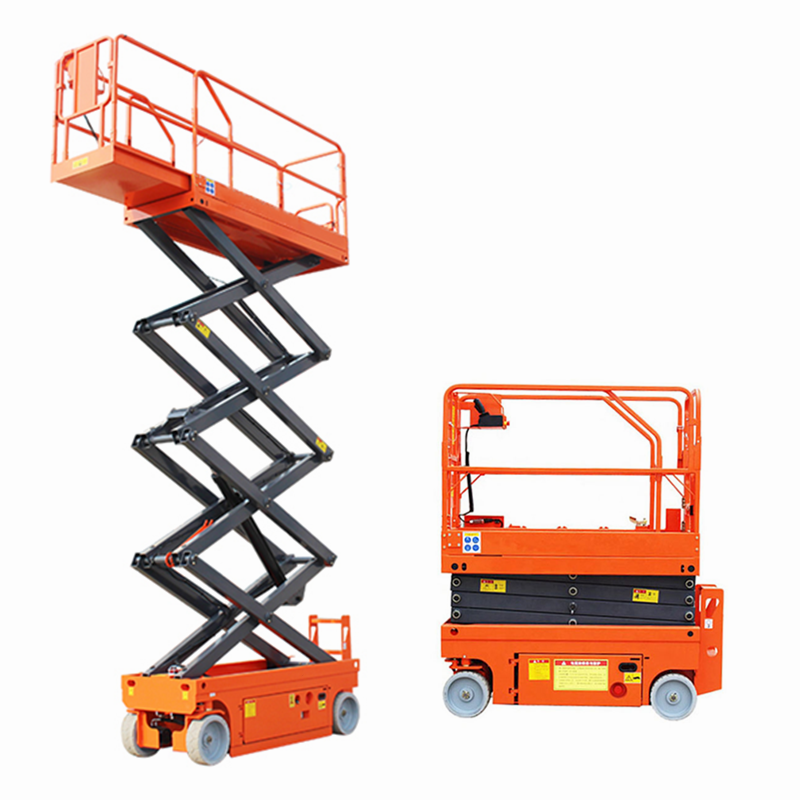

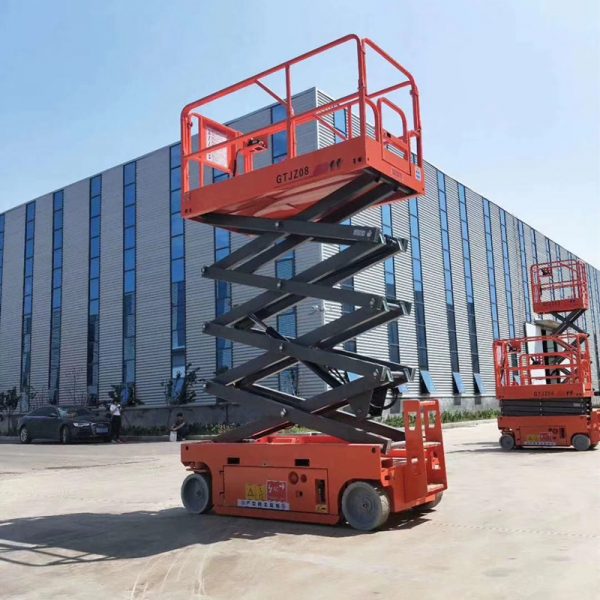

Self propelled Scissor Lift
|
1-Applicable for indoor or outdoor use, like warehouse, station, hotel and airport etc.
|
||
|
2-The equipment running and steering is also just a person can be completed. The operator only needs to master the control handle
to the equipment before the complete equipment forward and backward, steering, fast,slow walk and equal action. |
||
|
3-Self-propelled scissor lift is mobile and flexible, convenient operation, larbo saving, make high-altitude operations more
efficient and convenient, is the ideal equipment for high-altitude operations, the safety production of the modern enterprise. |
||
|
4-90-degree steering can run in both high and low speeds, enable electric lift work in small space.
|
||
Operation Handle
Easy Control on platform for lifting up&down, Moving or steering with speed adjustable
Operation panel
Lift button, Emergency stop switch, Small insurance S-witch, on/off control platform conversion
Amerian Trojan Battery
Famous brand battery imported from American. Long service lift, More stable working
Hydraulic cylinder
Built-in explosion-proof valve, sealing ring adopts Japan wal-nut brand, make the lifter more reliable and robust, noise-free boosting and work smoothly
Structure and Ladder
Safer and more stable bracket, High Quality Rectangular tube
Wheels
90 Degree turning in situation, Run in both high and low speeds, Can be used in small space
|
Model
|
Lifting height
(m)
|
Load
(Kg)
|
Platform Dimension
(mm)
|
Overall dimensions
(mm)
|
Overall weight
(Kg)
|
|||||
|
Electric drive wheel
|
||||||||||
|
GTJZD-3
|
3
|
240
|
1290*700
|
1435*760*1590
|
805
|
|||||
|
GTJZD-4
|
4
|
240
|
1290*700
|
1435*760*1670
|
860
|
|||||
|
GTJZD-6
|
6
|
230
|
2260*1130
|
2475*1170*1763
|
1900
|
|||||
|
GTJZD-8
|
8
|
230
|
2260*1130
|
2475*1170*1891
|
2060
|
|||||
|
GTJZD-10A
|
10
|
230
|
2260*1130
|
2475*1170*2019
|
2300
|
|||||
|
GTJZD-10B
|
10
|
320
|
2260*1130
|
2475*1170*2019
|
2730
|
|||||
|
GTJZD-12A
|
11.8
|
230
|
2260*1130
|
2475*1170*2149
|
2460
|
|||||
|
GTJZD-12B
|
11.8
|
320
|
2260*1130
|
2475*1170*2149
|
2860
|
|||||
|
Electro-hydraulic drive wheels
|
||||||||||
|
GTJZ05
|
5
|
230
|
1290*700
|
1860*760*1740
|
1361
|
|||||
|
GTJZ-6A
|
5.8
|
230
|
1670*740
|
1860*760*1840
|
1435
|
|||||
|
GTJZ-6B |
6
|
380
|
2260*810
|
2475*810*1708
|
1850
|
|||||
|
GTJZ-6C |
6
|
550
|
2260*1130
|
2475*1150*1708
|
2060
|
|||||
|
GTJZ-8A |
8
|
230
|
2260*810
|
2475*810*1836
|
1980
|
|||||
|
GTJZ-8B |
8
|
450
|
2260*1130
|
2475*1150*1836
|
2190
|
|||||
|
GTJZ-10 |
10
|
320
|
2260*1130
|
2475*1150*1964
|
2430
|
|||||
|
GTJZ-12
|
12
|
320
|
2260*1130
|
2475*1150*2094
|
2960
|
|||||
|
GTJZ-14 |
14
|
227
|
2640*1130
|
2840*1390*2050
|
3320
|
|||||

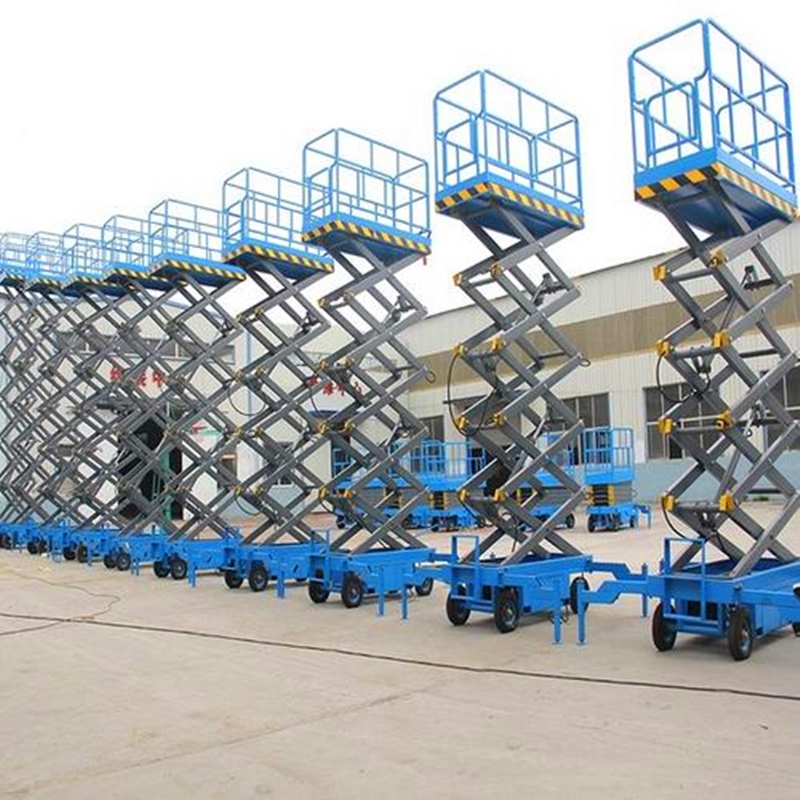

Traction mobile scissors lift
|
1-The conventional configuration is AC power, and battery power can be selected
|
||
|
2-Scissor Aerial Work Platform Features: lifting mechanism of high-strength
|
||
|
3-Manganese steel rectangular tube production. With a safety device to prevent
|
||
|
4-Overloading of the lift. Provided to prevent hydraulic line rupture safety
|
||
|
5-Protection valve. Emergency lowering device in case of a power outage.
|
||
AC/DC Converter, Mile Meter, Emergency Braker
The mile meter can clearly see the speed per kilometer, and the rotary switch of AC and DC can be switched by one button. The emergency stop device can ensure maximum construction safety
Indocator Pump
The motor is imported from the United States and can be made 110V or 220V, 380V, 50Hz or 60Hz. Of course, if you need to control the cost, we can choose a cheaper Chinese motor instead.
Tire
Made of polyurethane material, it is wear-resistant and non-slip, can adapt to all-terrain such like mud road, pit posse or sand
terrain
terrain
Double layer steel mesh rubber tube
Prevent breakage and breakage
strong and sturdy
Safety Legs
There are 4 legs on the equipment, when the lift working in height, open them to make the lift safe, close them when the lift platform down
Remote control
You can control the lift up and down by the remote control any where
|
Model
|
Lifting height
(m)
|
Load
(Kg)
|
Platform Dimension
(mm)
|
Overall dimensions
(mm)
|
Overall weight
(Kg)
|
|||||
|
500kg
|
||||||||||
|
QYCY0.5-4
|
4
|
500
|
2100 * 830
|
2250*950*1100
|
800
|
|||||
|
QYCY0.5-6
|
6
|
500
|
2100 * 830
|
2250 *950*1200
|
880
|
|||||
|
QYCY0.5-7
|
7
|
500
|
2100 * 830
|
2250 *950*1280
|
970
|
|||||
|
QYCY0.5-8
|
8
|
500
|
2100 * 930
|
2250 *1060*1380
|
1050
|
|||||
|
QYCY0.5-9
|
9
|
500
|
2100 * 930
|
2250 *1060*1500
|
1165
|
|||||
|
QYCY0.5-10
|
10
|
500
|
2100 * 1230
|
2250 *1350*1530
|
1360
|
|||||
|
QYCY0.3-11
|
11
|
300
|
2100 * 1230
|
2250 *1350*1650
|
1400
|
|||||
|
QYCY0.5-12
|
12
|
500
|
2550*1530
|
2796*1670*1750
|
2260
|
|||||
|
QYCY0.5-14
|
14
|
500
|
2812*1530
|
3067*1730*1810
|
2486
|
|||||
|
QYCY0.3-16
|
16
|
300
|
2812*1600
|
3067*1810*2080
|
3063
|
|||||
|
QYCY0.3-18
|
18
|
300
|
3070*1600
|
3321*1810*2080
|
3900
|
|||||
|
1000kg
|
||||||||||
|
QYCY1.0-4
|
4
|
1000
|
2100*1200
|
2250*1350*1180
|
1250
|
|||||
|
QYCY1.0-6
|
6
|
1000
|
2100*1200
|
2250*1350*1300
|
1400
|
|||||
|
QYCY1.0-8
|
8
|
1000
|
2100*1200
|
2250*1350*1420
|
1585
|
|||||
|
QYCY1.0-10
|
10
|
1000
|
2100*1200
|
2250*1350*1530
|
1700
|
|||||
|
QYCY1.0-12
|
12
|
1000
|
2550*1530
|
2796*1670*1750
|
2560
|
|||||
|
QYCY1.0-14
|
14
|
1000
|
2812*1600
|
3067*1810*1900
|
3230
|
|||||
Aluminum alloy lift
|
1-The high-strength aluminum alloy mast lifts, the whole machine is light in weight, and has good maneuverability, and can be easily operated by a single person.
|
||
|
2-The special guide wheel device between the masts can be raised and lowered smoothly.
|
||
|
3-The structure is compact and the size of the transport state is small. It can enter the car of a general elevator and can smoothly pass through the door opening and the narrow passage.
|
||
|
4-The double-protected outrigger structure makes work safer and can be lifted close to the working surface.
|
||
Distribution box
The distribution box is rainproof and equipped with a remote con-trol for remote operation
Limit Switch
The limit switch regulates the electrical circuit that controls the machine and its moving parts. These switches can be used as pilot devices for magnetic starter control circuits, allowing them to start, stop, slow down, or accelerate the functions of an electric motor
Mast
Adopt high-strength aluminum alloy material, sturdy and durable, easy to use, after a reasonable design, can be better scalable
Pressure Relief Switch
The bottom of the lift is equipped with an emergency brake pressure relief valve. When the lift machine rises and stuck, the ground personnel can activate the switch to operate the lift
Safety Legs
The suction cup adjusts the bal-ance legs to provide a solid and stable ground support for the platform
Equipment level
There is a level on the chassis to ensure that the machine is in a horizontal position
|
Model
|
Lifting height
(m)
|
Load
(Kg)
|
Platform Dimension
(mm)
|
Overall dimensions
(mm)
|
Overall weight
(Kg)
|
|
QYLH4-100-1
|
4
|
100
|
600*600
|
1300*800*1980
|
280
|
|
QYLH6-100-1
|
6
|
150
|
650*650
|
1420*780*1970
|
360
|
|
QYLH8-100-1
|
8
|
130
|
650*650
|
1420*780*1970
|
380
|
|
QYLH10-100-1
|
10
|
130
|
650*650
|
1420*780*1970
|
420
|
|
QYLH6-200-2
|
6
|
300
|
1200*630
|
1550*850*2000
|
510
|
|
QYLH8-200-2
|
8
|
300
|
1200*630
|
1550*850*2000
|
550
|
|
QYLH10-200-2
|
10
|
250
|
1500*630
|
1840*850*2000
|
690
|
|
QYLH12-200-2
|
12
|
200
|
1500*630
|
1840*850*2000
|
730
|
|
QYLH14-200-2
|
14
|
150
|
1500*630
|
1950*1050*2390
|
790
|
|
QYLH12-250-3
|
12
|
200
|
1570*900
|
1900*1100*1980
|
1050
|
|
QYLH14-200-3
|
14
|
200
|
1570*900
|
1900*1200*2300
|
1120
|
|
QYLH16-200-3
|
16
|
200
|
1570*900
|
2000*1200*2700
|
1200
|
|
QYLH12-250-4
|
12
|
200
|
1570*900
|
1900*1200*2000
|
1050
|
|
QYLH14-200-4
|
14
|
200
|
1570*900
|
1900*1200*2300
|
1150
|
|
QYLH16-200-4
|
16
|
200
|
1570*900
|
1900*1200*2700
|
1250
|
|
QYLH18-250-4
|
18
|
200
|
1570*900
|
2000*1400*2960
|
1480
|
