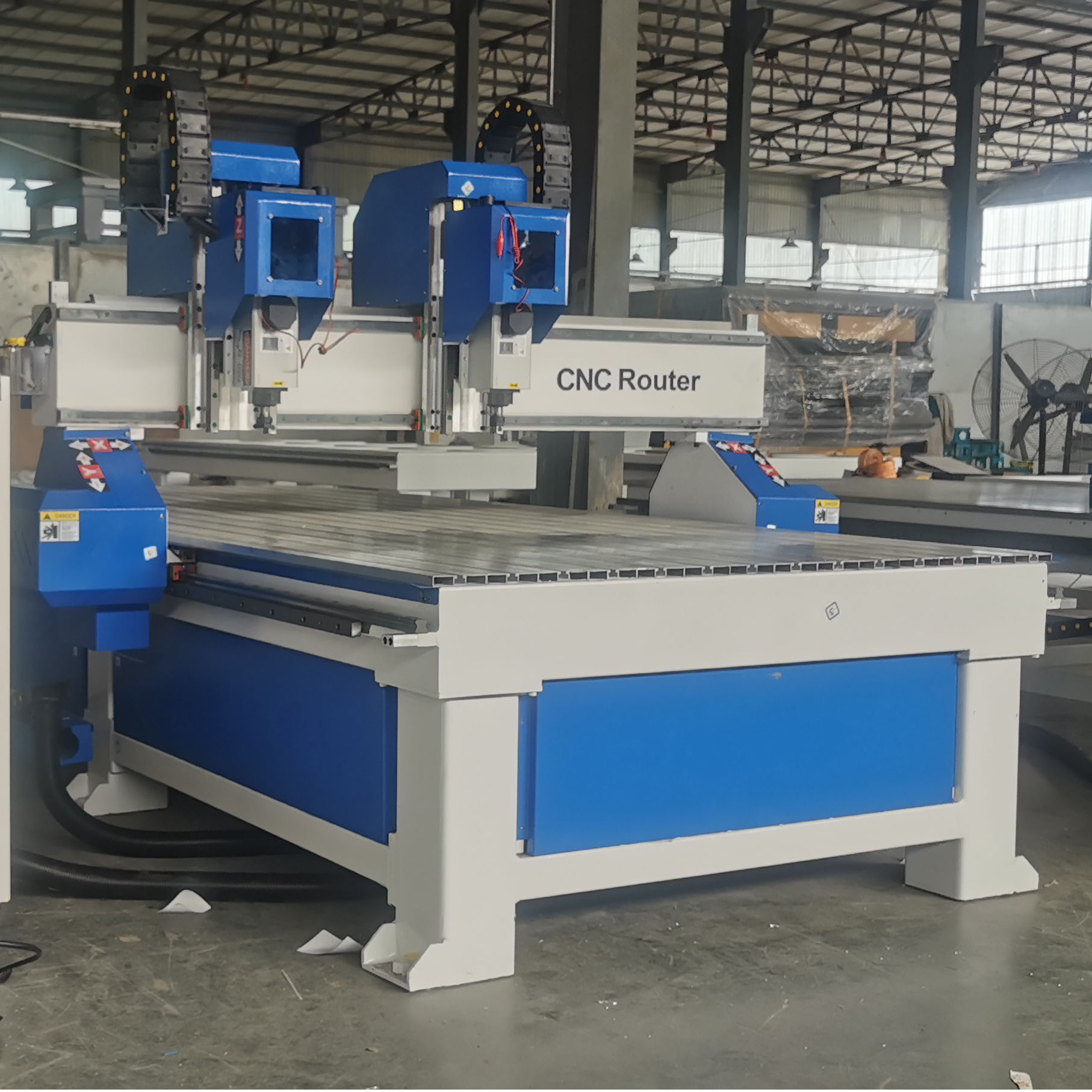

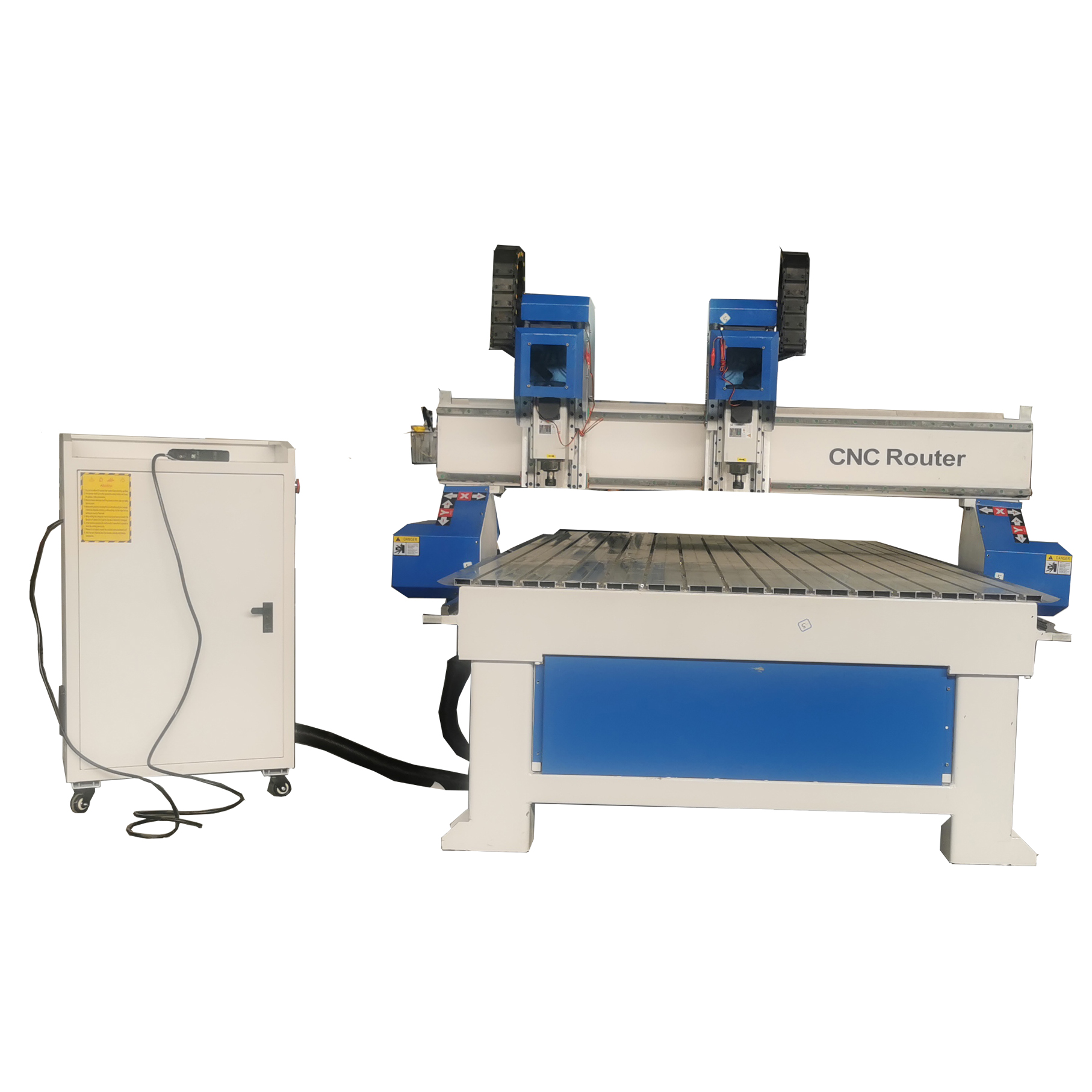

Nc DSP 2 Head Cnc Router Automatic Cnc Router 1325 Woodworking Machine


Description

1.Ball screw for Z axis.It’s stable running,precision and fast.

2.X,Y axis are gear rack,steady rate transmission,fast speed and high efficiency.

3.DSP control system with USB port,just need the handle to operate the machine,easy and convenient.

4.With vacuum table,holding the materials with vacuum pump,you can do varoety of high precision works.

5.Heavy duty frame and gantry,it’s very strong and stability.

Technical Parameter





Description Parameter
X Y Z axis working area 1300x2500x200mm
Spindle 3.5kw air cooling spindle
X Y Z traveling positioning accuracy +-0.01/2000mm
Table Surface T.slot table or vacuum table
Vacuum pump air cooling 5.5kw pump (option)
X Y Z rail and transmission Taiwan TBI ball screw and gear rack
Max.rapid travel rate 50000mm/min
Max.working speed 30000mm/min
Driver motors stepper motor and drivers or servo motor and drivers
Working voltage 220V/380V/50HZ
Command language G code
Control system DSP or NC Studio/Syntec/Mach3(option)
Software compatibility Option:Artcam,Ucancam,Type3
Running environment Temperature:0~45ºC
Relative humidity:30%~75%
Oil system Manual oil lubrication system
Frame structure New type thicker and bigger heavy duty square tube
Application

1.Woodworking industry:wood crafts,picture frames cutting,handicraft carving wave plates,wooden door production and processing.

2.Advertising industry:advertising materials such as PVC,acrylic,double color plate.

3.Stone working industry:such as natural marble,granite,artificial stone,tombstones,milepost,ceramic tile,glass and other materials.

4.Metal industry:carving aluminum,copper,stainless steel and so on.

Woodworking engraving/carving/cutting/milling machine 1325 cnc router for sales price

Package and Delivery

Package Detail:1.Outside:Standard plywood package.

                         2.Inner package:Stretchy film and plastic film for humidity.

                         And we can package according to you requests

Delivery Detail:For standard machines,it will be 7-15 working days after payment;For non-standard machines and customized machines according to clients’ specific requirements,it will be 15-30 working days after payment.

Woodworking engraving/carving/cutting/milling machine 1325 cnc router for sales price

After Sale Service

1.Engineers available to service machinery overseas.

2.1 year guarantee for whole machine.

3.Technical support by phone,e-mail,whatsapp and skype.If you have any problems,we will within 12 hours to solve it.

4.You will be get free training advice towards our machine in our factory.

5.If you need and component of the machine,we will provide the best price for you.

6.Friendly English version manual and operation video CD disk.

Company Inormation

ARTECH CNC EQUIPMENT CO.,LTD is comprehensive in the production,design,manufacturing,trade and service of CNC machine,and provide high quality and good efficient CNC machines worldwide.With a strong staff team,gained success in woodworking engraving machine,advertising engraving machine,stone engraving machine,metal engraving machine,laser engraving and laser cutting industry equipment.The production facilities occupies China’s forefront in development and expansion.

Woodworking engraving/carving/cutting/milling machine 1325 cnc router for sales price

FAQ

Q1 For offer the most suitable machine,how should i do?

1).The exact material you want to engrave/cut? (such as wood, acrylic, cloth, fabric, leather, metal…. ? )

2). For the Spindle Power, may I know the cutting or engraving depth you want?

3). The working area you demand? (such as max dimension of material, width*length,1200*1200mm,1300*2500mm,2000*3000mm, etc…

4). Do you want to engrave on planar &flat surface or round &curved surface?

If yes,the machine shall be added optional items, such as rotary attachment. if you can provide some pictures of your products,that would be great! after your tell us these,we will send you more information about the machine and price.

Q2.If we donot know how to use the machine,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if  you are busy ,we will have the special engineer to your country,but you need to bear some fee, like tickets and hotel and meal.

Q3.How about your after-sales service?

we offer you 24 hours service phone,skype or MSN.

Q4.How about your guarantee period?  one year and during the time,if you have  any questions ,we will solve it for free.
