The LTP5000D employs state of the arc inverter technology. 50/60Hz frequency is inverted to high frequency (over 100 KHz) by V-MOSFET followed by step down voltage and rectification current. Using Pulse-Width-Modulation (PWM) technology, the inverter power supply generates powerful DC welding currents. By applying switch power inverter technology, the dimensions and weight of the main transformer is significantly reduced while efficiency is increased by 30%.
Features:
- 50-amp pilot arc plasma cutters;
- Automatic dual voltage / dual frequency (110/220-volt 50/60Hz);
- Compact and portable;
- Suitable for Stainless Steel, Alloy Steel, Mild Steel, Copper, Aluminum, etc.
Package Includes:

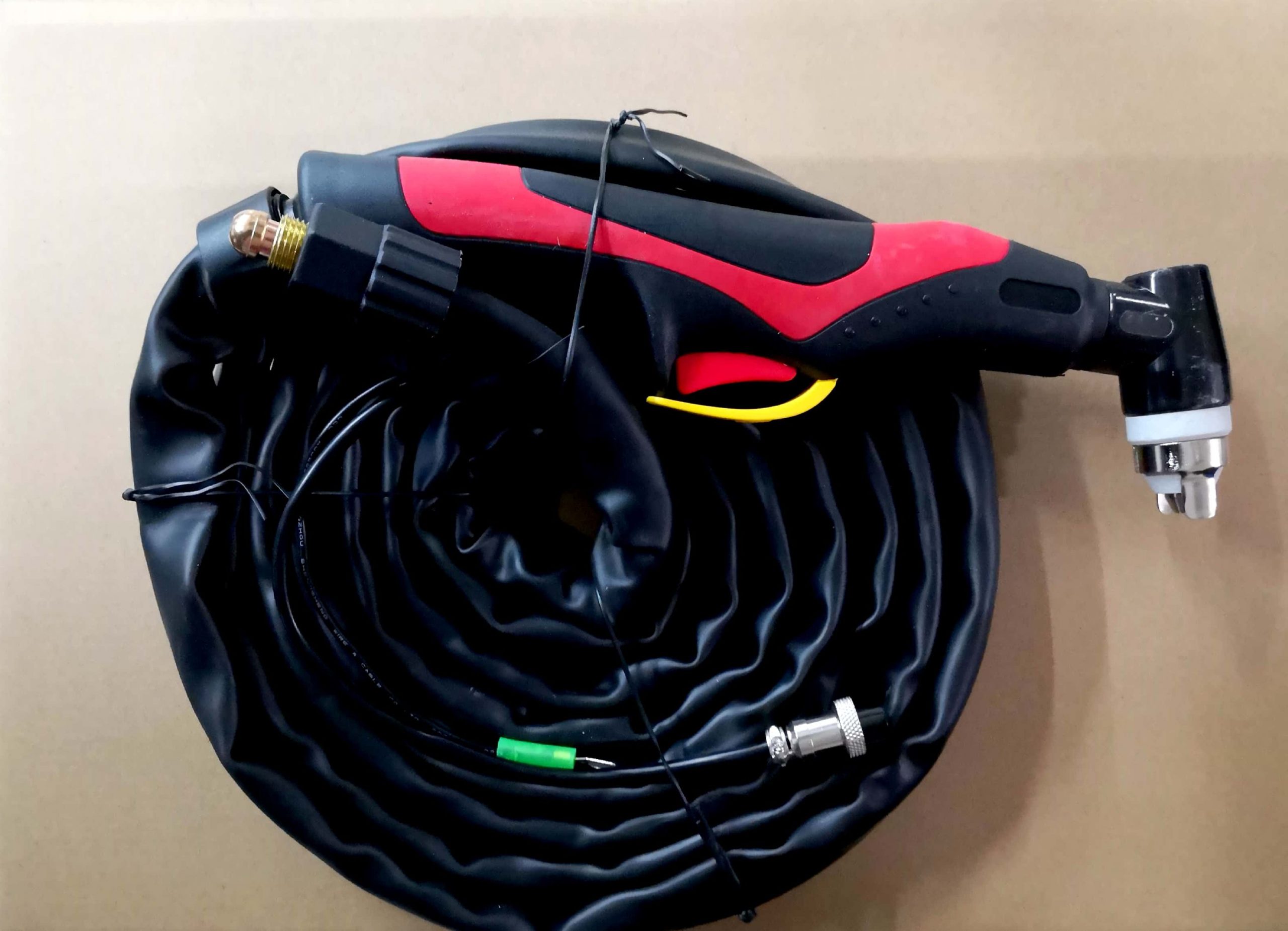

- Plasma cutting torch CP133 (13ft long, 3 pin connection);
- Ground cable & clamp (6ft long); 4 air hose clips and 2 air hose connectors;
- Air hose (6ft long); Air filter gauge AR01; Mounting bracket for air filter AR01; Air filter AR01 and user Manual.
|
|
||
|
Non-touch Pilot ARC
Pilot arc torch efficiently cuts through rough, painted and rusty surfaces and produces minimal slag.
Pilot arc technology allows you to cut without touching the tip to the metal. Better cutting quality and longer consumable life. |
1/2 Inch Clean Cut
-Max Rated Clean Cut Thickness: 1/2’’ -Max Severance Thickness: 3/4’’
Compact plasma cutter has a handle for portability and uses non-hazardous compressed air to cut stainless steel, alloy steel, mild steel, copper and aluminum. |
Dual Voltage
Automatic Dual Voltage / Dual Frequency (110V/220V 50/60Hz).
Dual voltage capability allows the machine to run directly on 220V 50/60 Hz power, or on 110V 50/60 Hz with the use of a pigtail (sold separately). |
|

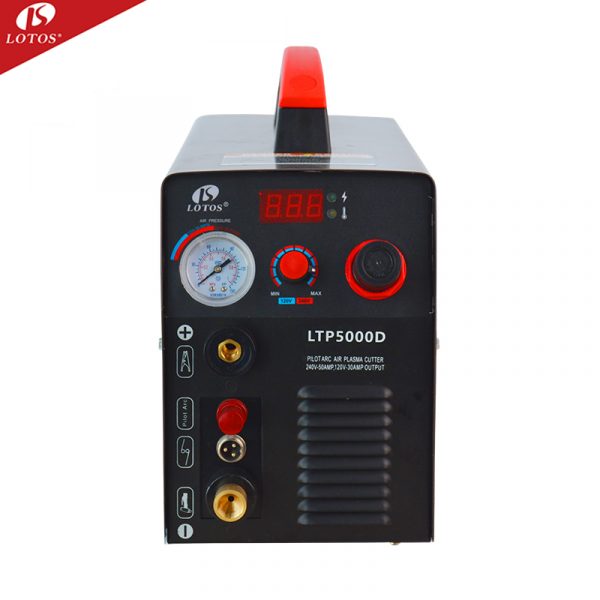

LOTOS LTP5000D |
|
|
Type |
Inverter-IGBT |
|
Input Voltages |
110-220V, 1-PH, 50/60 Hz |
|
Input Current |
110V 40A; 220V 20A |
|
Output Current |
10-50A |
|
Duty Cycle @ 40℃ (104℉) |
60% @ 50A, 110V 60% @ 50A, 220V |
|
Gas Supply |
Clean, dry, oil-free air |
|
Cutting Material |
Stainless steel, alloy steel, mild steel, copper aluminum, other metal materials. |
|
Cutting Thickness |
12mm |
|
Max Cutting Thickness |
19mm |
|
Dimensions |
381*153*305mm |
|
Weight |
10.2kg |
