Producing Folded Square Type Napkin Paper Making Machine

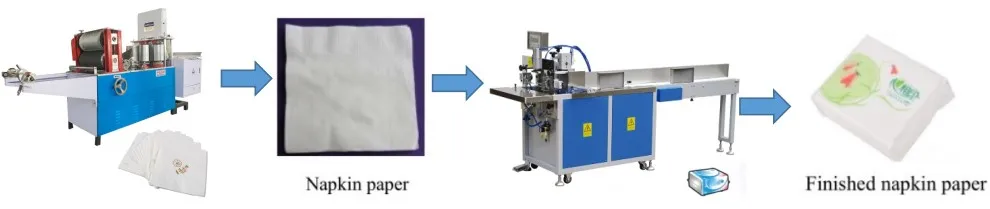

Machine working process:
About this napkin machine:
Introduction&Function & Assemble Parts :
1. this machine is mainly for producing folded rectangle or square type napkin paper through smooth compressing, color printing and embossment. this machine is mounted with two-color water printing ink system, which can print various beautiful logo or patterns. it possesses features, such as, clear embossment, correct overprinting and stable running under high-speed. it is the specialized equipment for making high-rank napkin paper.
2. under european ce standard designing, passed ce certificate, with ce or ul certificate for electric parts and with safety device, such as, safety-guard door, emergency stop and so on.
3. most of parts are precisely processed by numerical-control machine; the key mechanical parts are under cnc processing; while the main outsourcing parts are world famous brand.
4. color printing unit is equipped with rubber printing, while patterns are flexible as per requirement. it is specialized color printing while the ink can be coated evenly on the emboss roller.
5. smooth compressing is conducted by steel to rubber roller. embossment down roller can be felt roller, paper roller or rubber roller (choose one of them).
6. stepless speed-regulator controls unwinding; machine is completely synchronous in running; auto counting unit
Main technical parameter Specifications
|
Machine Type |
FY-N250 |
|
Raw Material Diameter |
<=1100mm |
|
Raw Paper Width |
180~250mm |
|
Embossing Roller |
Steel to Wool Roller |
|
Embossing Type |
Customized |
|
Printing Method |
Rubber Plate Printing |
|
Printing Type |
Single or Double Color Printing (Optioned) |
|
Folding Type |
V Type .M Type |
|
Final Product Size |
180~250mm |
|
Working Speed |
500~700pcs/min |
|
Control System |
Variable Frequency Speed Control |
|
Warranty |
One Year |
|
Raw Material Consumption |
260kg~660Kg |

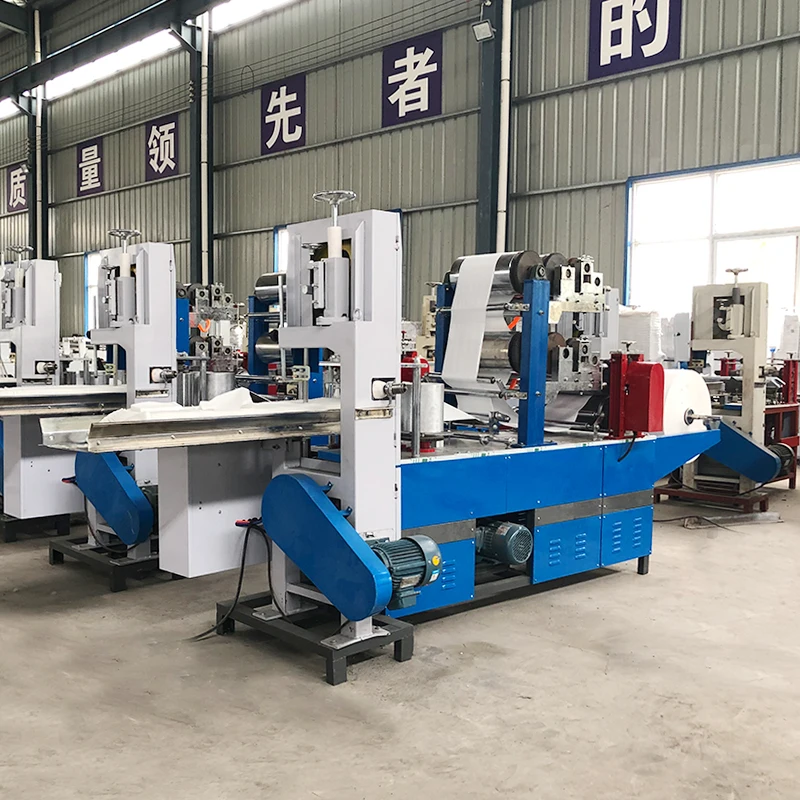

Napkin machine details
Nicely printing, intensively embossing, tidily folding, precisely cutting, accurately pre-counting and stacking – it is a multifunctional machine for paper napkin making of high quality.

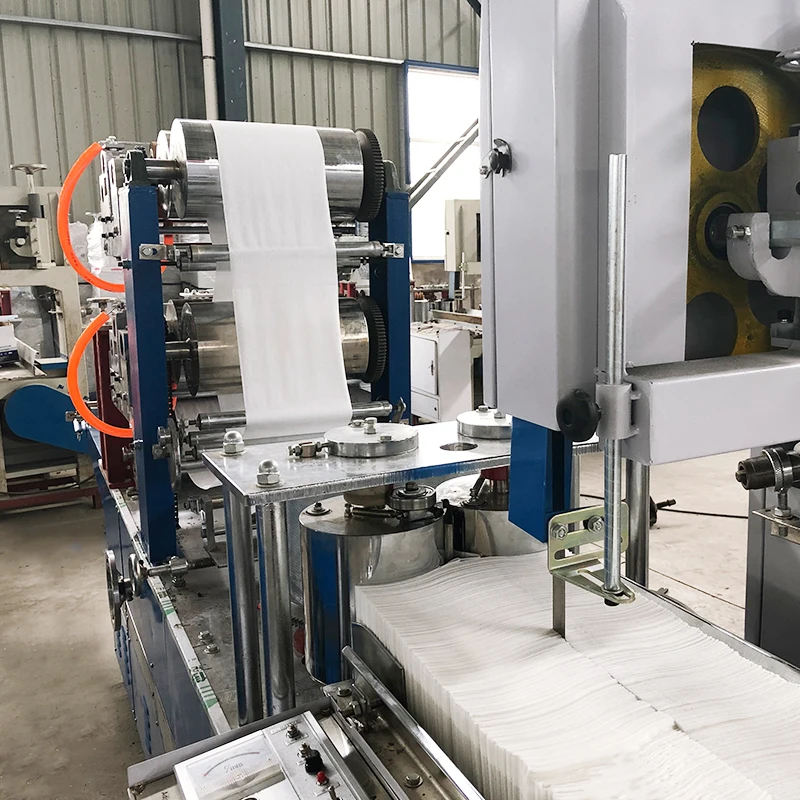

Electronic counting;Steel to steel/rubber(to be order),Making the embossing much clear
Embossing patterns

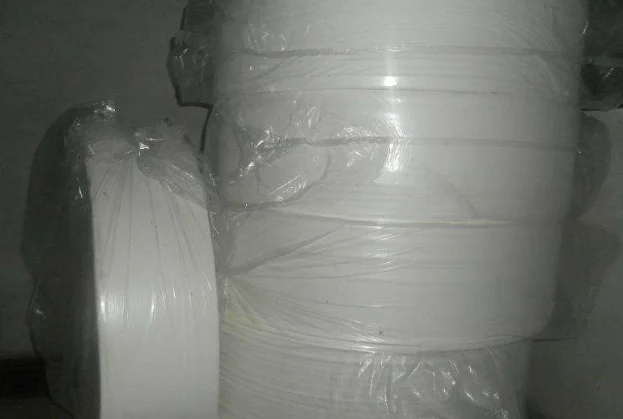

Napkin raw material rolls,normally 25kg per roll

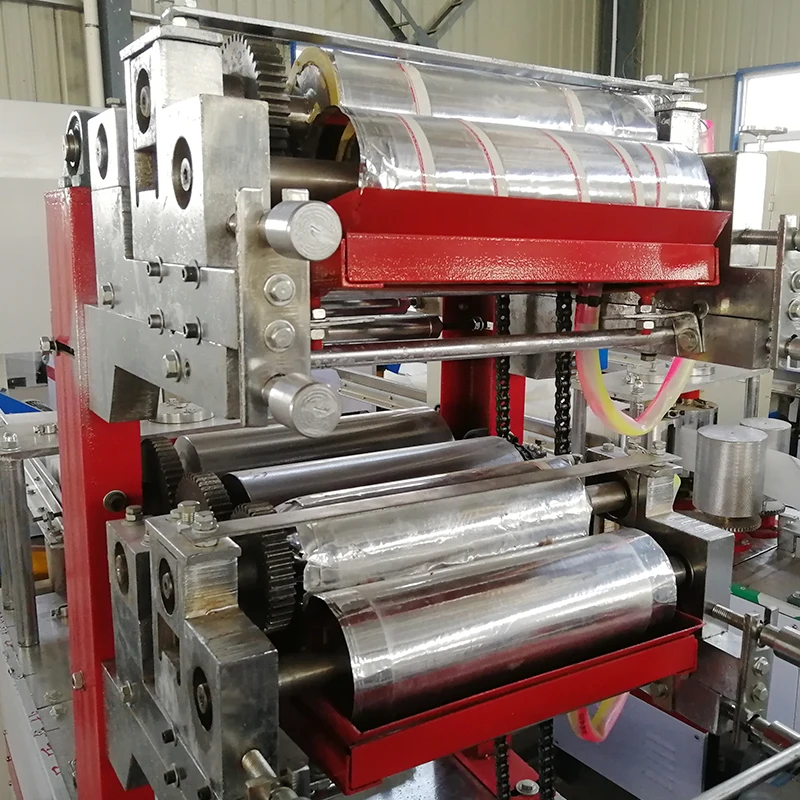

Color printing unit

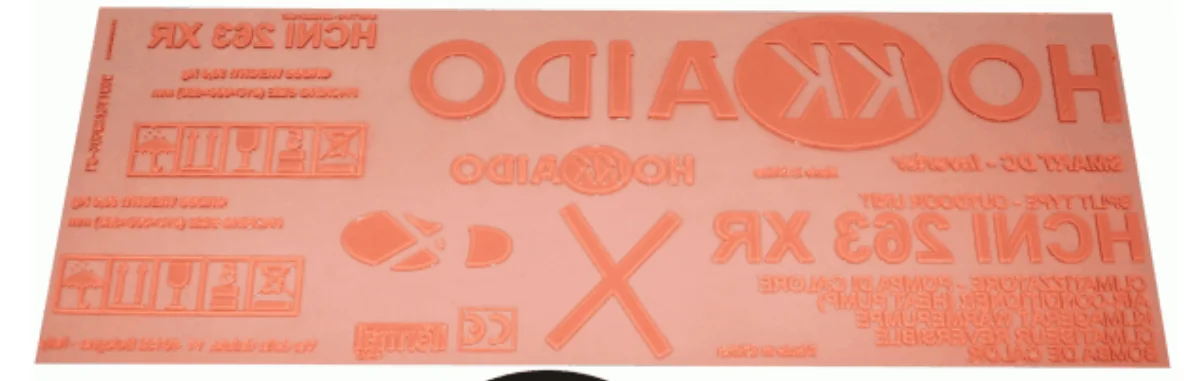

rubber plate for color printing patterns

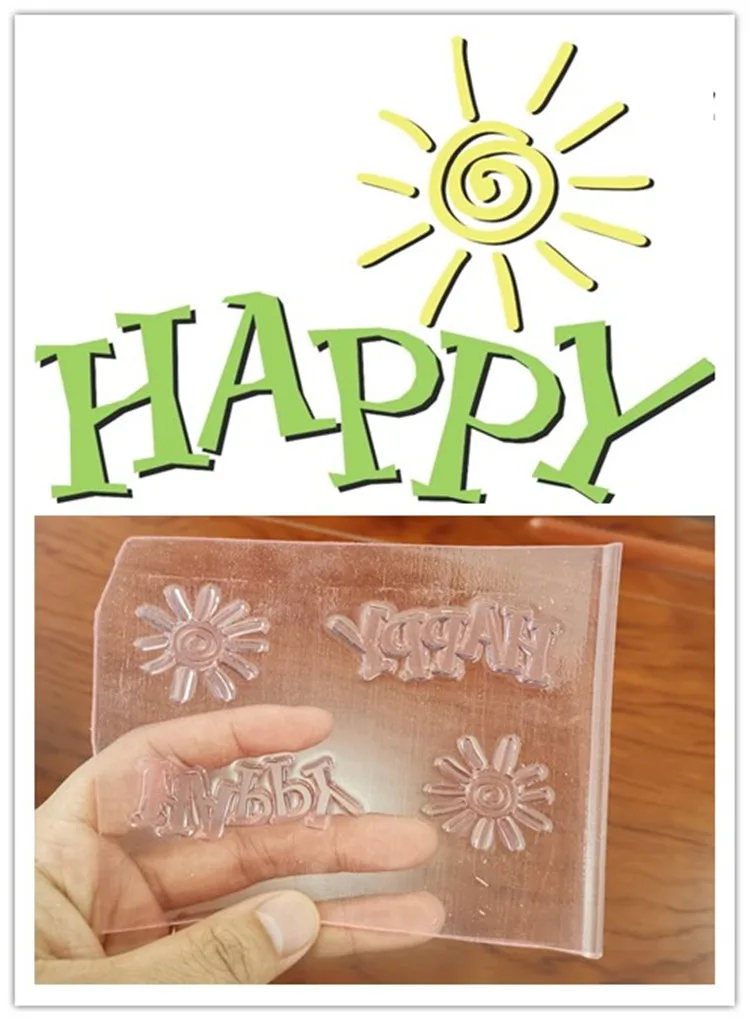

Most popular color printing pattern

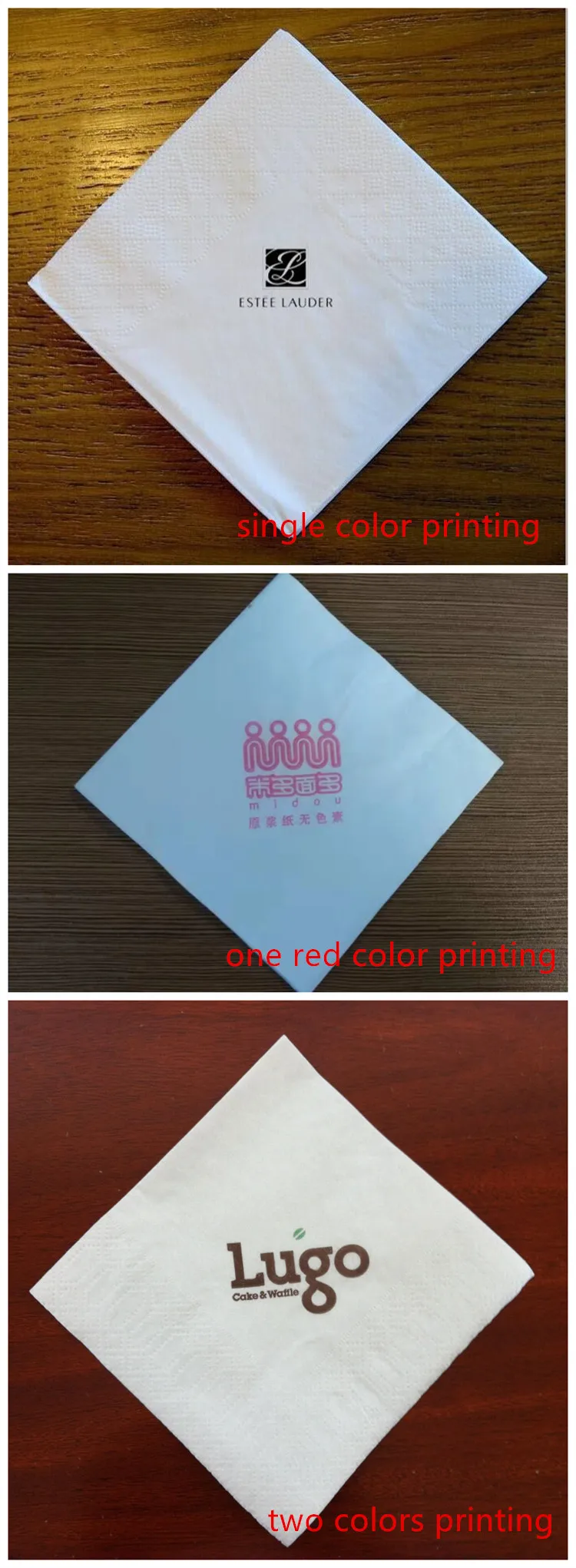

Color printing napkin paper samples

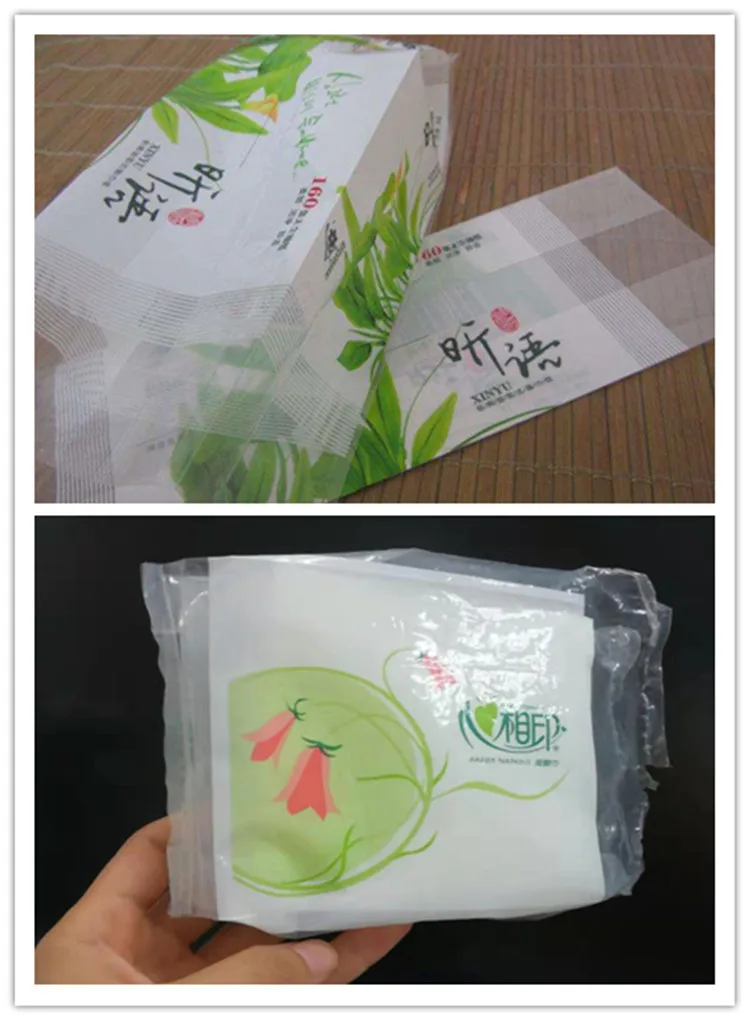

Usual napkin packing
Pre-Sales Service
1.Offering comprehensive technical and business consultation services;
2.Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.
After-sales Service
1.Highly inspecting equipments in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;
5.Training the first-line operators on site;
6.Regularly visit clients to solve production problems;
7.Providing life-long maintenance service;
8.Providing technical exchanging;
