Products Description
1. Realize ultra-fine lines and ulitra-short lines

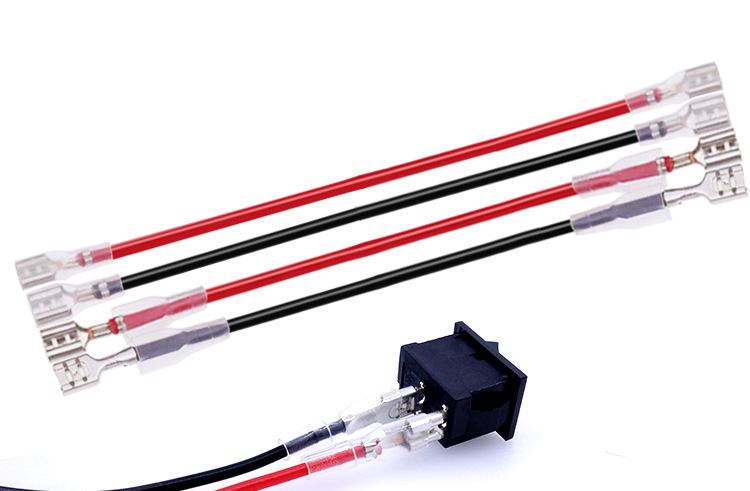

2. Realize the crimping and wearing of the 187/250 straight terminal and pull it into place, saving a lot of labor:
3. To achieve the same type of jacket, share the vibration plate, greatly improving the versatility
4. The machine uses Mitsubishi servo:6 sets of servo
5. Without the sheath end, the flag terminal can be crimped. Solve the problem of crimping of flag terminals
2. Realize the crimping and wearing of the 187/250 straight terminal and pull it into place, saving a lot of labor:
3. To achieve the same type of jacket, share the vibration plate, greatly improving the versatility
4. The machine uses Mitsubishi servo:6 sets of servo
5. Without the sheath end, the flag terminal can be crimped. Solve the problem of crimping of flag terminals
|
Model
|

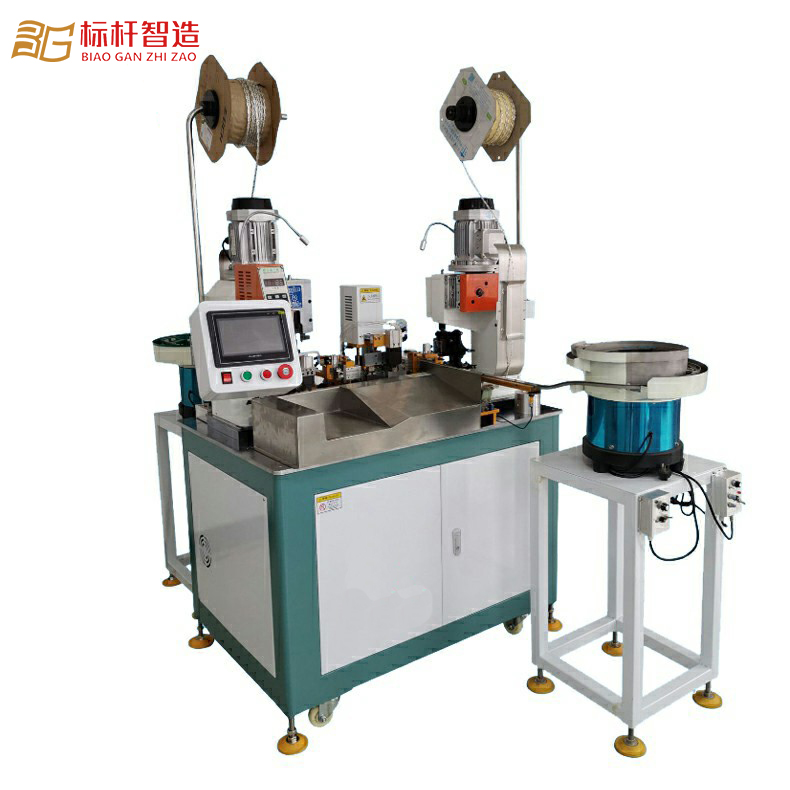

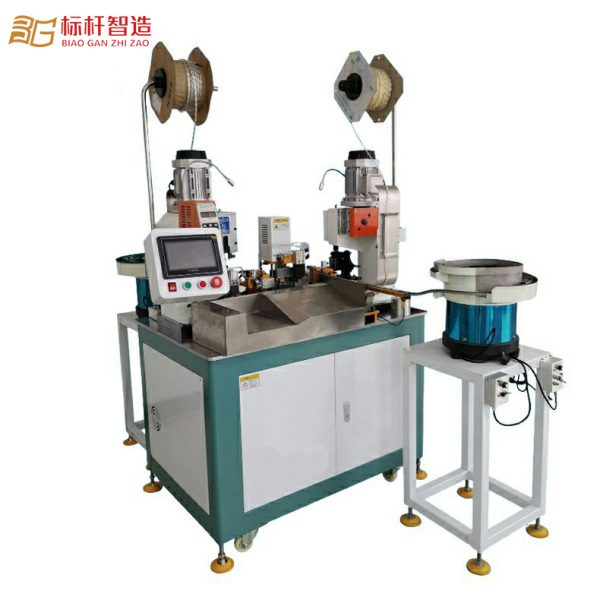

Fully automatic double-head sheath terminal machine
|
|
Power
|
AC220V 50HZ single phase
|
|
Function
|
Both ends of the wire can be cut, stripped, crimped, and wear rubber sheath at the same time
|
|
Process range
|
AWG1007#12-#26 wire diameter:1.0mm -4.0mm
|
|
Cutting length
|
60mm-9999mm(800mm Above need to be equipped with conveyor belt)
|
|
Cutting tolerance
|
Adjustment range 0.5mm+cut length*0.2% or less
|
|
Air pressure
|
Standard 2ton (super quiet 2.0T terminal crimping machine for castings)
|
|
Size
|
1820mmW*960mmL*1860mmH
|
|
Optional accessories
|
1. mold and blade
2. Vertical wire feeder 3. Axis type pay-off rack 4. Long-line conveyor belt 5. Stress Management System |
Packaging & Shipping
|
Packaging
|
||
|
Size
|
1820mm(L) * 960mm(W) * 1860mm（H)
|
|
|
Weight
|
400KG
|
|
|
Packaging Details |
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to customers special request. |
|

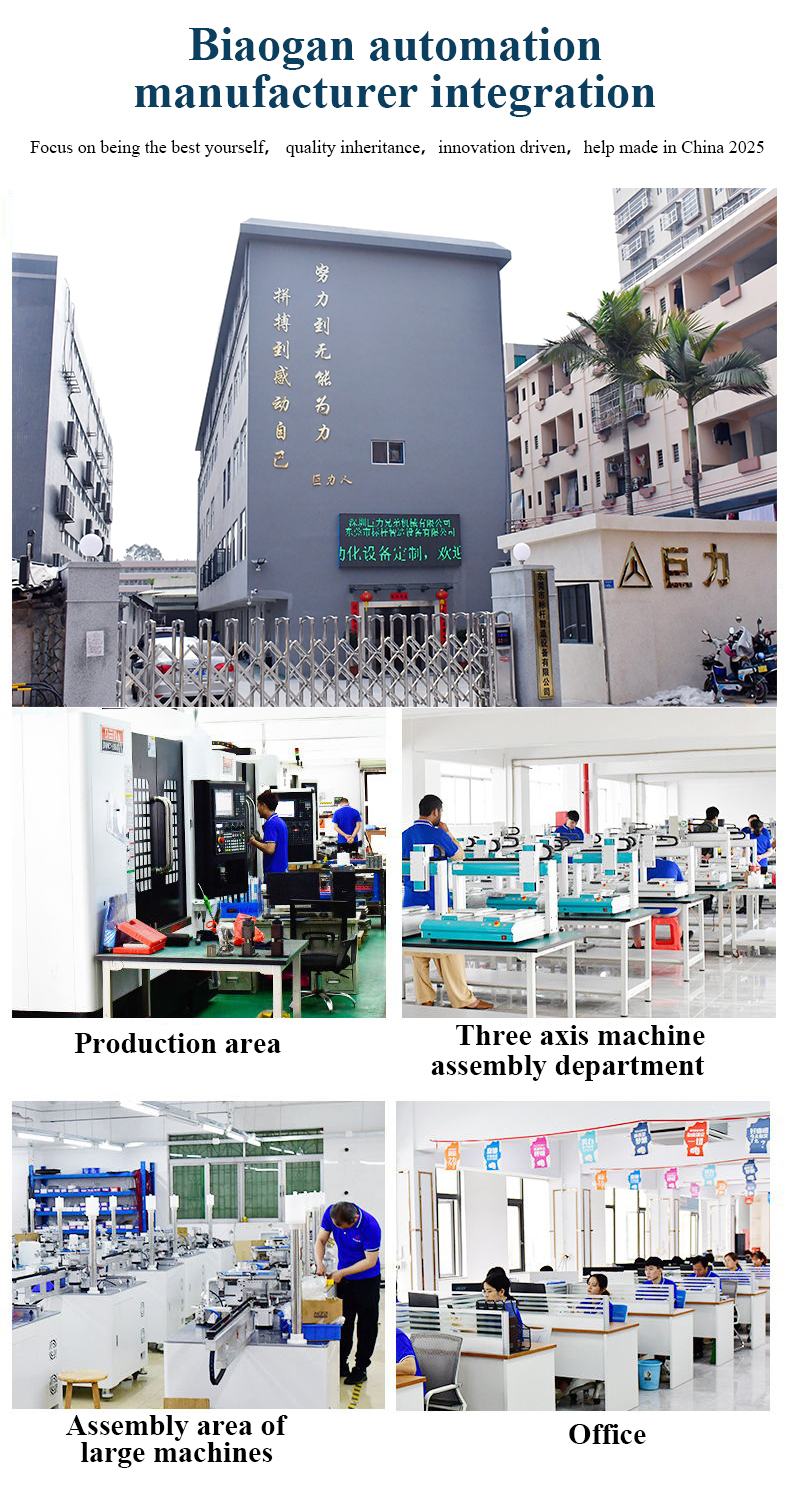

Company Information
Certifications
FAQ
1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery
Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples
Video for you to make samples
4. How to operate the equipment?
My friend, don’t worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can’t work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
