MS8236 MASTECH Digital Multimeter + Network Cable Track Tester Tone Telephone Line Check Non-contact Voltage Detect
Features:
Conformance to IEC 61010-1 CAT3 600V.
Display is 1999 counts.
Diode check & continuity check.
Auto range and manual range.
Data hold & max value measurement.
Phone check, dentify the state in the working telephone line: busy, ringing or clear.
Tone, judge continuity of the cables or wires.
Track the cables or wires, and diagnose the break point.
Net cable check, test for open circuits, shorts, miswires, reversals, split pairs and LCD display the test result.
Shield detection tests a cable’s shield integrity.
Main unit and one remote allow one person testing of T568A, T568B, 10Base-T.
Easy to read fault display and high speed testing.
Debug mode for detailed fault identification results.
Low Battery indication.
Auto power off & back light.
None contact voltage detect.
Safe and professional.
Specifications:
DC Voltage: 200mV/2V/20V/600V ±(0.7%rdg+3dgt)
AC Voltage: 200mV/2V/20V/600V ±(0.8%rdg+5dgt)
DC Current: 200uA/2000uA/20mA/200mA ±(1.2%rdg+5dgt); 2A/20A ±(1.2%rdg+5dgt)
AC Current: 200uA/2000uA/20mA/200mA ±(1.5%rdg+5dgt); 2A/20A ±(3.0%rdg+5dgt)
Resistance: 200/2k/20k/200k/2M/20M ±(1.0%rdg+3dgt)
Power supply: 9V 6F22 battery
Item size: 18.6 * 8.8 * 5.5cm
Item weight: 400g
Package size: 26 * 17.5 * 8.7cm
Package weight: 1015g

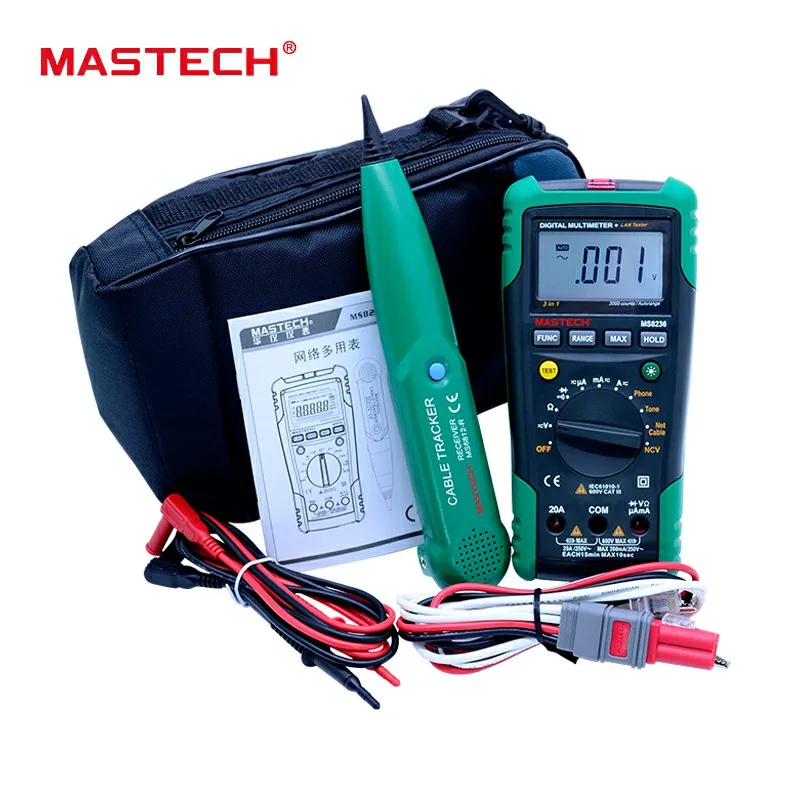

Package including:
1 * Digtal clamp meter
1 * Set of test leads
1 * Carry bag
1 * 9V 6F22 battery (not included)
1 * Network cable
