Scroll heads and moter
The gas from the suction chamber is gradually compressed by the later crescent compression chamber, and then the exhaust outlet at the center of the static disk is discharged. Features: low noise; excellent durability; cost saving; high reliability.
Power:5.5kw*2=11kw
Capacity :1200 L/min 42CFM
Pressure:0.8Mpa
|
NO.
|
Model →Click
|
Power/0.8Mpa
|
Capacity (L/minCFM)
|
Size(L*W*H) cm
|
N.W.
|
|
1
|
5.5kw
|
600 L/min 21 CFM
|
72*76*112cm
|
250KG
|
|
|
2
|
5.5kw*2=11.0kw
|
1200 L/min 42 CFM
|
125*76*112cm
|
440KG
|
|
|
3
|
5.5kw*3=16.5kw
|
1800 L/min 63 CFM
|
125*76*156cm
|
630KG
|
|
|
4
|
5.5kw*4=22.0kw
|
2400 L/min 84 CFM
|
125*136*112cm
|
820KG
|
|
|
5
|
HD-D36/08
|
5.5kw*6=33.0kw
|
3600 L/min 126 CFM
|
125*136*156cm
|
1200KG
|
|
6
|
HD-D48/08
|
5.5kw*8=44.0kw
|
4800 L/min 168 CFM
|
125*136*178cm
|
1590KG
|
|
7
|
HD-D60/08
|
5.5kw*10=55.0kw
|
6000 L/min 210 CFM
|
125*136*178cm
|
1790KG
|
Scroll Mainframe and motor(Integrated axial type/belt type)
Belt drive scroll oil free air compressor
Qualified static and moving disks tested
Parts and parts of finished products

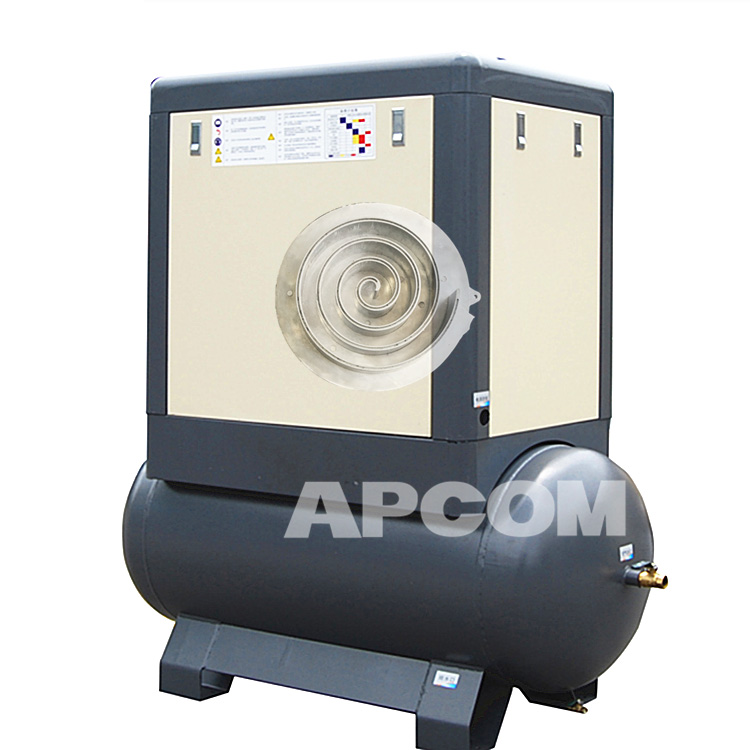

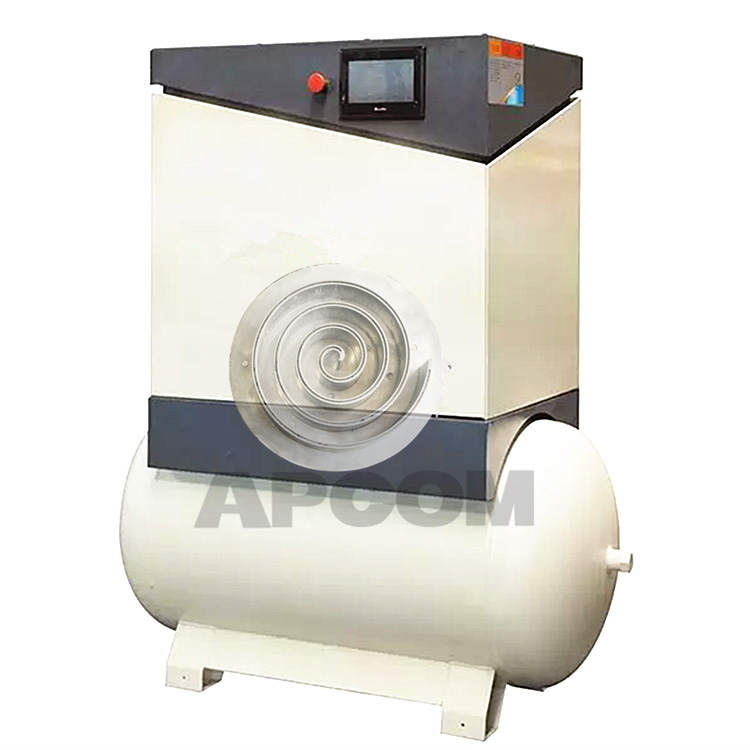

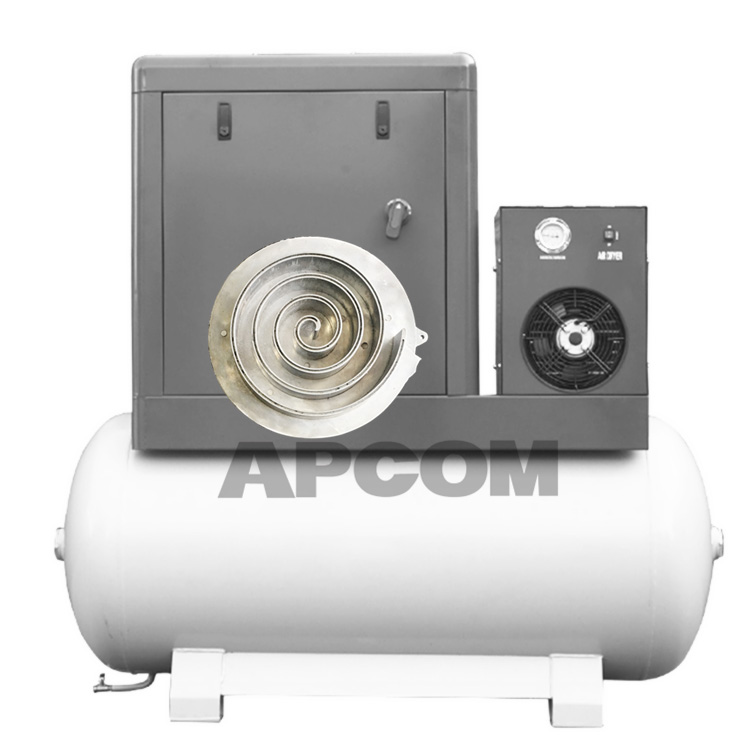

Scroll oil free air compressors
APCOM Scroll Oil-free Compressor
Phone whatsApp: 0086 189 6700 9313
Phone whatsApp: 0086 137 0579 6425
Phone whatsApp:0086 181 6701 6615
Turbine disk testing
Turbine disk testing
Machining turbine disk
Installation host
Permanent Magnet Frequency conversion Direct connection main engine to be exported
Parts and parts of finished products
Piston Oil Free Air Compressor
Click On
Screw Oil Free Air Compressor
Click On
