Name: China CNC Router Machine CNC 6090 1.5KW 4 Axis CNC Milling Machine
SKU: 797628019181
Price: 11199.89 SAR
Availability: InStock

China CNC Router Machine CNC 6090 1.5KW 4 Axis CNC Milling Machine

ر.س11,199.89

Compare

Request quotation for: China CNC Router Machine CNC 6090 1.5KW 4 Axis CNC Milling Machine

Product Description

Technical Parameters

LY CNC 6090 L-1.5KW 4 axis engraving machine parameters:

Machine Dimensions:	900 * 1200 * 600mm
Rack material:	6061 and 6063 Hard aluminum alloy
Table size	640 * 1080mm (20mm aluminum alloy T table)
Engraving area:	600 * 900mm
Z-Axis Stroke:	120mm, Engraving depth depends on the length of the tool edge

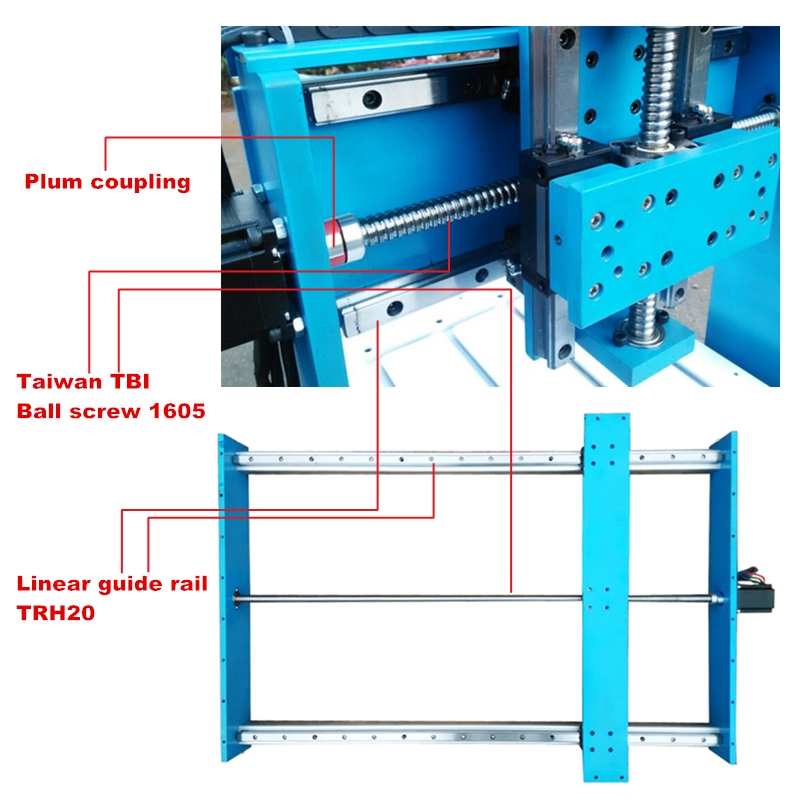

Rail type:	Linear guide rail (more precise moving)
Type of screw:	Ball screw 1605
Spindle motor:	1.5KW VFD water cooling spindle , 0-24000r/min
Collet type:	ER11,1/8″(3.175mm) and 6mm Collet
Stepper motor and drive:	two-phase 57/3A
Maximum operating speed:	4000mm/min (Engraving speed : 300-3000mm/min)
Repeat positioning Accuracy:	0.03mm
Communication interface:	Parallel port
Software Compatability:	Mach3 (Type3,Wentai, ArtCAM, coppercam)
Command code:	G code/.nc/.ncc/.tab/.txt
Machine weight:	150kg
Rotation Axis (4^th Axis)	Yes

Packing list:

1× CNC 6090 engraving machine

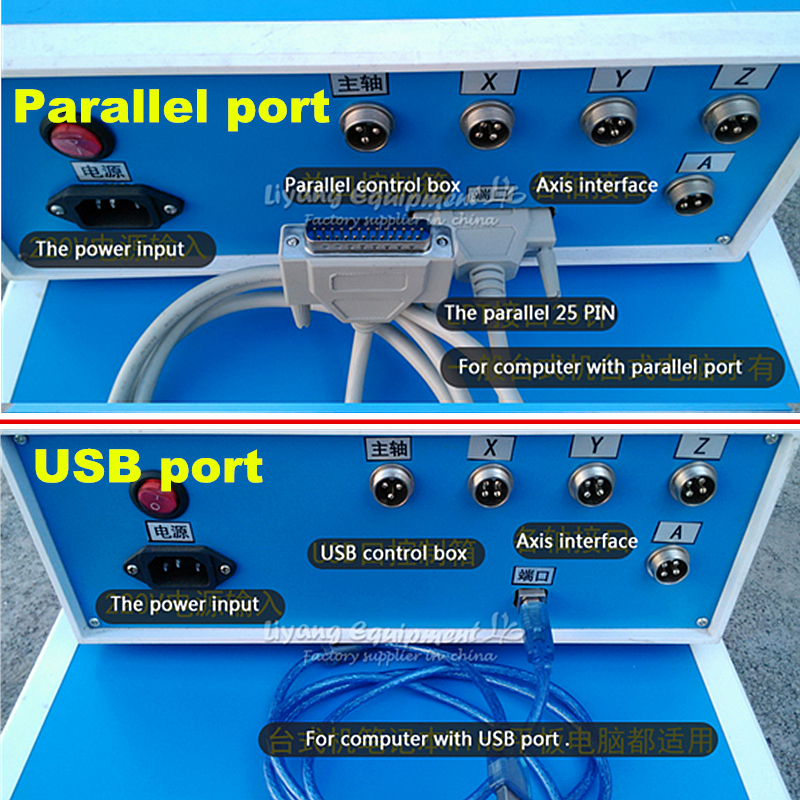

1× Control box (VFD built-in design)

1× Power cable

1× usb cable(for power supply)

1× Parallel port cable 25pin

1× Tool package

1× tool auto-checking instrument

1× water pump

1× Rotary axis + Tailstock

1× CD of manual and software MACH3 (if not get, may be lost in customs, please contact us)

CNC 6090 4axis (7).jpg 6090L 1.5KW 4axis (2).jpg 6090L 1.5KW 4axis (3).jpg 6090L 1.5KW 4axis (4).jpg 6090L 1.5KW 4axis (6).jpg 6090L 1.5KW 4axis (7).jpg 6090L 1.5KW 4axis (8).jpg 6090L 1.5KW 4axis (11).jpg
