1. All products with original packaging box, so that can protect the products well on the shipping way avoid damage.
2. The product does not contain the battery because of the limitation of the airline company.
3. Warranty: All units are with Retail box. and we offer Long warranty period of 2 years,in two years will repair for free.
4. Shipping Way: if you need it faster, you can choose Aliexpress standard shipping,also have China post airmail !

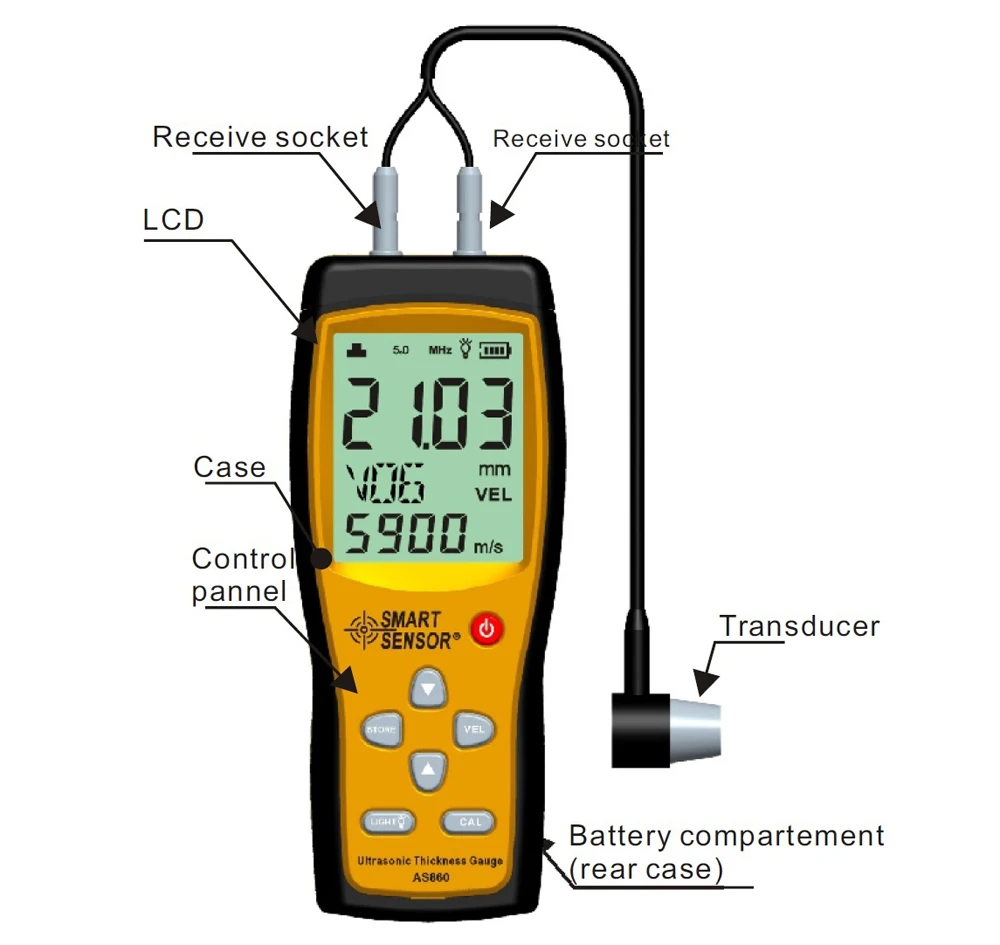

SMART SENSOR Ultrasonic Thickness Gauge This unit is an intelligent handheld product, which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material. This unit is widely
used in various precise measurement for different hardware / parts in industrial realm; one of its important application is to monitor the level of thickness-decreasing during operation of various and pressure container. Diffusely
applied in manufacture fields, metal processing, and commercial inspection.
Scope of application
This unit is suitable for measuring materials that are good ultrasonic conductor such as metal, plastic, ceramic, glass etc.,as long as the measured part in two parallel surfaces for measurement of thickness. This unit is not suitable for cast iron
due to its big crystalloid composition.
Features
1. Auto calibration to assure the accuracy
2. Sound velocity measurement: with a given thickness to measure the sound velocity to improve accuracy
3.12 sound velocities for different material
4. Coupling status indication
5. 12 thickness measurement data store and recall
6. Thickness alarm setup
7. Back light function
8. Low battery indication
9. Auto power off
| Measuring range: | 1.00 to 300.0mm(steel) |
| Accuracy: | (1%H+0.1mm) |
| Resolution: | 0.01mm(1.00 to 99.99mm) 0.1mm(100 to 300mm) |
| Minimum limit for tube measuring steel : | 15*2.0mm( 6 transducer) 20*3.0mm( 10 transducer) |
| Sound velocity: | 1000 to 9999m/s Thickness 20mm, accuracy of velocity: 1mm/H 100% Thickness 20mm , accuracy of velocity: 5% |
| Operating environment : |
Operation temperature: 0°C to 40°C Temperature of workpiece: < 60 Relative Humidity: <90% Do not apply in violent vibration / erosive material Avoid impact and humidity |
| Power supply: | 1.5V AAA * 3 PCS (not include due to air limit) |
| Operation current: | 35mA (with back light on) |
| Frequency | 5MHz |
| Minimum limit for tube measuring | 20*3mm(steel) |
| Auto Zero Calibration | V |
| Auto linear compensation | V |
| Coupling Indicator | V |
| Metric / Imperial Switchable | — |
| Battery Indication / Auto Power Off | V |
| Product Net Weight / Product Size | 240g / 150*80.5*34mm |
| Table of sound velocity (Sound velocity of common materials) | |||
| Material | Velocity(m/s) | Material | Velocity(m/s) |
| Aluminum | 2670 | Acetate resin | 6320 |
| Zinc | 3530 | Phosphor bronze | 4170 |
| Silver | 4430 | Turpentine | 3600 |
| Glod | 5440 | Glass | 3240 |
| Tin | 5720 | Incoloy alloy | 3230 |
| Iron/Steel | 6310 | Magnesium | 5900 |
| Brass | 6020 | Monel alloy | 4640 |
| Copper | 5630 | Nickle | 4700 |
| SUS | 5850 | Steel 4330 mild | 5790 |
| Acrylic resin | 5660 | Steel 330 | 2730 |
| Water 20C | 6070 | Titanium | 1480 |
| Glycerinl | 4650 | Zirconium | 1920 |
| soluble glass | 2620 | Nylon | 2350 |
| Selection of transducer | |||
| ITEM— | Characteristic | Range | Operation temperature |
| 5MHZ— | General-purpose | 1.00mm to 300.0mm(steel) | -10 to 60 |
| 5MHZ— | Thin workpeice | 1.00mm to 50.0mm(steel) | -10 to 60 |
|
2.5MHZ— |
General-purpose | 1.00mm to 300.0mm(steel) | -10 to 60 |
