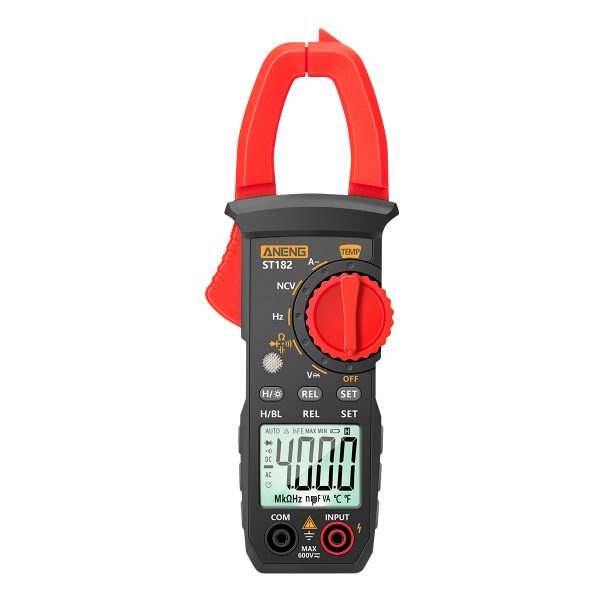

ANENG ST182 Digital Clamp Meter AC Current Multimeter DC/AC Voltage Ammeter Voltage Tester Amp Hz Capacitance NCV Ohm Test
Features:

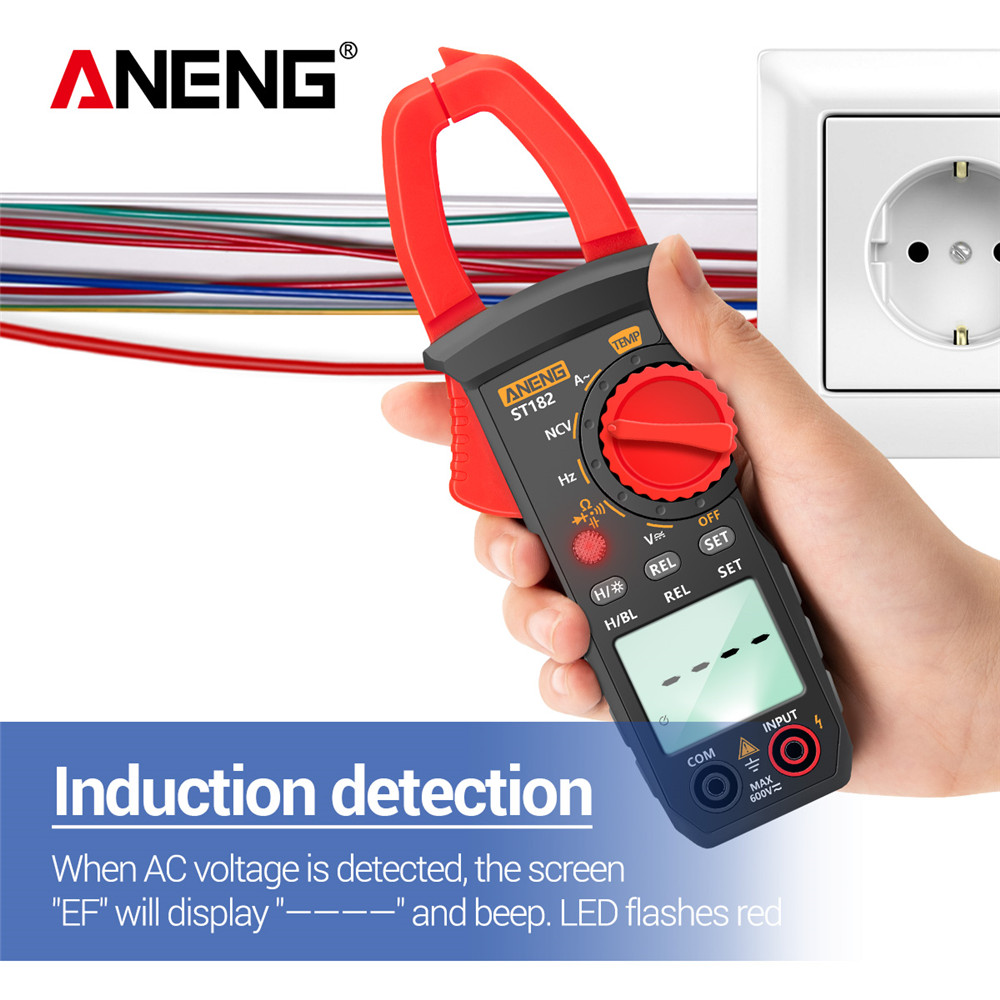

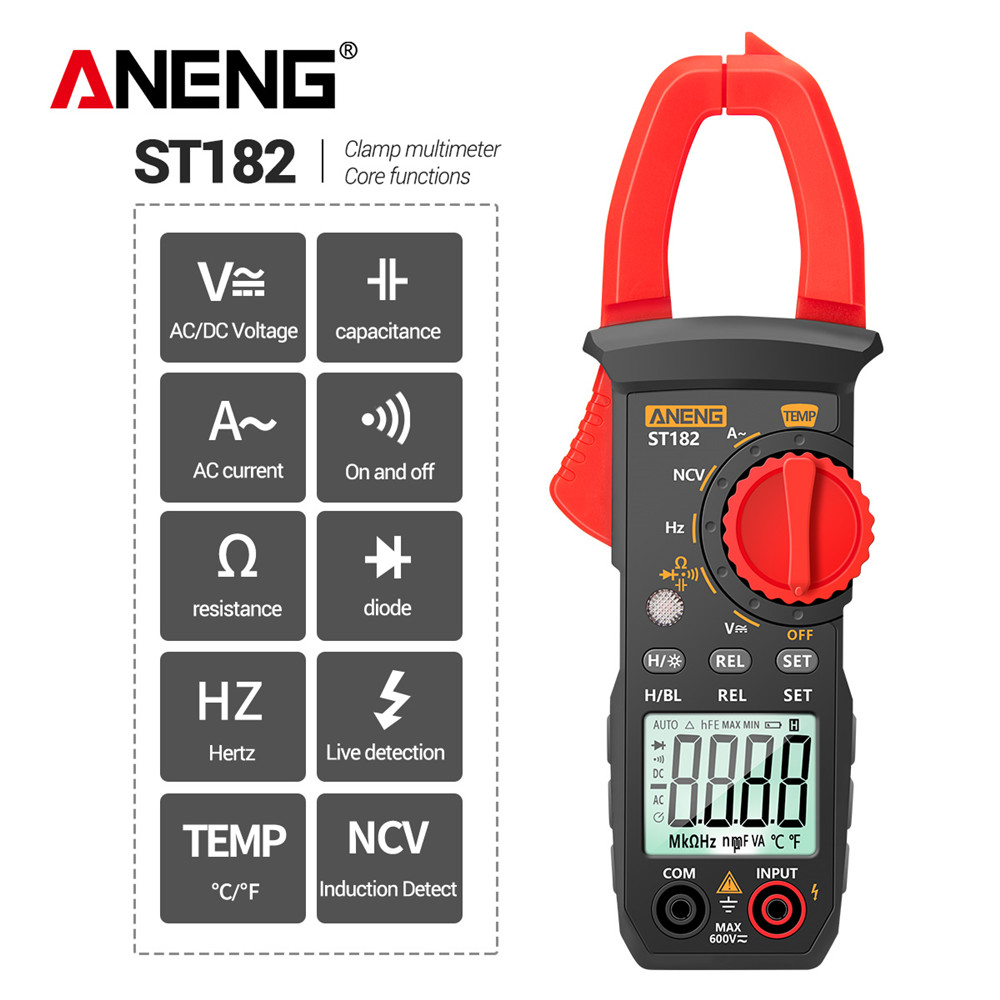

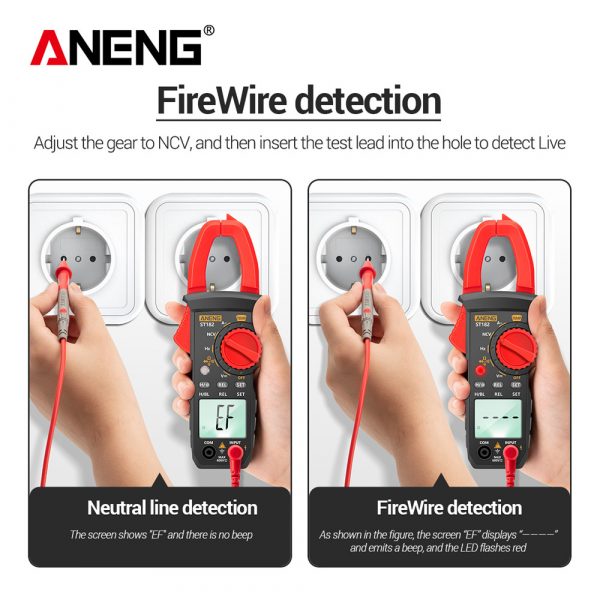

This instrument performs AC/DC voltage, AC Current, Resistance, Audible Continuity, Diode, Temperature measurements and Non-Contact ACV Detect (NCV) as well as Capacitance, Hz etc. It is an auto ranging DMM with AC current clamp meter function.
This instrument performs AC/DC voltage, AC Current, Resistance, Audible Continuity, Diode, Temperature measurements and Non-Contact ACV Detect (NCV) as well as Capacitance, Hz etc. It is an auto ranging DMM with AC current clamp meter function.
Specifications:
| Brand | ANENG | Model | ST182 |
| Range | Accuracy | |
| AC Voltage | 4V/40V/400V/600V | ± (1.5% + 3) |
| DC Voltage | 400MV | ± (1.5% + 5) |
| 4V/40V/400V/600V | ± (1.0% + 3) | |
| Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ | ± (1.2% + 3) |
| 40MΩ | ± (1.5% + 5) | |
| AC Current | 40A/400A | ± (2.5% + 3) |
| Frequency | 10Hz~400kHz | ± (1.0% + 5) |
| 400kHz~4MHz | ± (2.0% + 5) | |
| Capacitance | 1nF~4uF | ± (2.5% + 10) |
| 4uF~400uF | ± (4.0% + 20) | |
| 4mF | ± (5.0% + 30) | |
| Temperature | 0℃~400℃/32℉~752℉ | ±(2.0%+1℃) |
| 400℃~750℃/752℉~1382℉ | ±(2.5%+1℃) |
Package List:
1 * ANENG ST182 Clamp Multimeter
1 * Black Packing Bag
1 * Test Pen
1 * Temperature line
1 * User Manual
1 * Packing Box
