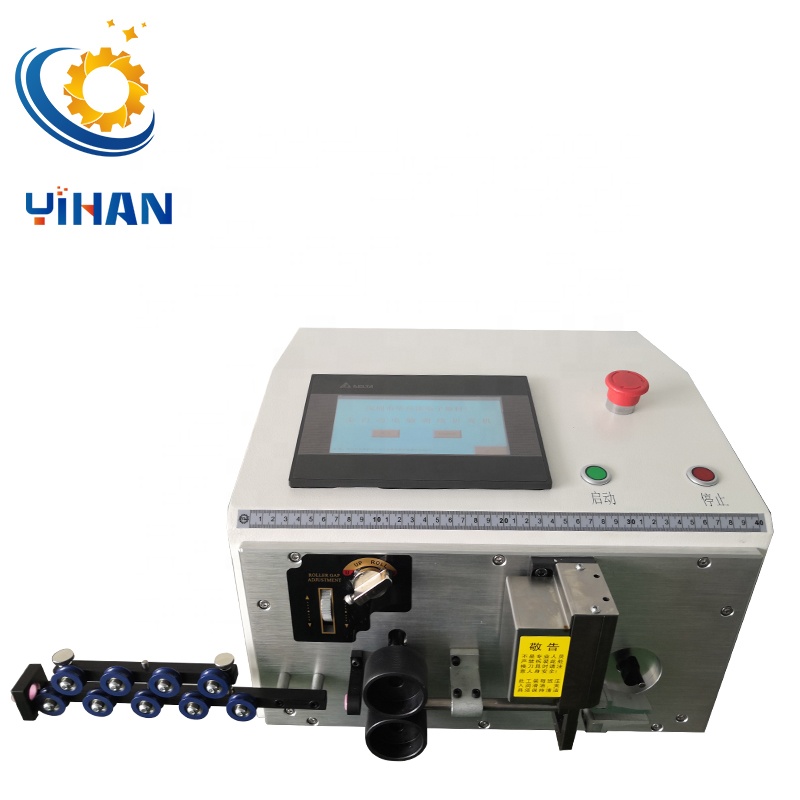

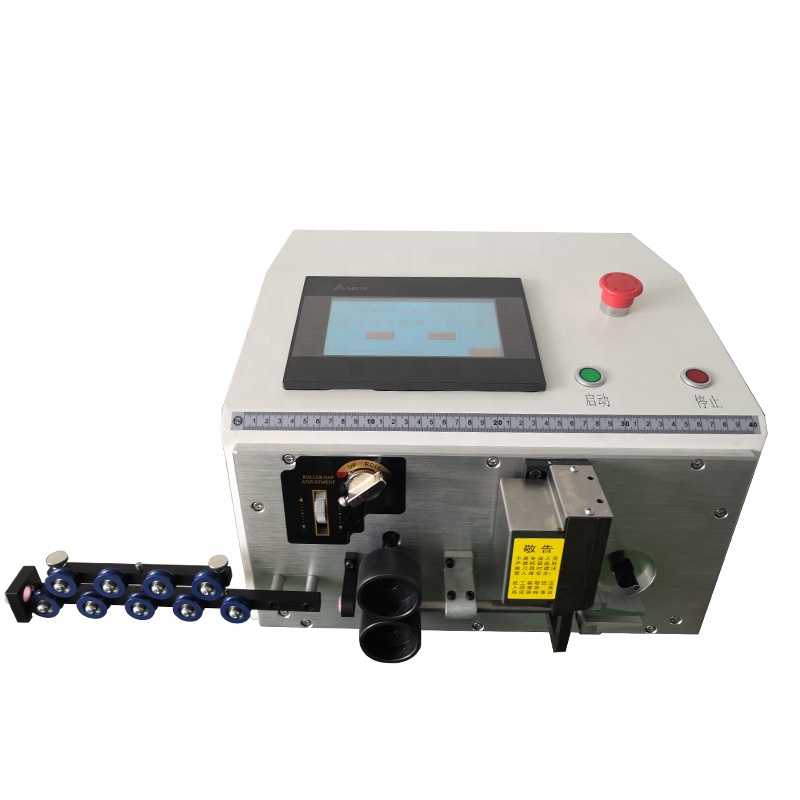

YH-16W Automatic BVV cable bending stripping cutting machine
Description:
- This machine mainly for the automotive industry, sensor industry, power industry, electric control cabinet,
a battery box line, Military factory,Robotics,Automation, Railways, off shore, Medical. - YH-Z906 machine can process whole electric wire according to required length,cut off and stripping head,not to hurt the tegument and conductor,high precision, thus greatly improving efficiency.
- You are assured maximum flexibility and even more efficient way of meeting your wire processing need. Clockwise and counterclockwise, adjustable bending degree, 30degrees,45 degree, 60 degrees, 90 degrees. positive and negative two bending in one line.
Product Description
| Product Name | Automatic wire bending machine |
| Model | YH-W16 |
| Dimension | 600*550*450mm |
| Weight | 68KG |
| Display method | Chinese or English interface display |
| Power supply | AC220/250V/50/60HZ |
| Capacity | 180-600W |
| Cutting length | 1mm-99999mm |
| Cutting Tolerance | Adjustable |
| Peeling length | 1.0mm-999.9mm(According to the wire) |
| Wire range | 0.1-16.0mm2 BV hard wire cutting stripping and bending |
| Number of bending | 10 times(more than 10 times is optional) |
| Productivity | 800-1500pcs/h(according to the cutting length) |
| Cutting tolerances | ±( 0.002* L : indicates a cutting length. |
| Drive mode | Four simultaneously drive |
| Bending way | Clockwise and counterclockwise,adjustable bending degree,30 degrees,45 degree, 60 degrees,90 degrees,positive and negative two bending in one line |
| Air supply | 0.5-0.75MP |
