Product Description
Application field

1)Washing ironing industry: dry washer , dryer and washing machine , dryer, ironing machine, electric iron, and other ancillary equipment.
2)Food machinery industry: tofu machine,steambox,sterilization  pot, packing machine, coating equipment, sealing machine, such as supporting the use of equipment.
3)Biological chemical industry: fermentation tank, reaction kettle, sandwich pot, mixer, emulsifying machine supporting the use of equipment.

4)Other industries: oil field, car) steam cleaning industry, (hotel, school, dormitory, batch plant) made by hua-dong works are hot water supply, (Bridges, railways) concrete curing, leisure (salon), sauna bath, heat exchange equipment.

Main Features

1.High-efficiency Boiler Liner Structure
2.Advanced Automatic Control Function
3.Safe and Scientific Structural Design
4.High-quality and Fast Steam
5.Water Tube Structure with Three Pass ReturnMain Features

Product Features
Product Type
LSS0.2-0.8-Y/Q
Rated evaporation
100 Kg/h
Thermal efficiency
≥93
Rated pressure
0.8 MPa
Steam temperature
175 ℃

        FUEL
Diesel
12.2Kg/h
Coal gas
34 Nm³/H
Natural gas
15.2 Nm³/H
Liquefied gas
11.4 Kg/h

  DIMENSION
L
1060 mm
W
960 mm
H
2100 mm
Steam caliber
DN25
Drain outlet caliber
DN25
Water inlet caliber
DN15
Weight
680 kg

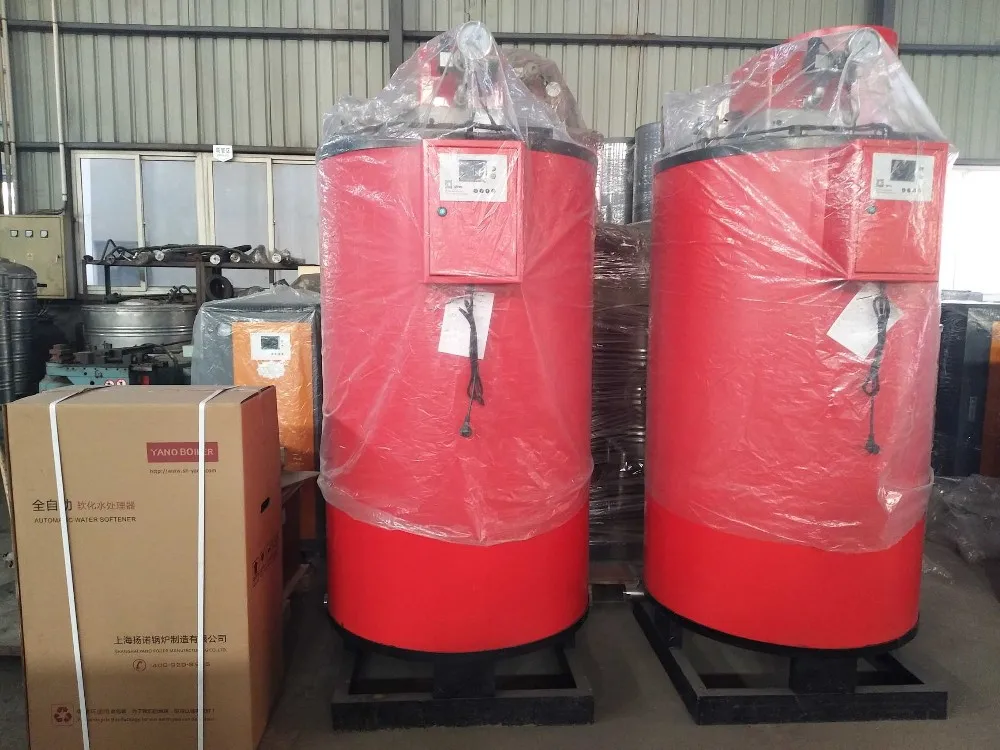

Packing & Delivery
Packaging & Shipping
1,Standard Export Wooden Package

2,If export to European countries, the wooden box will be fumigated.
3,If container is too tight, we will use PE film for packing or pack it according to customers special request.

Company Profie
With over ten series of more than one hundred kinds of products, has obtained above ten of inventions and utility model patents and national energy-saving products honorary  certificate, passed the ISO9001 international quality management system
certification, Germany Rhine TUV CE certification, Italian 1282 laboratory CE certification… Market
We have customers worldwide, such as France, Britain, Denmark, Greece, Sweden in Europe, Saudi Arabia, Dubai in Middle East, USA,
Canada in America, South and North Korea in Asia, New Zealand in Oceania, Rwanda, Tanzania in Africa, Brazil, Peru, Guatemala in Latin America, Singapore, Thailand,Philippines in Southeast Asia, etc.. Our Products are highly appreciated by our customers.
Specification

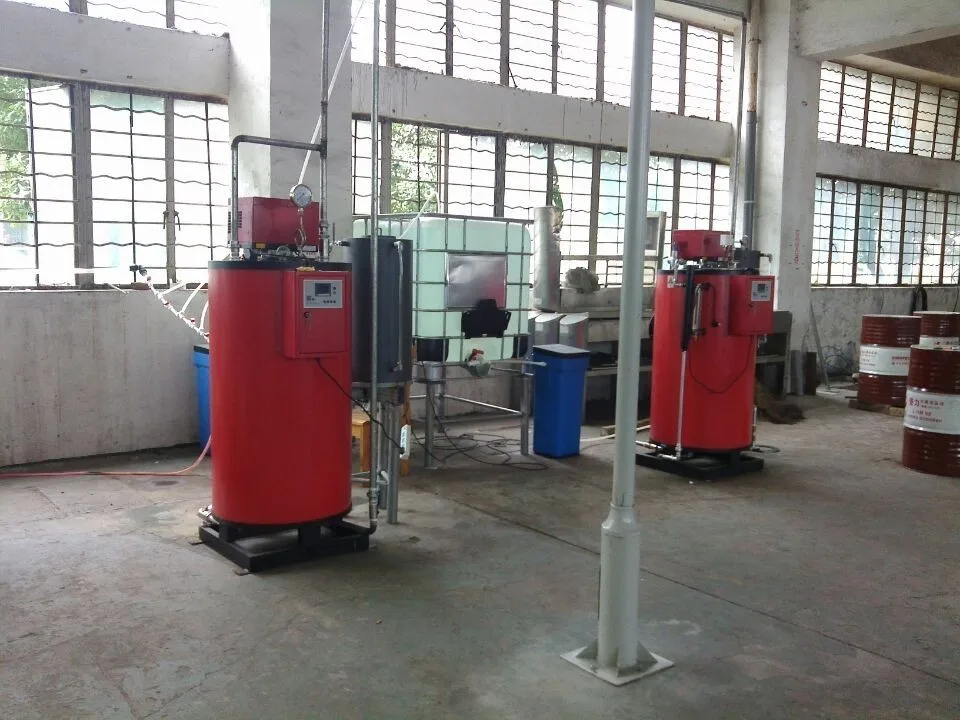

Customer cases


500Kg/H Gas Steam Boiler
used in Pharmaceutical Industry
200Kg/H Diesel Steam Boiler
ued in Heating Industry
50Kg/H Gas Steam Boiler
used in Dry Washing Industry
