1.High performance and low price;
2.Repeatability: ΔE ≤ 0.03；
3.Double locating: Illuminating locating and precise cross locating;
4.Equipped with rechargeable Li-ion battery, no need to purchase battery repeatedly;

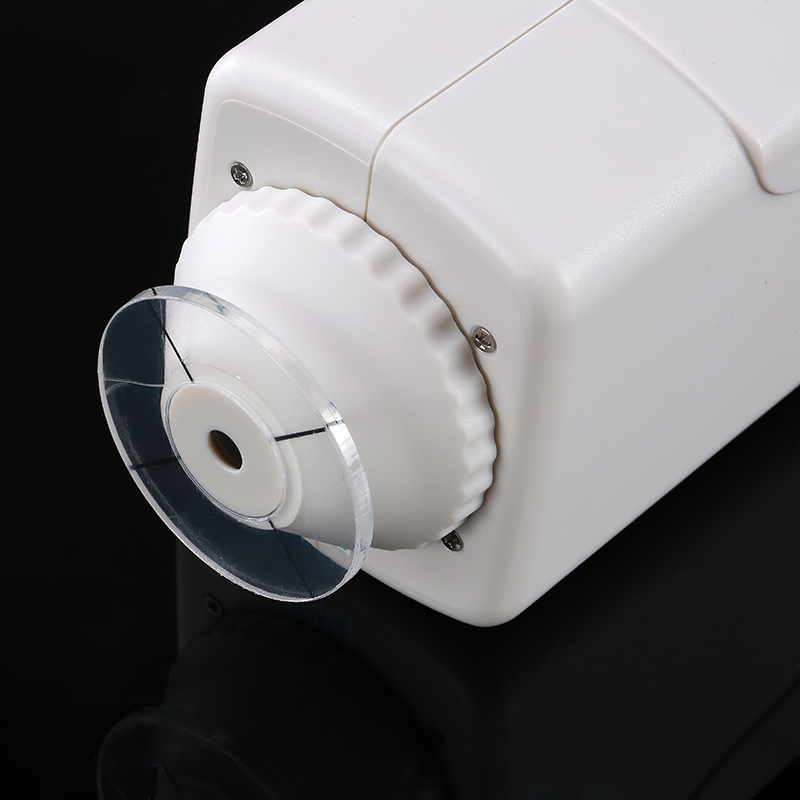

5.4mm measuring aperture, portable structure, suitable for more measuring occasions;
6.White appearance, color box packaging, easy to transport;
7.Built-in white plate parameters, no need to do calibration;
8.Directly use after power on, no need to connect with computer.
|
Model
|
WT10QC
|
|
Illuminating/Viewing Geometry
|
8°/D
|
|
Standard
|
CIE No.15, GB/T 3978
|
|
Sensor
|
silicon photodiode
|
|
Measuring Aperture
|
4mm
|
|
Color Space
|
CIE LAB, Lch
|
|
Observer
|
CIE 10°
|
|
llluminant
|
D65
|
|
Display Data
|
Colorimetric Value, Color Difference Value Storage
|
|
Measuring Time
|
1.5s
|
|
Repeatability
|
ΔE* ab ≤0. 08（Average of 30 measurements of standard white plate）
|
|
Errors between each instrument
|
ΔE*ab 0.4
|
|
Dimension
|
205*67*80mm
|
|
Weight
|
400g
|
|
Battery
|
rechargeable lithium-ion battery 3. 7V@ 3200mAh
|
|
Lamp Life
|
5 years, more than 1.6 million measurements
|
|
Screen
|
TFT 2.8 inch(16: 9)
|
|
lnterface
|
USB
|
|
Storage
|
100 Standards, 10000 Samples
|
|
Operating Temperature
|
0-40°C(32-104°F)
|
|
Storage temperature
|
-20-50°C(-4-122°F)
|
|
Standard accessories
|
power adapter, instructions,Wristband
|
|
Optional accessory
|
miniature thermal printer, powder test box
|
2. If you need to develop product with your own specification, we have professional engineers to work it out.
3. Never leave customer alone, solve problems with customer together.
4. Customer first, quality first, service first
Any question later, plz feel free to contact us, we will try our best to satisfy you.
Hope that we can establish long-term friendly cooperative relations.Have a nice day!
A: We are a factory.
Q2: MOQ?
A: We don't have MOQ limit, you can order any quantity you want.
If you need scales with your specification, logo, packing, etc, please negotiate with us.
Q3:Can I have a sample for testing?
A: Actually we think samples are not very important.You can buy from anywhere.But we think our cargos will better then any others.
Samples will be 10%-20% higher than the cargo.
Q4:Can I add my logo on the machine?
A:Yes,OEM is available for us.
But you should send us the Trademark authorization letter.
Q5:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our range hood motors it is lifelong maintenance.
Q6:Do you have inspection procedures for these machine?
A:100% self-inspection before packing
Q7: Delivery date?
A: 1-3 days for sample, 15-20 days for 1000pcs, 30-35days for 40HQ.
Q8: Payment Method?
A: L/C at sight, T/T, Western Union and Paypal are all available.
30% deposit T/T in advance, rest against the Shipping Doc.
100% T/T in advance for sample order.
Q9: Shipping?
A: a. International Experess: DHL/TNT/FEDEX/UPS (For sample)
b. By air (For sample orders.)
c. By sea (15-45days), port of loading: Shanghai
d. By domestic logistics to your forwarder. (2-3days)
Q10:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
We can pick you up in the airport or train station. Hotel booking service is available
