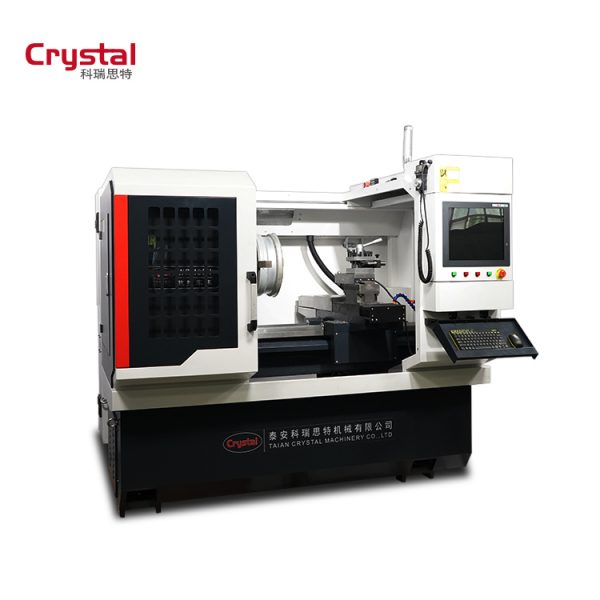

Our purpose build alloy wheel lathe incarcerates a user friendly multi-touch interface for simplified probing and cutting processes. With full digital optimization build directly into the interface, there is no need of a separated computer system to house the software, making this our best ALL IN ONE solution for repairing diamond cut alloy wheels.
Wheel Repair Lathe Advantages
1. Cuts wheel up to 28’’.
2. 17 inch interface touchscreen.
3. With CE, SGS, ISO, BV certificates.
4. Automatic ruby probe system.
5. Self-developed optimization software.
6. Free Training video and manual.
7. 7×24 hours technology support.
8. 2 USB interface.
9. High efficiency and economic.
10. Two-year warranty.
11. Free factory hand-to-hand training.
12. Agencies in UK, Germany, Poland, Netherlands, Australia etc.

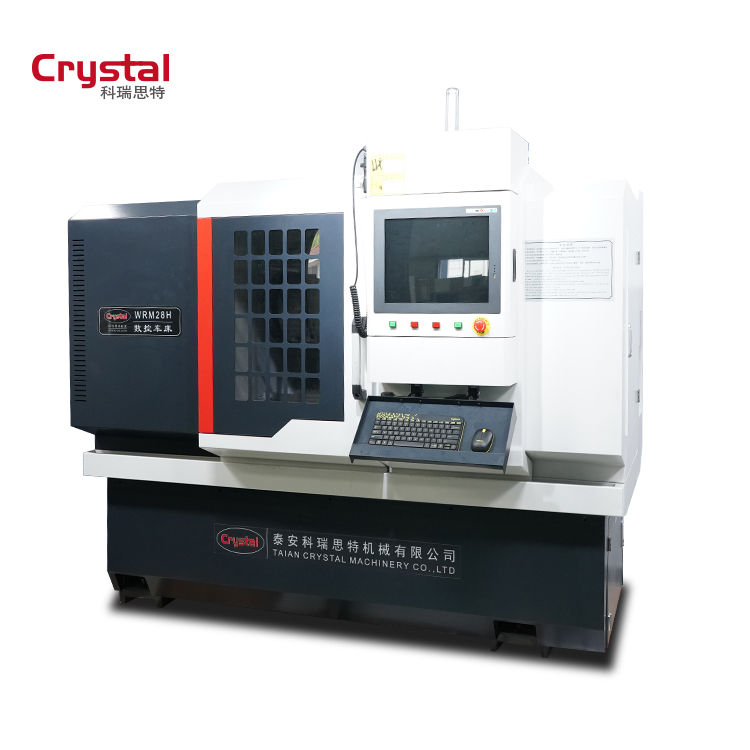

Alloy Wheel Repair Lathe Specifications
|
ITEMS |
WRM28H |
|
|
Max. swing over bed (mm)(inch) |
Φ770(30’) |
|
|
Max. Diameter of alloy wheel(mm) (inch) |
Φ710(28’) |
|
|
Max. Stroke of the X-axis(mm) |
390 |
|
|
Max. Stroke of the Z-axis (mm) |
880 |
|
|
Width of the rail (mm) |
300 |
|
|
Length of the rail (mm) |
1320 |
|
|
Size of the three-jaw chuck (inch) |
13’’ |
|
|
Range of spindle speed (RPM) |
50-2000 |
|
|
Spindle speed control |
Automatic |
|
|
Spindle bore (mm) |
Φ82 |
|
|
Taper of spindle bore |
1:20(Φ90) |
|
|
Taper of spindle nose |
A2-10 |
|
|
Adjustable stroke of carrier in X direction |
100mm |
|
|
Max. size of tool post |
25×25mm |
|
|
Stations of tool carrier |
4 position |
|
|
Min. setting unit of motor |
(Z) long 0.001mm, (X) cross 0.001mm |
|
|
Moving speed of post |
(Z) long 8m/min, (X) cross 6m/min |
|
|
Motor power |
7.5KW |
|
|
Machine size |
(L/W/H) (mm) |
2200/1620/1870 |
|
Package size |
2300/1720/2170 |
|
|
Net weight |
2200KGS |
|
Standard configuration
| wireless key&mouse 1 set | diamond cutter 1 set inner |
| diamond cutter 1 set outer | special ordered soft jaws 1 set |
| high precision prob system 1 set | 4 station tool which can adjust X stroke |
| automatic lubrication system | cooling system(standard) |
| full cover safety door | tool case |
|
training videos |
— |
1.Q:The machine can repair wheel edge?
A:Yes, that’s no problem to repair wheel edge.
2.Q:The machine is easy to learn?
A:Yes, it is very easy to learn. The detailed manual and training video will be
supplied with machine together .
3.Q:Do I need any special software for my PC?
A:We will provide optimization software (It is specifically aimed at wheel repair and
we have independent intellectual property rights).
4.Q:What kind of tool that wheel repair machine use?
A: It is diamond cutting tools.
5.Q:How many time it takes to repair a wheel ?
A:For same model wheels, the first one needs about 10 minutes, because
probing wheel curve will take some time. After first one, the curve will be saved, so
when you repair other wheels as same model, it just takes about 3 minutes.
6.Q:Can we go to your factory and learn how to use the machine?
A:We sincerely welcome you come to our beautiful city. The training is free. It would
be great honor to us.
7.Q:Can you arrange training in our place after we bought your machine?
A:We can arrange oversea training. Buyers will be responsible to the costs.
