Product Description

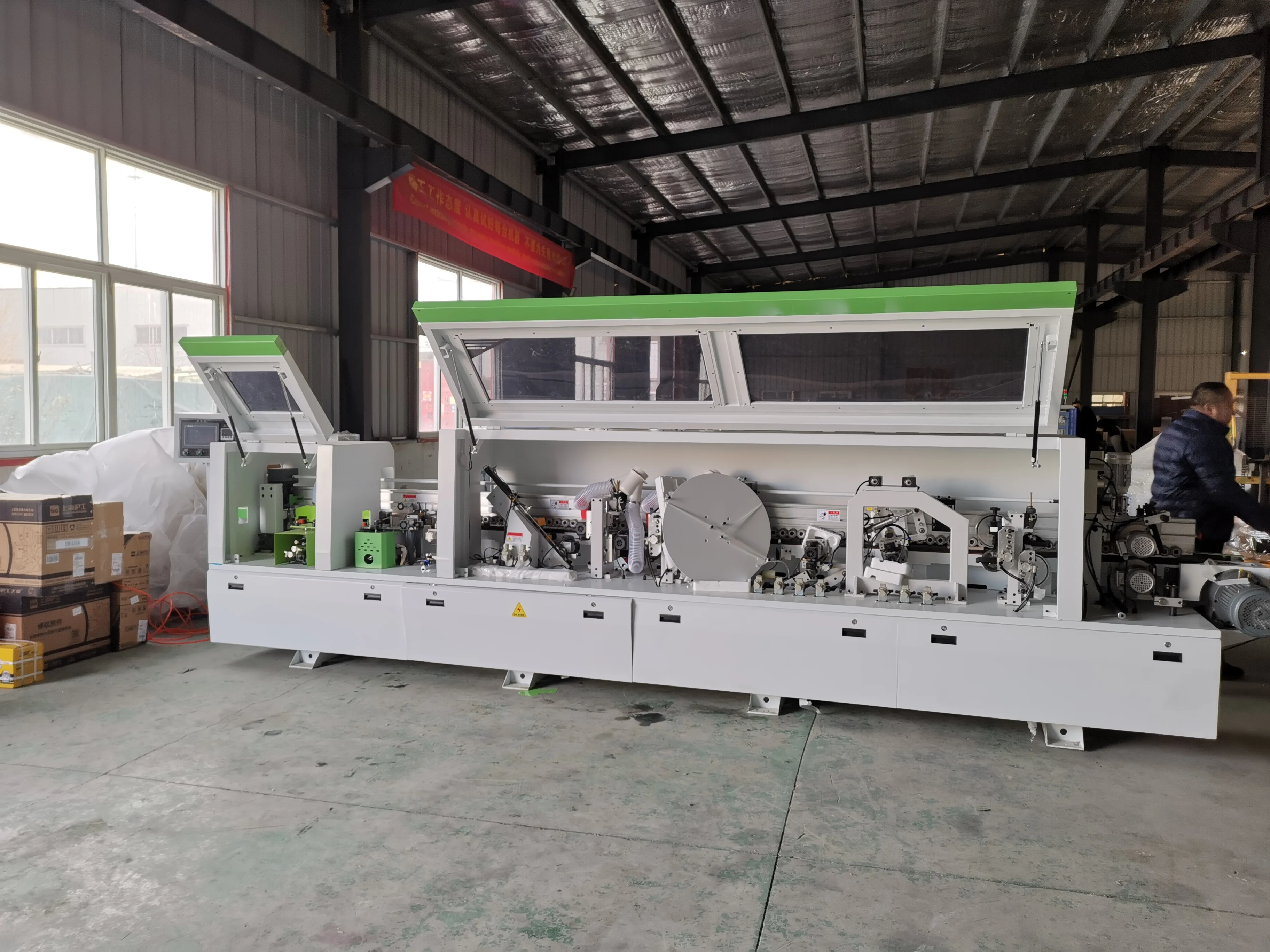

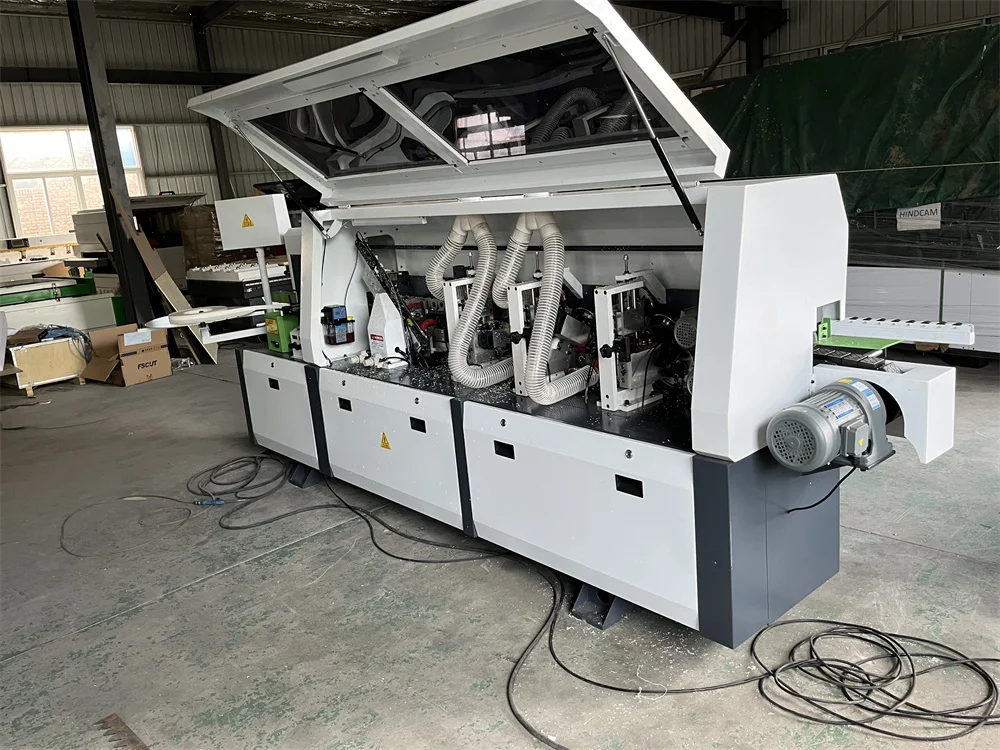

Edge banding oblique straight line woodworking panel furniture pvc 45 degree automatic edge banding machine.

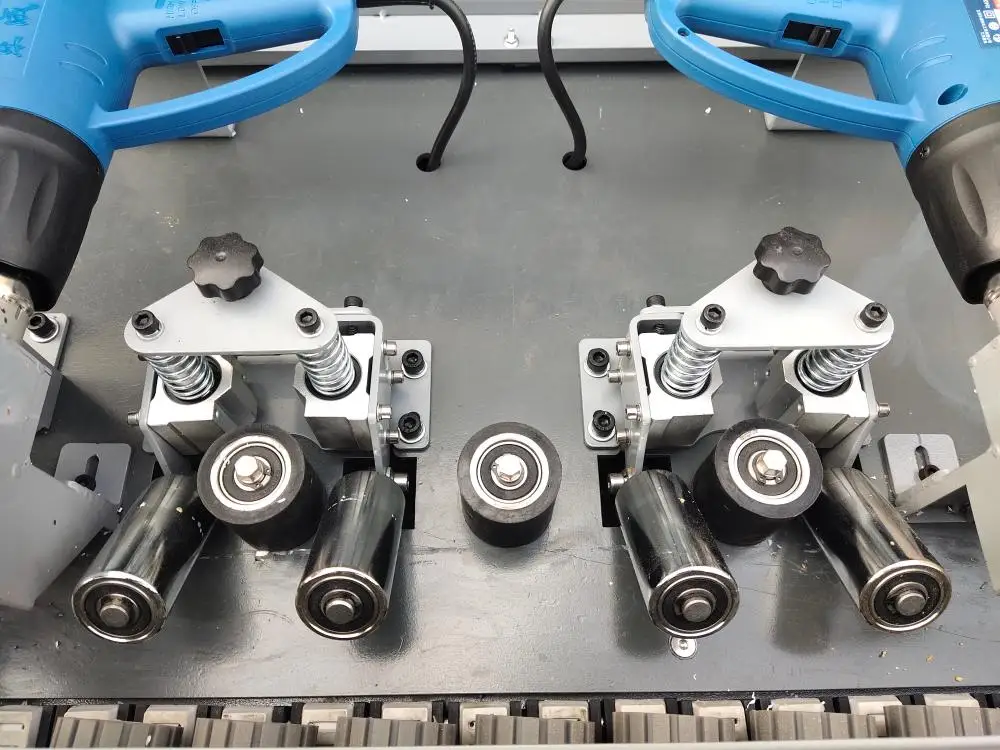

2.2kw spindle pre-milling motor, high-speed edge banding of 12m/min, large glued bearing, edge band slotting device, slotting height can be adjusted, edge banding is more docile, double-cylinder feeding belt is more stable and not easy to shake, Double hot air gun design, heating edge banding is more docile, the angle of 8 sets of oblique pressure rollers can be adjusted arbitrarily from 30-90, 800W silent trimming motor, industrial-grade polishing motor and vacuuming motor, polishing is smooth and clean.
The DW3000 trimming motor is replaced with a spindle trimming motor, with a total of 3 spindle motors.
With a flexible edge scraper to clean up the glue line, the finish is better.
Specification
Automatic head and tail / oblique and straight dual use / edge sealing / trimming / polishing / double hot air gun design /feeding auxiliary pulley / 8 sets of oblique pressing wheels / 45 degree pre-milling of the plate / edge band slotting / optional cleaning device.
|
Total power
|
8.9KW
|
|
Air pressure
|
0.5-0.7Mpa
|
|
Heating power
|
2000W*2
|
|
Motor of pre milling
|
380V,2200W
|
|
Motor of trimming
|
220V,800W*2
|
|
Machine weight
|
410KG
|
|
Motor of buffing
|
380V,400W*2
|
|
glue pot capacity
|
4000ML
|
|
bevel angle
|
30-90 degree
|
|
The thickness of panel
|
5cm
|
|
Edge speed
|
0-12m/min
|
|
Machine size
|
2800*620*1300mm
|
|
Advantages |
Automatic end cutting /Bevel and straight dual use / edge sealing / trimming / polishing / double hot air gun design / feeding
auxiliary pulley / 8 sets of oblique pressing Wheel/plate 45 degree pre-milling/edge band slotting/optional cleaning device |
Edge banding oblique straight line woodworking panel furniture pvc 45 degree automatic edge banding machine..
Ours advantages:

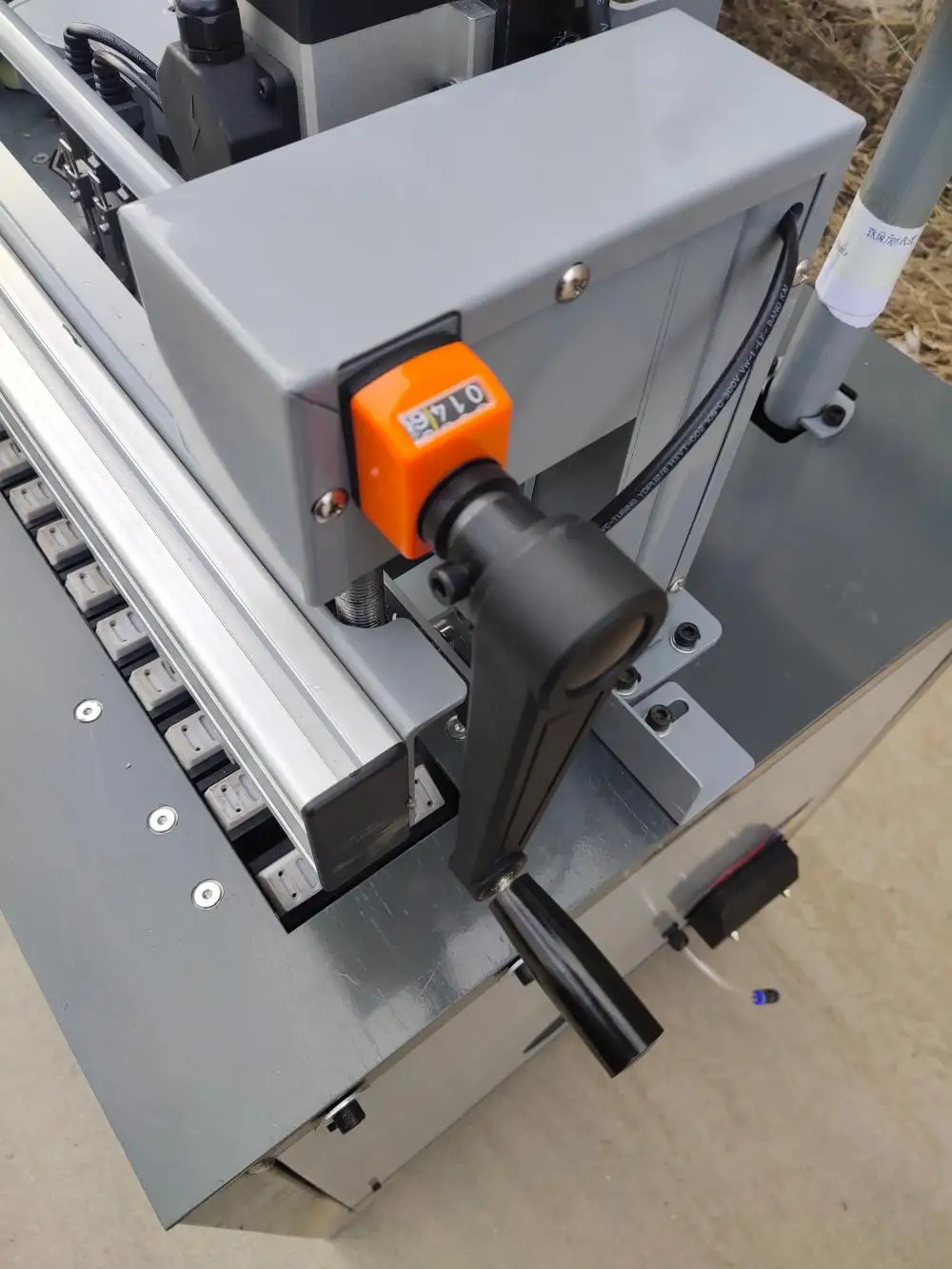

Pressure beam: We use an integrated pressure beam design with high stability. The pressure beam adjustment method is different, the same wheel disc adjusts the pressure beam, and the pressure beam is different, the same metal pressure beam or square tube pressure beam.
Glue pot: It is a 4000ml enlarged glue pot, a large glue coating container, and the counterpart is 2000ml, chain-type glue method; micro switch.
Application
Use in large and medium-sized factories, home improvement design, cabinet design, light luxury custom furniture.
