Main Features
2.Perfect humanity design, English manual, phonetic and region-position input, ability to download BMP from computer, one button touch stop/ start function, diagnose any fault automatics, phase and viscosity controlled automatically, nozzles auto wash.
3. The industrial inkjet printer machine can work with the production line or conveyor belt to achieve the online flying printing.
Product Application

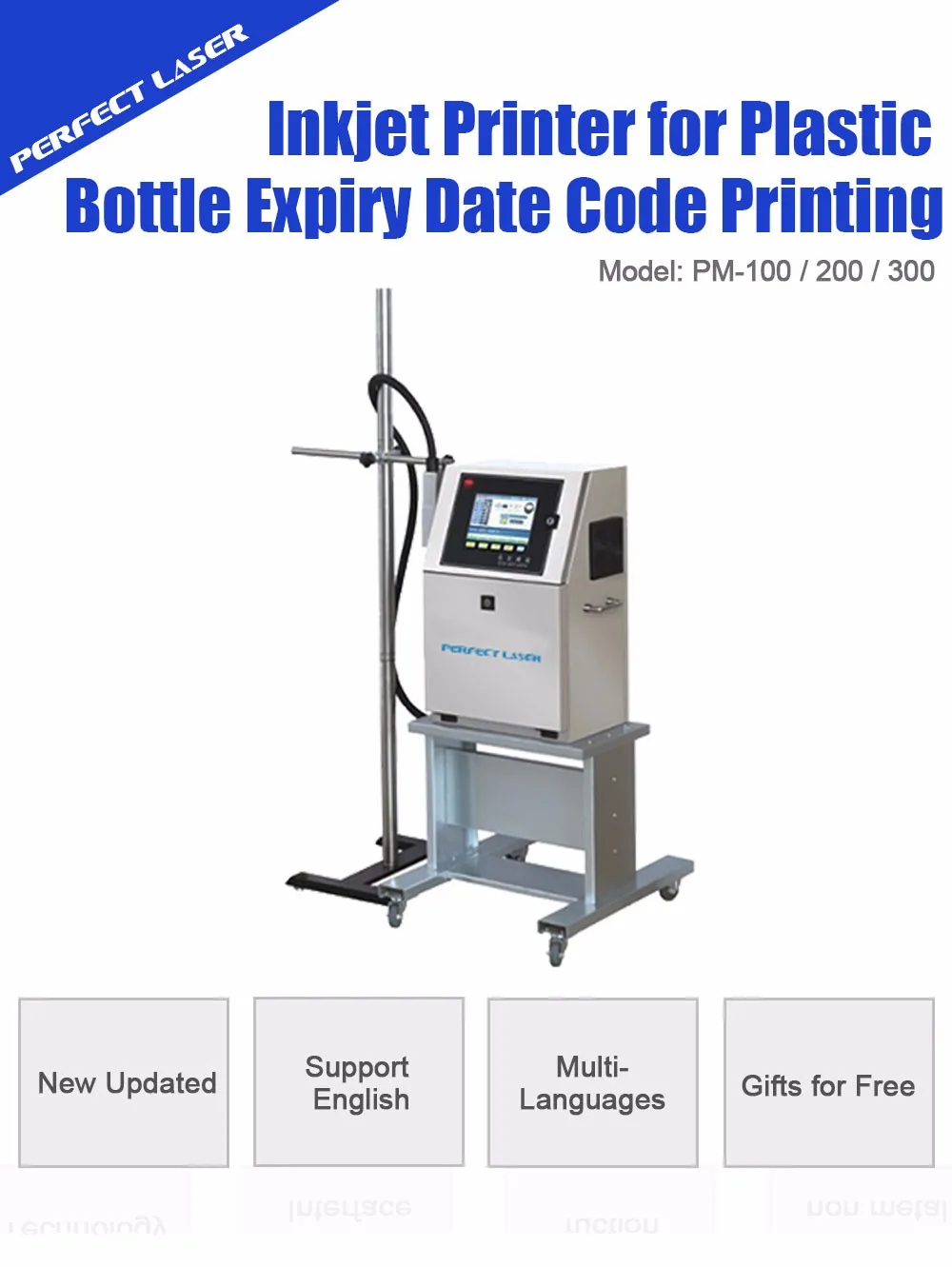

PM-100 CIJ inkjet printers continuous ink jet coding machine is a kind of fast, reliable, non-contact ink-jet printing machine, coding printers also called batch printing machine or industrial printers can spray in most objects with online printing of all needed data .
These batch printing machine’s data can be time, date, production code, bar code, the two dimension code, consumption information, or manufacturer’s LOGO, product tracking information and other data, and so on.
The batch printing machine can be widely used in pharmaceutical, chemical, food, building materials, tobacco, ceramics, electronics and other industries.
It can also be called CIJ inkjet printers,coding printers,industrial printers,chinese inkjet printer,inkjet wireless printers,batch printing machine.
|
SPECIFICATIONS FOR PM-100 Inkjet printer |
||||||
|
model project
|
PM-100
|
|||||
|
The machine features |
body
|
Stainless steel 304, processing via the surface
|
||||
|
Outline Dimension
|
height:528MM depth:264MM width:325MM
|
|||||
|
power |
115V,Applied voltage range85-132Vac,230V,Applied voltage range 170-264Vac.
|
|||||
|
Pressure
|
Nomal:4.48bar, malfunction:6.2bar.
|
|||||
|
Spray-head size
|
38mmX170.1mm
|
|||||
|
Printing Distance
|
small:3.5mm middle:10mm
|
|||||
|
Spray print lines
|
1-3 lines, spray 1 line pattern of 34 points higher , or 4 line 7 points, or 6 lines 5 points characters.
|
|||||
|
Character Height
|
The minimum1.1mm, the ,maximum 11.2mm, the most 24 points
|
|||||
|
Printing functions
|
Characters bold as many as nine times, with the function of rotation;Spray printing height, width and delay is adjustable automatic shift, date between timely word format;Fixed and variable text, upper and lower case characters, real time clock function, can spray print to seconds;USB design call/spurt the code machine data, parameter backup restore function/software system upgrade;Serial number function, with both hex batch number counting function and counting function, reverse jet printing function, timing information features flexible date and time format options, automatic date calculation function
|
|||||
LCD Touching Screen
10′ inch big colorful touching screen
Big touching button, friendly interface
Eesy edit the printing text
Can show the ink and solvent level
Easy to operate and use
online fly system
working with conveyor belt to impvore printing efficiency
Special cover design for printing head
Protects the ink head avoid dust and powder getting into it
Ink Tank
