wireless load weight sensor weighing indicator
Load link Telemetry Load Cells

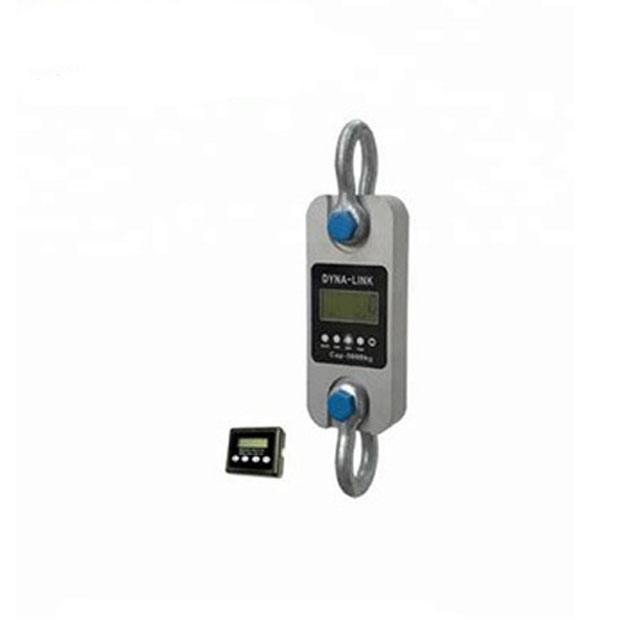

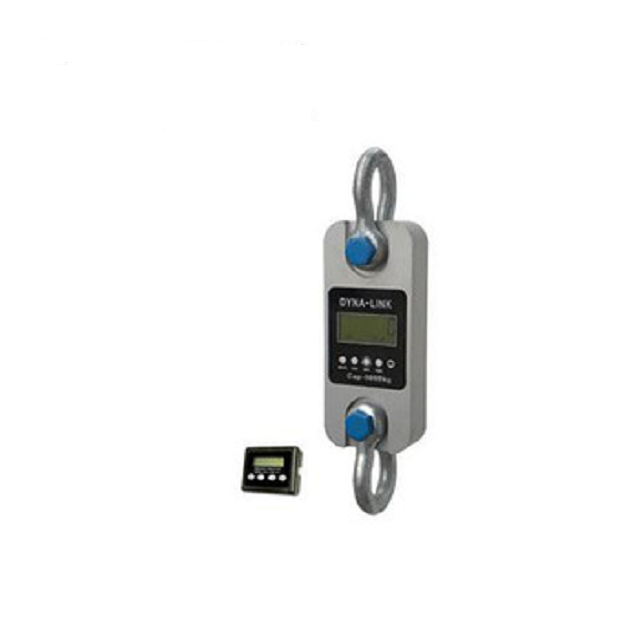

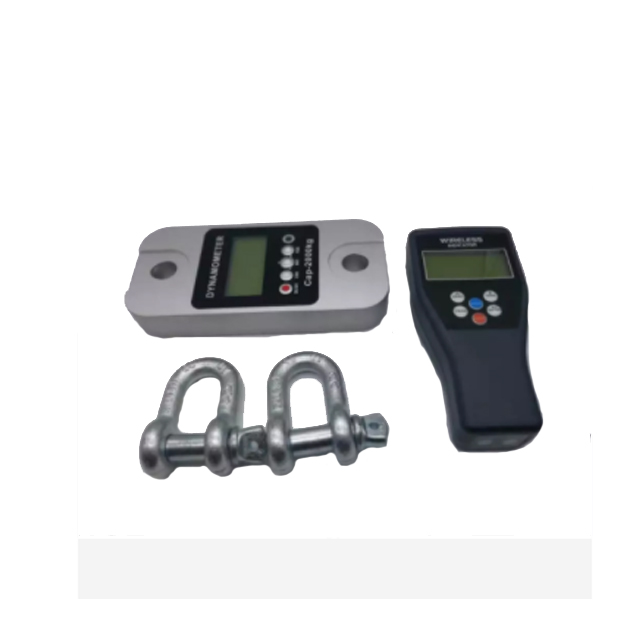

TEM-W3 wireless dynamometer is an extremely well-built instrument for industry use ,as a standard wireless tool offer universal applications, Whether used as conventional crane weigher or to measure force, HZ-W3 wireless dynamometer is microprocessor controlled for high precision accuracy, calibration is easier with wireless handheld indicator.
Main technical data
|
Body Display
|
25mm (1”) 5digits LCD with backlight
|
|
Indicator Display
|
25mm (1”) 5digits LCD with backlight
|
|
Power on zero range
|
20% F.S.
|
|
Manual Zero Range
|
4% F.S.
|
|
Tare Range
|
20% F.S.
|
|
Stable Time
|
≤5 seconds
|
|
Overload Indication
|
100% F.S. + 9e
|
|
Max. Safety Load
|
125% F.S.
|
|
Ultimate Load
|
400% F.S.
|
|
Battery Life
|
≥50 hours
|
|
Body Battery
|
“LR6(AA)”size alkaline batteries. 1.5Vⅹ3
|
|
Indicator Battery
|
“LR6(AA)”size alkaline batteries. 1.5Vⅹ4
|
|
Operating Temp.
|
– 20℃ ~ + 50℃
|
|
Operating Humidity
|
≤85% RH under 20℃
|
|
Wireless Distance
|
Min. 80m(default) [200m(optional)]
|
|
Wireless Frequency
|
2.4GHz(default),433MHz,868MHz(optional)
|
Features
Body protection: Aluminum and alloy steel capacities are powder coated.
Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.
Units: Units are clearly display on the screen, available in the following measurement reading: kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN)
Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.
Gravity regulation: The acceleration of gravity can be regulated through indicator according to different places value.
Functions: wireless indicator with many functions: Zero, tar, Low battery warnings, peak hold, overload warning. User calibration(with password).
Set-Point: Two user programmable Set-Point can b used for safety and warning applications or for limit weighing.
Package: Packed with carry case, easy to bring.
Indicator key: 4 local mechanical keys: “ON/OFF”,”ZERO”,”PEAK” and “Unit Change”.
|
Model
|
TEM-W1-1
|
TEM-W1-2
|
TEM-W1-3
|
|
Unit Weight(kg)
|
1.6
|
2.1
|
2.1
|
|
Weight with shackles(kg)
|
3.1
|
4.6
|
4.6
|
|
Model
|
TEM-W1-20
|
TEM-W1-25/30
|
TEM-W1-50
|
|
Unit Wight(kg)
|
17.8
|
25/25
|
39
|
|
Weight with shackles(kg)
|
48.6
|
73/73
|
128
|
Water weight Testing
Overhead Weighing
Loadcell Rental
Bollard PullingTug Testing
Stevedoring
Heavy Lift
Load sense on jib winches
Ship to ship transfers (STS)
Load link Telemetry Load Cells
Packaging detail
1.Carton box
2.Wooden box
3.According to the wireless load cell weight,the outer box will be different.
