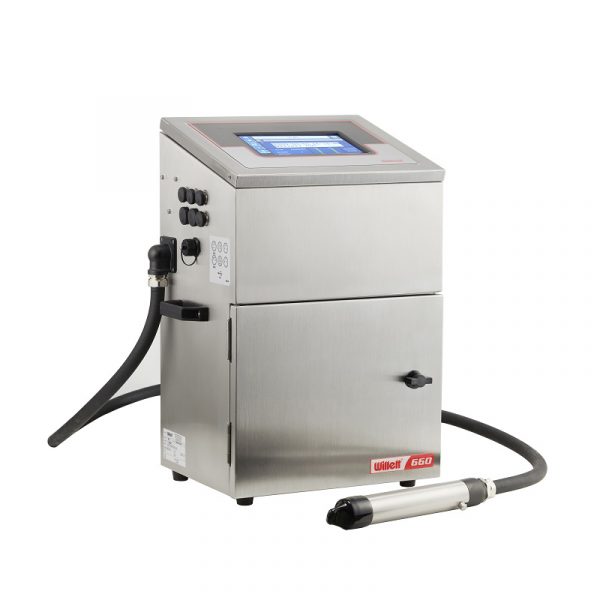

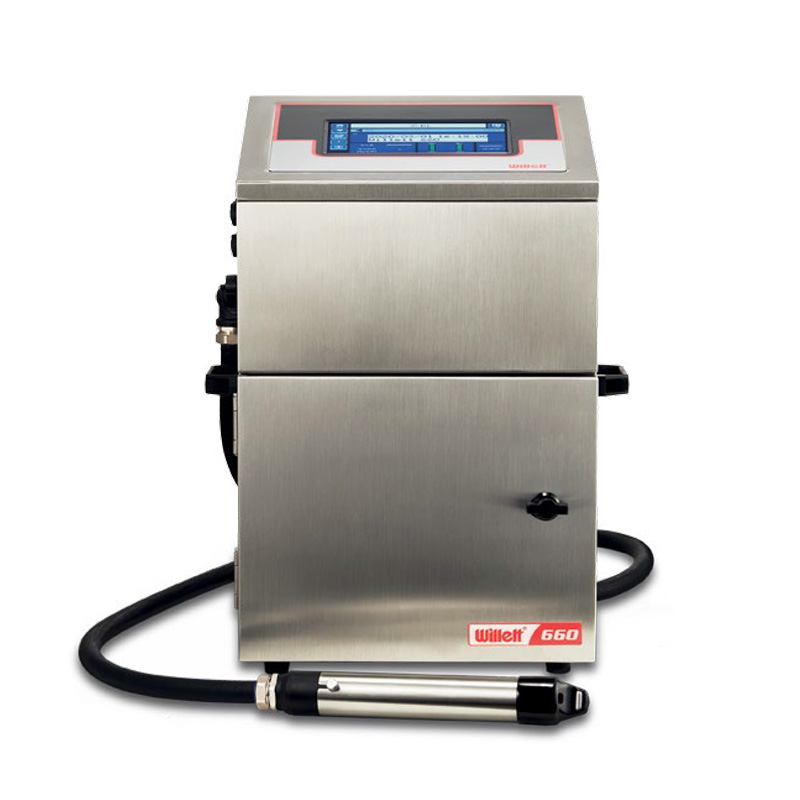

Willett 660 Continuous Inkjet Printer Egg Production Expire Date Printing Machine Glass Bottle Pouch Bag Batch Coding Machine
The W660 small character (CIJ) inkjet printer is designed for small and medium-sized manufacturers to provide a coding solution
with faster operation speed, higher coding quality, and more stable performance.
|
Line speed capability
|
Can print 1 to 4 lines of code at speeds of up to 532fpm (162mpm)
(10 characters per Inch, single line of print
|
|
Font matrix configuration
|
Single-line: 5×5, 5×7, 7×9, 12×12, 12×16, 16×24, 24X24
Twin-line: 5×5, 5×7, 7×9, 12×12
Tri-line: 5×5, 5×7, 7×9
Quad-line: 5×5, 5×7
|
|
Linear bar codes
|
UPC A&E, EAN 8 & 13, Code 128 A, B & C, UCC/EAN 128, Code 39, Interleaved 2 of 5, 2D DotoMotrix, GS1
|
|
Custom logo/graphics
|
Can be imported from USB
|
|
Nominal character height
|
Selectable from 2mm to 12mm, depending on font
|
|
Throw distance
|
Optimal: 12mm
Range: 5mm ta 15mm |
|
User interface
|
8 high-response TFT-LCD screen WYSIWIG touch to edit message editing
|
|
Character sets
|
English, Simplified Chinese, Traditional Chinese Language and interface option
|
|
Input/output
|
Product detect input
Encoder input Beacon (Alorm light) output RS232 USB |
|
Message storage
|
100 complicated messages, limitless storage with USB
|
|
Environmental protection
|
IP43, no plant air required, stainless steel cabinet
|
|
Printhead
|
Heated
60µ or 70µ nozzle Diameter: 41.3mm Length: 240.6mm |
|
Printhead umbilical
|
Ultra flexible
Length: 2m, optional 3m |
|
Fluids containers
|
Ink and Make-up
Smart Cartridge 750ml |
|
Temperature/humidity range
|
5°C to 45°C / 10% to 90% RH non-condensing
|
|
Electrical requirements
|
Nominal supply power 100-240 VAC at 50/60Hz, 60W
|
|
Approximate weight
|
Unpacked and dry: 16kg
|
|
Options
|
Air dry kit
Wide range of accessories |
Large touchscreen
Easy to use large 8″ color interface to help reduce coding errors.
Easy to use interface
Intuitive interface is easy to operate, with few steps to input codes, requiring less operator training.
Smartfluids usage
Smart Cartridge technology to help ensure the correct ink is used in the printer every time. Real-time fluids levels and maintenance alerts displayed on screen.
Easy Serviceability
Modular design makes spare parts replacement easy, for fast recovery from downtime.
