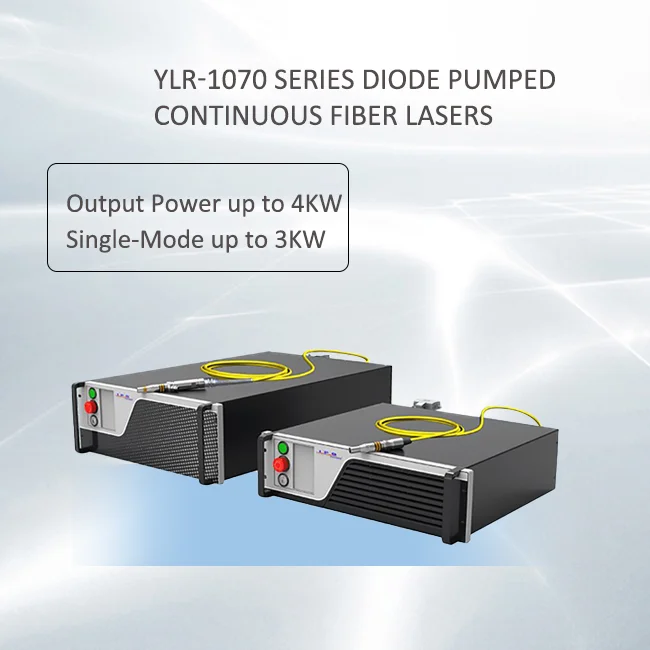

Product Description
YLR-1070 Series diode-pumped CW fiber lasers provide a unique combination of high power, high stability, ideal beam quality, fiber delivery, ultra-long lifetime and record wall-plug efficiency.
Single-mode output up to 3 kW may be integrated via collimator or QBH plug-in connector. Multi-mode output is emitted from a step index fiber with core diameter from 50 to 200 μm, allowing optimal performance in critical welding and additive manufacturing applications.
Specification
|
Optical Characteristics
|
||||||||
|
Central Wavelength, nm
|
1070 ±10
|
|||||||
|
Mode of Operation
|
CW/Modulated
|
|||||||
|
Modulation Frequency, kHz
|
0-5
|
|||||||
|
Maximum Average Power, W
|
100 to 4000
|
|||||||
|
Power Stability, %
|
10-100
|
|||||||
|
Output Fiber Core Diameter, μm
|
± 0.5
|
|||||||
|
Optical Noise, % RMS
|
<2, typ.1
|
|||||||
|
Output Fiber Core
|
Single-mode or 50, 100 and 200 μm diameter
|
|||||||
|
Single-mode Beam Quality, M2
|
<1.1 ( up to 3 kW)
|
|||||||
|
Beam Parameter Product, mm × mrad
|
<2 @ 50 μm, <5 @ 100 μm, <10 @ 200 μm
|
|||||||
|
General Characteristics
|
||||||||
|
Cabinet Dimensions
(W × D × H), mm |
Output Power, W
|
Cooling
|
Weight, kg
|
Supply Voltage, VAC
|
||||
|
448 × 394 × 133
|
100
|
Air-cooled
|
<25
|
single-phase 50/60 Hz 100-240
|
||||
|
448 × 500 × 177
|
200,300
|
Air-cooled
|
<30
|
single-phase 50/60 Hz 100-240
|
||||
|
400
|
Air-cooled
|
<30
|
single-phase 50/60 Hz 100-240
|
|||||
|
448 × 497 × 266
|
500, 700
|
Air-cooled
|
<50
|
single-phase 50/60 Hz 200-240
|
||||
|
448 × 580 × 133
|
100, 200,300
|
Water-cooled
|
<30
|
single-phase 50/60 Hz 100-240
|
||||
|
400, 500, 600, 700
|
Water-cooled
|
<30
|
single-phase 50/60 Hz 200-240
|
|||||
|
1000
|
Water-cooled
|
<50
|
single-phase 50/60 Hz 200-240
|
|||||
|
1500
|
Water-cooled
|
<70
|
single-phase 50/60 Hz 200-240
|
|||||
|
448 × 798 × 177
|
2000, 2500, 3000, 4000
|
Water-cooled
|
<80
|
3-phase 50/60 Hz, 400-480
|
||||
