*Wide application : suitable for packing coffee powder, spice powder, protein powder, flour, milk powder, and some other powder food. * Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately. * Easy to operate: PLC controller, HMI system, fault indication on the touch screen. * The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch. * Automatic checking system can check bag situation, filling and sealing situation. * The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing. * Stainless steel 304 /other materials ensure sanitation and safety, meet the GMP standard. * Internal grooved cam design: The echnology with high precision, suits for max. packing speed: 65cycles/min with stable running
Model
|
GDJ-170SF
|
GDJ-210SF
|
GDJ-260SF
|
GDJ-320SF
|
Packing Speed
|
30-70Bags/Min
|
20-60Bags/Min
|
20-50Bags/Min
|
15-40Bags/Min
|
Bag Length
|
100-300MM
|
150-380MM
|
180-400MM
|
280-450MM
|
Bag Width
|
80-170MM
|
100-210MM
|
140-260MM
|
200-350MM
|
Filling Volume
|
30-300ML
|
50-1000ML
|
200-2000ML
|
80-3000ML
|

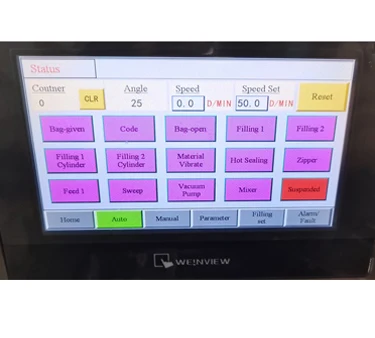

Easy Control Touch Screen:

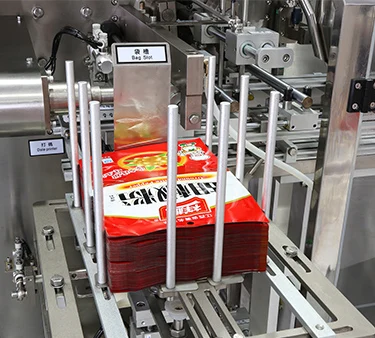

Bag Slot:

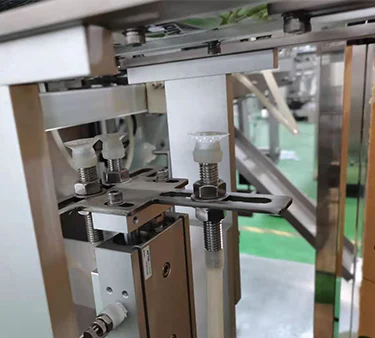

Bag Suction Device
:

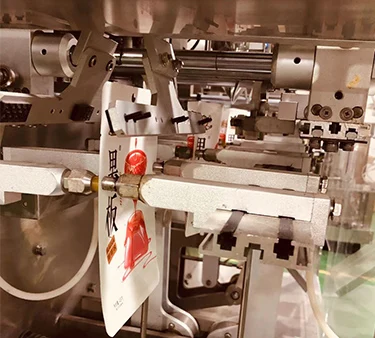

Bag Pickup Device :

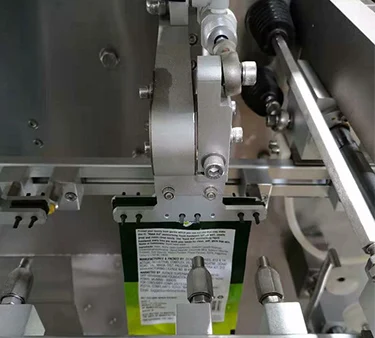

Bag Opening Device :

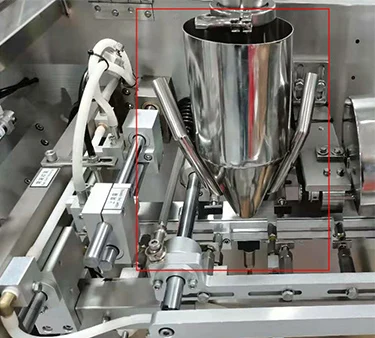

Filling Heads :

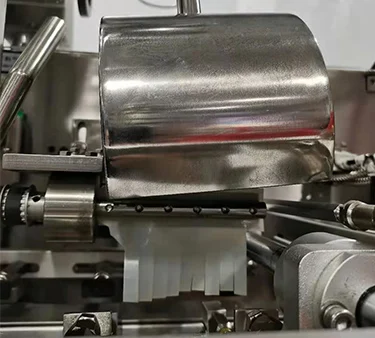

Dust Removal Device :

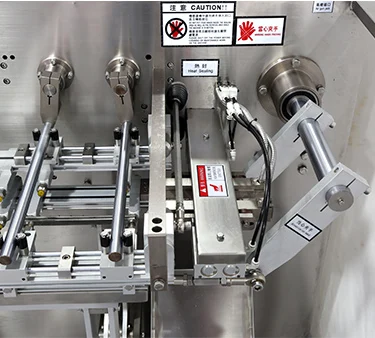

Sealing System
:

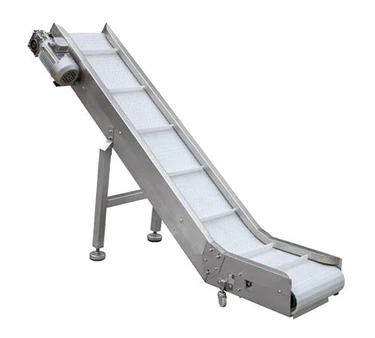

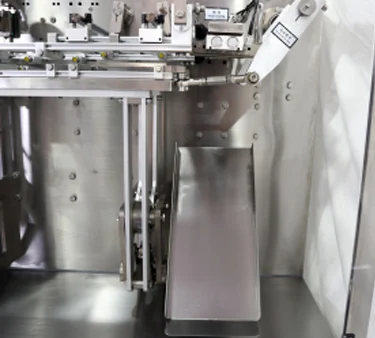

Finished Product Conveyor Belt :

Finished Product Conveyor
|
||
Belt
|
Food Grade Polypropylene
|
|
Material
|
Carbon steel /stainless steel
|
|
Conveyor Speed
|
30M/min
|
|
Power
|
220V 50/60Hz 0.35Kw
|
|
Weight
|
50kg
|
|
Height
|
800mm (Adjustable)
|

Auger Filler |
||||
Model
|
30
|
50
|
||
Hopper Size
|
30L
|
50L
|
||
Filling weight
|
1-500g
|
10-5000g
|
||
Filling Accuracy
|
≤100g 2% 100-500g ±1%
≤5000g 0.5% |
|||
Filling Speed
|
40-120Times/Min
|
|||
Voltage |
220V 50/60Hz
|
220V 50/60Hz
|
||
Power
|
1.7Kw
|
1.9Kw
|
||
Total Weight
|
130Kg
|
220Kg
|
||
Dimension(L*W*H)
|
860*460*880mm
|
1060*600*1100mm
|

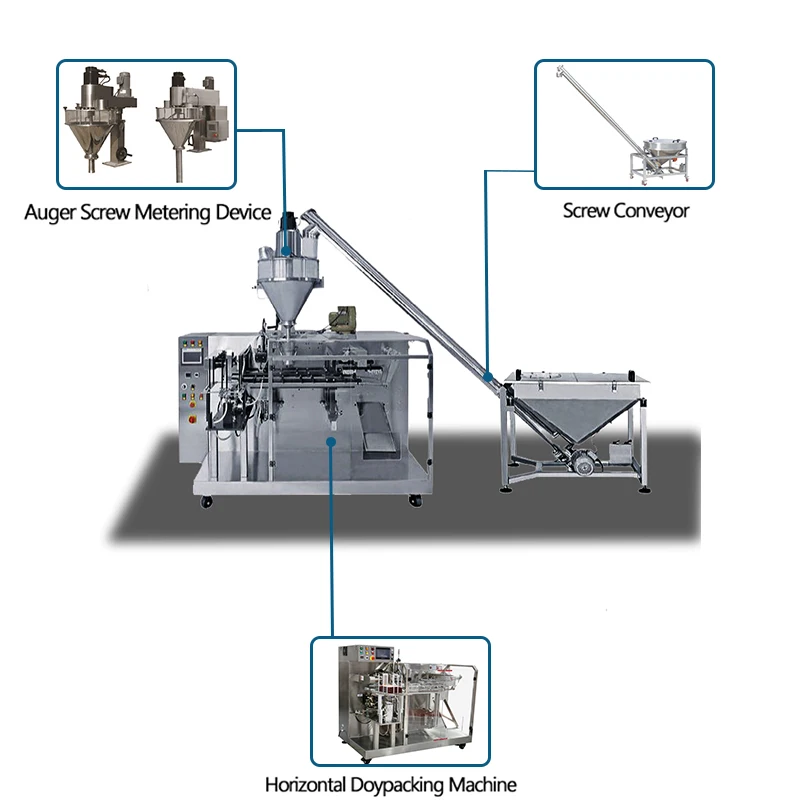

Auger Screw Conveyor
|
||
Conveyor Capacity
|
3CBM/Hour
|
|
Diameter of feeding tube
|
114mm
|
|
Hopper Volume
|
230L
|
|
Power
|
220V 50/60Hz 0.9Kw
|
|
Dimension(L*W*H)
|
1023*823*870mm
|
|
Total Weight
|
130kg
|
Coconut Powder, Ice Cream Powder ,Etc.According To Customer’S Request , The Bag Type Can Be Changed To Back Sides Seal , Three Sides Seal And Four Sides Seal . However,One Machine Is Only Able To Pack One Kinds Seal Form.
