Product Description
MOS-620 Analog oscilloscope
MOS-620 series dual trace oscilloscope,the maximum sensitivity is 1mV/div,the maximum scanning speed is 0.2us/div,and can be expanded to 10 times then the scanning speed can run up to 20ns/div.The oscilloscope 6 inch and have the rectangular CRT with scale,it has the advantages of simple operation,stable and reliable.
|
Model
|
MOS-620CH
|
|
|
Range of frequency
|
DC-20MHz
|
|
|
Range of frequency channel
|
8*10div
|
|
|
Partial upper verticality
|
||
|
Display mode
|
Ch1,Ch2,DUAL,ADD
|
|
|
Deflection factor
|
5mV/div to 5V/div±3%(1mV/div±5%)
|
|
|
Sensitivity
|
5mV~5V/DIV,it divided into 10 files according to the 1-2-5 sequence
|
|
|
Rising time
|
About 17.5ns
|
|
|
Input impedance
|
About 1MΩ/25pF
|
|
|
Polarity selection
|
±CH2
|
|
|
The maximum input voltage
|
When the probe is setted at 1:1,the maximum effective reading value is 40Vp-p (14Vrms sine wave)
|
|
|
When the probe is setted at 10:1,the maximum effective reading value is 40Vp-p (14Vrms sine wave)
|
||
|
Horizontal deflection
|
||
|
Display mode
|
1,10,X-Y
|
|
|
Time base
|
0.2μs/div~0.2s/div
|
|
|
Sweep frequency width
|
*10
|
|
|
Accuracy
|
±accuracy3%
|
|
|
Corrected waveform
|
Square wave,frequency 1KHz20% voltage:2Vp-p±2%
|
|
|
Input impedance
|
1MΩ
|
|
|
Exterior dimension
|
310×150×455mm
|
|
|
Weight
|
8kg
|
|
|
Accessory
|

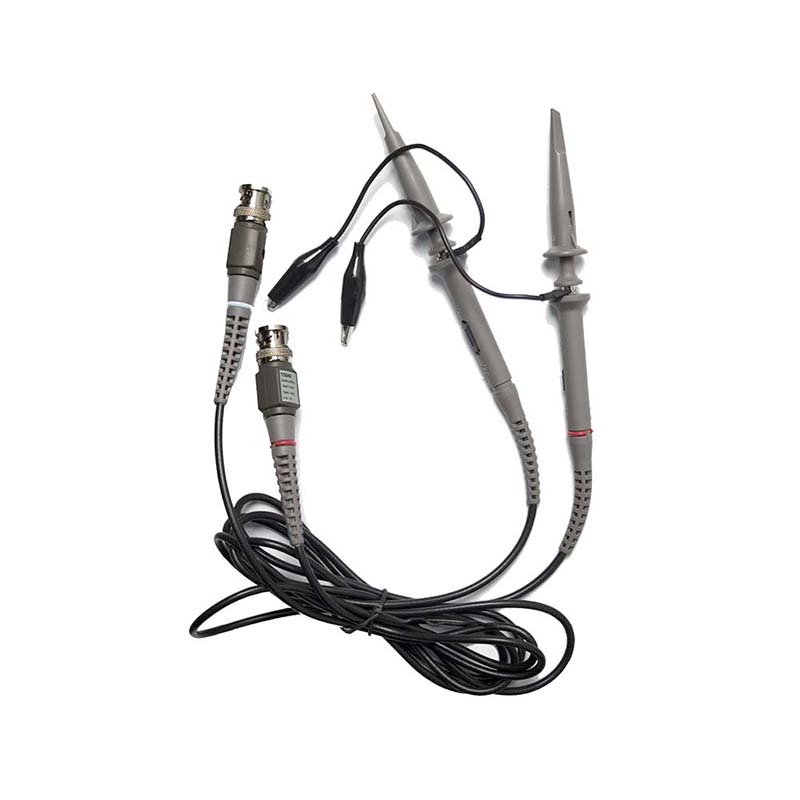

Probe,power line
|
|
MOS-620CH Analog oscilloscope
Product introduction
MOS-620CH series dual trace oscilloscope,the maximum sensitivity is 1mV/div,the maximum scanning speed is 0.2us/div,and can be expanded to 10 times then the scanning speed can run up to 20ns/div.The oscilloscope 6 inch and have the rectangular CRT with scale,it has the advantages of simple operation,stable and reliable.
