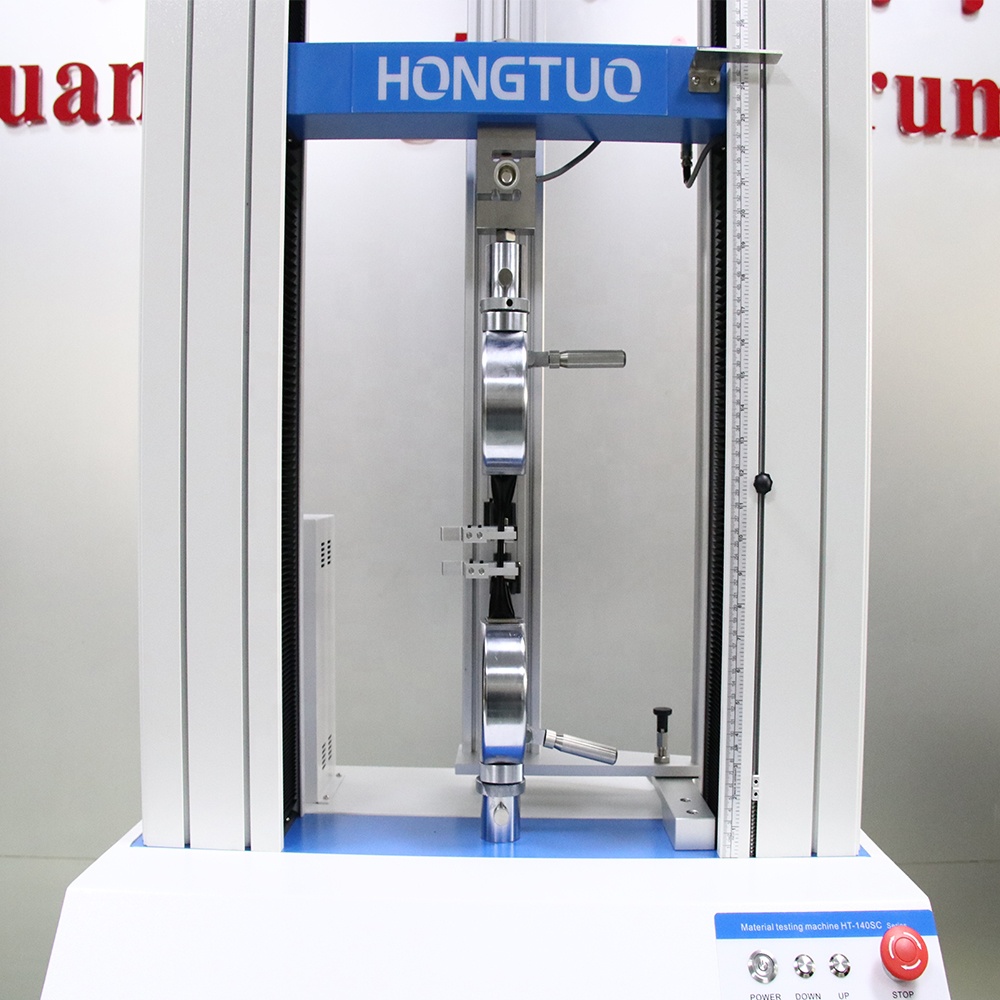

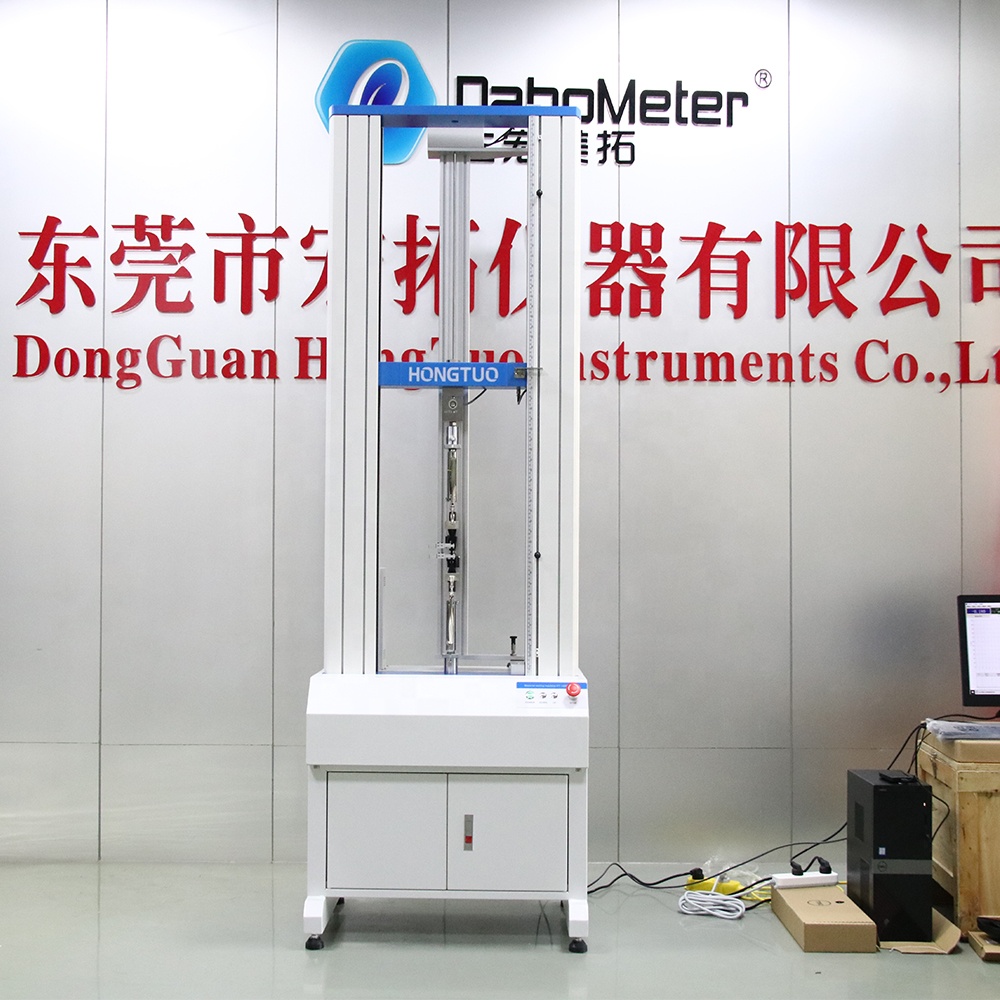

Description
This series of computer-controlled testing machine is designed and manufactured by Hongtuo Instruments. It adopts the current international mainstream speed control technology, and the main parts are made of imported professional brand companies; this series has long-term high reliability and stability. With precision, smooth operation and long life. This series is mainly used for material testing with load below 50kN. The functional application covers the testing of most products. It is the perfect testing instrument for mechanical testing by factories, scientific research units and quality inspection organizations.
It has a wider and more accurate loading speed and force range, and has higher accuracy and sensitivity for measurement and control of load, deformation and displacement. It has stress-strain, force-displacement, power-time, intensity-time and other modes. Can find the maximum force value, tensile strength, flexural strength, compressive strength, elastic modulus, elongation at break, yield strength and other parameters, suitable for testing and analysis of tensile, compression, peeling, tearing, shearing, etc. The testing machine adopts high-speed DSP platform, which has high integration, powerful control, data processing capability and high reliability, which is unmatched by other processor test machines; all-digital adaptive PID algorithm,the closed-loop(force,deformation,displacement) control system,can realize full digital closed-loop control of force and displacement, and can automatically switch between control loops, and realizes smooth transition without impact when switching between modes.
Application industry
Metal materials; aerospace; powder metallurgy; magnetic materials, ceramics manufacturing; rubber and plastics; metrological quality inspection; commodity inspection and arbitration; technical supervision departments; universities; research laboratories; basic materials laboratory; metallurgical steel; machinery manufacturing; Automobile production; textile and chemical fiber; wire and cable; packaging materials and food; instrumentation; medical equipment; petrochemical; civil nuclear energy; energy battery; basic materials;
Application Products
| ·Medium strength metal ·Sintered products ·Friction material ·Rubber ·Plastic ·Film ·Fiber and thin lines ·Adhesive |
·Foam material ·Tape ·Elastomer ·Connector ·Biomaterials ·Wood and paper products ·Metal foil ·Metallic line |
·Oil bearing ·Ceramics ·Parts ·Fastener ·Composite materials |
Standard
ASTM, ISO, DIN, GB and other international standards.
Main Feature
|
|
Specification
| Brand | HongTuo | |||||||||||||
| Model | WDW-D | |||||||||||||
| -002 | -005 | -01 | -02 | -05 | -1 | -2 | -5 | -10 | -20 | -30 | -50 | |||
| Capacity | KN | 0.02 | 0.05 | 0.1 | 0.2 | 0.5 | 1 | 2 | 5 | 10 | 20 | 30 | 50 | |
| KG | 2 | 5 | 10 | 20 | 50 | 100 | 200 | 500 | 1000 | 2000 | 3000 | 5000 | ||
| lb | ||||||||||||||
| Unit switching | G,Kg,lb,N,KN | |||||||||||||
| Displacement unit switching | Inch cm mm | |||||||||||||
| Test machine level | 0.5 class | |||||||||||||
| Effective force range | 0.2%~100%FS | |||||||||||||
| Force accuracy | Within ±0.5% | |||||||||||||
| Force decomposition | 1/300 000 | |||||||||||||
| Force Power magnification | Full automatic shift switching | |||||||||||||
| Displacement resolution | 0.005mm | |||||||||||||
| Displacement accuracy | Within ±0.5% | |||||||||||||
| Deformation measurement range | 0.2%~100%FS | |||||||||||||
| Deformation indication accuracy | Within ±0.5% | |||||||||||||
| Large deformation measurement range | (10~1000)mm | |||||||||||||
| Large deformation resolution | 0.05mm | |||||||||||||
| Large deformation indication error limit | Within ±0.5% | |||||||||||||
| Maximum test speed | 500mm/min;optional maximum 1000mm/min | |||||||||||||
| Minimum test speed | 0.01mm/min | |||||||||||||
| Speed accuracy | Within ±0.5% | |||||||||||||
| Beam travel Measuring height |
standard | No grip testing stroke:330mm;With grip testing stroke:800mm | ||||||||||||
| optional | / | |||||||||||||
| / | ||||||||||||||
| Effective width | standard | 420mm | ||||||||||||
| optional | 650mm | |||||||||||||
| Fixture configuration | One set of tensile grip;can choose other grips | |||||||||||||
| Returning method | Manual or automatic selection, automatically return after the test ends or manually return to the initial position | |||||||||||||
| Stop method | 1.Maximum break value automatically stop 2.Upper and lower limit safety setting stop | |||||||||||||
| Safety devices | 1.Mechanical limit switch protection 2.Emergency stop switch emergency brake | |||||||||||||
| Overload protection | Over 10% of maximum load, automatic machine protection | |||||||||||||
| Accessories | 1 power cord; 1 test software program CD; 1 data cable; 1 manual; 1 certificate | |||||||||||||
| Optional accessories | Anti-splash device (protective door); computer; printer; small deformation metal extensometer, large deformation displacement tracker, T-type workbench; | |||||||||||||
| Power supply | 220V.AC/ 50HZ; 110V.AC/60HZ | |||||||||||||
| Main host size/ weight | Length*Width*Height:750mm*500mm*1650mm / around 165KG | |||||||||||||
| Packing size / weight | Length*Width*Height:850mm*600mm*1800mm / around 203KG | |||||||||||||
2.Please contact us before your placing order.
We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company’s USP.
1.Quality Insurance
We guarantee this instrument for 12 months and life-long maintenance
We will be responsible for fixing or replacing the instrument if quality issue was arisen,the service is excluding if the machine is breakdown caused by following reasons:
(1) Wrong operation;
(2) Fixed or refitted personally;
(3) The machine itself is not the reason caused breakdown;
(4)Applying the machine under the serious conditions.such as high
temperature,moist, corrosive gas,or vibration.
(5)Move or transportation as soon as installed.
(6)Consumables and easy-loss components.
(7)Natural disaster
2.After-sales Service
a.If errors occur,please refer to the troubleshooting tips of the instruction manual.
b.Please contact with our after-sales service department or distributor in time if can’t clear fault.
c.DahoMeter after-sales hot line 400 830 0646
3.Are we manufacturer made copy product or original product?
We are the original manufacturer.
4.Why choose us
We deep understood what’s you need is not only product,but also all-around service support,especially for technical instruction and after-sales service.
a.We have been specialized in this field since 2002.
b.Professional researching and technology team.
c.Customer service team.
5.Can you offer quality certification?
Yes.We can offer quality certification issued by our quality control department with free of charge.or issued by third-party international inspection organizations with extra charge.
6.Can you do the calibration and testing before handover the goods?
Yes.We do testing and calibration for every product before delivery.
