Product Description

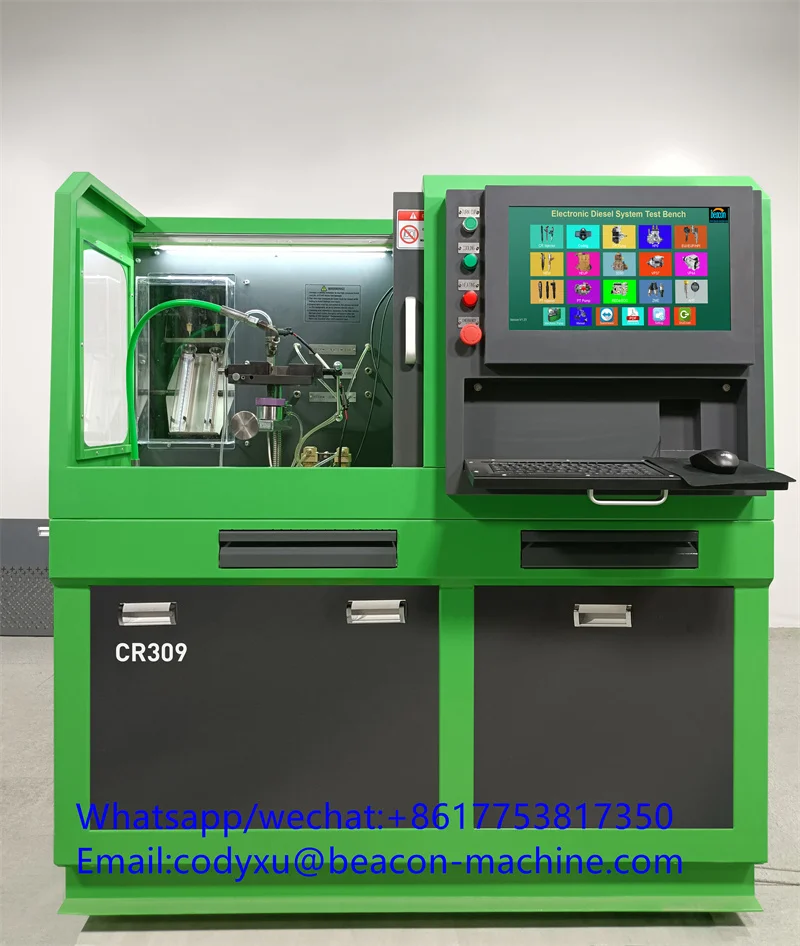

Vehicle Diagnostic Tool Electronic Injector Pump Test Machine CR309 Injector Coding Function Test bank
The function of the CR309 Common Rail Injector Test Bench is to imitate the working conditions of the diesel engine ECU (Engine Control Unit), while providing control signals for common rail systems such as Bosch, Denso, Delphi, and piezoelectric ceramics to drive high-pressure common-rail fuel pumps and high-pressure common rail systems. Rail injectors work; users of drive signal
parameters can be set according to their actual conditions and saved, which is convenient for maintenance personnel to judge and maintain the working status of the high-pressure common rail system.
parameters can be set according to their actual conditions and saved, which is convenient for maintenance personnel to judge and maintain the working status of the high-pressure common rail system.
Function :
The control system of diesel electronic injection integrated machine adopts fully automatic control, which can easily carry out common rail solenoid valve or piezoelectric injector and optional functions (high pressure pump, HEUI medium pressure common rail injector, actuation pump, 320D Maintenance and testing of oil pumps, unit pumps and pump nozzles. It can test thousands of EFI injectors and fuel pumps of various types, including Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, etc. The experimental data is complete.
The control system of diesel electronic injection integrated machine adopts fully automatic control, which can easily carry out common rail solenoid valve or piezoelectric injector and optional functions (high pressure pump, HEUI medium pressure common rail injector, actuation pump, 320D Maintenance and testing of oil pumps, unit pumps and pump nozzles. It can test thousands of EFI injectors and fuel pumps of various types, including Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, etc. The experimental data is complete.

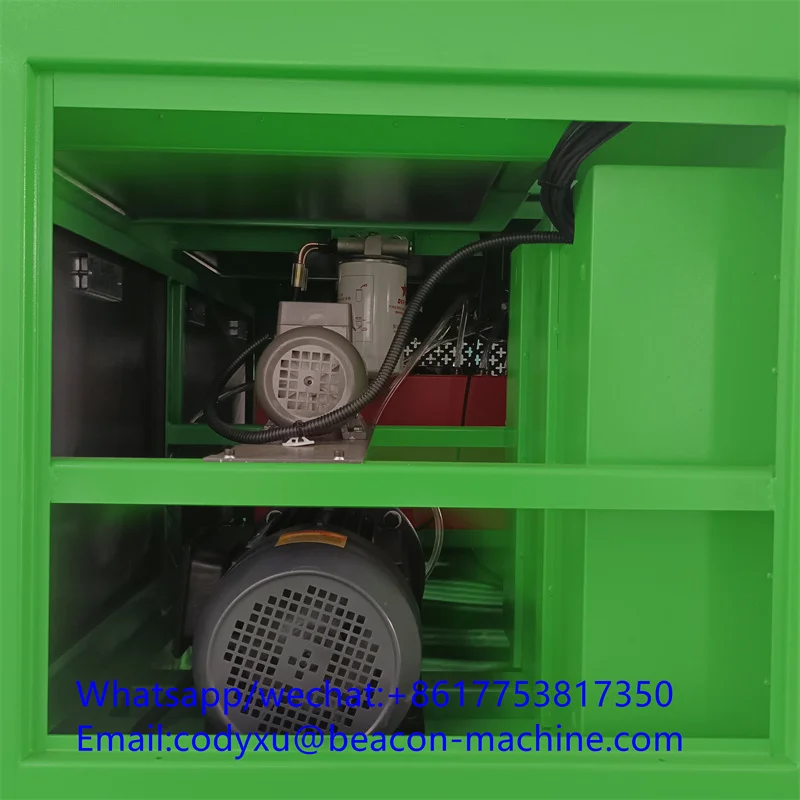

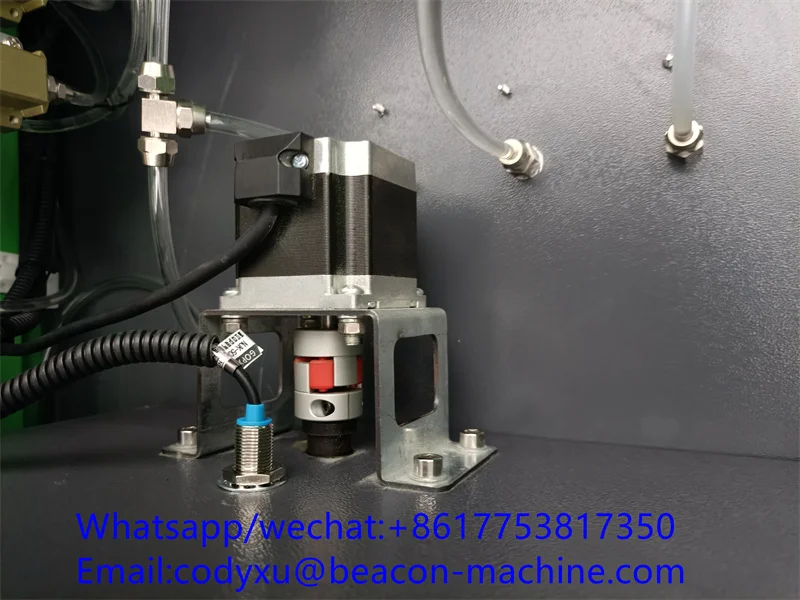

Details Images

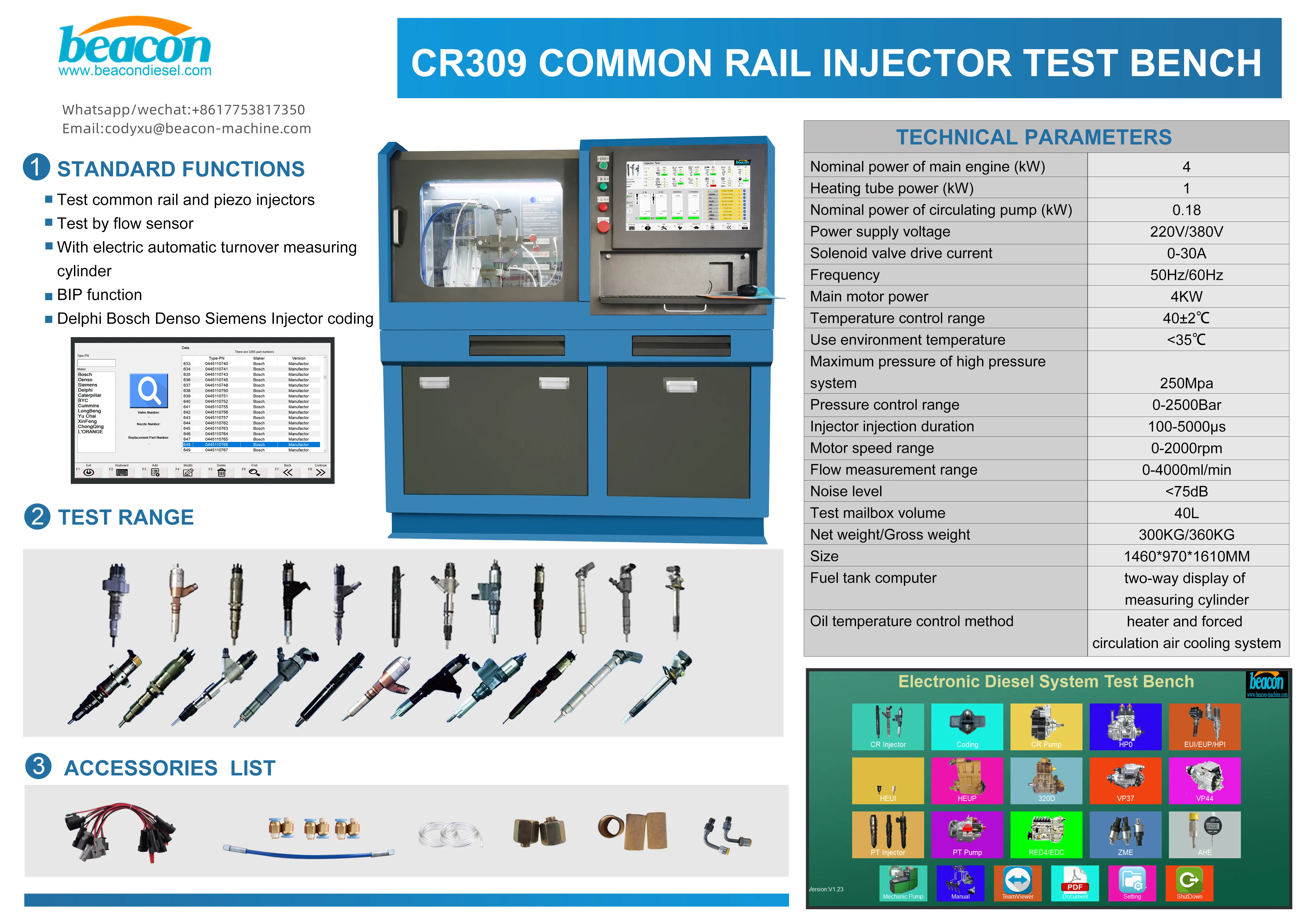

Specification
|
ITEM
|
VALUE
|
|
Brand Name
|
Beacon
|
|
Model Number
|
CR309
|
|
Power
|
Electronic
|
|
Motor power
|
4KW
|
|
Current
|
0-30A
|
|
Heating tube power
|
1KW
|
|
Power supply
|
220V/380V
|
|
Frequency
|
50HZ/60HZ
|
|
Pressure
|
0-2500Bar
|
|
Temperature range
|
40±2℃
|
|
Flow measurement range
|
0-4000ml/min
|
|
Motor speed range
|
0-2000RPM
|
|
Dimension
|
1.45×1.1×1.75m
|

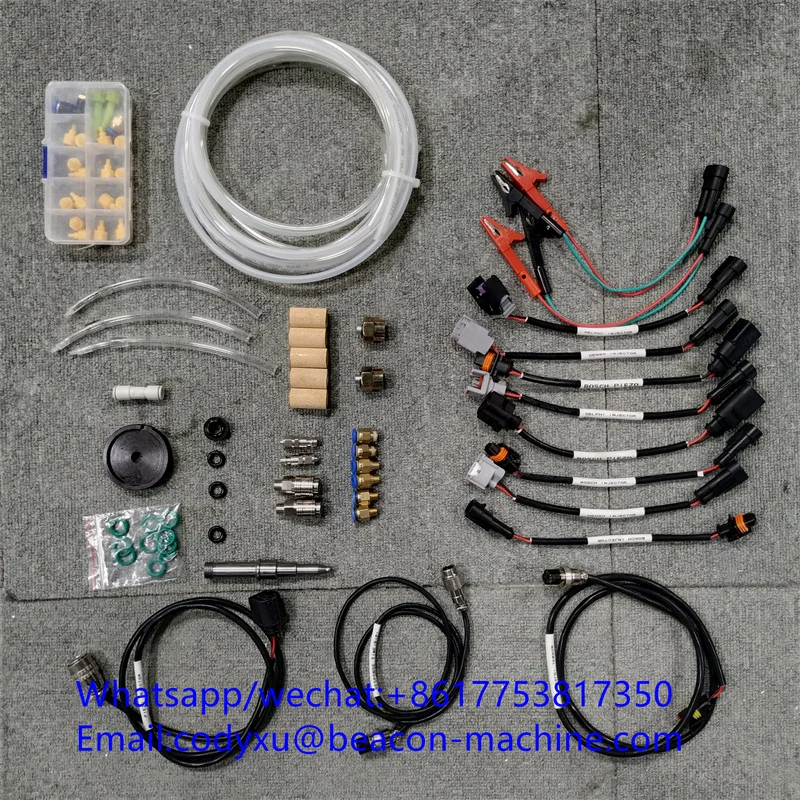

ACCESSORIES:
SYSTEM:
Injector Coding:
