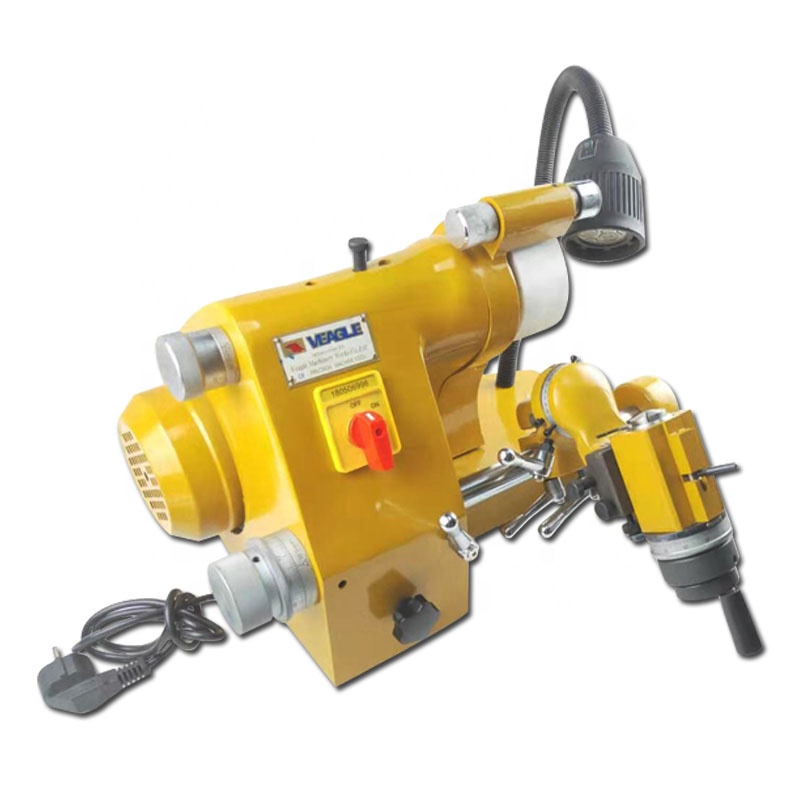

VEAGLE U2 High Quality Wholesale Cheap Universal Cutter Grinder For Tool Grinding

ر.س6,765.30

Clear
Qty:
Compare

Request quotation for: VEAGLE U2 High Quality Wholesale Cheap Universal Cutter Grinder For Tool Grinding

Product Description

 High Quality Wholesale Cheap Universal Cutter Grinder For Tool

Grinding



Product function and feature:

Universal grinder is used to grind turning tools, drills, milling cutters, engraving cutters and other tools. It is a computer

engraving machine, engraving milling machine, processing center, CNC necessary supporting equipment. Universal

grinder mainly includes: end grinder, straight grinder, CNC grinder, automatic grinder and so on. Universal sharpener

has powerful functions, mainly reflected in the flexible indexing head accessories, so for the operation technology, there

are certain requirements.

Universal grinder has the characteristics of high grinding accuracy, convenient installation, beautiful appearance, novel

structure, flexible rotating parts, low noise, small vibration, bearing part of the tool holder, durability, wear resistance,

easy operation, etc. It is specially designed for grinding die milling machine, engraving machine, computer engraving

machine, marking machine and other engraving sharp cutters of various diameters, shapes, angles, end milling cutters,

etc. Cutter and grinding in proportion to die. Therefore, it is the necessary matching equipment for tool grinding in

mechanical processing and engraving industry.



Application:

Necessary Equipment for Tool Grinding in Machine Processing and Carving Industry



Technical Data

Standard Accessory





Wheel

Diameter:Φ100mm



Thickness:Φ50mm



Hole diameter:Φ20mm

Spindle speed

5200rpm

Max.clamping diameter

Φ3~16mm

Longitudinal traver of index head carrier

140mm

Longitudinal adjustment travel of index head carrler

180mm

Spindle and wheel longltudinal adjustment travel

10 mm

Taper angle range

0~180°

Negative taper angle range

0~25°

Relief angle range

0~45°

Power

370w

Voltage Three-Phase

380V

Voltage Single-Phase

220V

Frequency

50Hz/60Hz

Gross weight

50KG

Packing dimensions

500*395*395mm

                                            Standard Accessories



Belt

1 pcs

Tools

1 set

White corundum wheel

1 pcs

Collet

3 pcs

Lamp

1 set

Extra Accessessories

φ3-16mm End mill grinding attachment

1 set

φ20*20mm Lathe tool grinding attachment

1 set

φ3-8mmTwist drill grinding attachment

1 set

-_02-_04-_05

Model Number

U2
