Product Description
|
Model
|
ZC3-A concrect mechenical
|
|
materials
|
stainless steel
|
|
impact energy
|
2.207J (0.225kgf.m)
|
|
Test tube diameter
|
154.2mm 101.6mm
|
|
Spring constant
|
785±30 N/m
|
|
Stretch length
|
75 ± 0.3mm
|
|
Measuring range
|
10-60mpa
|
|
Static friction force of pointer slider
|
0.65-0.15n
|
|
The radius of the spherical curvature of the projectile bar is SR
|
25mm + 1mm
|
|
The rebound instrument has an average rebound value of Rm
|
80 plus or minus 2 on the steel anvil
|
|
Motor power
|
370W
|
|
Dimension
|
Φ 54 x 278 mm
|
|
Weight
|
1 kg
|
ZC5 Mortar Rebound Tester Can only be used to test mortar Compressive strength: 5~30Mpa Impact kinetic energy: 0.196J Bounce tension spring stretch length:75±0.3mm The friction of the pointer slider: 0.5±0.1N Working length of bounce tension spring:61.5±0.3mm Decoupling position of the impact hammer: the radius of the spherical surface at the end of the impact rod at the scale “100”:. 25 soil 1mm Jump position of bounce hammer: “0+1” on the scale Steel anvil rate fixed value: 74 soil 2
ZC 4 Brick Tester* can only be used to test bricks Compressive strength:2~ 15Mpa Impact kinetic energy:0.735J Bounce tension spring stretch length:75 soil 0.3mm The friction of the pointer slider:0.5±0.1N Working length of bounce tension spring:61.5±0.3mm Decoupling position of the impact hammer:”100″ on the scale Spherical radius at the end of the bouncer:25 soil 1mm Steel anvil rate fixed value:74±2
Specification
|
item
|
value
|
|
Warranty
|
1 YEAR
|
|
Customized support
|
OEM
|
|
Place of Origin
|
China
|
|
Brand Name
|
AIK
|
|
Model Number
|

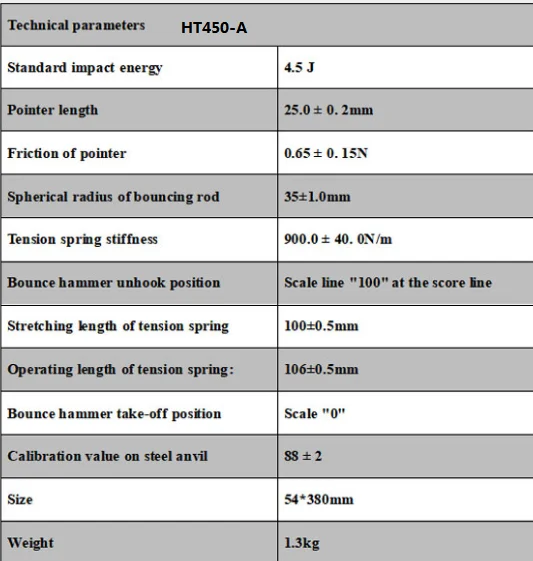

ZC3-A HT450-A ZC3-D
|
|
Power
|
Hydraulic Electronic
|
