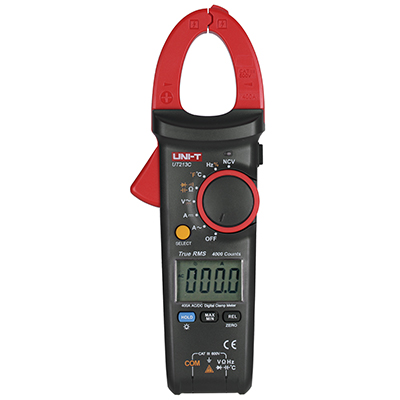

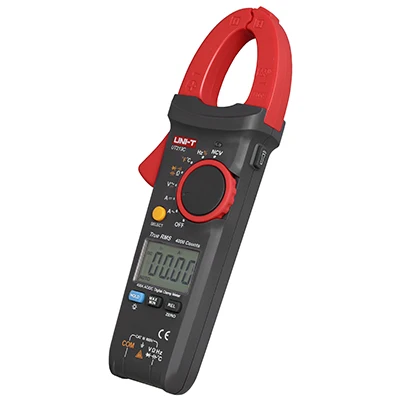

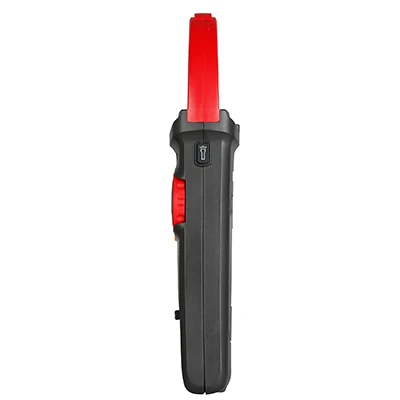

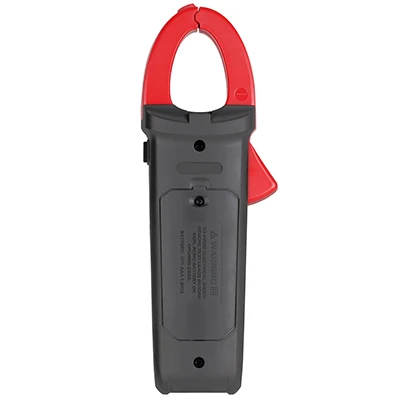

UNI-T UT213C Digital LCD Clamp Meter Multimeter AC/DC Voltage Current Resistance Capacitance Diode Continuity NCV Temperature
This clamp meter can measure AC/DC voltage, AC current, resistance, capacitance, NCV, as well as continuity and diode test.
UT213B & UT213C have the function of Max & Min value and temperature measurement.
Only UT213A have the "Hz%" button for voltage-frequency switching (at voltage gear position) or frequency-duty switching(at frequency gear position).
Only UT213C can measure DC current.
LCD display with backlight, convenient to operate and read.
Data hold function, low battery indication.
Flashlight function is available.
Suitable for electrical equipment testing and maintenance.
Specifications:
Display: LCD with backlight
Max. Display: 4000
Sampling Rate: Approx.3 times/s
Sensor: Hall Effect Sensor
Max. Dimension of Jaw Opening: Dia.30mm
AC Current: 40.00A/400.0A
DC Current: 40.00A/400.0A(only for UT213C)
AC Voltage: 4.000V/40.00V/400.0V/600V
DC Voltage: 400.0mV/4.000V/40.00V/400.0V/600V
Resistance: 400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ/40.00MΩ
Capacitance:40.00nF/400.0nF/4.000μF/40.00μF/4.000mF/40.00mF
Temperature: 400~1000°C(Meter) -40~300°C(Probe)
Continuity Test Range: 400.0Ω
Power Supply: 3 * 1.5V AAA Batteries(not included)
Item Size: 22 * 7 * 3cm / 8.66 * 2.76 * 1.18in
Item Weight: 221g / 7.79oz
Package Size: 27 * 9 * 5.5cm / 10.63 * 3.54 * 2.17in
Package Weight: 425g / 14.99oz
Package List:
1 * Clamp Meter
1 * Pair of Test Probe
1 * Temperature Measuring Probe(only for UT213B/C)
1 * Bag
1 * User Manual
