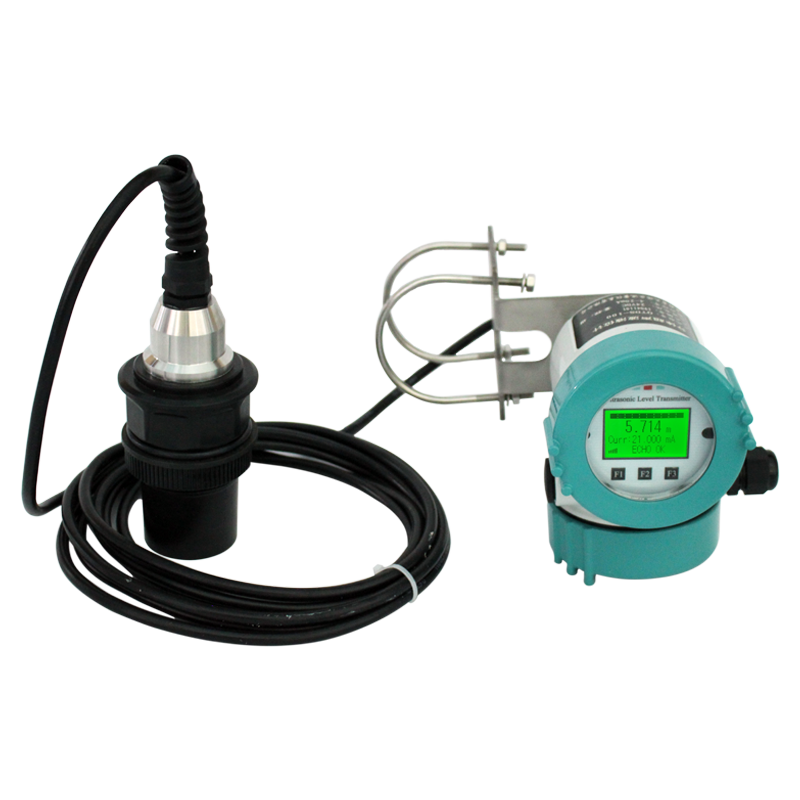

high accuracy ultrasonic deep water liquid level sensor
Suitable For Various Complex Conditions And Medium
In the range of rated voltage, positive and negative terminal wrong wiring protection function
- New waveform computing technology, enhance measuring accurcy.
- Advanced testing technology, powerful software functions adapt to a variety of complex conditions.
Technical Parameters
| Function | Compact Type |
| Level Range | 4,6,8,10,12,15,20,30m |
| Accuracy | 0.5%-1.0% |
| Resolution | 3mm or 0.1% |
| Display | LCD Display |
| Analog Output | Two Wires 4-20mA/250Ω Load |
| Power Supply | DC24V |
| Environmental Temperature | Transmitter -20~+60℃ , Sensor -20~+80℃ |
| Communication | HART |
| Protection Class | Transmitter IP65(IP67 Optional),Sensor IP68 |
| Probe Installation | Flange, Thread |
Installation Notice
