Products Description
U910 / U920 ultrasonic pulse velocity tester, use for structural concrete compressive strength, crack depth, crack width and defect detection;Diaphragm wall integrity testing, which integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect detection, crack sounding and width measurement.Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials such as rock mass and concrete.
|
Product Model
|

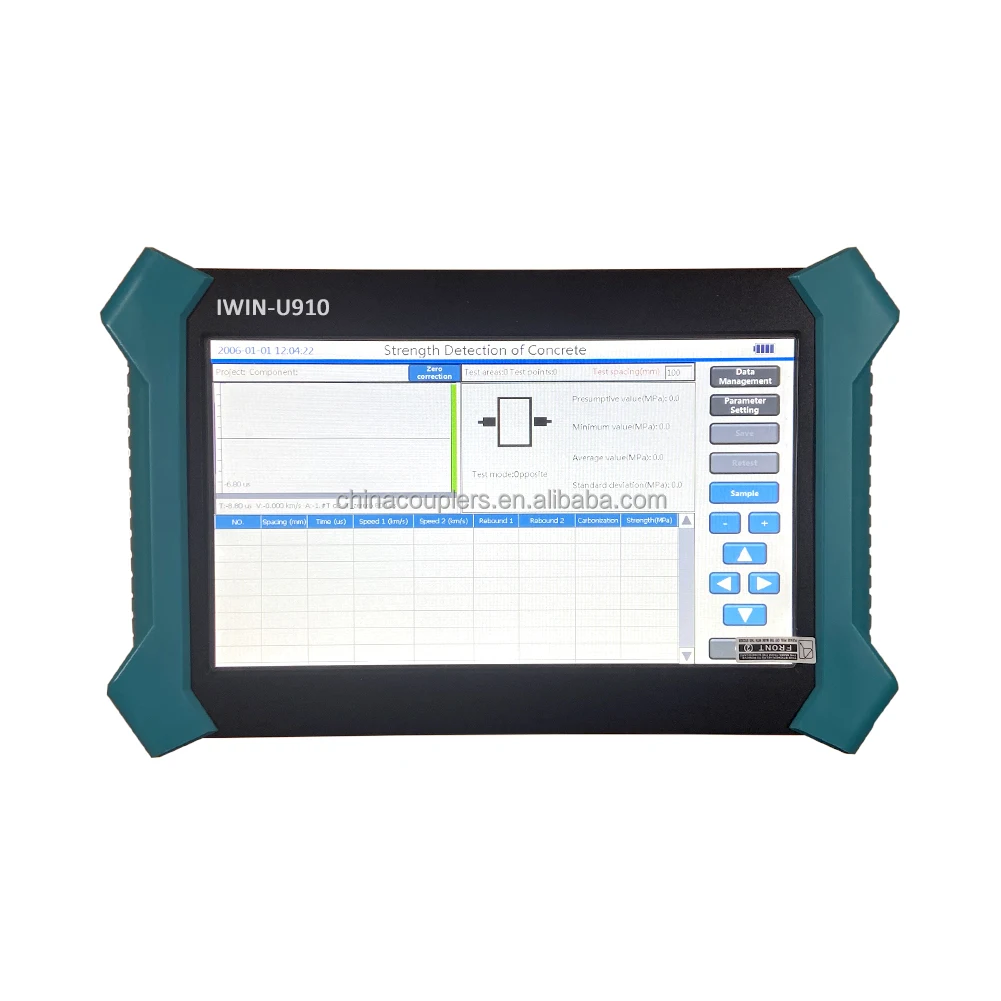

IWIN-U910
|
IWIN-U920
|
|
|
Master control unit
|
Built-in A9 industrial control motherboard
|
||
|
Display
|
10.1 inch, high brightness, TFT color LCD capacitive screen
|
||
|
Operational mode
|
Touch screen
|
||
|
Storage mode
|
Built-in Electronic Hard Disk (> 8GB) +Large Capacity U Disk
|
||
|
Data transmission mode
|
Wireless Cloud Transport (Options)
|
||
|
Acquisition mode
|
Single-channel manual point-by-point acquisition
|
Manual Point-by-Point Collection of Single and Double Channels
|
|
|
Channel Number
|
1 transmit + 1 receive
|
1 transmit + 2 receive
|
|
|
Trigger mode
|
Signal triggering
|
||
|
Sampling period (μs)
|
0.05-409.6 Multistage Options
|
||
|
Acoustic Time Accuracy (μs)
|
0.05
|
||
|
Acoustic time range (μs)
|
1677700
|
||
|
Width measurement function
|
range: 0 ~ 10mm;
|
||
|
accuracy: 0.01 mm;
|
|||
|
Dynamic range (dB)
|
146
|
||
|
Bandwidth (kHz)
|
1~500
|
||
|
Receiving Sensitivity (UV)
|
≤10
|
||
|
Gain Accuracy (dB)
|
0.5
|
||
|
Emission Voltage (V)
|
65, 250, 500 and 1000
4-gears adjustable |
||
|
communication interface
|
USB, Bluetooth, Wifi
|
||
|
Working hours (h)
|
≥ 8
|
||
|
Power supply mode
|
Built-in lithium battery
|
||
|
External 220V~16V AC/DC
|
|||
|
work environment
|
Temperature – 10 (℃)~ + 40 (℃)
|
||
|
Humidity (RH) < 90%
|
|||
|
Host Size (mm)
|
300 x 200 x 55
|
||
