Product Usage and Features
Concrete Ultrasonic Plus Velocity Tester
USAGE OVERVIEW:
Concrete Ultrasonic Plus Velocity Tester is used for testing both the surface and inner hardness of concrete with non nuclear method.
Concrete Ultrasonic Plus Velocity Tester/Ultrasonic Rebound Hammer is a comprehensive instrument for testing the strength of concrete. It can be used as an ordinary rebound tester or as an ultrasonic rebound comprehensive tester. It can measure the rebound value as well as the sound time and sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects.
PRODUCT FEATURE:
1. It adopts three anti- shell design waterproof, dustproof and shockproof;
2. Multi-function: Two methods to test the compressive strength of concrete: rebound method and ultrasonic rebound method. It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient.
3. High quality using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be analyzed on site;
4. Easy to use: full English interface, with prompts, quick learning to conduct on-site testing;
5. Powerful: The instrument can store 4000 sets of data and record the test date at the same time, which is convenient for users to view and manage. The USB interface can quickly import data to the host computer for analysis and processing.
Parameters
|
Product name
|
U200 Ultrasonic pulse velocity tester
|
|
Type
|
GTJ-U200
|
|
Host Parameter
|
Screen Size:5 inches
Volume:195*140*45mm
Weight:0.85kg
Waterproof level：IP65
|
|
Ultrasonic indication Error
|
±0.1μs
|
|
Ultrasonic Work Frequency
|
50KHz
|
|
Ultrasonic Frequency Range
|
5Hz~500KHz
|
|
Stiffness of Spring Strike
|
785.0±40.0 (N/m)
|
|
Impact Length of Ram
|
75.0±0.3mm
|
|
Impact Energy
|
2.207J
|
|
Average rebound value
|
80±2
|
|
Power Supply Mode
|
Large capacity lithium battery. Working time over 8 hours.
|
|
Working Environment
|
-10℃~40℃
|
|
Packing
|
Material: engineering plastic
Volume:420*140*335mm
Weight:5.5KGs
|

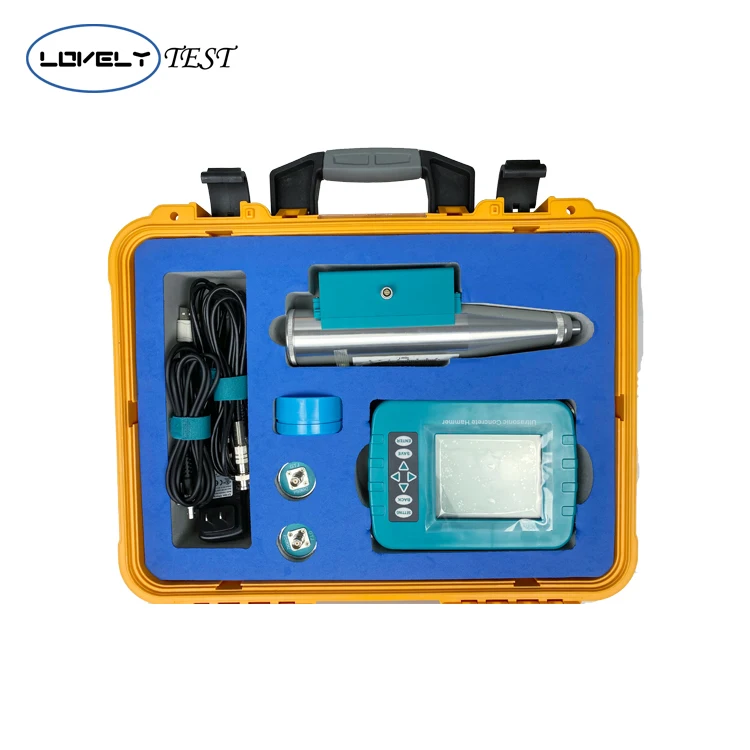

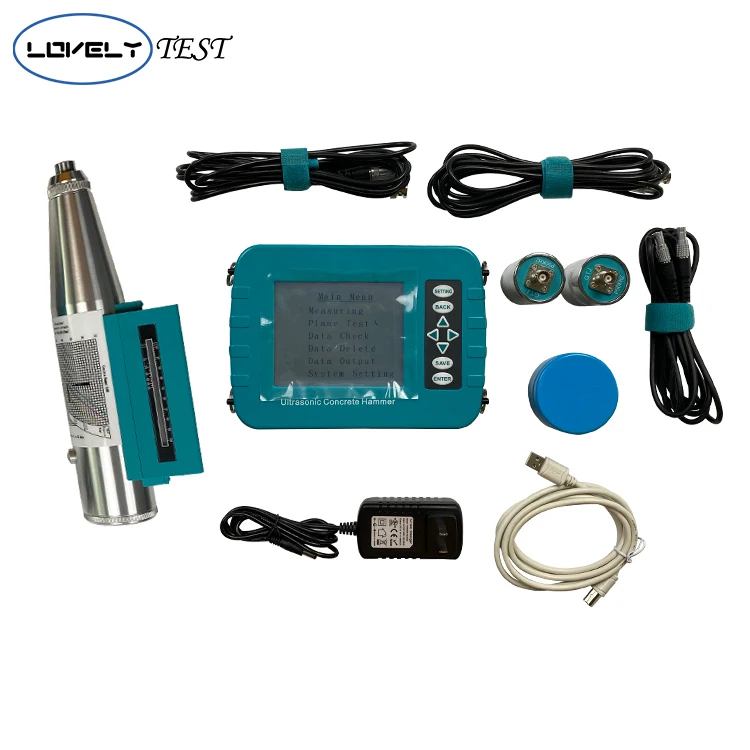

Detailed Images
LOVELY TEST
Support payment terms of Alibaba Insurance payment, Credit card ,Bank Wire Transfer, L/C, Western Union etc.
12 months quality warranty with online technical support.
With more than 12 years’ production and sales experience. We would give you an excellent experience!
Application
