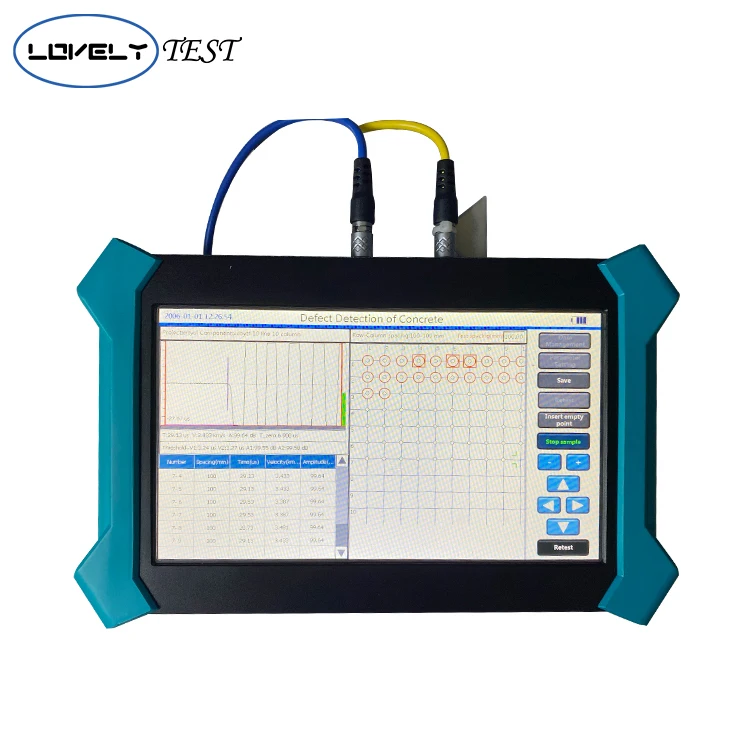

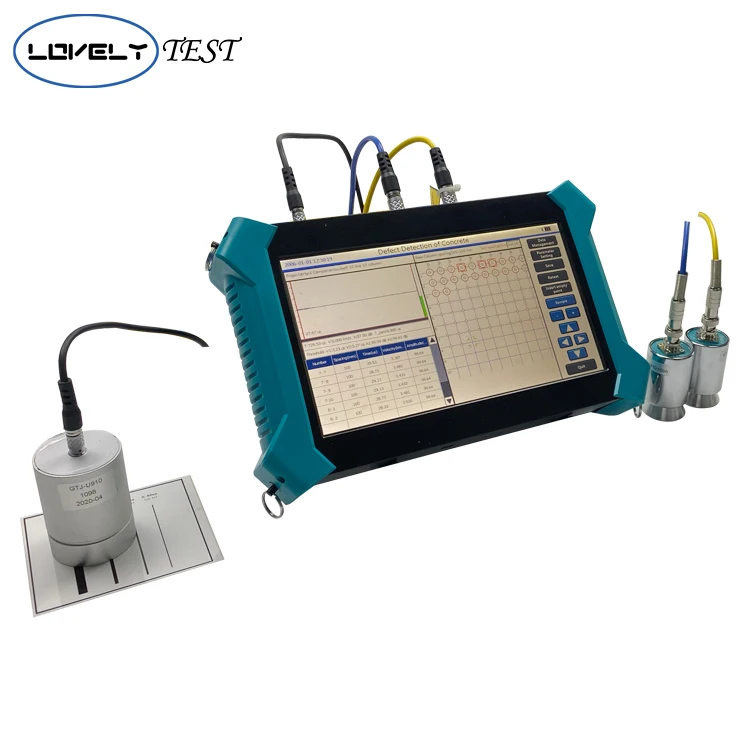

Ultrasonic Pulse Velocity Tester for Concrete Engineering test
ر.س17,773.01
Ultrasonic Pulse Velocity Tester for concrete engineering test
Usage Overview
Product Description
Specification
|
Product Model
|
U910
|
U920
|
U930
|
|
|
Master control unit
|
Buit-in A8 industrial control motherboard
|
Buit-in A8 industrial control motherboard
|
Buit-in A8 industrial control motherboard
|
|
|
Display
|
10.1 inch, high brightness, TFT color LCD capacitive screen
|
10.1 inch, high brightness, TFT color LCD capacitive screen
|
10.1 inch, high brightness, TFT color LCD capacitive screen
|
|
|
Operational mode
|
Touch screen
|
Touch screen
|
Touch screen
|
|
|
Storage mode
|
Built-in Electronic Hard Disk(>8GB)+Large Capacity U Disk
|
Built-in Electronic Hard Disk(>8GB)+Large Capacity U Disk
|
Built-in Electronic Hard Disk(>8GB)+Large Capacity U Disk
|
|
|
Data transmission mode
|
Wireless Cloud Transport(Options)
|
Wireless Cloud Transport(Options)
|
Wireless Cloud Transport(Options)
|
|
|
Acquisition mode
|
Single-channel manual point-by-point acquisition
|
Manual point-by point collection of single and double channels
|
Single and double channel automatic continuous and acquisition
|
|
|
Number of dispossable profiles
|
–
|
Tow
|
||
|
Channel number
|
1 transmit+1 receive
|
1 emission+2 reception
|
1 emission+2 reception
|
|
|
Trigger mode
|
Signal triggering
|
Signal triggering
|
Signal triggering
|
|
|
Sampling period(mus)
|
0.05~409.6 Multistage Options
|
0.05~409.6 Multistage Options
|
0.05~409.6 Multistage Options
|
|
|
Acoustic time accuracy(us)
|
0.05
|
0.05
|
0.05
|
|
|
Acoustic time range(mus)
|
+1677700
|
+1677700
|
+1677700
|
|
|
Width measurement function
|
Measuring range: 0~10mmMeasurement accuracy: 0.01mm
|
Measuring range: 0~10mmMeasurement accuracy: 0.01mm
|
Measuring range: 0~10mmMeasurement accuracy: 0.01mm
|
|
|
Dynamic range(dB)
|
0.5
|
0.5
|
0.5
|
|
|
Emission voltage(V)
|
Sixty-five, 250, 500 and 1000 gears adjustable
|
Sixty-five, 250, 500 and 1000 gears adjustable
|
Sixty-five, 250, 500 and 1000 gears adjustable
|
|
|
Communication interface
|
UBS, Bluetooth, Wifi
|
UBS, Bluetooth, Wifi
|
UBS, Bluetooth, Wifi
|
|
|
Working hours(h)
|
More than 8
|
More than 8
|
More than 8
|
|
|
Power supply mode
|
Built-in lithium batteryExternal 220V~ 16V AC/CD
|
Built-in lithium batteryExternal 220V~ 16V AC/CD
|
Built-in lithium batteryExternal 220V~ 16V AC/CD
|
|
|
Working environment
|
Temperature(℃) -10℃~ + 40℃Humidity(RH) <90%
|
Temperature(℃) -10℃~ + 40℃Humidity(RH) <90%
|
Temperature(℃) -10℃~ + 40℃Humidity(RH) <90%
|
|
|
Host size(mm)
|
300*200*55
|
300*200*55
|
300*200*55
|
Our Advantages
1.New upgraded wireless cloud transmission function; 2.Five functions of measuring pile, measuring strength, measuring defect,
sounding depth and width measuring; 3.Stable performance and powerful function, it is the best choice for users with diverse needs
such as engineering inspection, teaching and scientific research; 4.Semi-transparent, high-brightness, TFT color LCD screen;
5.Full touch screen operation, simple and convenient, stable and reliable; 6.Large memory capacity and working time of more than
10 hours; 7.It can be connected with the probe of digital display rebound instrument to measure the strength of ultrasonic
rebound; 8.U-disk transfers data and supports software upgrading through U-disk; 9.Special analysis software is powerful, data
analysis and processing, report generation, and report printing can be completed easily .
