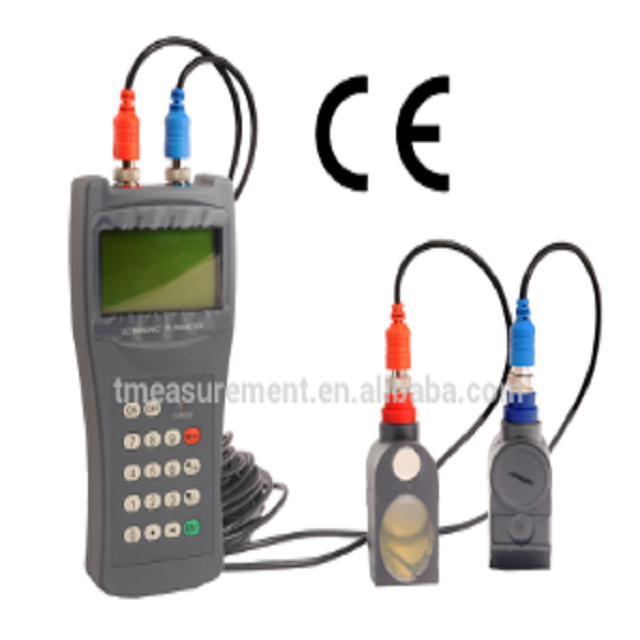

ultrasonic flow meter water/data logger for flow meter/portable water flow meter Taijia tech

Pipe Size

DN15mm~6000mm

Power Consumption

Less than 1.5W

Measurement Principle

Transit-time measurement principle

Power Supply

90~230VAC

Output

RS232C

Protection Class

IP65

Memory

Automatic memory the positive,negative,net totaliser flow rate and heat quantity of the last 512 days,128 months,10years

Pipe Material

All metals,most plastics,fiber glass,etc,

Can working along with PT100 temperature sensor as a ultrasonic heat meter

Accuracy

Better than ±1.0 %

Repeatability

0.20%

Measurement Period

0.5S

Display

LCD with backlight. 2×20 letters.

Liquids Temperature

-40°C~160°C

Environment Temperature

-30°C~80°C

Environment Humidity

85% RH

Packing list

Main Unit

1 Unit

M2-type Clamp-on Transducer For 2”~28” Pipe

1 Pair

Dedicated Shielded Transducer Cable

5mx2

Aluminum Carrying Case

1 Piece

Battery Charger

1 Piece

RS232 Cable

1 Piece

ClampFixture

1 Set

5m Ruler

1 Piece

User Manual

1 Piece

Packing List

1 Page
