Product Usage and Features

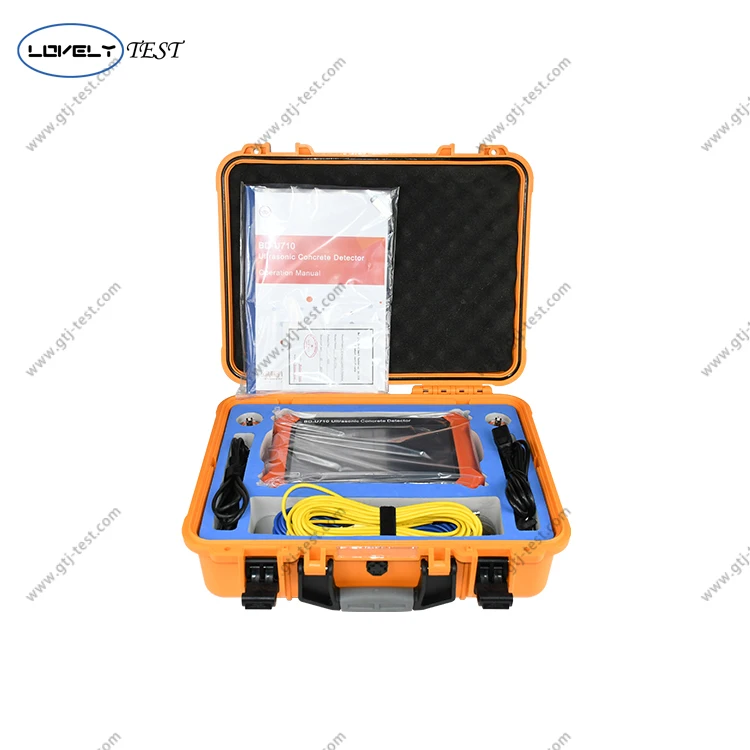

U710 Non-metallic ultrasonic detector
USAGE OVERVIEW
U910/U920 Non-metallic ultrasonic detector, structural concrete compressive strength, crack depth, crack width and defect detection; ultrasonic transmission method for detecting pile and continuous wall integrity. It integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect measurement, crack sounding and width measurement. Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials such as rock mass and concrete.
PRODUCT FEATURES
1.Five functions of measuring pile, strength, defect, sounding depth and width measuring;
2.Semi-transparent, high-brightness, TFT color LCD screen;
3.Full touch screen operation, simple and convenient, stable and reliable;
4.Large memory capacity and working time over 10 hours;
5.It can be connected with the probe of digital display rebound instrument to measure the strength of ultrasonic rebound;
6.U-disk transfers data and supports software upgrading through U-disk;
7.Special analysis software. The data analysis and processing, report generation, and report printing can be completed easily.
Technical Parameters
|
Product Model
|
U710
|
|
Master control unit
|
Buit-in A9 industrial control motherboard
|
|
Display
|
10.1 inch, high brightness, TFT color LCD capacitive screen
|
|
Operational mode
|
Touch screen
|
|
Storage mode
|
Built-in Electronic Hard Disk(>8GB)+Large Capacity U Disk
|
|
Data transmission mode
|
Wireless Cloud Transport(Options)
|
|
Acquisition mode
|
Single-channel, manual point-by-point acquisition
|
|
Number of dispossable profiles
|
–
|
|
Channel number
|
1 transmit+1 receive
|
|
Trigger mode
|
Signal triggering
|
|
Sampling period(μs)
|
0.05~409.6 Multistage Options
|
|
Acoustic time accuracy(μs)
|
0.05
|
|
Acoustic time range(μs)
|
+1677700
|
|
Width measurement function
|
Range: 0~10mm
Accuracy: 0.01mm
|
|
Dynamic range(dB)
|
146
|
|
Bandwidth(kHz)
|
1~500
|
|
Emission voltage(V)
|
65, 250, 500 and 1000 gears adjustable
|
|
Communication
|
UBS, Bluetooth, Wifi
|
|
Working hours(h)
|
More than 8
|
|
Power supply mode
|
Built-in lithium battery
External 220V~ 16V AC/CD
|
|
Working environment
|
Temp.: -10℃~ + 40℃
Humidity(RH) <90%
|
|
Host size(mm)
|
300*200*55
|
Detailed Images
Welcome to contact us! Get our online support!
Any questions, our product specialists advise you in technical and application questions.
Five measuring functions
1. Continuous inspection of foundation piles (ultrasonic projection method)
2. Continuous wall integrity detection
3. Concrete compressive strength test (ultrasonic rebound comprehensive method)
4. Depth detection of crack
5. Width detection of crack
Full touch screen operation, simple and convenient, stable and reliable.
