Product Description
Yano Brand High Quality Cooking Boiler 100kg/h Powered Natural Gas/ Diesel Oil Fired Steam Boiler
For Food Industries
Main Features of 100kg Powered Natural Gas/ Diesel Oil Fired Steam Boiler For Food Industries：
1.Automatic LCD intelligent control system
2.,Safety and Science :with a safety valve, pressure controller, water level control protector,
3,multiple chain protection device, safe and reliable.
4,Choose imported Italian burner, burning more fully, more stable operation and lower noise.
5,High quality parts adopt domestic famous brand Delixi electric appliance
6,High Quality Steam Rapidly
7,Easy to install and operate
8,the boiler thermal efficiency above 93%
9,Product quality ensured by :Hydraulic teat ,X-ray ,non-destructive test .
2.,Safety and Science :with a safety valve, pressure controller, water level control protector,
3,multiple chain protection device, safe and reliable.
4,Choose imported Italian burner, burning more fully, more stable operation and lower noise.
5,High quality parts adopt domestic famous brand Delixi electric appliance
6,High Quality Steam Rapidly
7,Easy to install and operate
8,the boiler thermal efficiency above 93%
9,Product quality ensured by :Hydraulic teat ,X-ray ,non-destructive test .

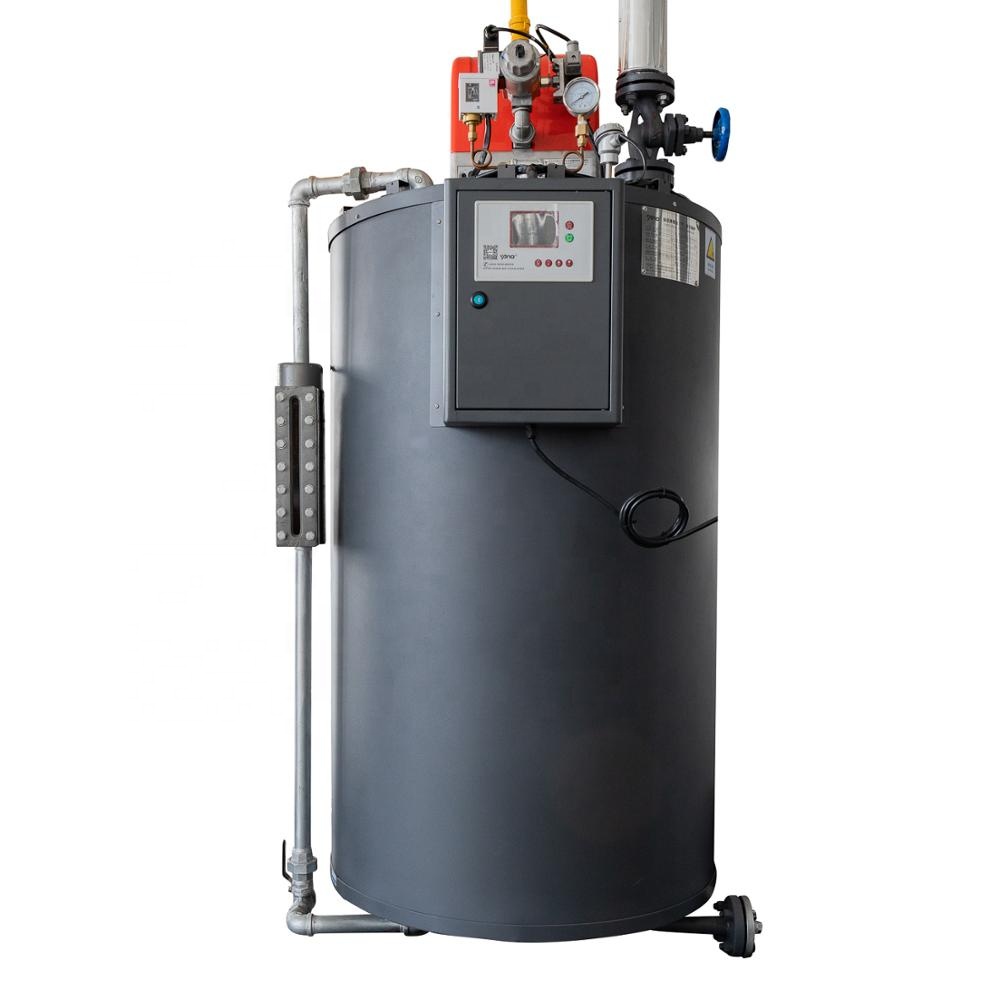

Photo of Cooking Boiler100kg Powered Natural Gas/ Diesel Oil Fired Steam Boiler For Food Industries:
|
Product Features
|
||||||
|
Product Type
|
LSS0.1-0.8-Y/Q
|
|||||
|
Rated evaporation
|
100 Kg/h
|
|||||
|
Thermal efficiency
|
≥93
|
|||||
|
Rated pressure
|
0.8 MPa
|
|||||
|
Steam temperature
|
175 ℃
|
|||||
|
FUEL
|
Diesel
|
3.2 kg/h
|
||||
|
Coal gas
|
8.9Nm³/H
|
|||||
|
Natural gas
|
4.0Nm³/H
|
|||||
|
*Style
|
Liquefied gas
|
3.1kg/h
|
||||
|
DIMENSION
|
L
|
800 mm
|
||||
|
*Material Type
|
W
|
770 mm
|
||||
|
*Whether the folding
|
H
|
1400 mm
|
||||
|
Steam caliber
|
Moderation
|
DN25
|
||||
|
Drain outlet caliber
|
Wide*Hight*Thickness *Shoulder strap length (25*35*15*35)CM
|
DN25
|
||||
|
Water inlet caliber
|
Dismountable
|
DN15
|
||||
|
Weight
|
550 Kg
|
|||||
Facade
Backside
Detailed Images
-
-
Name: Boiler Liner
Brand: Yano
Original: China
Advantage：Advanced three-pass vertical water pipes tubular structure
Smokes and finned tube are fully heat exchanged,the themal efficiency is higher than 92%.
-
Name: Water Pump
Brand: Oron
Original: China
Advantage：10 year life, high temperature of 100 degrees.Compact structure,high mechanical strength stable performance.
Brand: Oron
Original: China
Advantage：10 year life, high temperature of 100 degrees.Compact structure,high mechanical strength stable performance.
-
Name: Barner
Brand: Baltur
Original: Italy
Advantage：Stable in operation,low combustion noise,more energy efficient.Life of over 10 years.
Company Introduction
With over ten series of more than one hundred kinds of products, has obtained above ten of inventions and utility model patents and national energy-saving products honorary certificate, passed the ISO9001 international quality management system
certification, Germany Rhine TUV CE certification, Italian 1282 laboratory CE certification…Market
We have customers worldwide, such as France ,Britain , Denmark, Greece, Sweden in Europe, Saudi Arabia, Dubai in Middle East, USA,Canada in America, South and North Korea in Asia, New Zealand in Oceania, Rwanda, Tanzania in Africa, Brazil, Peru, Guatemala in Latin America, Singapore, Thailand,Philippines in Southeast Asia, etc.. Our Products are highly appreciated by our customers.
certification, Germany Rhine TUV CE certification, Italian 1282 laboratory CE certification…Market
We have customers worldwide, such as France ,Britain , Denmark, Greece, Sweden in Europe, Saudi Arabia, Dubai in Middle East, USA,Canada in America, South and North Korea in Asia, New Zealand in Oceania, Rwanda, Tanzania in Africa, Brazil, Peru, Guatemala in Latin America, Singapore, Thailand,Philippines in Southeast Asia, etc.. Our Products are highly appreciated by our customers.
Main Features of Yano Electric Steam Boiler
1) LCD Full-Automatically Intelligent Electronic Control System
2) High-quality Core Component——Electric Heating Pipe of 316L Stainless Steel
3) High-quality Components and Parts——Famous Brand Delixi Electrical Appliance
4) Multiple Safety Interlock Protection
5)Scientific Design and Attractive Appearance
6) Easy and Rapid Installation
7)Electricity Is Much More Eco-Friendly and Economical
8)Wide Application RangeMain Features of Yano Electric Steam Boiler
2) High-quality Core Component——Electric Heating Pipe of 316L Stainless Steel
3) High-quality Components and Parts——Famous Brand Delixi Electrical Appliance
4) Multiple Safety Interlock Protection
5)Scientific Design and Attractive Appearance
6) Easy and Rapid Installation
7)Electricity Is Much More Eco-Friendly and Economical
8)Wide Application RangeMain Features of Yano Electric Steam Boiler
