Product Description

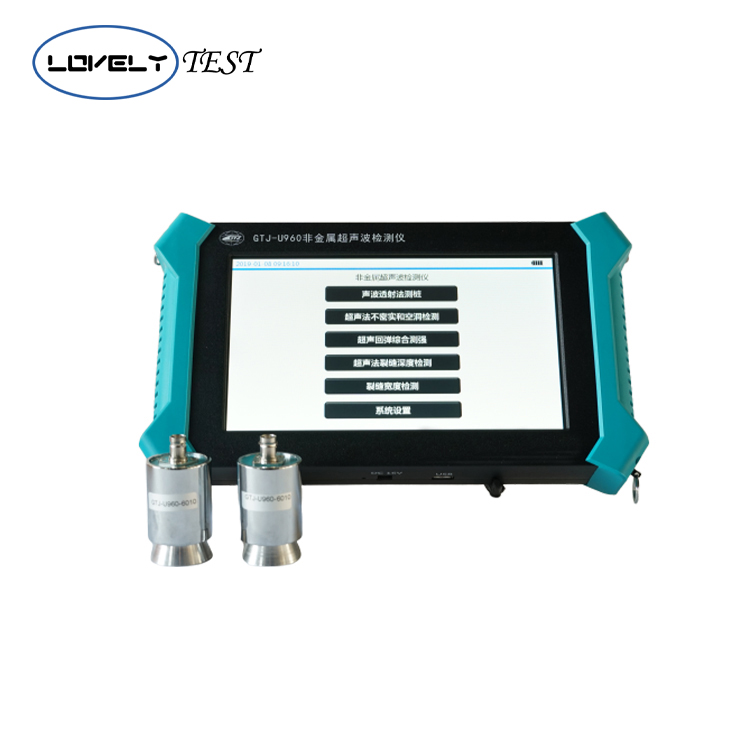

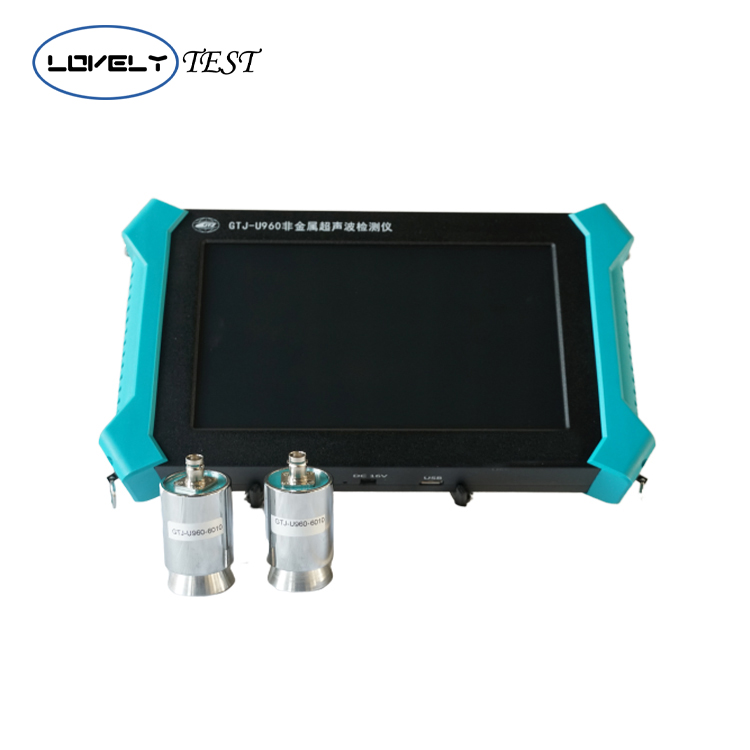

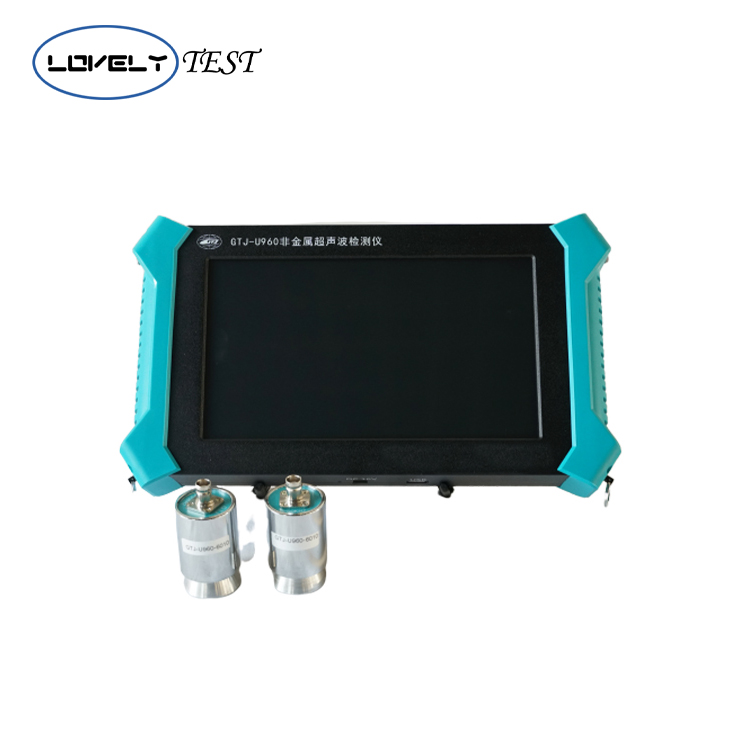

U950/U960Non-metallic ultrasonic detector(multi-tube measuring pile)Ultrasonic transmission method for pile integrity testing, Structural concrete compressive strength, crack depth, crack width and defect detection; Diaphragm wall integrity testing, which integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect detection, crack sounding and width measurement. Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials such as rock mass and concrete.
|
Product Model
|
U950
|
U960
|
|
|
Master unit
|
Built-in A8 industrial control motherboard
|
Built-in A8 industrial control motherboard
|
|
|
Display
|
10.1 inch, high brightness, TFT color LCD capacitive screen
|
10.1 inch, high brightness, TFT color LCD capacitive screen
|
|
|
Operational mode
|
Touch screen
|
Touch screen
|
|
|
Storge mode
|
Built-in Electrionic Hard Disk(＞8GB)+ Large Capacity U Disk
|
Built-in Electrionic Hard Disk(＞8GB)+ Large Capacity U Disk
|
|
|
Acquisition mode
|
Synchronized continuous rapid mining
|
Synchronized continuous rapid mining
|
|
|
Number of channels
|
3 Channels Spontaneous Receiving
|
4 Channels Spontaneous Receivingannels
|
|
|
One-time section number
|
3
|
6
|
|
|
Trigger mode
|
Signal triggering
|
Signal triggering
|
|
|
Test method
|
Plainning Re-testing Encryption. Oblique Survey
|
Plainning Re-testing Encryption. Oblique Survey
|
|
|
Data transmission mode
|
Wireless Cloud Transport(Options)
|
Wireless Cloud Transport(Options)
|
|
|
Acoustic Time Accuracy(μs)
|
0.05
|
0.05
|
|
|
Sampling period(mμs)
|
0.05-409.6 Multistage Options
|
0.05-409.6 Multistage Options
|
|
|
Acoustic time range(mμs)
|
±1677700
|
±1677700
|
|
|
Dynamic range(dB)
|
146
|
146
|
|
|
Width measurement function
|
Measuring range: 0~10mm; Measuring accuracy: 0.01mm
|
||
|
Bandwidth(kHZ)
|
1~500
|
1~500
|
|
|
Receiving Sensitivity(UV)
|
Less than 10
|
Less than 10
|
|
|
Gain Accuracy(dB)
|
0.5
|
0.5
|
|
|
Emission Voltage(V)
|
65, 250, 500 and 1000 gear adjustable
|
65, 250, 500 and 1000 gear adjustable
|
|
|
Communication interface
|
USB, Bluetooth, Wifi
|
USB, Bluetooth, Wifi
|
|
|
Working hours
|
more than 8
|
more than 8
|
|
|
Powder supply mode
|
Built-in lithium battery External 220V~16V AC/DC
|
Built-in lithium battery External 220V~16V AC/DC
|
|
|
Working environment
|
-10~40℃ Humidty (RH) ＜90%
|
-10~40℃ Humidty (RH) ＜90%
|
|
|
Host size(mm)
|
300x200x55
|
300x200x55
|
|
1.Newly upgraded wireless cloud transmission function;
2.With stable performance and powerful functions, it is the best choice for users with diverse needs such as engineering inspection, teaching and scientific research;
3.It integrates five functions of pile, strength measurement, defect measurement, sounding and width measurement.
4.Full touch screen operation, simple, convenient, stable and reliable;
5.Multichannel automatic acquisition, automatic recording of high harmony time waveform;
6.The deep recording wheel adopts dustproof and waterproof design;
7.Large memory capacity, working time up to 10 hours or more;
8.It can directly connect the digital rebound rifle probe to the ultrasonic rebound comprehensive method for measuring strength;
9.U disk dump data, support software upgrade through U disk;
10.The special analysis software has powerful functions, data analysis and processing, report generation and report printing can be easily completed.
11.The transducer spool is designed with a current collecting ring, and the signal cable is retractable to prevent the cable from being twisted.
2.With stable performance and powerful functions, it is the best choice for users with diverse needs such as engineering inspection, teaching and scientific research;
3.It integrates five functions of pile, strength measurement, defect measurement, sounding and width measurement.
4.Full touch screen operation, simple, convenient, stable and reliable;
5.Multichannel automatic acquisition, automatic recording of high harmony time waveform;
6.The deep recording wheel adopts dustproof and waterproof design;
7.Large memory capacity, working time up to 10 hours or more;
8.It can directly connect the digital rebound rifle probe to the ultrasonic rebound comprehensive method for measuring strength;
9.U disk dump data, support software upgrade through U disk;
10.The special analysis software has powerful functions, data analysis and processing, report generation and report printing can be easily completed.
11.The transducer spool is designed with a current collecting ring, and the signal cable is retractable to prevent the cable from being twisted.
