Tuf-2000m Fixed Digital Ultrasonic Flow Meter Water
Introduction
The clamp on type or tube type ultrasonic flow meter is a meter that measures the liquid flow in a circular tube based on the “speed difference method”. It uses advanced multi-pulse technology, digital signal processing technology and error correction technology to make the flow meter more suitable for the industrial site environment, and the measurement is more convenient, economical and accurate. The products reach the advanced level at home and abroad, and can be widely used in petroleum, chemical industry, metallurgy, electric power, water supply and drainage and other fields.
Features
High accuracy
1
Measure range is big
Choose different sensors for DN15-DN6000 pipe size
High reliability
Low-voltage, multi-pulse circuits provide a significant increase in life and reliability
Powerful
One 4-20mA output can be used as a flow heat transmitter, two OCT outputs can be used as a flow heat switch, three 4-20ma inputs can be used as a data collector, and two 3-wire PT100 resistance signal inputs can be used as a heat meter.
Transmission distance, network shortcut
RS485 communication, ordinary cable can be networked, very convenient and fast

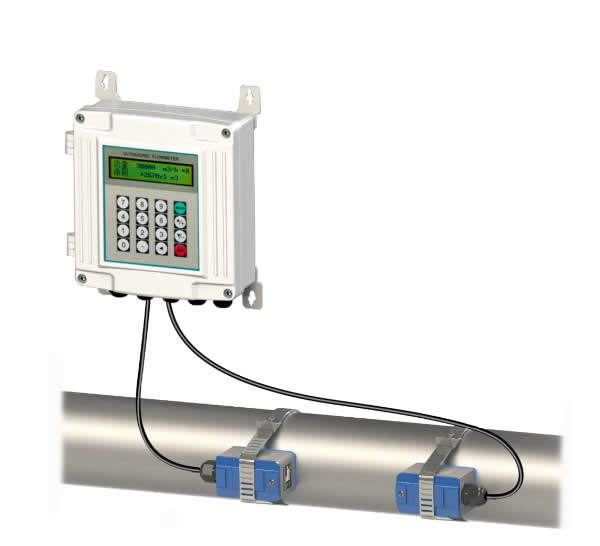

Flow measurement composition diagram

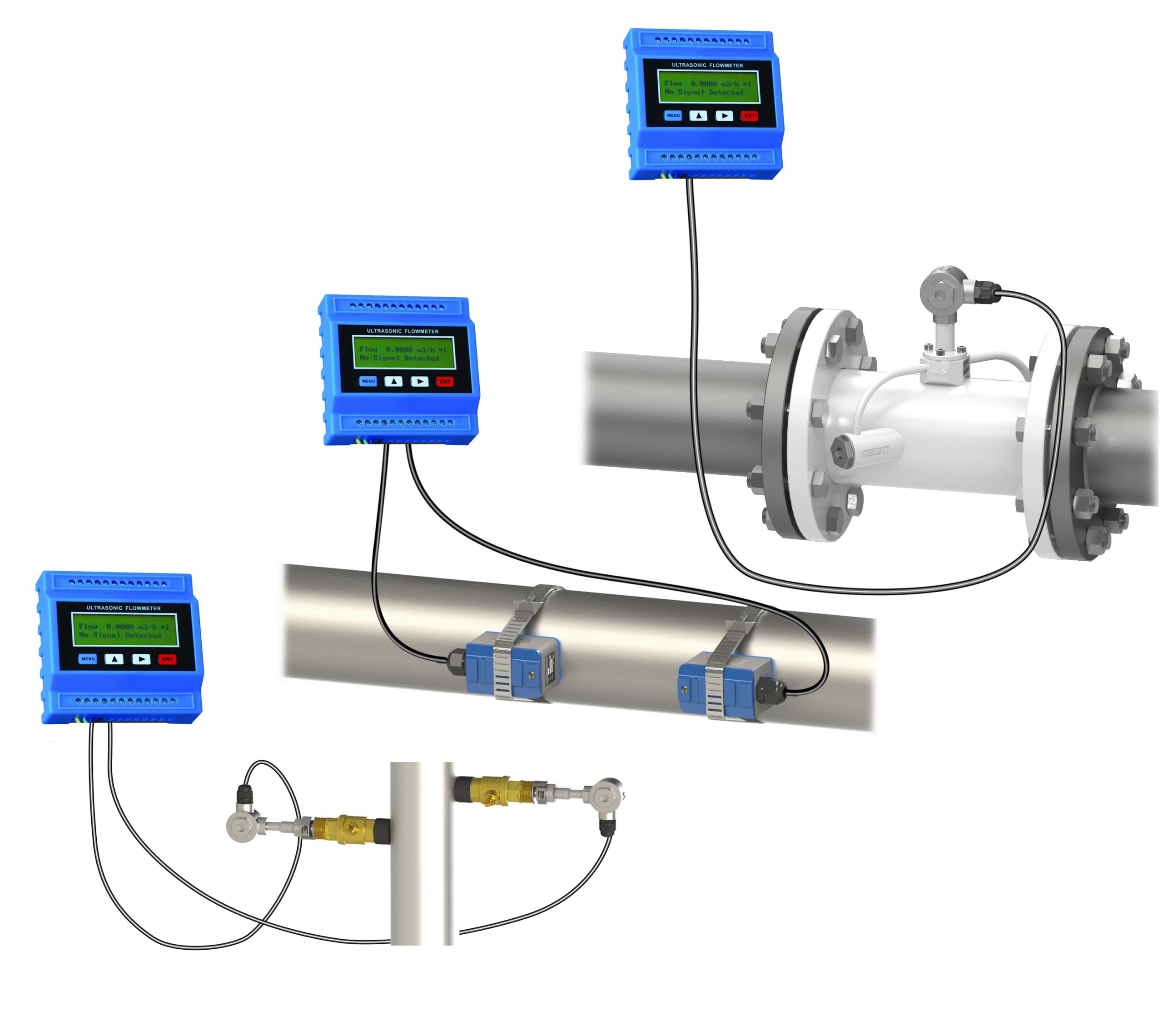

Optional sensor
Heat measurement composition diagram
Parts
Technical parameters of
|
Host |
principle |
Principle of ultrasonic time difference, |
|
Accuracy |
Flow:±1% Thermal:±2% |
|
|
Operating |
4 key touch keyboard |
|
|
Signal output
|
one 4-20mA curren output |
|
|
one OCT pulse output |
||
|
one relay output |
||
|
Signal input |
Three 4-20ma current input |
|
|
Three-wire PT100 platinum resistance can be connected for thermal measurement |
||
|
Data interface |
RS485 interface, modbus protocol |
|
|
Cable |
Twisted pair |
Under normal circumstances 50 meters, 485 communication up to kilometers |
|
Pipe |
Pipe material |
Steel, stainless steel, cast iron, copper, PVC, aluminum and all other dense pipes |
|
Pipe size |
15-6000mm |
|
|
straight pipe |
sensor installation: before sensor:10D, after sensor:5D,30D from the pump outlet |
|
|
Medium |
Medium |
Water, water, seawater, alcohol, etc. can conduct ultrasound single uniform liquid |
|
Temperature |
40 C-160C |
|
|
Turbidity |
10000ppm Small bubble content |
|
|
Velocity |
0 – ±10m/S |
|
|
Working environment |
Temperature |
Host:-20-60C Flow sensor:- 40 – 160C |
|
Humidity |
Host: 85 % RH Flow sensor: soaking work deep:<2m Sensor after gluing |
|
| Power supply |
DC8-36V AC10-30V |
|
|
Power consumption |
1.5W |
|
Converter Installation and Wiring Diagram
Sensor Installation and Wiring Diagram
Work shop
Other types of ultrasonic flow meter: handheld /wall mounted type ultrasonic water flow meter, please click the following pictures!
Q: Are you trading company or manufacturer ?
A: We are factory. Our company is one of the instruments manufacturer in Shandong Proveince, China.
Q: How long is your delivery time?
A: For small orders, we can deliver within 3-5 working days, for bulk orders, we usually need 15 working days or longer. But if you need goods urgently, we can arrange expedited production.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could provide the sample. But, you need to pay for the cost.
Q: What certificates do you have?
A: We have CE certificate, ISO9001 Quality Control Certificate, Explosion Proof Certificate, etc.
Welcom inquiry!!!
