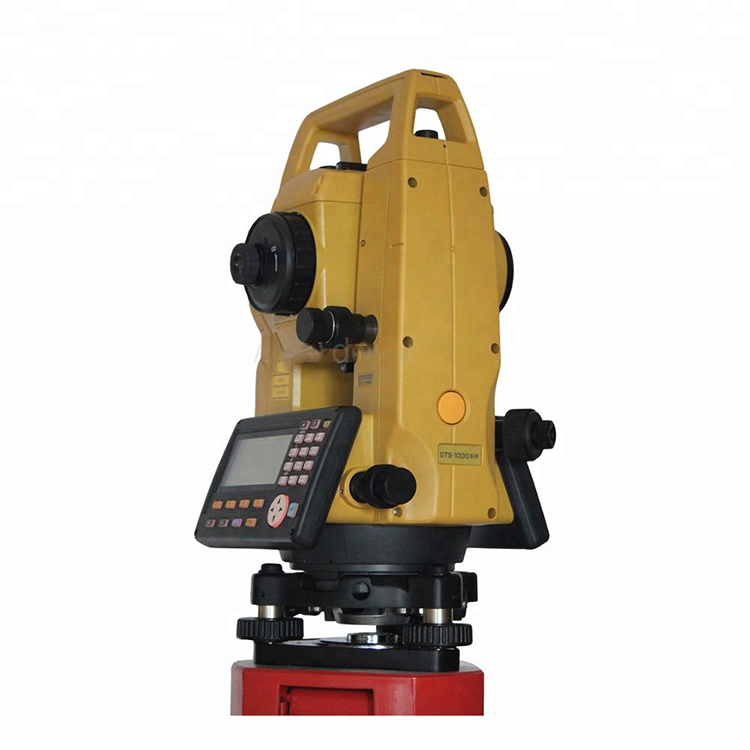

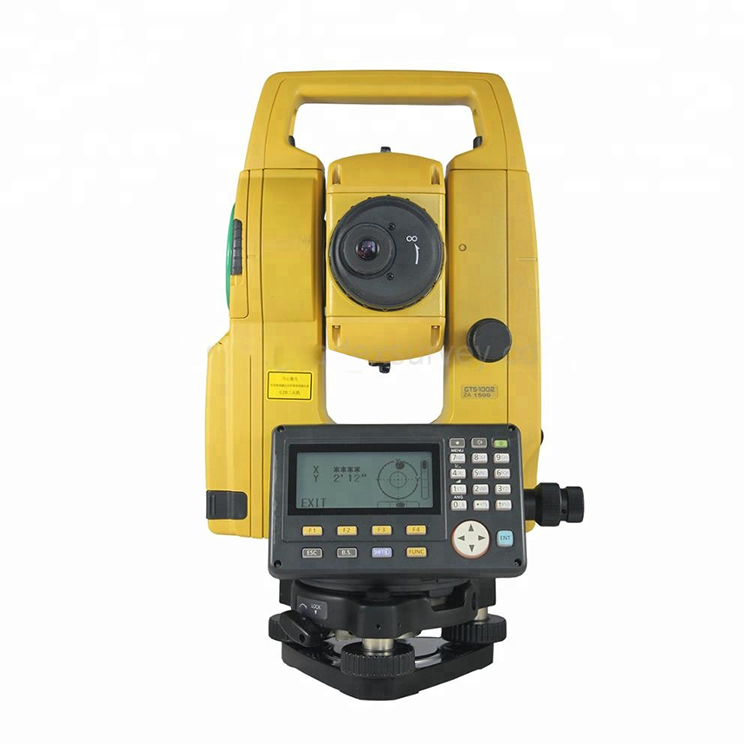

Topcon GTS-series Total Station Survey total station survey instrument survey equipment

ر.س18,025.48

Clear
Qty:
Compare

Request quotation for: Topcon GTS-series Total Station Survey total station survey instrument survey equipment

Company Information



survey total stationsurvey total station

survey total station

survey total station

Model GTS-1002
Telescope
Magnification/Resolving power 30X/2.5″
Other         Length: 150mm, Objective aperture: 45mm (EDM:48mm),
Image: Erect, Field of view: 1°30′ (26m/1,000m),
Minimum focus: 1.3m
Angle measurement
Display resolutions 1″/5″
Accuracy (ISO 17123-3:2001) 2”
Method Absolute
Compensator Dual-axis liquid tilt sensor, working range:  ±6′
Distance measurement
Laser output level Non prism: 3R Prism/ Reflector  1
Measuring range
(under average conditions *1 )
Reflectorless 0.3 ~ 350m
  RS90N-K:1.3 ~ 500m
Reflector RS50N-K:1.3 ~ 300m
  RS10N-K:1.3 ~ 100m
Mini prism 1.3 ~ 500m
One prism 1.3 ~ 4,000m/ under average conditions *1 : 1.3 ~ 5,000m
Accuracy
Reflectorless (3+2ppm×D)mm
Reflector (3+2ppm×D)mm
Prism (2+2ppm×D)mm
Measurement time Fine: 1mm: 0.9s  Coarse: 0.7s, Tracking: 0.3s
Interface and Data management
Display/keyboard Adjustable contrast, backlit LCD graphic display /
  With backlit 25 key (alphanumeric keyboard)
Control panel location On both faces
Data storage
Internal memory 10,000pts.
External memory USB flash drives (maximum 8GB)
Interface RS-232C;  USB2.0
General
laser Designator Coaxial red laser
Levels
Circular level ±6′
Plate level 10′ /2mm
Optical plummet telescope Magnification: 3x, Focusing range: 0.3m to infinity,
Dust and water protection IP66
Operating temperature “-20 ~ +60℃
Size 191mm(W)×181mm(L)×348mm(H)
Weight 5.6kg
Power supply
Battery BT-L2  lithium battery
Working time 25 hours
