Top-quality Supplier Laser Engraving and Cutting Machine Laser Cutting Machine

ر.س36,032.18

Qty:
Print Send to a friend
SKU: 211801267019181 Categories: , ,

Top-quality supplier laser engraving and cutting machine laser cutting machine

Application
Co2 cutting machine application



    Suitable for acrylic, wood, cloth, wood, cardboard, plastic, PET/PVC/PC/ABS, mica board, felt board, rubber, sponge, foam, pearl cotton, EVA, fiber material, polyester material, bamboo, Non-metallic materials such as glass, silicone materials, composite materials, ceramics, etc.

laser cutting machine

Product Description
Introduction

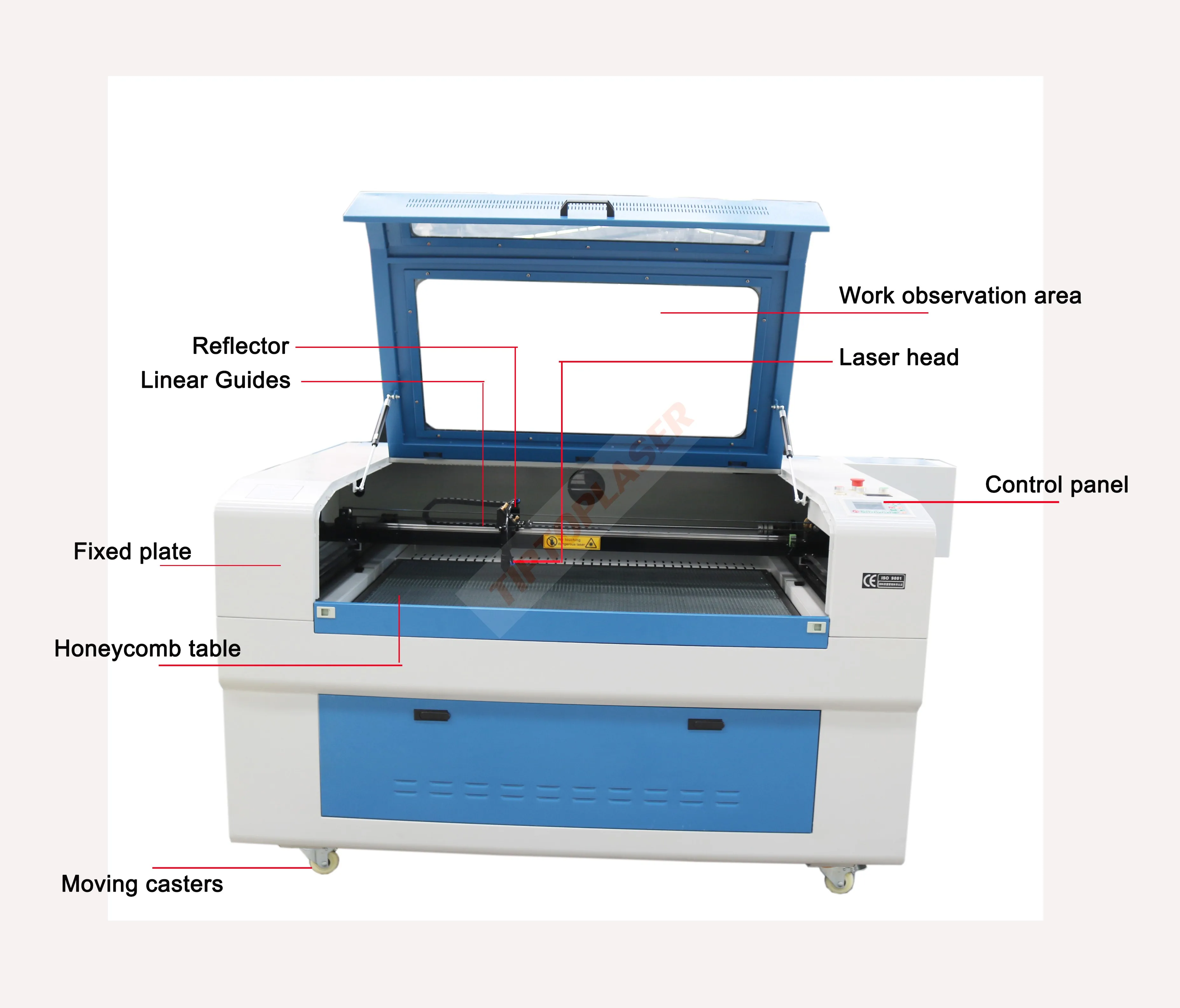

    The laser cutting engraving machine adopts an integrated design frame structure, and uses the self-developed laser power supply and DSP digital control technology as the core to seamlessly interface pictures and software in multiple formats, and directly output the original image on the target object. In addition, the laser cutting engraving machine can be equipped with a double laser head, which works together with multiple laser tubes to improve the working efficiency of the customer to a certain extent.



laser cutting machine

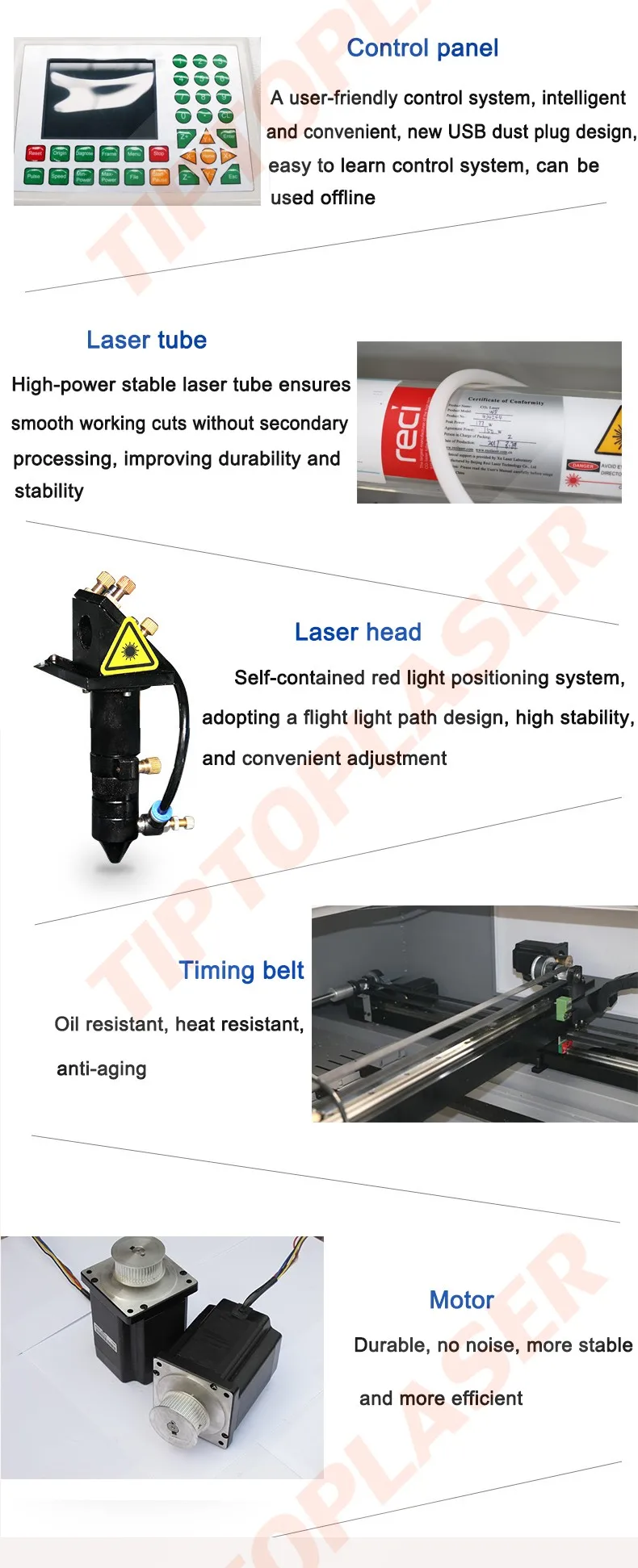

Features



1. The imported linear guide way ensures high precision and long service.
2. The stepper motor guarantees cutting and engraving smooth.
3. The structure is strong enough to ensure the moving stably.
4. High-quality laser tube provides a strong beam and long service life.
5. Focus lens and reflect molybdenum mirrors guarantee the powerful cutting strength.
6. The anti-pollution design improves the stability of the whole machine greatly.
7. Configure a higher power laser tube.
8. Equipment Performance: High precision Taiwan Hiwin double guide rail, 3-phase stepper motor, and driver, belt transmission, channel-type feeding, up&down worktable, honey-comb or aluminum, strip worktable, circulation water cooling, hydraulic protection, dust, and smoke exhausting

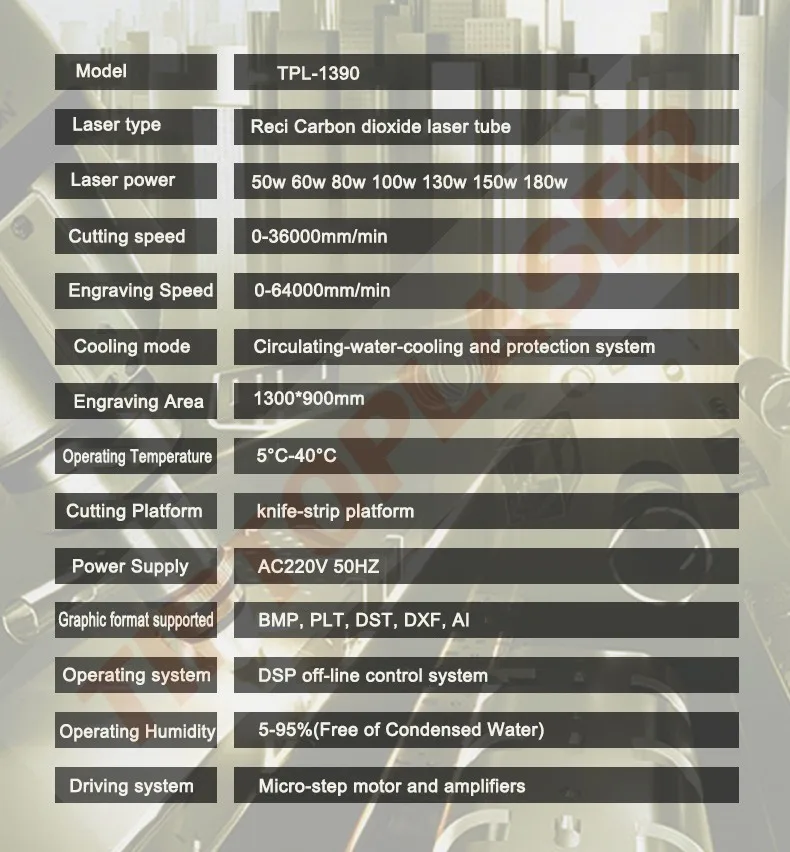

Parameter



laser cutting machine



Cutting and power matching of different materials



Material Thickness 80w 100w 150w 180w
  mm Best speed Highest speed Best speed Highest speed Best speed Highest speed Best speed Highest speed
Wood 3 18 20 22 25 33 35 37 40
5 10 15 18 20 28 30 32 35
Acrylic 3 20 25 25 35 35 40 40 45
5 8 12 10 15 15 21 18 25
Rubber 3 27 30 33 35 43 45 48 50
5 15 18 18 20 28 30 33 35
