Top Hammer Drilling Rig Tophead Portable ZEGA 655 Cummins Engine Vialvv Rotary Borehole Drilling Rig Machine
Top Hammer Drilling Rig Tophead Portable ZEGA 655 Cummins Engine Vialvv Rotary Borehole Drilling Rig Machine - Image 2
Top Hammer Drilling Rig Tophead Portable ZEGA 655 Cummins Engine Vialvv Rotary Borehole Drilling Rig Machine - Image 3
Top Hammer Drilling Rig Tophead Portable ZEGA 655 Cummins Engine Vialvv Rotary Borehole Drilling Rig Machine - Image 4
Top Hammer Drilling Rig Tophead Portable ZEGA 655 Cummins Engine Vialvv Rotary Borehole Drilling Rig Machine - Image 5
Top Hammer Drilling Rig Tophead Portable ZEGA 655 Cummins Engine Vialvv Rotary Borehole Drilling Rig Machine - Image 6

Top Hammer Drilling Rig Tophead Portable ZEGA 655 Cummins Engine Vialvv Rotary Borehole Drilling Rig Machine

ر.س466.27 – ر.س809.95

Qty:
Print Send to a friend
SKU: 211899269019181 Categories: , ,

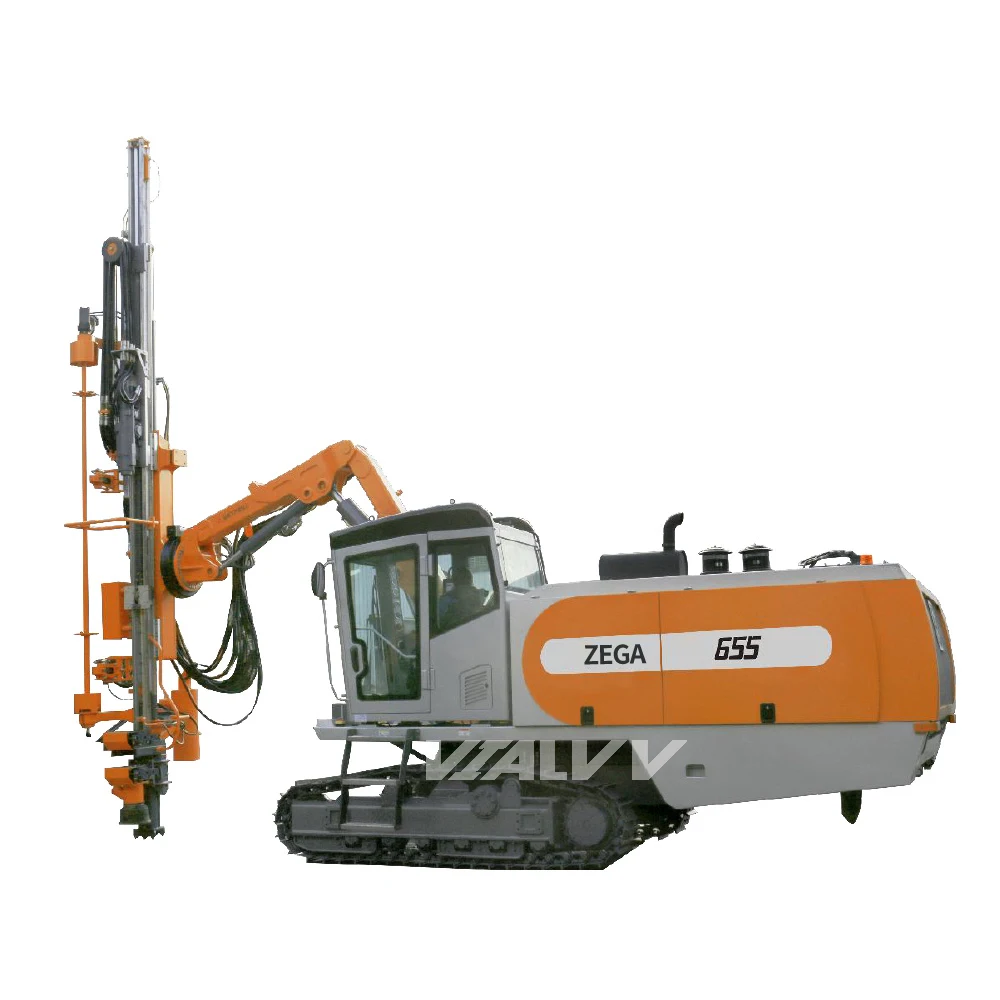

Separated DTH surface Drill Rig
ZEGA-655

Model
ZEGA 650A
ZEGA 655
Engine
Cummins/119 kw
Cummins/154 kw
Drifter Model
ZY103
ZY104H
Drifter Power
15 kw
20 kw
Drilling Hole Diameter
Φ45-102 mm
Φ64-115 mm
Drilling Rod
T38/T45×3660 mm
T45/T51× 3,660 mm
Diesel Tank Volume
280 L
340 L
Weight
11000 kg
14100 kg
Dimensions
11,560*2,700*3,560 mm
11,300*2,550*3,100 mm

24 Hours For You

WhatsApp: +86 137 0579 6425
WhatsApp: +86 137 0579 6425
WhatsApp: +86 137 0579 6425
Chinese Diesel Engine Drill Rig
Separated DTH surface Drill Rig without Air Compressor

(Model with -1 with dust collector)
Mode
CLICK ON
Engine

(kW)

Rotation torque

(N.m)

Drilling hole diameter

(mm)

DTH hammer
Drilling rod

(mm)

tank

(L)

Weight

(kg)

Dimensions
(LxWxH)

(mm)

ZEGA 412B
Yuchai/58
1,650
Φ90-115
3.5″
Φ60×2,000
115
3,850
4,450*2,080*2,460
ZEGA 412B-1
Yuchai/58
1,650
Φ90-115
3.5″
Φ60×2,000
115
3,850
4,450*2,080*2,460
ZEGA 416T
Yuchai/58
2,200
Φ90-127
4″
Φ76×3,000
70
4,400
5,700*2,130*2,300
ZEGA 416T-1
Yuchai/58
2,200
Φ90-127
4″
Φ76×3,000
70
4,400
5,700*2,130*2,300
ZEGA 420B
Yuchai/58
2,200
Φ90-127
4″
Φ76×3,000
70
4,400
5,700*2,130*2,300
ZEGA 420B-1
Yuchai/58
2,200
Φ90-127
4″
Φ76×3,000
70
4,400
5,700*2,130*2,300
ZEGA 420T
Yuchai/73.5
3,200
Φ90-138
4″
Φ76×3,000
70
5,280
5,420*2,308*2,500
ZEGA 420T-1
Yuchai/73.5
3,200
Φ90-138
4″
Φ76×3,000
70
5,280
5,420*2,308*2,500
ZEGA 425-1
Yuchai/73.5
3,200
Φ90-138
4″
Φ76×3,000
80
6,230
7,000*2,250*2,700
ZEGA 430
Yuchai/73.5
3,500
Φ115-152
4″
Φ76×3,000
110
6,460
7,120*2,450*3,540
ZEGA 430-1
Yuchai/73.5
3,500
Φ115-152
4″
Φ76×3,000
110
6,460
7,120*2,450*3,540
ZEGA 431
Yuchai/73.5
3,500
Φ115-152
4″
Φ76×3,000
156
7,340
7,000*2,300*2,800
ZEGA 845-1
Yuchai/73.5
3,500
Φ115-165
4″
Φ76×3,000
156
7,460
7,000*2,300*2,800
Anchor drill rig without Air Compressor
(diesel-electric dual power)
Electric Motor 55KW
Mode
CLICK ON
Engine

(kW)

Rotation torque

(N.m)

Drilling hole diameter

(mm)

DTH hammer
Drilling rod

(mm)

tank

(L)

Weight

(kg)

Dimensions
 (LxWxH)

(mm)

ZEGA 420ST
Yuchai/58
5,000
Φ90-203
4″
Φ76×3,000
80
5,340
6,500*2,280*2,400
ZEGA 425S
Yuchai/73.5
5,600
Φ110-203
4″
Φ76×3,000
105
7,070
6,900*2,270*2,210
ZEGA 430S
Yuchai/73.5
8,000
Φ110-250
5″
Φ76×3,000
105
6,870
7,300*2,280*3,000
ZEGA 435S
Yuchai/73.5
8,000
Φ110-250
5″
Φ76×3,000
105
8,030
7,300*2,370*2,700
DTH surface Drill Rig with Air Compressor
Mode

CLICK ON

Engine

(kW)

Rotation torque

(N.m)

Drilling hole diameter

(mm)

DTH hammer
Drilling rod

(mm)

tank

(L)

Compressor
F.A.D

(m3/min)

Compressor
Pressure

(bar)

ZEGA 421TA
Yuchai / 162
1,500
Φ90-127
3.5″
Φ60×3,000
250
12
18
ZEGA 421H
Yuchai / 162
1,500
Φ90-127
3.5″
Φ60×3,000
250
12
18
ZEGA 452T
Yuchai / 191
2,200
Φ90-138
4″
Φ76×3,000
300
15
18
ZEGA 452H
Yuchai / 191
2,200
Φ90-138
4″
Φ76×3,000
300
15
18
ZEGA 453T
Weichai / 220
2,800
Φ90-138
4″
Φ76×4,000
480
18
22
ZEGA 454T
Cummins/ 264
4,000
Φ115-152
5″
Φ89×5,000
480
20
22
Tophammer Surface Drill Rig with Air Compressor
Mode

CLICK ON

Engine

(kW)

Drifter model
Drifter power

(kW)

Drilling hole diameter

(mm)

Drilling rod

(mm)

tank

(L)

Compressor
F.A.D
(m3/min)
Compressor
Pressuer

(bar)

ZEGA 650A
Cummins/119
ZY103
15
Φ45-102
T38/T45×3660
280
5
8
ZEGA 655
Cummins/154
ZY104H
20
Φ64-115
T45/T51× 3660
340
7
8
Cummins Engine Drill Rig
Cummins Engine Blasting Drilling Rig for Mine
Model
Click on
Bore Hole
Depth
DTH Hammer
Drill pipe
Cummins Power
Cummins

Model

Air
Compressor
Automatic Rod Change

V3


90-130mm


30m


3.5-4 inches

68*3m
76*3m

154kw


QSB5.9-C210-30


16bar 500cfm


/

V3A
90-130mm
21m
3.5-4 inches
76*3m
154kw
QSB5.9-C210-30
16bar 500cfm
6+1
V5
90-138mm
21m
3.5-4 inches
76*3m
194kw
QSC8.3-C260
17bar 550cfm
6+1
V6
90-138mm
21m
3.5-4 inches
76*3m
194kw
QSC8.3-C260-30
20bar 650cfm
6+1
V7
90-138mm
21m
3.0-4 inches
76*3m
264kw
QSL8.9-C360
18bar 550cfm
6+1 Cabin
V8
90-138mm
32m
3.0-4 inches
89*4m
264kw
QSL8.9-C360
20bar 700cfm
7+1 Cabin
Atlas Copco Top Impactor Mining Drilling Rig with Cummins Engine
Model
Click
Model
Depth
Drill pipe
Compressor
Cummins Power
Impactor parameter
Note
T5
45-90mm
25m
T38/T45
8bar 220cfm
134kw
Epiroc YYG14L
145bar 30kN
Cabin
T7
76-115mm
25m
T51
9bar 370cfm
194kw
AtlasCopco RD18S 18KW
200bar 20kN
Cabin

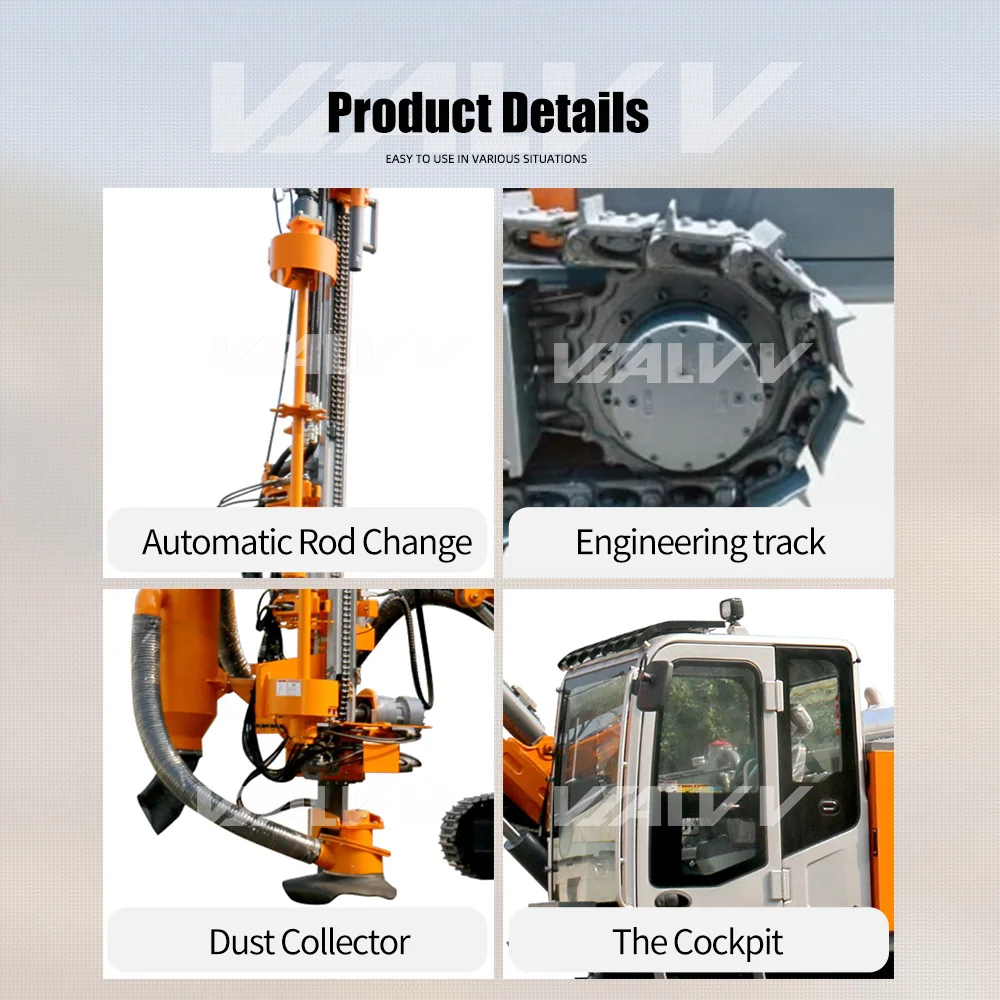

Product Details
Consttruction case

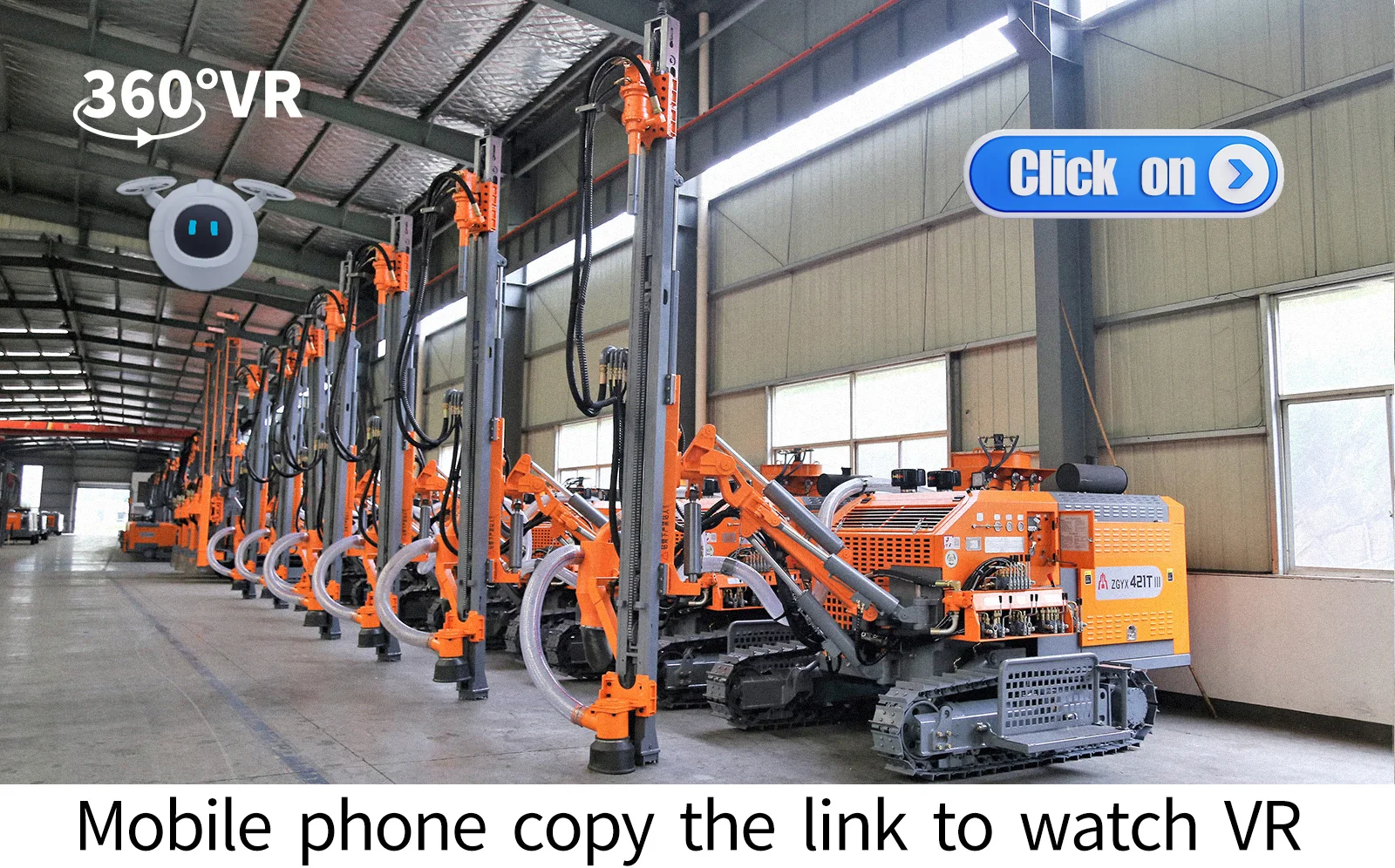

VR Showroom Online
