Camera Specification

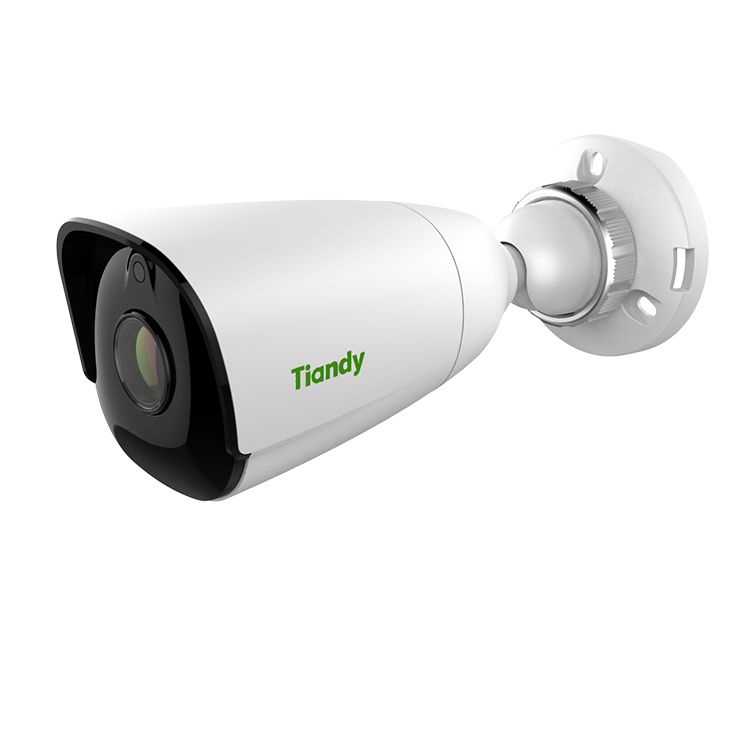

Tiandy TC-C35JS Starlight 5MP Fixed Lens IR Human Detection POE Bullet CCTV Camera
KEY FEATURES
• Full Metal Housing
• Up to 2592×1944@30fps, 1920×1080@60fps
• S+265/H.265/H.264/M-JPEG
• Min. illumination Color: 0.002Lux@F1.6
• Smart IR, IR Range: 50m
• Support Human/Vehicle Classification
• Support Video Analytics
• Support Face Capture Mode
• Plugin Free
• Operating Conditions -40℃~65℃, 0~95% RH
• POE, IP67
Product parameter
|
Camera
|
||
|
Image Sensor
|
1/2.8" CMOS
|
|
|
Signal System
|
PAL/NTSC
|
|
|
Min. Illumination
|
Color: 0.002Lux@ (F1.6, ACG ON), B/W: 0Lux with IR
|
|
|
Shutter Time
|
1s to 1/100,000s
|
|
|
Day & Night
|
Dual IR Cut Filter with Auto Switch
|
|
|
Wide Dynamic Range
|
120dB
|
|
|
Angle Adjustment
|
Bracket, pan 0~360°, tilt 0~75°, roate 0~360°
|
|
|
Lens
|
||
|
Lens Type
|
Fixed
|
|
|
Focus
|
2.8mm/4mm
|
|
|
Lens Mount
|
M12
|
|
|
Aperture
|
F1.6, Fixed
|
|
|
FOV
|
Horizontal field of view: 97.8° (2.8mm)/81° (4mm)
|
|
|
Illuminator
|
||
|
IR LEDs
|
2
|
|
|
IR Range
|
Up to 50m
|
|
|
Wavelength
|
850nm
|
|
|
White/Warmlight LEDs
|
N/A
|
|
|
Compression Standard
|
||
|
Video Compression
|
S+265/H.265/H.264/M-JPEG
|
|
|
Video Bit Rate
|
32Kbps~16Mbps
|
|
|
Audio Compression
|
N/A
|
|
|
Audio Bit Rate
|
N/A
|
|
|
|
||
|
Max. Resolution
|
2592×1944
|
|
|
Main Stream
|
PAL: 25fps (2592×1944, 2592×1520, 2560×1440, 2304×1296), 50fps (1920×1080, 1280×720)
|
|
|
NTSC: 30fps (2592×1944, 2592×1520, 2560×1440, 2304×1296), 60fps (1920×1080, 1280×720)
|
||
|
Sub Stream
|
PAL: 25fps (704×576, 704×288, 640×480, 352×288)
|
|
|
NTSC: 30fps (704×480, 704×240, 640×480, 352×240)
|
||
|
Third Stream
|
PAL: 25fps(1920×1080, 1280×720, 704×576, 704×288, 640×480, 352×288)
|
|
|
NTSC: 30fps(1920×1080, 1280×720, 704×480, 704×240, 640×480, 352×240)
|
||
|
Image Setting
|
Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
|
|
|
Image Enhancement
|
BLC/3D DNR/HLC/Corridor Format
|
|
|
ROI
|
Support 8 fixed regions of coding
|
|
|
OSD
|
16*16, 24*24, 32*32, 48*48, 64×64, 96×96, adaptable size, Letters Such as Week, Date, Time, Total 8 Regions
|
|
|
Picture Overlay
|
Yes
|
|
|
Privacy Mask
|
Yes, 8 regions
|
|
|
Smart Defog
|
Yes
|
|
|
Feature
|
||
|
Alarm Trigger
|
Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception
|
|
|
Video Analytics
|
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Crowed, People Counting, On Duty
Detection, Video Abnormal, Audio Abnormal, Heatmap, Face Capture(Face Detection), Safety Helmet Detection, Human/Vehicle Classification |
|
|
Early Warning(EW)
|
N/A
|
|
|
Network
|
||
|
ANR
|
Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed
connection (Only Support Tiandy ANR NVR) |
|
|
Protocols
|
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP,
IPV4, NTP, SMTP, IGMP, 802.11x, QoS, IPV6, ARP, UDP, SNMP, SSL, SIP, Telnet, SNTP, RTMP, SFTP, NFS |
|
|
System Compatibility
|
ONVIF (PROFILE S/T/G), SDK, Milestone, CGI, P2P
|
|
|
Remote Connection
|
7
|
|
|
Client
|
Easy7, EasyLive
|
|
|
Web Version
|
Web6
|
|
|
Interface
|
||
|
Communication Interface
|
1 RJ45 10M/ 100M self adaptive Ethernet port
|
|
|
Audio
|
N/A
|
|
|
Alarm
|
N/A
|
|
|
Reset Button
|
Yes
|
|
|
On-board storage
|
Built-in Micro SD card slot, up to 512 GB
|
|
|
General
|
||
|
Firmware Version
|
–
|
|
|
Web Client Language
|
15 languages English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French,
Polish, Dutch, Hebraism, Arabic, Vietnamese |
|
|
Operating Conditions
|
-40 ～ 65°C , 0～ 95% RH
|
|
|
Power Supply
|
DC12V±25%/PoE
|
|
|
Power Consumption
|
MAX: 6W (12V) MAX: 7W (PoE)
|
|
|
Protection
|
IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
|
|
|
Heater
|
N/A
|
|
|
Dimensions
|
189×70×70mm (7.44×2.76×2.76inch)
|
|
|
Weight
|
0.45Kg (0.99lb)
|
|
Product Description
|
Lens
|
|||||
|
Lens Parameter
|
2.8mm
|
4mm
|
6mm
|
8mm
|
12mm
|
|
Lens Angle (reference)
|
104
|
90
|
58
|
38
|
27
|
|
Optimum distance
|
<5M
|
<10M
|
<20M
|
<30M
|
<40M
|
|
2.8~12mm, Lens
|
|
|
Focus
|
4/6/8/12mm
|
|
Lens interface type
|
M12
|
|
Infrared distance
|
80M
|
|
IR Lamp type
|
2PCS IR led + 2PCS white led
|
The larger the lens , the farther looks, and the smaller the angle.
The smaller the lens, the closer looks, and the greater the angle.
The smaller the lens, the closer looks, and the greater the angle.
Lens selection Tip:
1/Usually use 2. 8mm to 4mm lens with small visual distance and large viewing angle.
2/Usually use 6mm to 12mm lens with large visual distance and small viewing angle.
3/Usually use 6mm to 8mm lens with large visual distance and large viewing angle.
1/Usually use 2. 8mm to 4mm lens with small visual distance and large viewing angle.
2/Usually use 6mm to 12mm lens with large visual distance and small viewing angle.
3/Usually use 6mm to 8mm lens with large visual distance and large viewing angle.
Packing&Shipping
one piece in one box
1/ Ordinary, once we get confirmation for payment,we will ship order within 5-7 days.
2/ We support the goods to you by sea, air or express. B/L copy tracking No and C/O are available after shipping.
Company Introduction
Nanjing Quanxi Electronic Technology Co., Ltd is a agency of Security equipments with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in security and other industries.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in security and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
FAQ
Q1:When will you ship my order?
Ordinary, once we get confirmation for payment,we will ship order within 5-7 days.
Q2:How is your after-sale service?
One engineers work more than ten years we will respond your technical support within 24 hours.
Q3:Why should I choose your products?
Our products are high quality and low price.
Q4:How about warranty?
Three years warranty.
