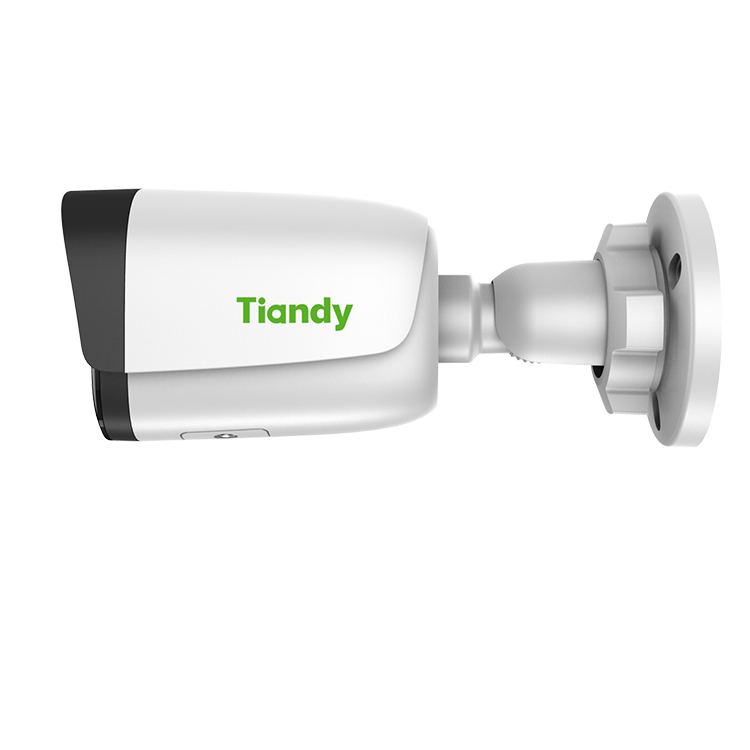

Tiandy TC-C32WN 2MP Outdoor Bullet Smart IR Video Surveillance Mini CCTV Camera IPC
Features
• Default: Metal+Plastic, M: Metal Housing
• Up to 1920×1080@30fps
• S+265/H.265/H.264
• Min. illumination Color: 0.02Lux@F2.0
• Smart IR, IR Range: 50m
• Operating Conditions -35°~65°, 0~95% RH
• Built-in Mic, SD Card Solt, Reset Button
• PoE IP67
Specifications
|
Camera
|
||
|
Image Sensor
|
1/2.9″ CMOS
|
|
|
Signal System
|
PAL/NTSC
|
|
|
Min. Illumination
|
Color: 0.02Lux@ (F2.0, ACG ON), B/W: 0Lux with IR
|
|
|
Shutter Time
|
1s to 1/100,000s
|
|
|
Day & Night
|
Dual IR Cut Filter with Auto Switch
|
|
|
Wide Dynamic Range
|
Digital WDR
|
|
|
Angle Adjustment
|
Bracket, pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
|
|
|
Lens
|
||
|
Lens Type
|
Fixed
|
|
|
Focus
|
2.8mm/4mm
|
|
|
Lens Mount
|
M12
|
|
|
Aperture
|
F2.0, Fixed
|
|
|
FOV
|
Horizontal field of view: 97.4° (2.8mm)/82.1° （ 4mm）
|
|
|
Illuminator
|
||
|
IR LEDs
|
2
|
|
|
IR Range
|
Up to 50 m
|
|
|
Wavelength
|
850nm
|
|
|
White LEDs/Warmlights
|
N/A
|
|
|
Compression Standard
|
||
|
Video Compression
|
S+265/H.265/H.264
|
|
|
Video Bit Rate
|
32 Kbps~6 Mbps
|
|
|
Audio Compression
|
G.711/G.711U/ADPCM
|
|
|
Audio Bit Rate
|
8K~48Kbps
|
|
|
|
||
|
Max. Resolution
|
1920*1080
|
|
|
Main Stream
|
PAL: 25fps (1920*1080, 1280*720, 704*576, 640*480)
|
|
|
NTSC: 30fps (1920*1080,1280*720, 704*480, 640*480)
|
||
|
Sub Stream
|
PAL: 25fps (704*576, 704*288, 640*360, 352*288)
|
|
|
NTSC: 30fps (704*480, 704*240, 640*360, 352*240)
|
||
|
Third Stream
|
N/A
|
|
|
Image Setting
|
Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
|
|
|
Image Enhancement
|
BLC/3D DNR/HLC
|
|
|
ROI
|
N/A
|
|
|
OSD
|
16*16, 32*32, 48*48, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions
|
|
|
Picture Overlay
|
N/A
|
|
|
Privace Mask
|
Yes, 4 regions
|
|
|
Smart Defog
|
Yes
|
|
|
Feature
|
||
|
Alarm Trigger
|
Motion Detection, Mask Alarm, IP Address Conflict
|
|
|
Video Analytics
|
Tripwire, Perimeter
|
|
|
Early Warning(EW)
|
N/A
|
|
|
Network
|
||
|
ANR
|
Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR
NVR) |
|
|
Protocols
|
TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet
|
|
|
System Compatibility
|
ONVIF (PROFILE S/T/G), SDK, P2P(Mutually exclusive with Profile G)
|
|
|
Remote Connection
|
7
|
|
|
Client
|
Easy7, EasyLive
|
|
|
Web Version
|
Web5
|
|
|
Interface
|
||
|
Communication Interface
|
1 RJ45 10M/ 100M self adaptive Ethernet port
|
|
|
Audio I/O
|
Mic in
|
|
|
Alarm I/O
|
N/A
|
|
|
Reset Button
|
Yes
|
|
|
On-board storage
|
Built-in Micro SD card slot, up to 512 GB
|
|
|
General
|
||
|
Firmware Version
|
–
|
|
|
Web Client Language
|
16 languages English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French,
Polish, Dutch, Hebraism, Farsi, Arabic, Vietnamese |
|
|
Operating Conditions
|
-35 ～ 65℃ , 0～ 95% RH
|
|
|
Power Supply
|
DC 12V±25%, PoE (802.3af)
|
|
|
Power Consumption
|
MAX: 6W(12V) MAX: 7W(POE)
|
|
|
Protection
|
IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
|
|
|
Heater
|
N/A
|
|
|
Dimensions
|
160.8x68x74.5mm (6.33×2.68×2.93 inch)
|
|
|
Weight
|
Metal+Plastic: 0.3Kg (0.66lb) Metal: 0.48Kg (1.06lb)
|
|
FAQ
When will you ship my order?
Once we get confirmation for payment, we will ship order within 3~15 days.
Once we get confirmation for payment, we will ship order within 3~15 days.
Can I install the IP camera by myself?
Of course,the camera is flexible installed.And there is a user manual within box,you can contact us in need.
How is your after-sale service?
One engineers work more than ten years we will respond your technical support within 24 hours.
Do you support drop shipping?
Yes,your drop shipping is available.
Yes,your drop shipping is available.
How about warranty?
Three years warranty.
