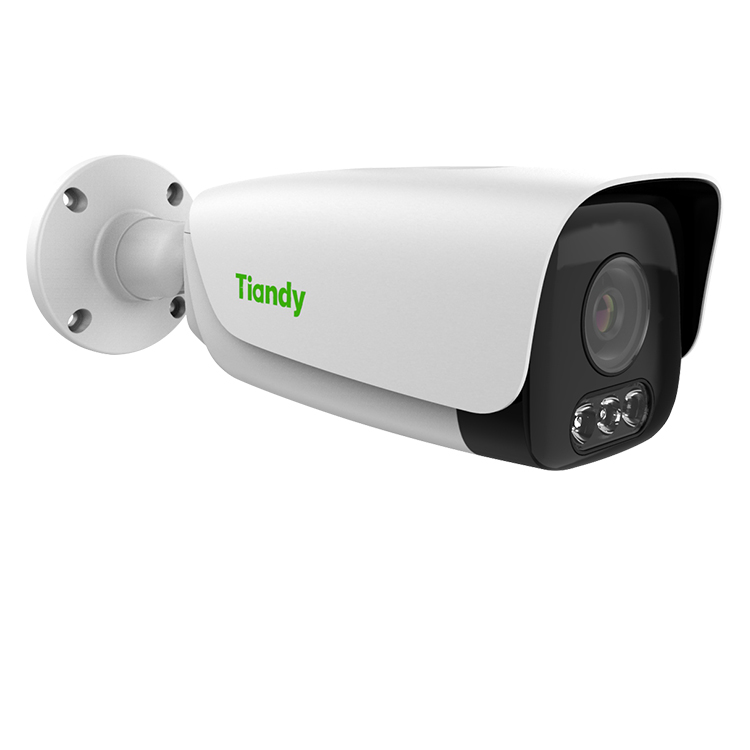

Tiandy night vision outdoor Face Detection Starlight POE Alarming Bullet CCTV Camera
Features
• Full Metal Housing
• Up to 2592×1944@30fps, 1920×1080@60fps
• S+265/H.265/H.264/M-JPEG
• Min. illumination Color: 0.002Lux@F1.6
• Smart IR, IR Range: 50m
•Support Human/Vehicle Classifification
•Support Face Capture Mode
• Built-in Mic, audio I/O 1/1, alarm I/O 1/1
• Plugin Free
• Plugin Free
• Operating Conditions -40℃~65℃, 0~95% RH
• POE, IP67
Image enhancement
Product Parameters
|
Camera
|
||
|
Image Sensor
|
1/2.8" CMOS
|
|
|
Signal System
|
PAL/NTSC
|
|
|
Min. Illumination
|
Color: 0.002Lux@ (F1.6, ACG ON), B/W: 0Lux with IR
|
|
|
Shutter Time
|
1s to 1/100,000s
|
|
|
Day & Night
|
Dual IR Cut Filter with Auto Switch
|
|
|
Wide Dynamic Range
|
120dB
|
|
|
Angle Adjustment
|
Bracket, pan 0~360°, tilt 0~75°, roate 0~360°
|
|
|
Lens
|
||
|
Lens Type
|
Fixed
|
|
|
Focus
|
2.8mm/4mm
|
|
|
Lens Mount
|
M12
|
|
|
Aperture
|
F1.6, Fixed
|
|
|
FOV
|
Horizontal field of view: 97.8°(2.8mm)/81°(4mm)
|
|
|
Illuminator
|
||
|
IR LEDs
|
2
|
|
|
IR Range
|
Up to 50m
|
|
|
Wavelength
|
850nm
|
|
|
White/Warmlight LEDs
|
N/A
|
|
|
Compression Standard
|
||
|
Video Compression
|
S+265/H.265/H.264/M-JPEG
|
|
|
Video Bit Rate
|
32Kbps~16Mbps
|
|
|
Audio Compression
|
G.711A/G.711U/ADPCM/AAC
|
|
|
Audio Bit Rate
|
8K~48Kbps
|
|
|
|
||
|
Max. Resolution
|
2592×1944
|
|
|
Main Stream
|
PAL: 25fps (2592×1944, 2592×1520, 2560×1440, 2304×1296), 50fps (1920×1080, 1280×720)
|
|
|
NTSC: 30fps (2592×1944, 2592×1520, 2560×1440, 2304×1296), 60fps (1920×1080, 1280×720)
|
||
|
Sub Stream
|
PAL: 25fps (704×576, 704×288, 640×480, 352×288)
|
|
|
NTSC: 30fps (704×480, 704×240, 640×480, 352×240)
|
||
|
Third Stream
|
PAL: 25fps(1920×1080, 1280×720, 704×576, 704×288, 640×480, 352×288)
NTSC: 30fps(1920×1080, 1280×720, 704×480, 704×240, 640×480, 352×240) |
|
|
Image Setting
|
Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
|
|
|
Image Enhancement
|
BLC/3D DNR/HLC/Corridor Format
|
|
|
ROI
|
Support 8 fixed regions of coding
|
|
|
OSD
|
16 16, 24 24, 32 32, 48 48, 64×64, 96×96, adaptable size, Letters Such as Week, Date, Time, Total 8 Regions
|
|
|
Picture Overlay
|
Yes
|
|
|
Privacy Mask
|
Yes, 8 regions
|
|
|
Smart Defog
|
Yes
|
|
|
Feature
|
||
|
Alarm Trigger
|
Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP
Server Exception |
|
|
Video Analytics
|
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Crowed, People Counting, On Duty
Detection, Video Abnormal, Audio Abnormal, Heatmap, Face Capture(Face Detection), Safety Helmet Detection, Human/Vehicle Classifi cation |
|
|
Early Warning(EW)
|
N/A
|
|
|
Network
|
||
|
ANR
|
Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR
NVR) |
|
|
Protocols
|
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP, IPV4, NTP, SMTP, IGMP, 802.11x, QoS,
IPV6, ARP, UDP, SNMP, SSL, SIP, Telnet, SNTP, RTMP, SFTP, NFS |
|
|
System Compatibility
|
ONVIF (PROFILE S/T/G), SDK, Milestone, CGI, P2P
|
|
|
Remote Connection
|
7
|
|
|
Client
|
Easy7, EasyLive
|
|
|
Web Version
|
Web6
|
|
|
Interface
|
||
|
Communication Interface
|
1 RJ45 10M/ 100M self adaptive Ethernet port
|
|
|
Audio
|
1/1, Mic in
|
|
|
Alarm
|
1/1
|
|
|
Reset Button
|
Yes
|
|
|
On-board storage
|
Built-in Micro SD card slot, up to 512 GB
|
|
|
General
|
||
|
Firmware Version
|
–
|
|
|
Web Client Language
|
15 languages
English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese |
|
|
Operating Conditions
|
-40 ～65 , 0～95% RH
|
|
|
Power Supply
|
DC12V±25%/PoE
|
|
|
Power Consumption
|
MAX: 6W (12V) MAX: 7W (PoE)
|
|
|
Protection
|
IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
|
|
|
Heater
|
N/A
|
|
|
Dimensions
|
160.8×68×74.5mm (6.33×2.68×2.93inch)
|
|
|
Weight
|
0.50Kg (1.10lb)
|
|
FAQ
What products do you deal with?
When will you ship my order?
Ordinary,once we get confirmation for payment,we will ship order within 3~14 days.
We mainly deal with electronic cctv system products. Including IP Cameras, NVRs, POE Switches, also WIFI access point and other accessories.
When will you ship my order?
Ordinary,once we get confirmation for payment,we will ship order within 3~14 days.
How is your after-sale service?
One engineers work more than ten years we will respond your technical support within 24 hours.
Can I install the IP camera by myself?
Of course,the camera is flexible installed.And there is a user manual within box,you can contact us in need.
How about warranty?
Three years warranty.
