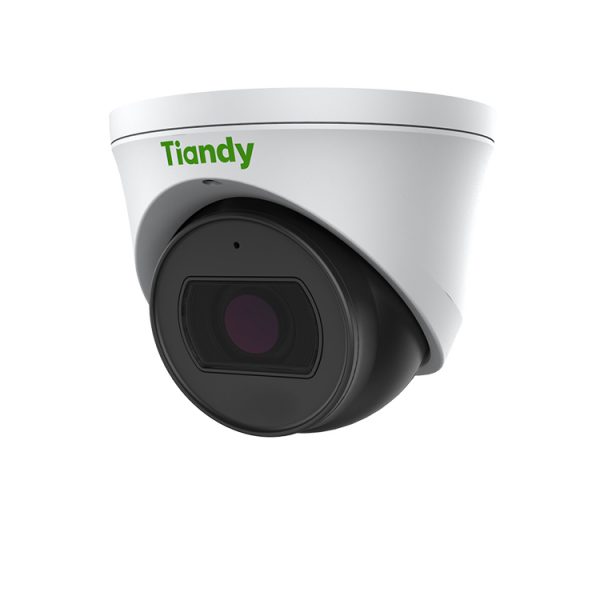

Tiandy Full Metal Face recognition Alarming night vision Indoor 1080P HD Dome cctv Camera
Features
* Full Metal Housing
* Up to 1920×1080@30fps
* S+265/H.265/H.264/M-JPEG
* Min. illumination Color: 0.001Lux@F1.6
* Smart IR, IR Range: 30m
* Support Video Analytics
* Support Human/Vehicle Classifification
* Support Face Capture Mode
* Built-in Mic, audio I/O 1/1, alarm I/O 1/1
* Plugin Free
* Operating Conditions -40℃~65℃, 0~95% RH
* POE, IP67
* Up to 1920×1080@30fps
* S+265/H.265/H.264/M-JPEG
* Min. illumination Color: 0.001Lux@F1.6
* Smart IR, IR Range: 30m
* Support Video Analytics
* Support Human/Vehicle Classifification
* Support Face Capture Mode
* Built-in Mic, audio I/O 1/1, alarm I/O 1/1
* Plugin Free
* Operating Conditions -40℃~65℃, 0~95% RH
* POE, IP67
Product Description
|
Lens
|
|||||
|
Lens Parameter
|
2.8mm
|
4mm
|
6mm
|
8mm
|
12mm
|
|
Lens Angle (reference)
|
104
|
90
|
58
|
38
|
27
|
|
Optimum distance
|
<5M
|
<10M
|
<20M
|
<30M
|
<40M
|
The larger the lens , the farther looks, and the smaller the angle.
The smaller the lens, the closer looks, and the greater the angle.
The smaller the lens, the closer looks, and the greater the angle.
Lens selection Tip:
1/Usually use 2. 8mm to 4mm lens with small visual distance and large viewing angle.
2/Usually use 6mm to 12mm lens with large visual distance and small viewing angle.
3/Usually use 6mm to 8mm lens with large visual distance and large viewing angle.
1/Usually use 2. 8mm to 4mm lens with small visual distance and large viewing angle.
2/Usually use 6mm to 12mm lens with large visual distance and small viewing angle.
3/Usually use 6mm to 8mm lens with large visual distance and large viewing angle.
Specifications
|
Camera
|
||
|
Image Sensor
|
1/2.8" CMOS
|
|
|
Signal System
|
PAL/NTSC
|
|
|
Min. Illumination
|
Color: 0.001Lux@ (F1.6, ACG ON), B/W: 0Lux with IR
|
|
|
Shutter Time
|
1s to 1/100,000s
|
|
|
Day & Night
|
Dual IR Cut Filter with Auto Switch
|
|
|
Wide Dynamic Range
|
120dB
|
|
|
Angle Adjustment
|
pan 0~340°, tilt 0~75°, roate 0~360°
|
|
|
Lens
|
||
|
Lens Type
|
Fixed
|
|
|
Focus
|
2.8mm
|
|
|
Lens Mount
|
M12
|
|
|
Aperture
|
F1.6, Fixed
|
|
|
FOV
|
Horizontal field of view: 107°
|
|
|
Illuminator
|
||
|
IR LEDs
|
2
|
|
|
IR Range
|
Up to 30m
|
|
|
Wavelength
|
850nm
|
|
|
White/Warmlight LEDs
|
N/A
|
|
|
Compression Standard
|
||
|
Video Compression
|
S+265/H.265/H.264/M-JPEG
|
|
|
Video Bit Rate
|
32Kbps~16Mbps
|
|
|
Audio Compression
|
G.711A/G.711U/ADPCM_D/AAC_LC
|
|
|
Audio Bit Rate
|
8K~48Kbps
|
|
|
|
||
|
Max. Resolution
|
1920×1080
|
|
|
Main Stream
|
PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480)
|
|
|
NTSC: 30fps (1920×1080,1280×720, 704×480, 640×480)
|
||
|
Sub Stream
|
PAL: 25fps (704×576, 704×288, 640×480, 352×288)
|
|
|
NTSC: 30fps (704×480, 704×240, 640×480, 352×240)
|
||
|
Third Stream
|
PAL: 25fps(704×576, 704×288, 352×288) NTSC: 30fps(704×480, 704×240, 352×240)
|
|
|
Image Setting
|
Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
|
|
|
Image Enhancement
|
BLC/3D DNR/HLC/Corridor Format
|
|
|
ROI
|
Support 8 fixed regions of coding
|
|
|
OSD
|
16 16, 24 24, 32 32, 48 48, 64×64, adaptable size, Letters Such as Week, Date, Time, Total 8 Regions
|
|
|
Picture Overlay
|
Yes
|
|
|
Privacy Mask
|
Yes, 8 regions
|
|
|
Smart Defog
|
Yes
|
|
|
Feature
|
||
|
Alarm Trigger
|
Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP
Server Exception |
|
|
Video Analytics
|
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Crowed, People Counting, On Duty
Detection, Video Abnormal, Audio Abnormal, Heatmap, Face Capture(Face Detection), Human/Vehicle Classification |
|
|
Early Warning(EW)
|
N/A
|
|
|
Network
|
||
|
ANR
|
Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR
NVR) |
|
|
Protocols
|
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP, IPV4, NTP, SMTP, IGMP, 802.11x, QoS,
IPV6, ARP, UDP, SNMP, SSL, SIP, Telnet, SNTP, RTMP, SFTP, NFS |
|
|
System Compatibility
|
ONVIF (PROFILE S/T/G), SDK, Milestone, CGI, P2P
|
|
|
Remote Connection
|
7
|
|
|
Client
|
Easy7, EasyLive
|
|
|
Web Version
|
Web6
|
|
|
Interface
|
||
|
Communication Interface
|
1 RJ45 10M/ 100M self adaptive Ethernet port
|
|
|
Audio
|
1/1, Mic in
|
|
|
Alarm
|
1/1
|
|
|
Reset Button
|
Yes
|
|
|
On-board storage
|
Built-in Micro SD card slot, up to 512 GB
|
|
|
General
|
||
|
Firmware Version
|
–
|
|
|
Web Client Language
|
15 languages
English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese |
|
|
Operating Conditions
|
-40 ～65 , 0～95% RH
|
|
|
Power Supply
|
DC12V±25%/PoE
|
|
|
Power Consumption
|
MAX: 6W (12V) MAX: 7W (PoE)
|
|
|
Protection
|
IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
|
|
|
Heater
|
N/A
|
|
|
Dimensions
|
116.6 83.7mm ( 4.59 3.30inch)
|
|
|
Weight
|
0.50Kg (1.10lb)
|
|
FAQ
Q1:When will you ship my order?
Ordinary, once we get confirmation for payment,we will ship order within 5-7 days.
Q2:How is your after-sale service?
One engineers work more than ten years we will respond your technical support within 24 hours.
Q3:Why should I choose your products?
Our products are high quality and low price.
Q4:How about warranty?
Three years warranty.
