STA Synchronous Thermal Analyzer GLO-STA200 Differential scanning calorimeter
Product description:
Synchronous thermal analysis combines thermogravimetric analysis (TG) with differential thermal analysis (DTA) or differential scanning calorimetry (DSC). The same sample can be used to synchronize TG and DTA or DSC information in the same measurement.
Measure and study the following characteristics of materials:
DSC: melting, crystallization, phase change, reaction temperature and reaction heat, combustion heat, specific heat …;
TG: thermal stability, decomposition, redox, adsorption and desorption, free water and crystal water content, calculation of composition ratio, etc.
Structural advantages:
1. The furnace body is heated by double-row winding of precious metal nickel-chromium alloy wire, reducing interference and more resistant to high temperature.
2. Pallet sensor, made of precious metal nickel-chromium alloy, has the advantages of high temperature resistance, oxidation resistance and corrosion resistance.
3. The power supply, the circulating cooling part is separated from the host, reducing the impact of heat and vibration on the microthermal balance.
4. It adopts open top structure, which is easy to operate. It is difficult to move the furnace up to place the sample, which may cause damage to the sample rod.
5. The host adopts heat insulation device to isolate the thermal influence of the heating furnace body on the cabinet and the micro-heat balance.
6.The furnace body can be replaced according to customer requirements
Controller and software advantages:
1. Imported 32-bit ARM processor Cortex-M3 core, faster sampling speed and faster processing speed.
2.24bit quad sampling AD collects DSC signal, TG signal and temperature T signal.
3. The power supply and water circulation part are controlled separately by an 8-bit single-chip microcomputer, so that the host and the cooling part are separated and do not interfere with each other, but the two are closely connected, and the cooling part is controlled by the host.
4. Two-way USB communication is used between the software and the instrument, which fully realizes remote operation. The parameters of the instrument can be set by the computer software and the operation of the instrument can be stopped.
5.7 inch full color 24bit touch screen, better human-machine interface. TG calibration can be achieved on the touch screen
Technical Parameters:
TGA / DSC STA-200 Synchronous Thermal Analyzer
1.Temperature range: room temperature ~ 1150 ℃ can be extended to ~ 1350 ℃
2.Temperature resolution: 0.1 ℃
3.Temperature fluctuation: ± 0.1 ℃
4.Heating rate: 1 ~ 80 ℃ / min
5.Temperature control method: heating, constant temperature, cooling
6. Constant temperature time: 0 ~ 300min
7. Cooling time: 15min (1000 ℃ ~ 100 ℃)
8. Balance measurement range: 1mg ~ 2g can be extended to 5g
9. DSC range: 0 ~ ± 500mW
10.DSC resolution: 0.01mW
11.Sensitivity: 0.01mW
12. Constant temperature time: 0 ~ 300min
13. Display mode: 24bit color, 7 inch LCD touch screen display
14. Atmosphere device: Built-in gas flow meter, including two-way gas switching and flow size control
Atmosphere: inert, oxidizing, reducing, static, dynamic
15. Software: Intelligent software can automatically record TG curve for data processing and print experiment report
16.Data interface: standard USB interface
17.Power supply: AC220V 50Hz

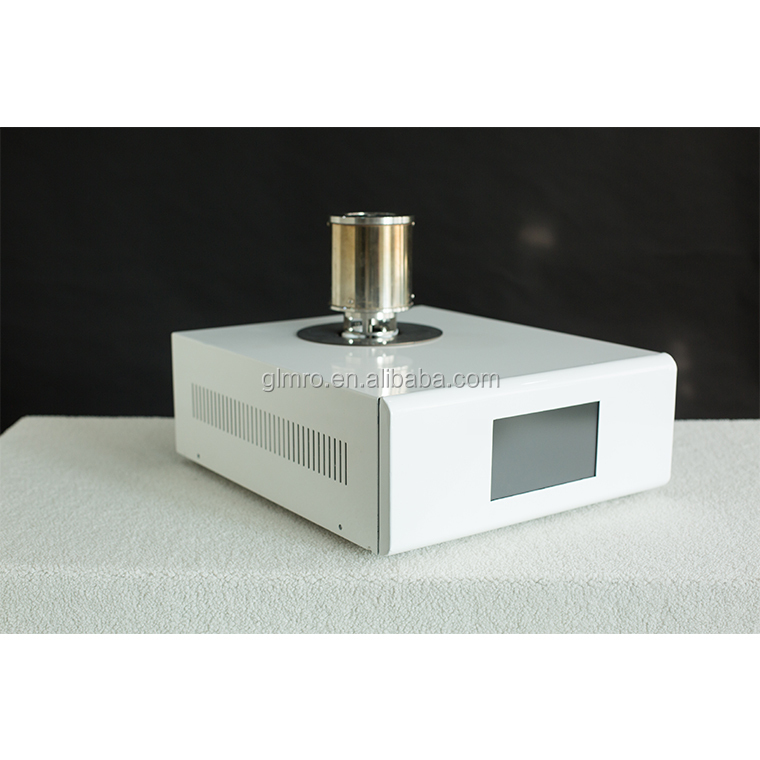

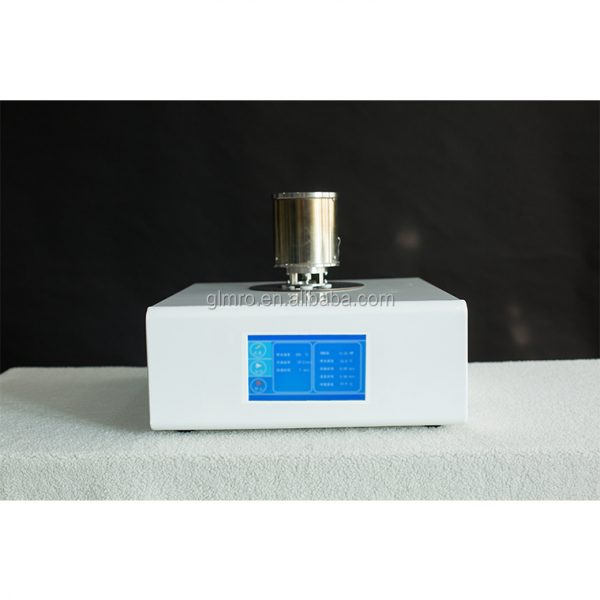

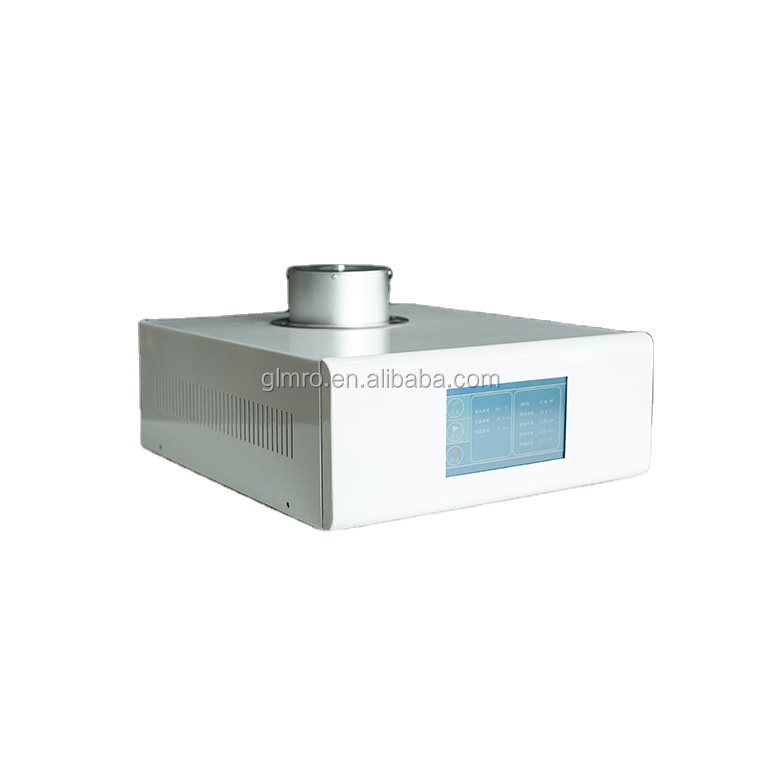

Product Picture:
1. Aluminium box and carton box, careful and tight package, make sure the package is intact
2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order.
If you encounter with any problems during the testing process,we promise providing urgent guidence and after-sales sevice within 48 hours and solution providing within 3 working days. If customers require on-site service, the transport and travel expense shall be responsible for the cost.
1. Pre-service
24 Hours online service for customers’ consultation.
2. Middle service
–Fullfill customer’s request:
–Payment method depends on customer.
–Promptly production and delivery
–Can provide invoice value if you want to decrease your tax.
3. After sale service
–One year warranty service and all life maintenance.
–Technical Egineer are avalible for oversea trainning.
–Remote control technical consult
Shanghai Glomro Industrial Co., Ltd was founded in 2012. Specializing in the production of testing equipment and industrial measurements and instruments products. Products of high quality, fashionable, widely used in a variety of industrial areas, not only has the broad masses of the domestic sales market, but also exported to Europe and the United States.
Glomro hinge over the years has always adhered to “quality of products in order to survive, credibility and development services” business purposes. Committed to providing you with high-quality products and quality services. Have a professional, dedicated design management team, from product design, mold making, molding to the Product assembly, for each aspect and processes are rigorously testing and control.
Over the past few years of production and management and exploration, Longtai set up its own quality management system. Industry standards including SAE,IEC JEDEC,ASTM and MIL-STD,ISO:9001,UL,CE certified. Glomro always implement the concept of customer value creation for customers tailored products to meet the needs of different customers, and continuously provide customers with solutions to technical problems,further exploration innovation,and excellence.
Warmly welcome you and opening up the boundaries of communication. We synchronize with your ideal partner!
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 10 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after – sales services?
A:The testing machine is guaranteed for 12 months by Shanghai Glomro Building Industrial Co.Ltd ,One year promise including free maintenance and changing Instrument components.Besides, Full-life cycle technical support is provided.
Q:What about the product’ services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
