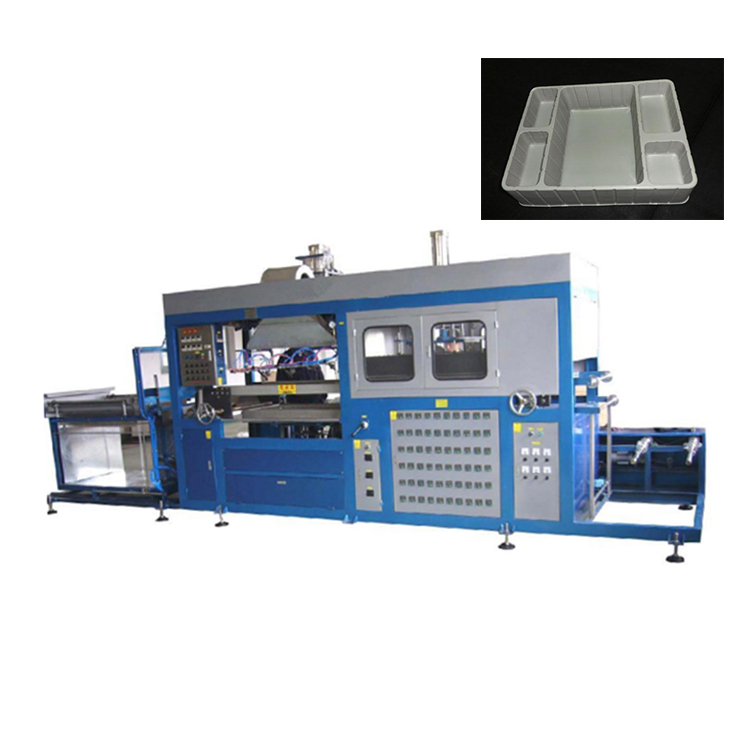

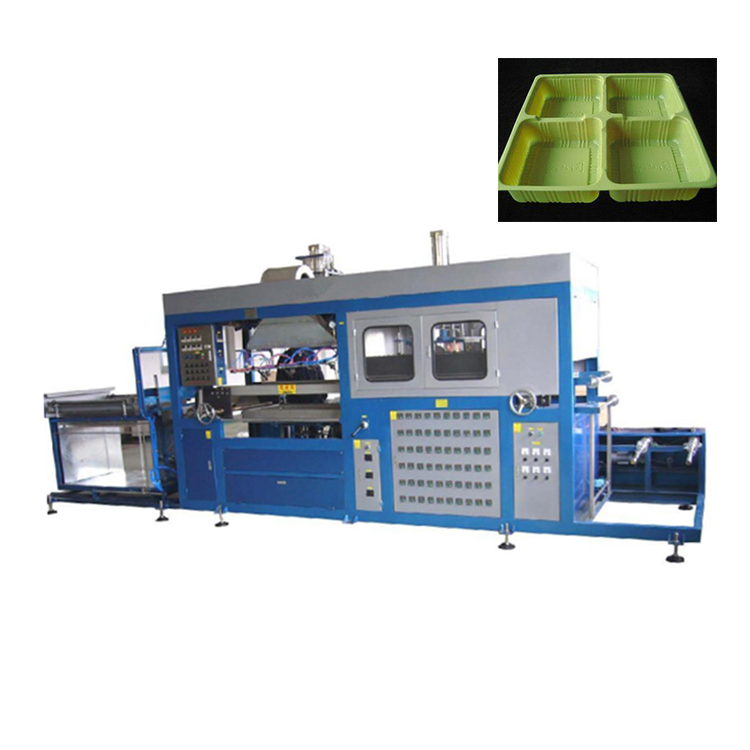

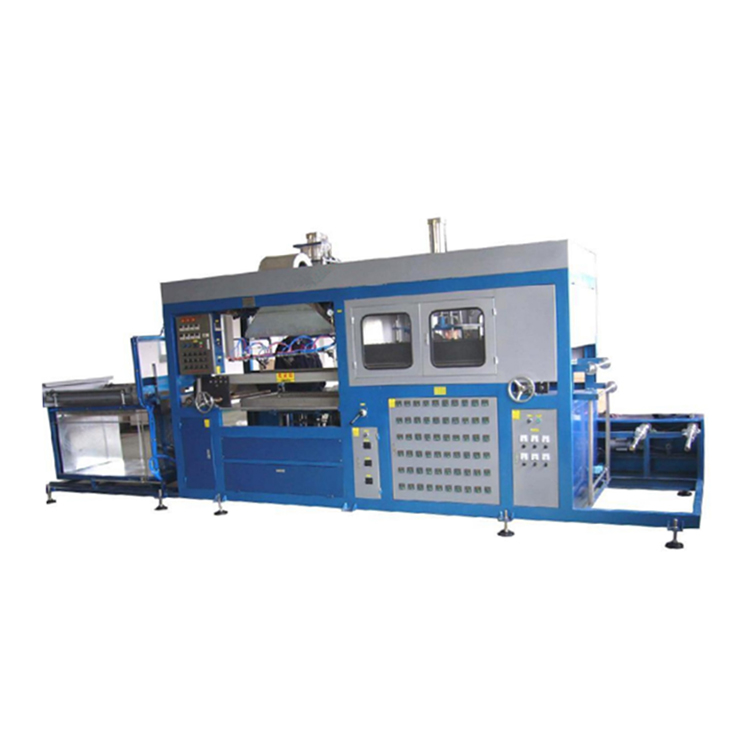

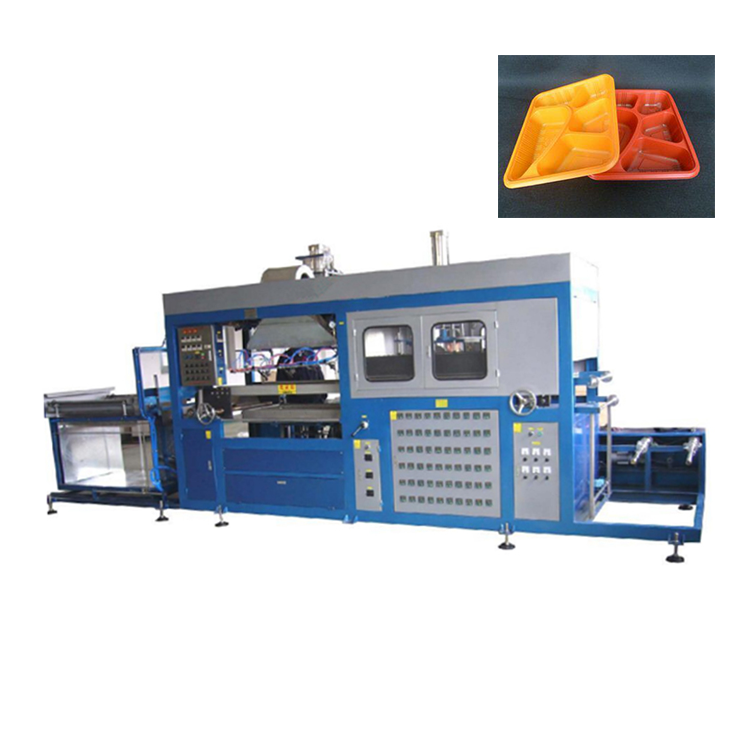

The preferential price is suitable for all kinds of plastic molding vacuum hot forming machines

ر.س120,154.70

Clear
Qty:
Compare

Request quotation for: The preferential price is suitable for all kinds of plastic molding vacuum hot forming machines


 Advantage:

 Plastic forming machine for vacuum packing switches to new energy-saving heat tiles   which can save at least 20% energy
 2. Mitsubishi inverter as a master control system. Material length is accurate to within   ± 3mm.
 3. By adopting universal mold plate, Plastic forming machine for vacuum packing can   save material 15%.



 Main features:

 1. This machine is semi-automatic, pull plastic sheet and move electric furnace are   artificial. Other actions are done automatically.
 2.The control board is near the operator, can be operated easily, greatly improve the   efficiency of production.
 3.The far-infrared ceramic heating elements can control every single block heater   temperature, easy temperature control.
 4.The furnace is guided by bearing and guide pin, can move steady, enhance   efficiency and furnace life.
 5.The cooling fan is equipped with a wide mouth and spray device, to improve   efficiency and product quality.
 6.This machine can be equipped water spray cooling system if the blister is deep and   complex.
 7.This machine can form all kinds of blisters just replace mould.

Product Attribute
Model CH-71-GSJ
Power Supply 380V 3P 50/60HZ
Power 27KW
Forming size 710*1220MM
Max forming height 200MM
Speed  220-480Moulds/H
Thickness of material 0.2-1.5MM
Machine Dimension 7600*2500*2600MM
Machine  Net Weight 3000KG


_08.jpg_10.jpg_11.jpg_12.jpg_13.jpg_14.jpg_15.jpg_16.jpg_17.jpg_18.jpg_19.jpg_20.jpg_21.jpg

Model Number

CH-71-GSJ-210615-2
