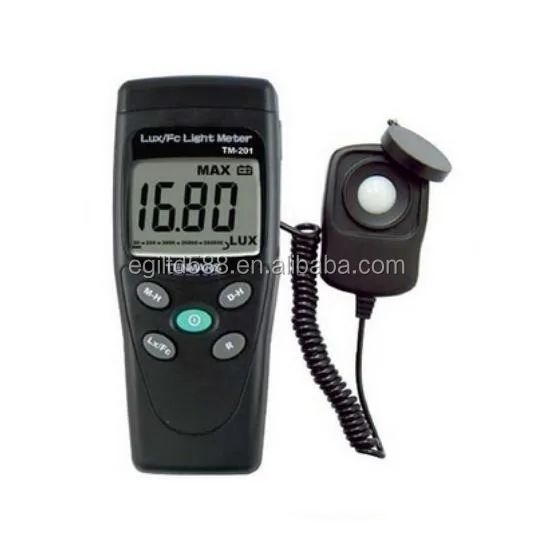

Tenmars TM-201 Measuring Lights Source Include All Visible Range LUX/FC Light Meter
Product Description:
– 3 digits LCD with maximum reading 2000.
– Overload indication.
– Low battery indication.
– According to JISC1609:1993 and CNS 5119 general A class specifications.
– Spectral response close to CIE luminous spectral efficiency.
– Measuring intensities of illumination in unit of Lux or Foot-candle.
– Measuring lights source include all visible range.
– Length of wire for light sensor: approximately 1.5M.
– Cosine angular corrected.
-The batteries not included package
Application:
– Warehouses, factories, office buildings, restaurants, schools, libraries, hospitals, building security and parking stations.
Specification:
Model |
TM-201 |
TM-202 |
Data hold |
V |
V |
DC analog output |
|
V |
Max/ Min /AVG hold |
|
V |
Max hold |
V |
|
Zero adjustment |
V |
V |
Sensor |
Silicon photodiode and filter |
|
Measuring range |
200, 2000, 20000, 200000 Lux 20,200, 2000, 20000 Foot-candle |
|
Accuracy |
+/- 3% (Calibrated to standard incandescent lamp 2856º K) +/- 8% (other visible light source TM-201) +/- 6% (other visible light source TM-202) |
|
Angle deviation from cosine characteristics |
30º |
+/- 2% |
60º |
+/- 6% |
|
80º |
+/- 25% |
Dimension:
Meter size (LxWxH) |
130x55x38mm |
Sensor size (LxWxH) |
80x55x25mm |
Weight (including battery) |
250g |
